Model 3411 USB3.2 Gen2 Test Device

Compact Type-C USB test device with remote control port.

Features:

• Type-C data port supports over 7.9 Gbps IN and OUT concurrently, when tested with a suitable host controller and USB host stack.
• Full speed, high speed, gen1 and gen 2 operation.
• Control, bulk, interrupt and isochronous transfers.
• Superspeed isochronous supports 96k high bandwidth operating at gen2, 48k high bandwidth at gen1.
• Integrated 96x64 OLED display gives real-time feedback of enumeration speed and status.
• Micro-B port provides remote control and power (via integrated USB UART).
• Power from micro-B port takes precedence over power from Type C port.
• Field-upgradable firmware.
• 1 gigabyte of onboard RAM.
• 16 megabyte onboard flash.

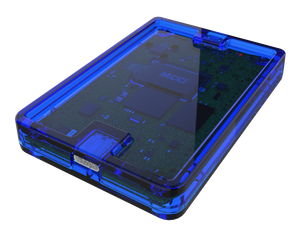

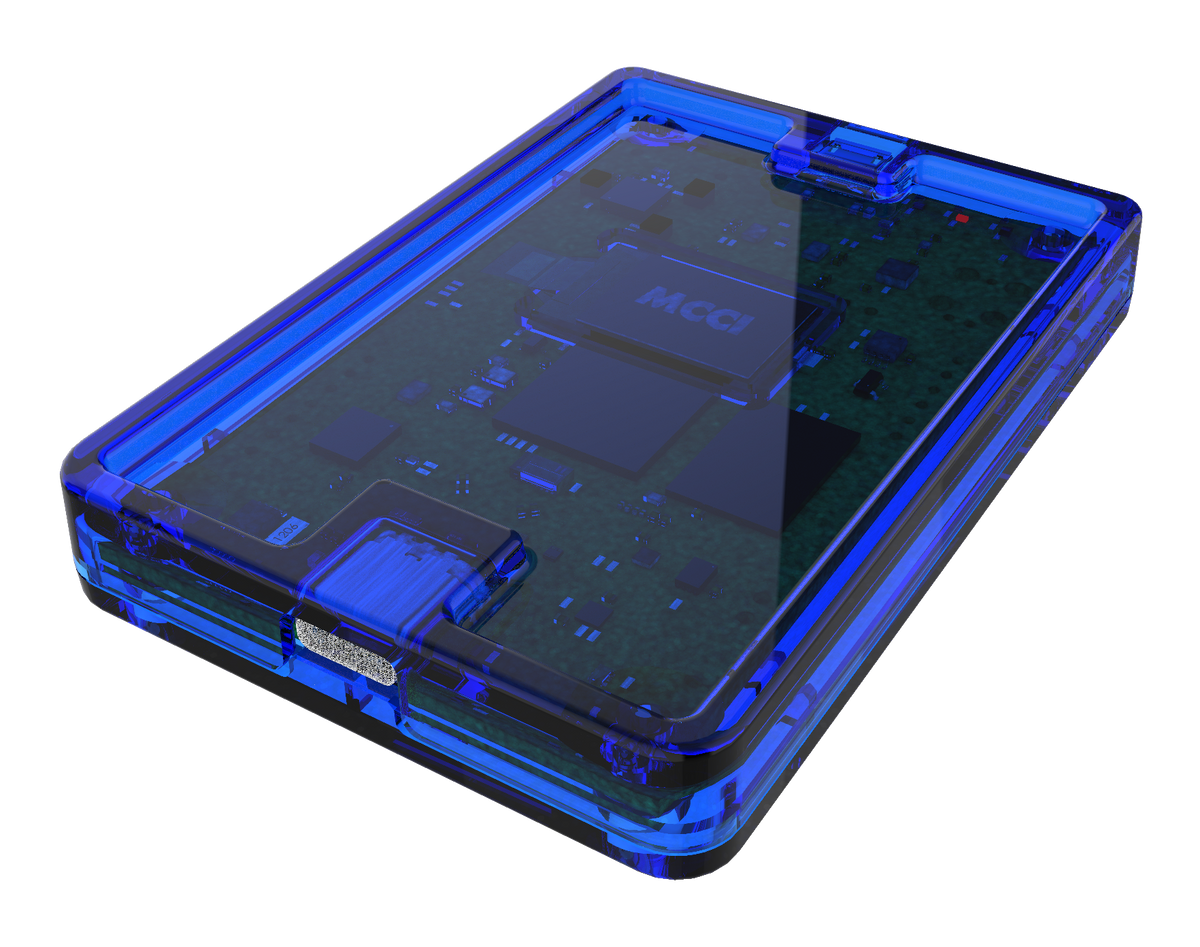

• Attractive, rugged plastic enclosure.

Custom firmware variants available from MCCI.

Now in final test at MCCI; production shipments will begin Q4 2020.
