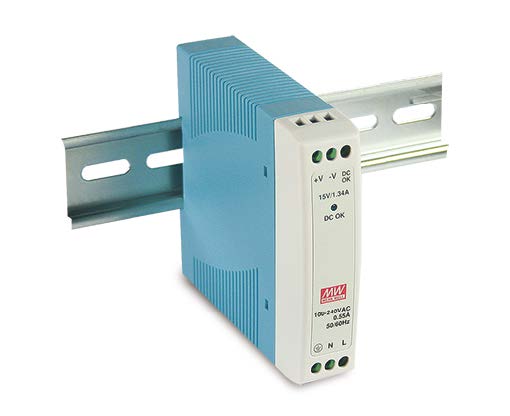

Mean Well DIN-Rail Power Supply for Model 4811

Mean Well DIN-Rail Power Supply for Model 4811

MCCI P/N
123001620
—
$ 33.00
—
Contact sales

This 10W 12V power supply is ideal for powering the Model 4811 meter (as well as the signal-conditioning modules for Rogowski coils).

Key specifications:

  • Universal AC/DC input, 85~264 VAC 47~63Hz, 120~370 VDC
  • 12V, 0.84A output
  • Short circuit / overload / overvoltage protection
  • Cooling by free air convection
  • Mounts on DIN rail TS-35/7.5 or 15
  • LED indicator for power on
  • No-load power consumption < 0.75 W.
  • 100% full-load burn-in test
  • 3 years warranty
