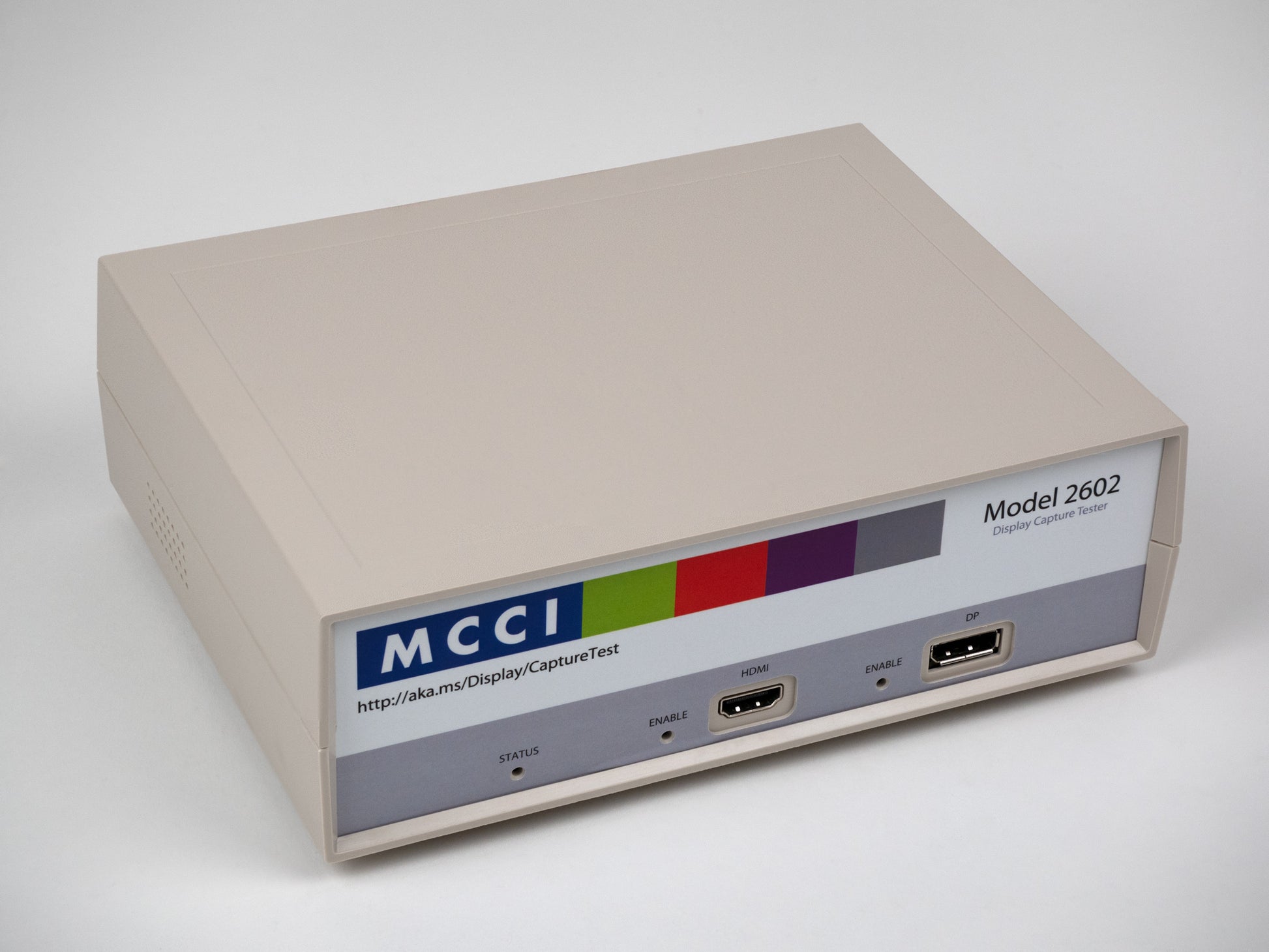

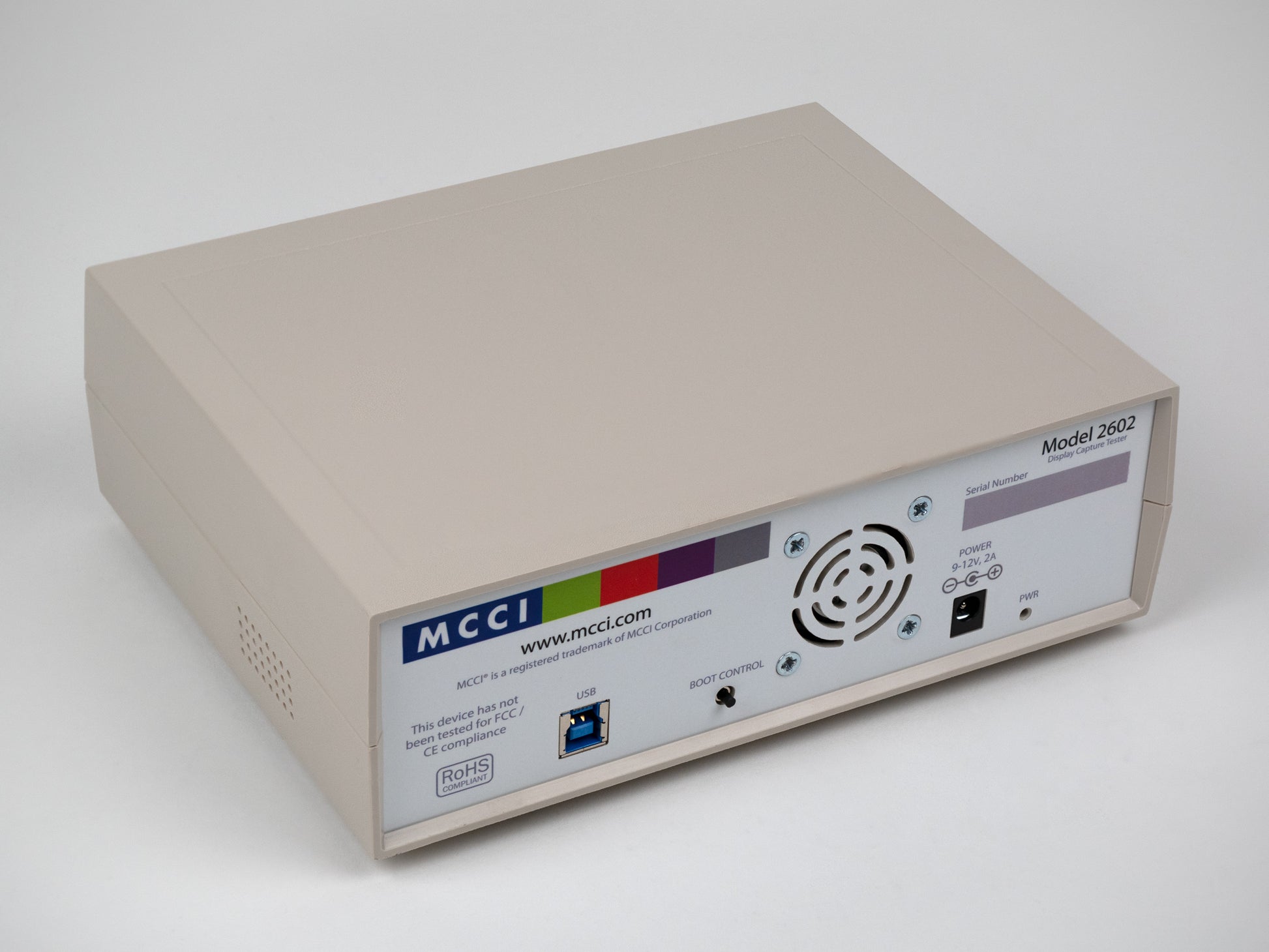

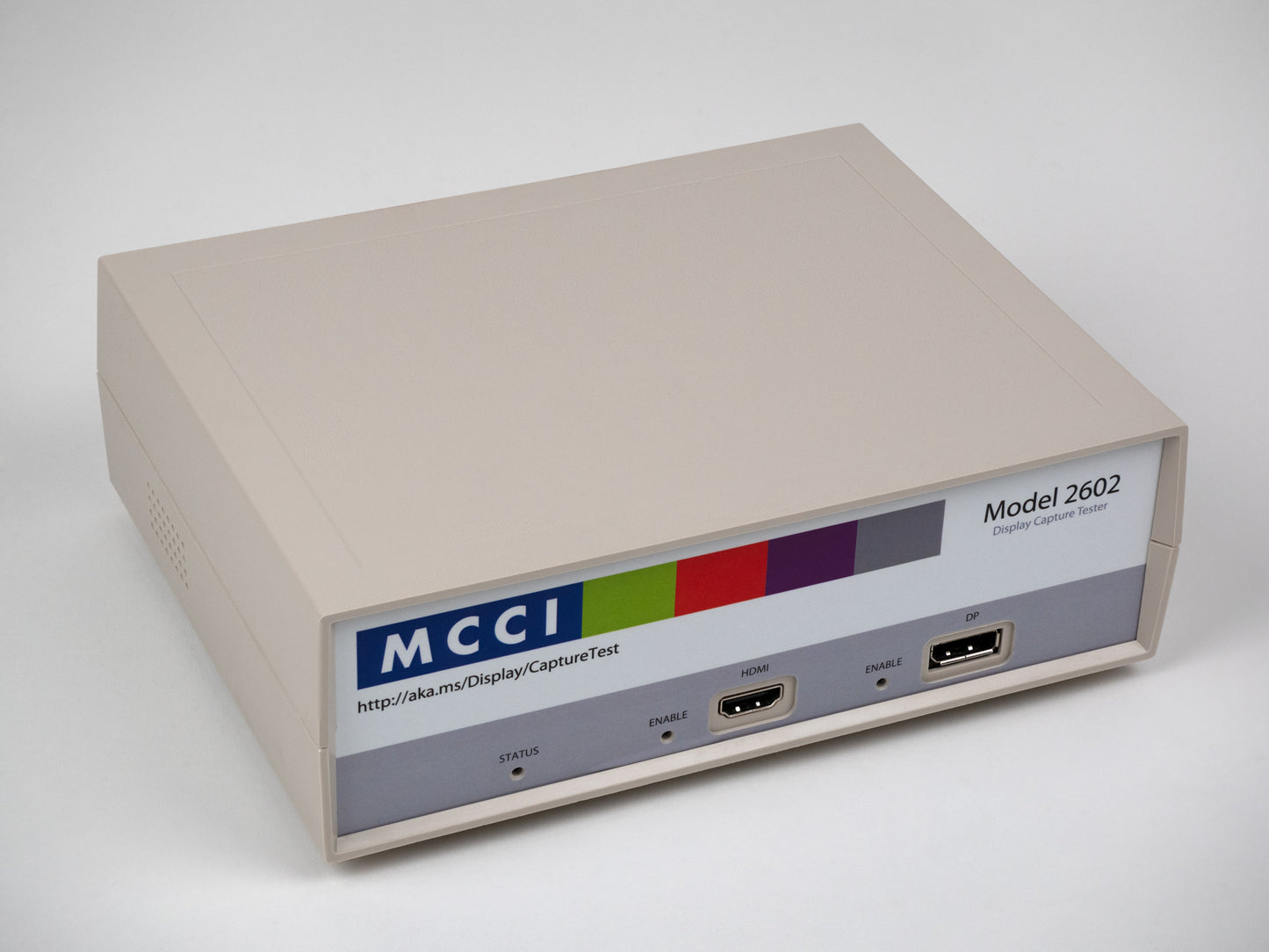

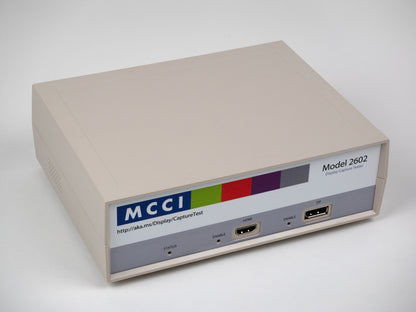

Model 2602 Display Capture Tester ("Tanager")

The Model 2602 "Tanager" is a general-purpose video capture device compatible with (and tested with) the Microsoft Display Capture Test tools used to exercise graphics drivers for Microsoft Windows. It captures video streams from HDMI or DisplayPort graphics cards, at resolutions up to 4k @ 60 Hz, and returns the captured data to the test host over USB 3.

Production units include:

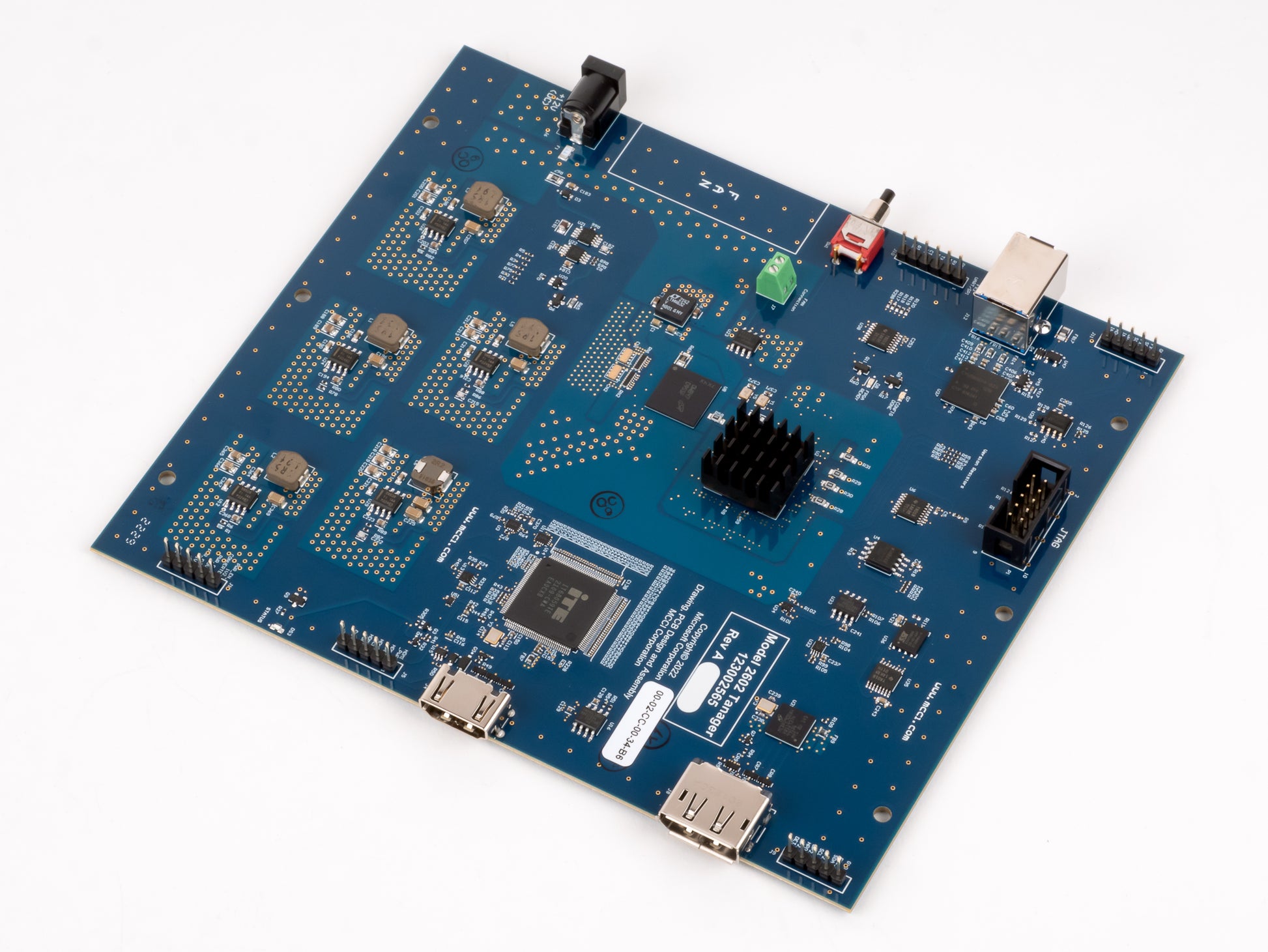

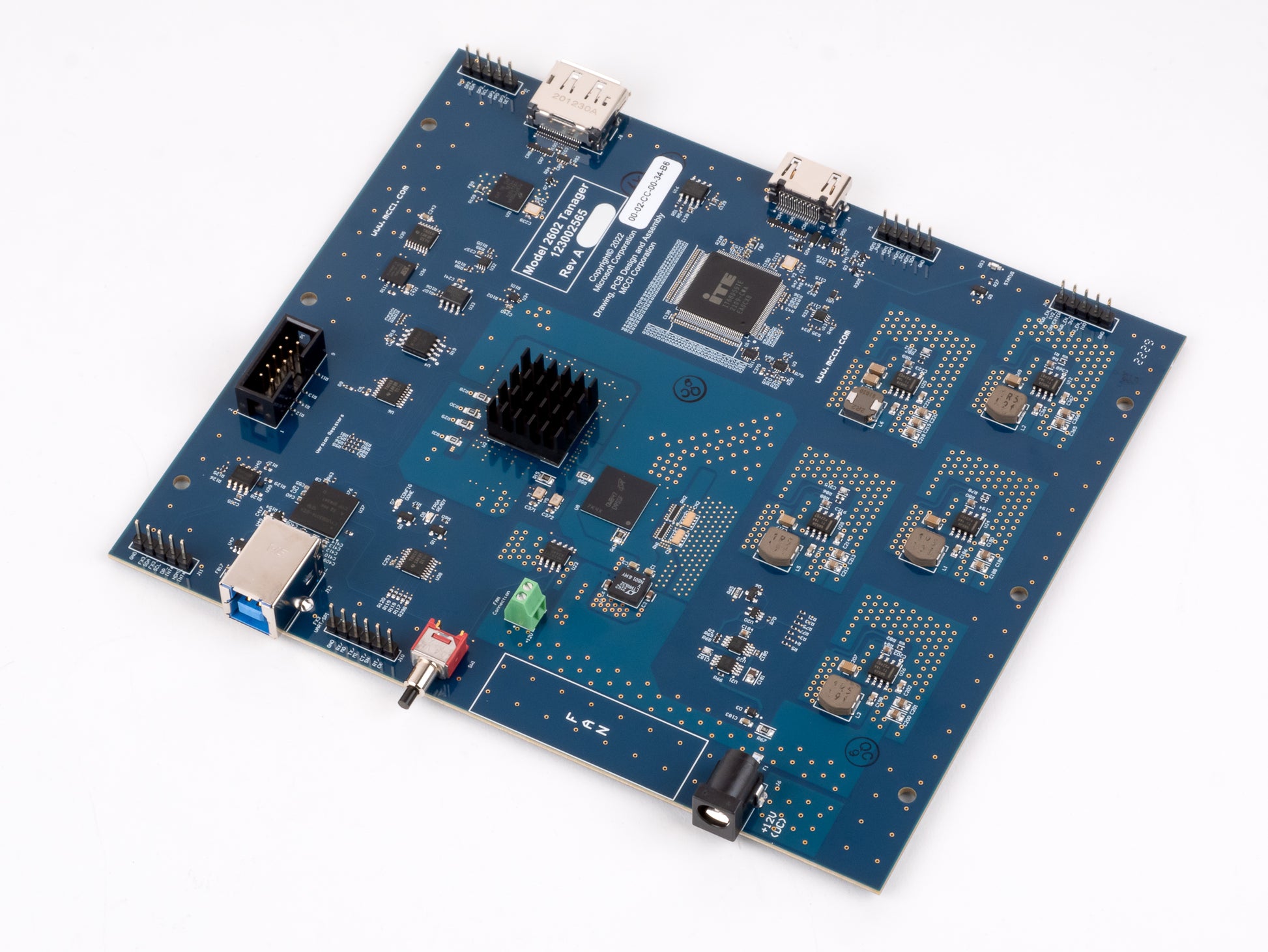

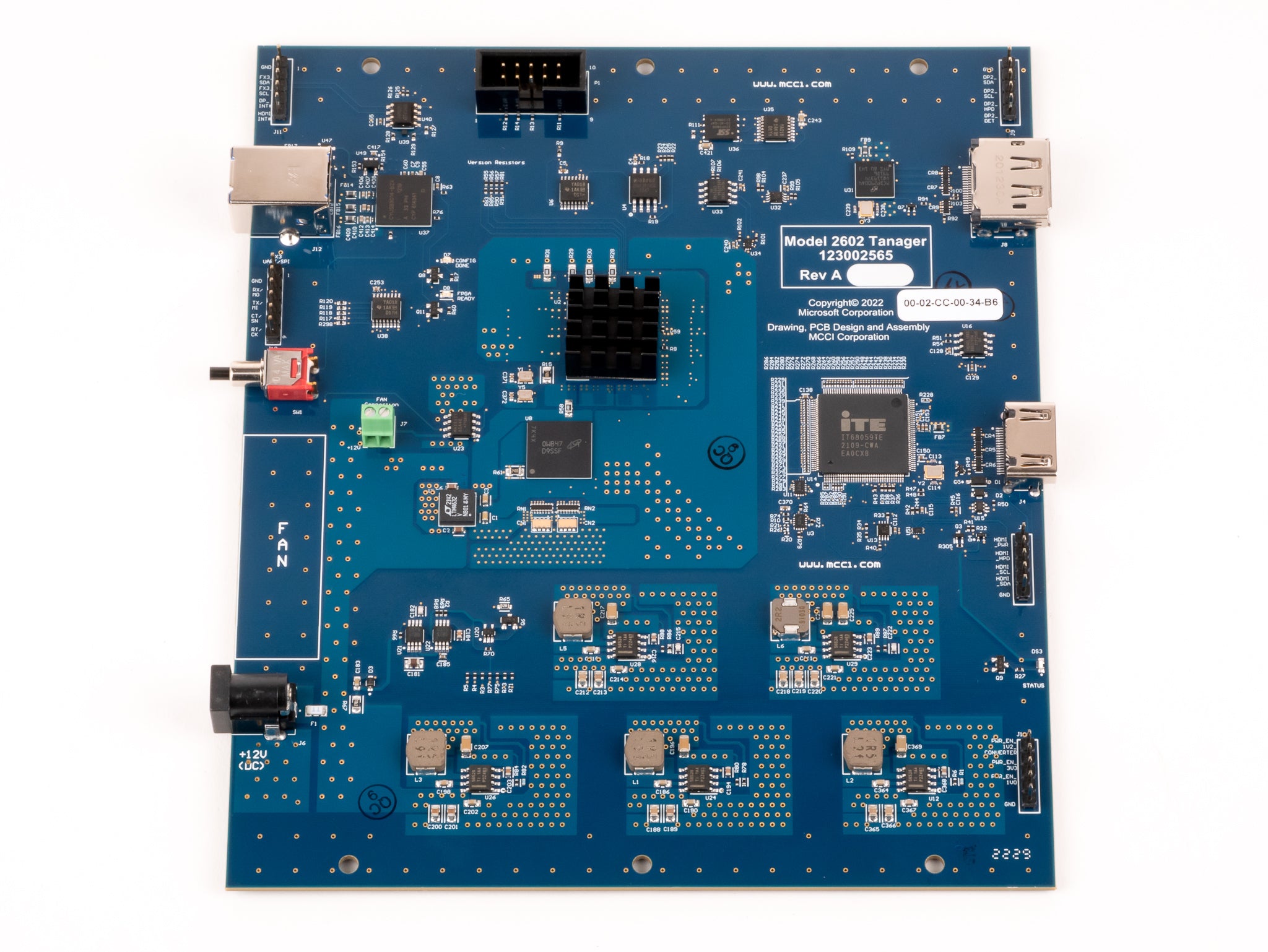

• Electronics (shown in photos)

• Case
• Power supply
• High performance HDMI and DisplayPort cables, good up to 4k @ 60 Hz

They are shipped assembled and tested, and ready to use.

For more information, contact MCCI via email at sales@mcci.com.

Technical Documents

• Model 2602 Datasheet
