MCCI Model 3141 USB4® Switch

MCCI Model 3141 USB4® Switch

MCCI P/N
123002542
—
$ 993.75
—
Contact sales

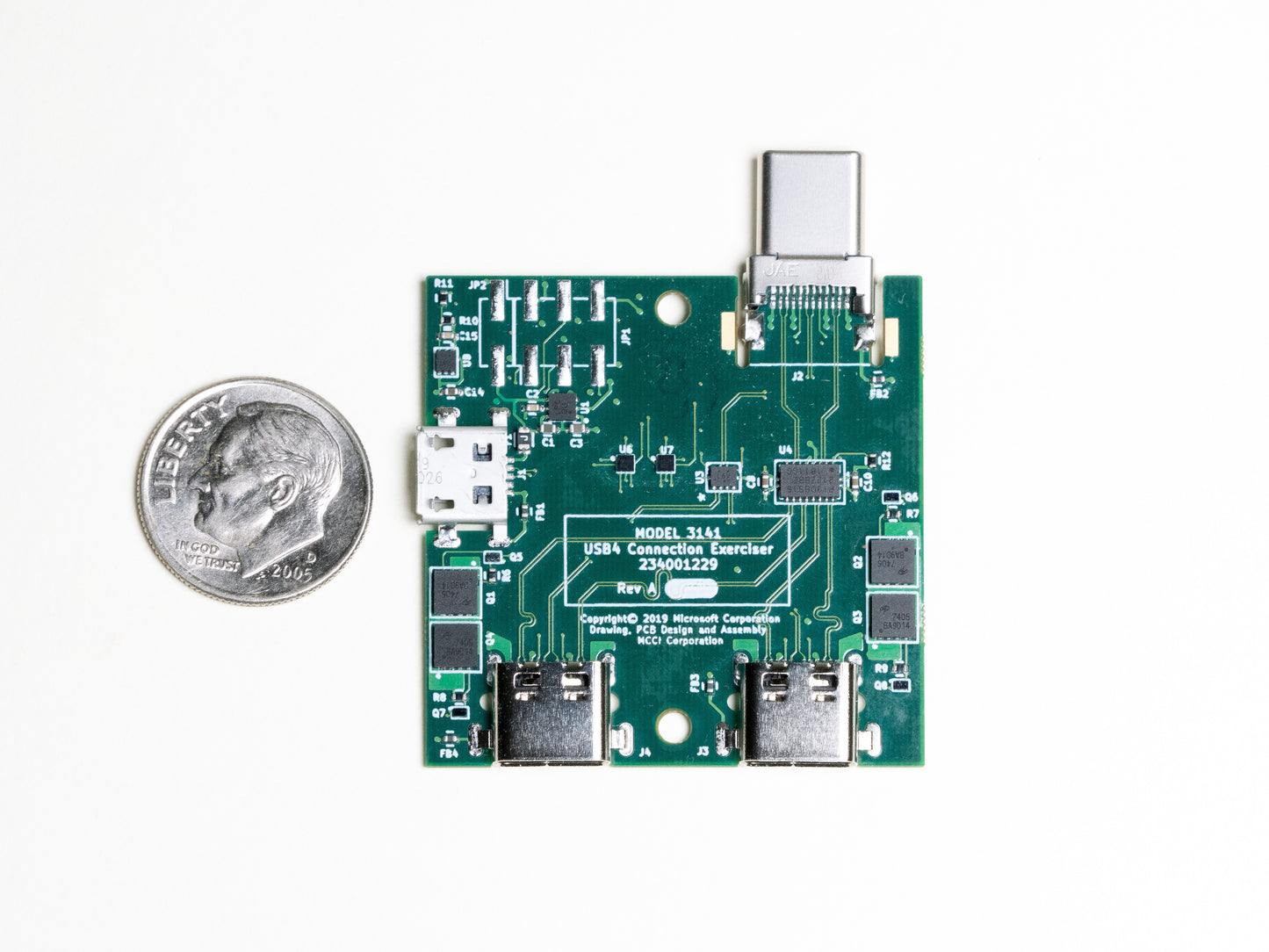

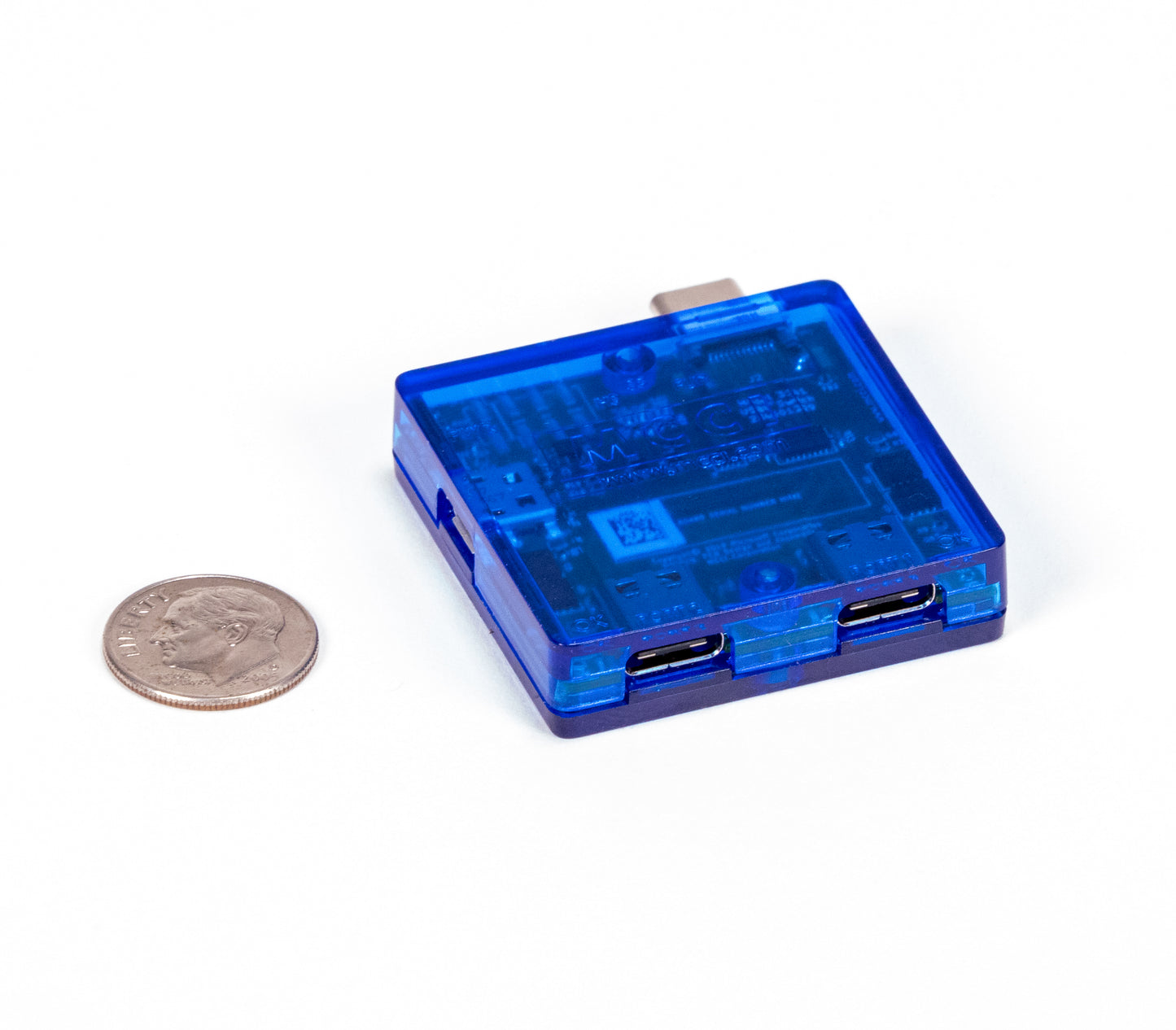

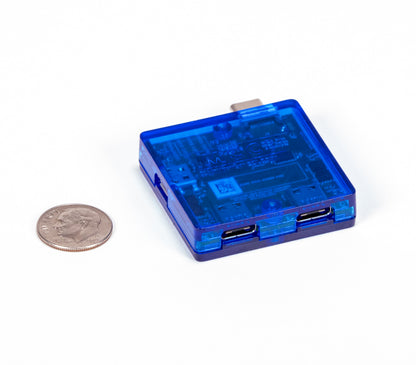

The MCCI® Model 3141 USB4 Switch is a computer-controlled programmable 2:1 switch, connecting two USB Type-C® receptacles to a single Type-C plug. It is compatible with USB4 hosts and devices, as well as older protocols such as Thunderbolt™ 3, USB 3.2 gen2 or gen1, USB 2.0, USB Type-C Alternate Modes, and of course Power Delivery.

It is compatible with the MCCI Model 3201 / Microsoft Type-C ConnEx Connection Exerciser tools and scripts and integrates with the tools in the Windows Hardware Lab Kit (HLK) to support participation in the Windows Hardware Compatibility Program. Microsoft’s USB4 required testing guidance uses the USB4 Switch for automated connect/disconnect stress testing.

It is also fully supported by the MCCI cross-platform Cricket UI. For scripted automation, use cricketlib, MCCI’s Python API for controlling MCCI USB switches and connection exercisers.

Technical Documents

For more information, see the product home page at mcci.com.

Volume discounts are available. Custom variants are also available. Contact MCCI via email (sales@mcci.com) for assistance.

USB Type-C, USB-C, and USB4 are registered trademarks of the USB Implementers Forum. MCCI is a registered trademark of MCCI Corporation. All other trademarks are the property of their respective owners.
