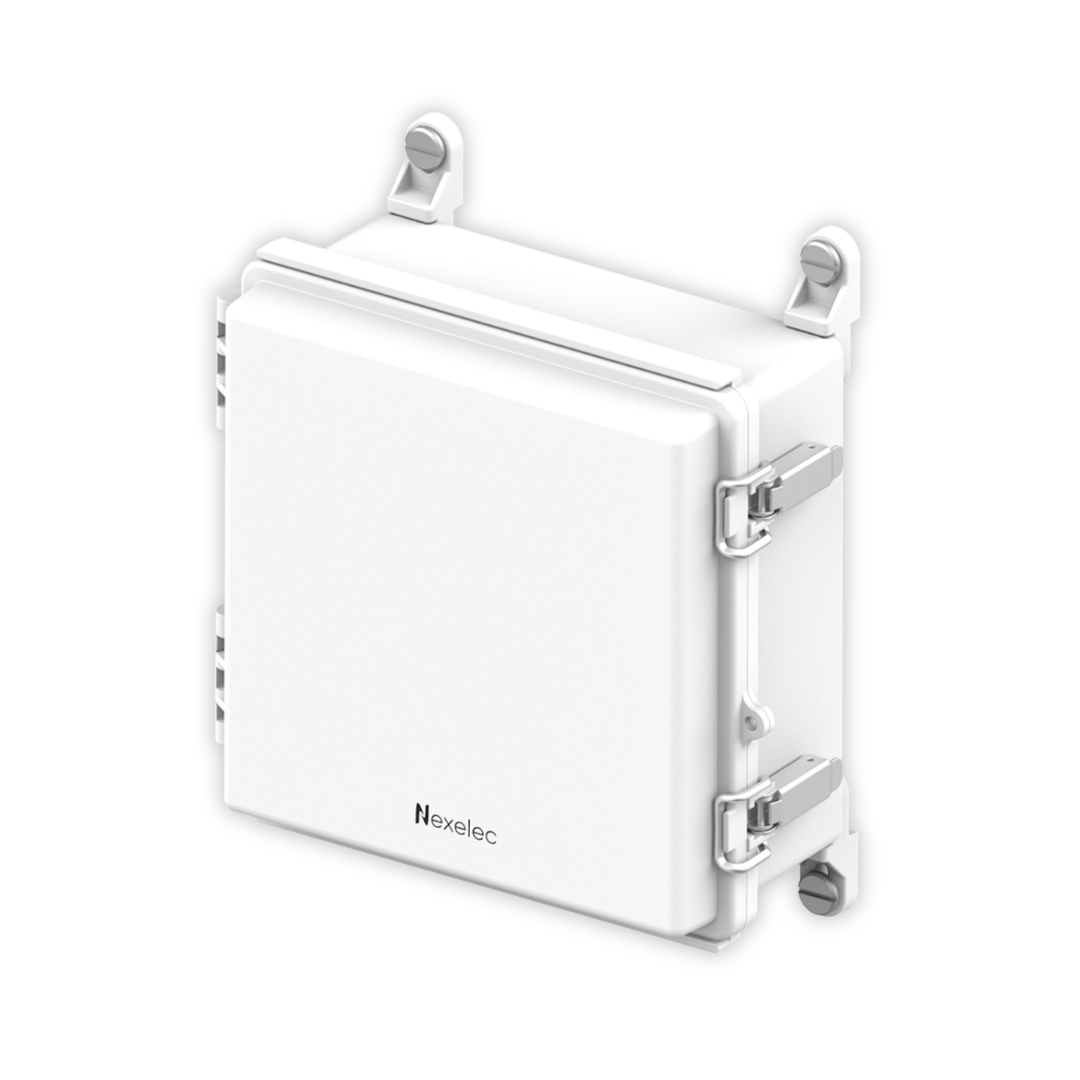

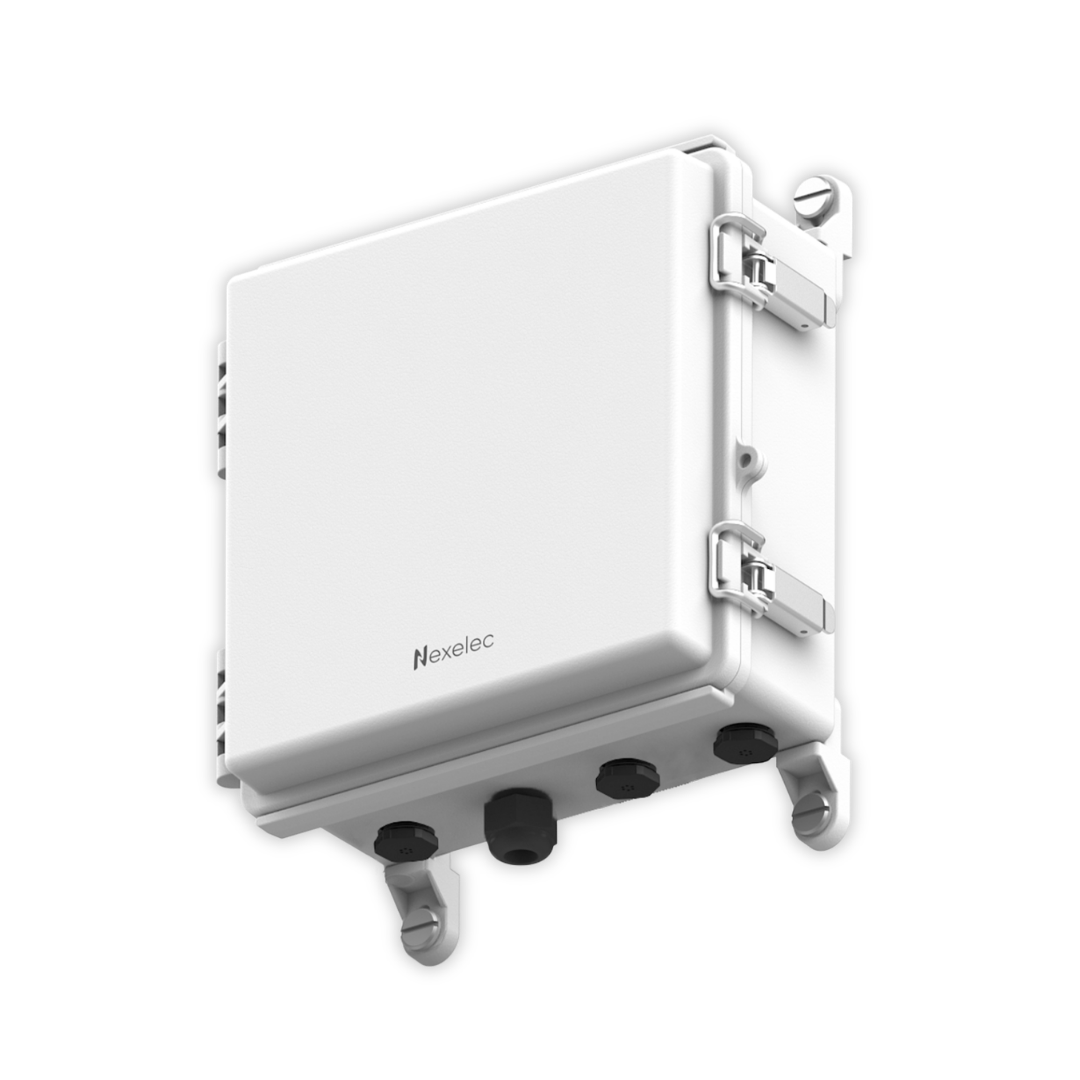

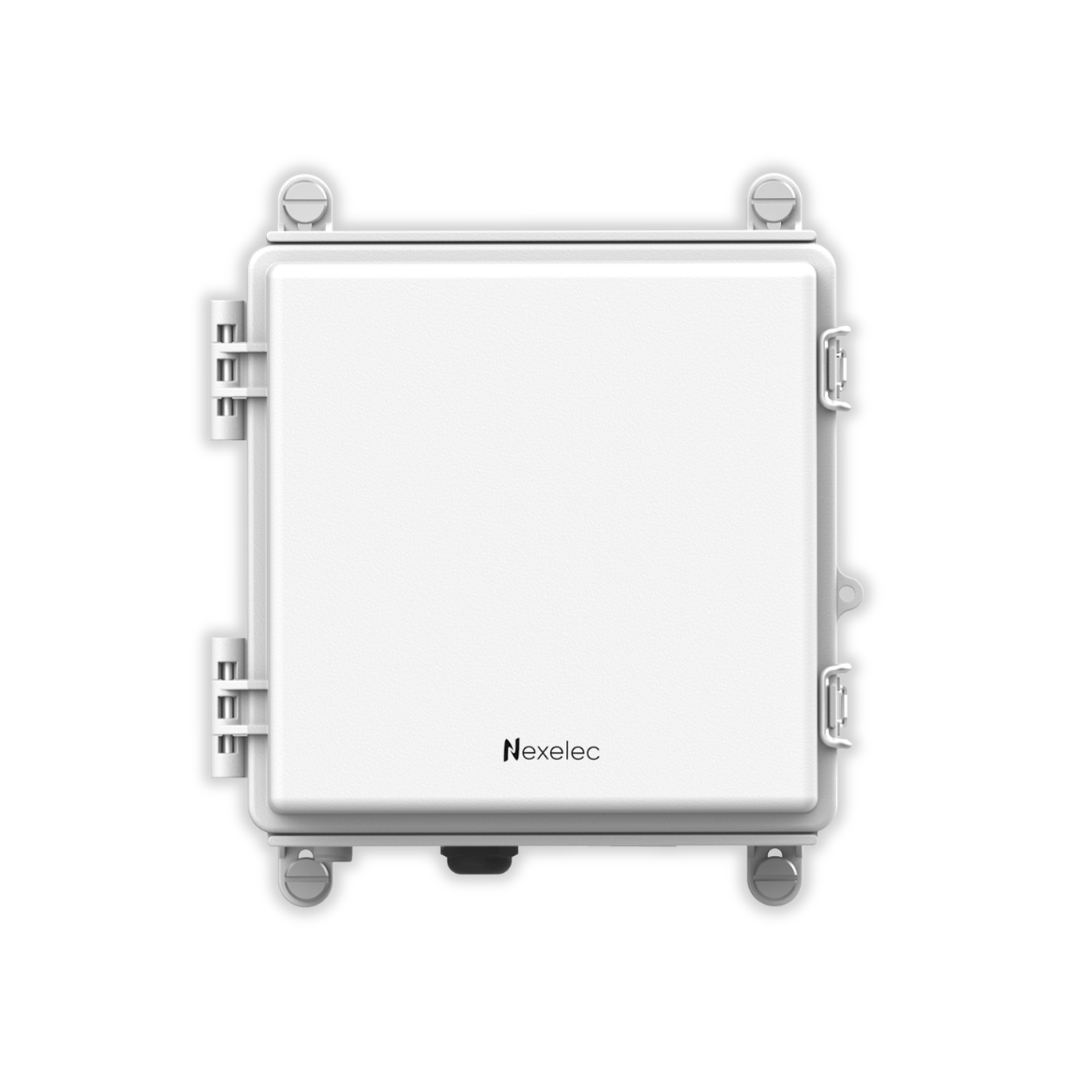

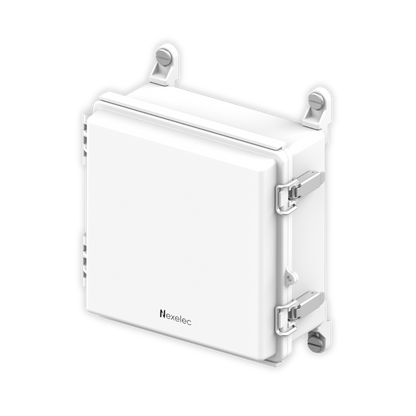

Nexelec LINK LoRaWAN Gateway box for BMS

The Nexelec LINK is a LoRaWAN gateway for professional building management deployments. LINK receives data from LoRaWAN sensors and devices installed in a building and transmits it to the NAVIXIS cloud supervision platform for monitoring, analysis, and control. An integrated 4G LTE modem with SIM card provides a secure connection independent of the building's own internet network — no IT infrastructure changes required.

LINK ships ready to use: plug in the power cable, scan the QR code, and the LoRaWAN network is live within minutes. The IP67 enclosure supports indoor and outdoor installation without additional protection.

For deployments requiring direct BACnet/IP integration with a BMS controller, see the Nexelec MASTER gateway.

Key Features

• LoRaWAN data collection: Receives data from LoRaWAN sensors and devices installed throughout the building and transmits it to NAVIXIS for analysis and supervision.
• 4G LTE connectivity: Integrated multi-operator SIM card provides secure remote access independent of the building's internet network — no Ethernet or IT involvement required for commissioning. Traditional Ethernet access is also supported.
• NAVIXIS supervision platform: Cloud-based IoT management included. Monitor LoRaWAN network performance (signal strength, transmission quality, equipment status), visualize sensor data, set threshold alerts, and access data via API or webhook. Data stored on secure servers for 3 years.
• Compatible with a wide range of LoRaWAN equipment: Connects air quality, energy, security, and other LoRaWAN sensors and devices. Works alongside MASTER gateways — connected devices are automatically distributed to the most suitable gateway without manual configuration.
• Ready to use out of the box: Main settings pre-configured at the factory. Plug in the supplied power cable and scan the QR code — LoRaWAN network active within minutes.
• Modular installation: Can be installed indoors or outdoors. Internal or remote radio antennas available to optimize coverage. On-site configuration takes minutes.
• IP67 waterproof enclosure: Robust protection against dust and water ingress. Compact, sleek design blends into professional environments — suitable for machine rooms or publicly accessible areas.
• Built-in surge protection: Protects the gateway against electrical voltage fluctuations that could damage internal components.
• Simplified power supply: Supplied with a 3 m power cable and standard plug — connects directly to a standard electrical outlet. No special wiring required.
• Dedicated technical support: Nexelec support team assists professionals at every stage of the commissioning process.
• Certifications: CE, UKCA

Applications

• LoRaWAN network infrastructure for commercial and institutional buildings
• Indoor air quality, energy, and security monitoring with NAVIXIS cloud supervision
• Multi-site LoRaWAN deployments with centralized remote management
• Extending existing MASTER gateway deployments with additional coverage areas
• Rapid commissioning where independence from building IT infrastructure is required

Important Notes

• LINK is a LoRaWAN gateway only — it does not include BACnet/IP output. For direct BMS/PLC integration via BACnet/IP, use the Nexelec MASTER gateway.
• LINK requires mains power (supplied cable). No battery backup is included.
• NAVIXIS platform access is included with LINK. Additional optional software modules (air quality, energy, fire safety) are available — contact us for details.
• Other LoRaWAN frequency bands are available. Contact us to discuss the configuration for your project.
• LoRaWAN sensors and devices are not included and are ordered separately.

Specifications

Technical Documents

• DataSheet

Contact us to discuss LoRaWAN frequency band options or NAVIXIS software modules for your project.
