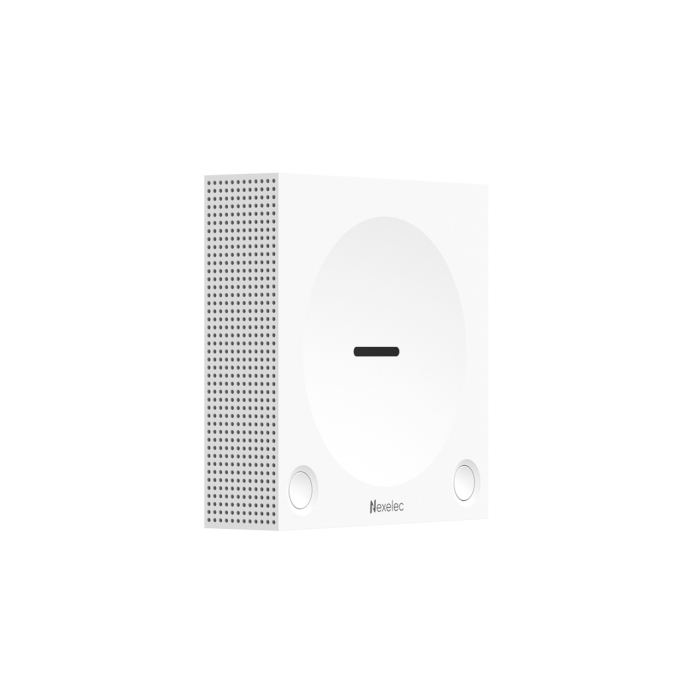

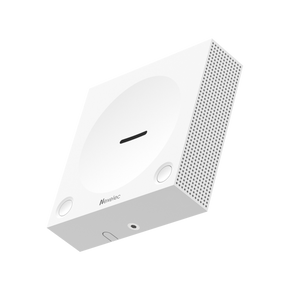

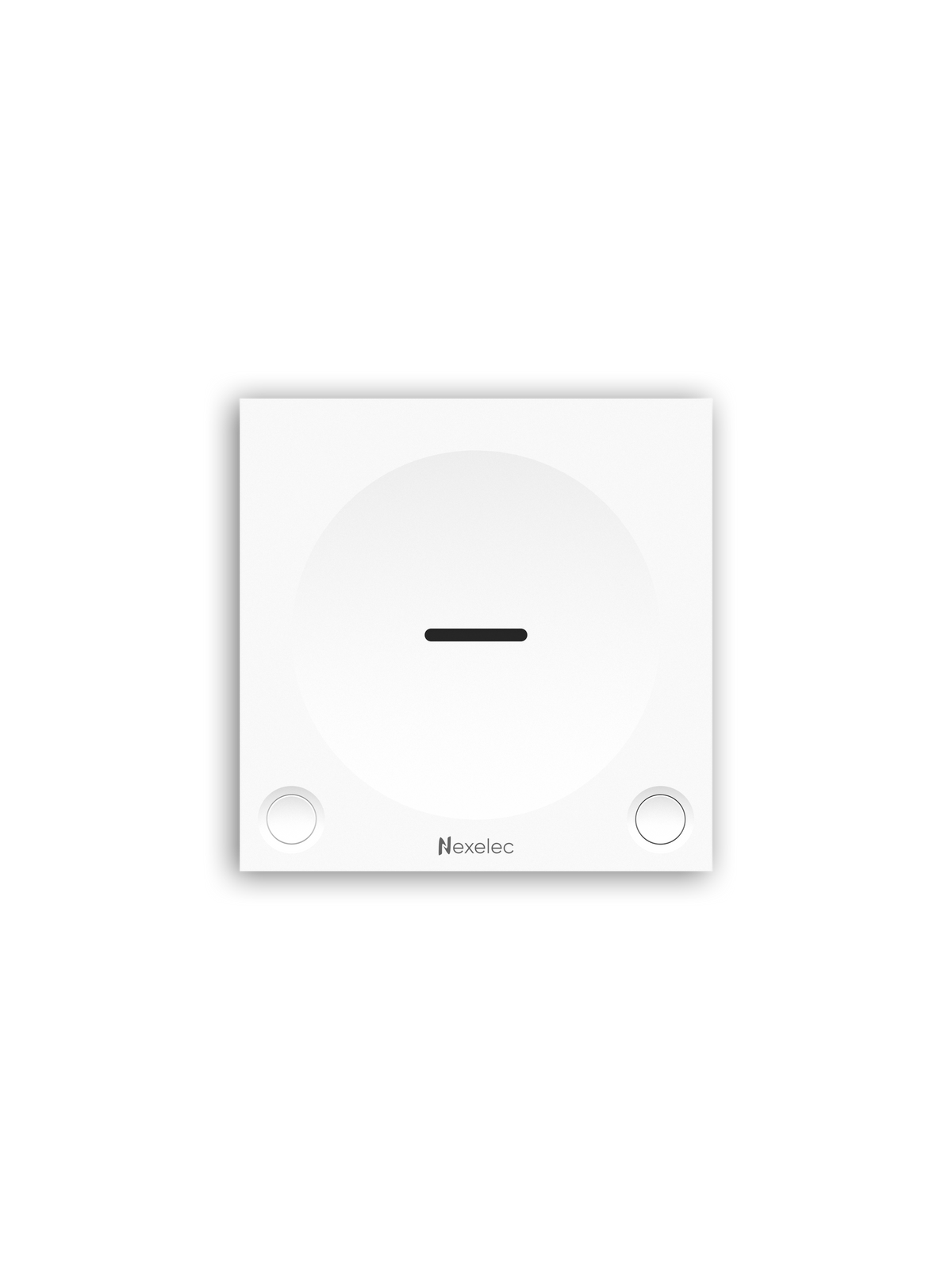

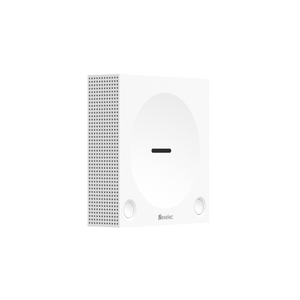

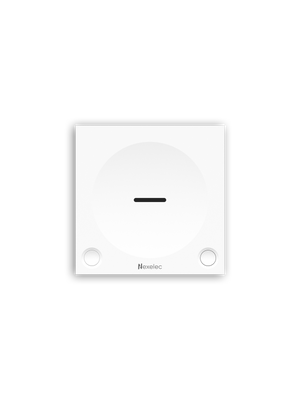

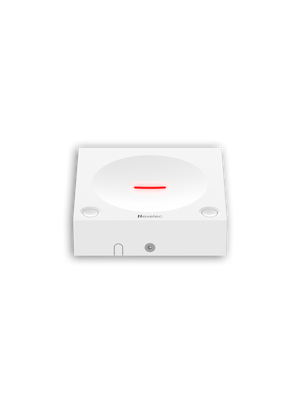

Nexelec FEEL 2-in-1 Room Sensor
Nexelec FEEL 2-in-1 Room Sensor
Regular price
$ 99.00 USD
Regular price
Sale price
$ 99.00 USD
Unit price
per
SKU:123004172
Out of stock — Available on backorder
Couldn't load pickup availability

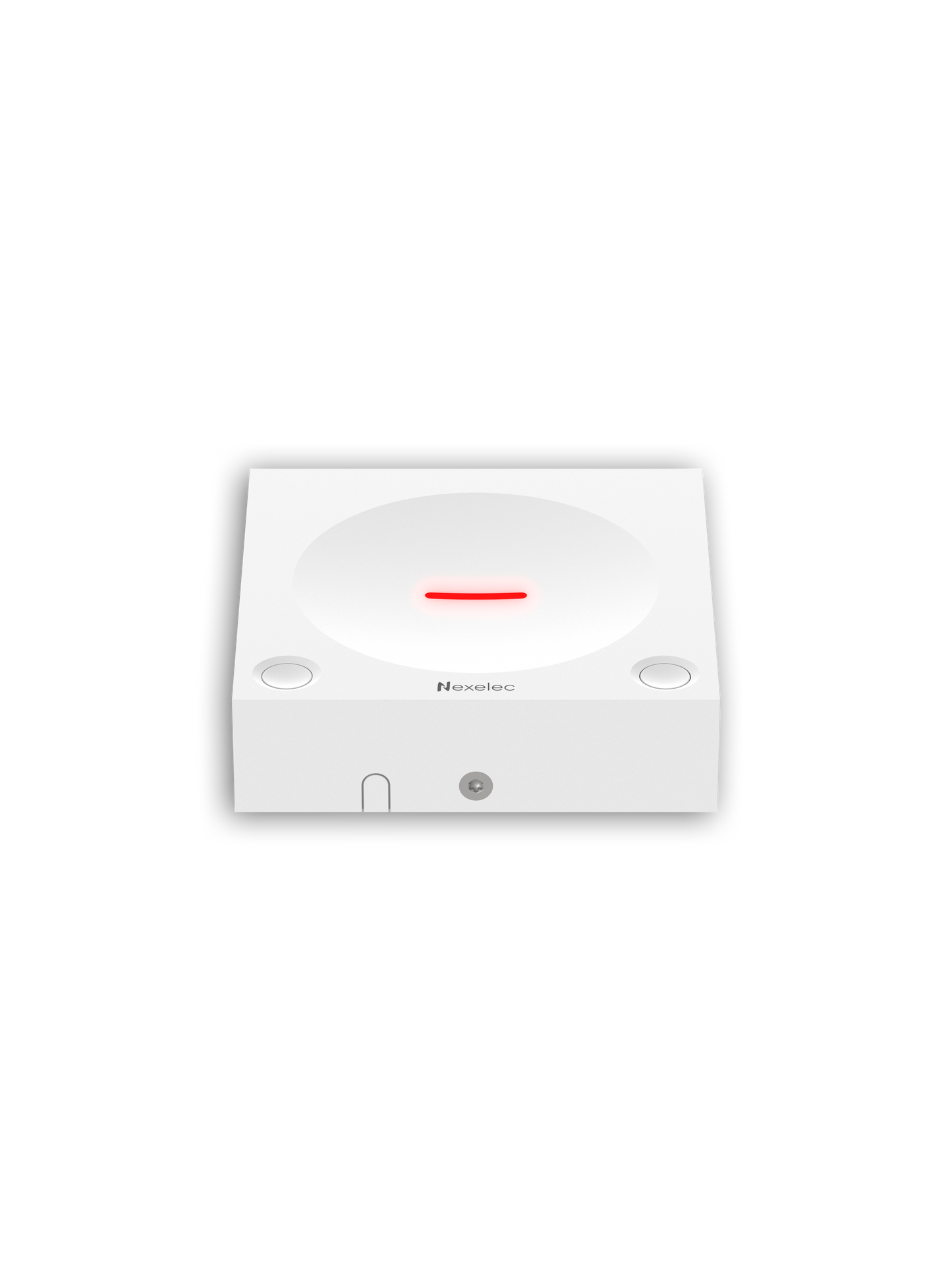

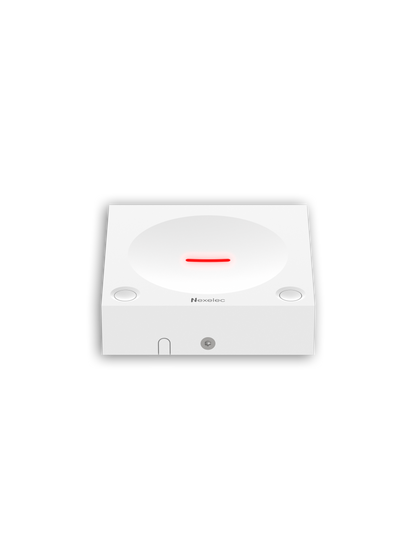

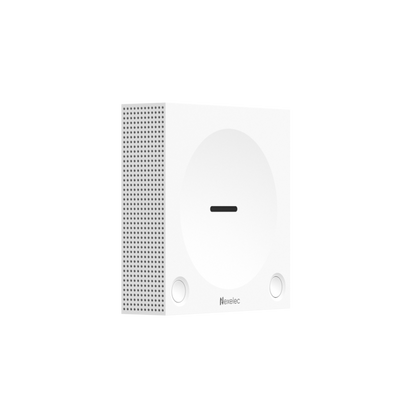

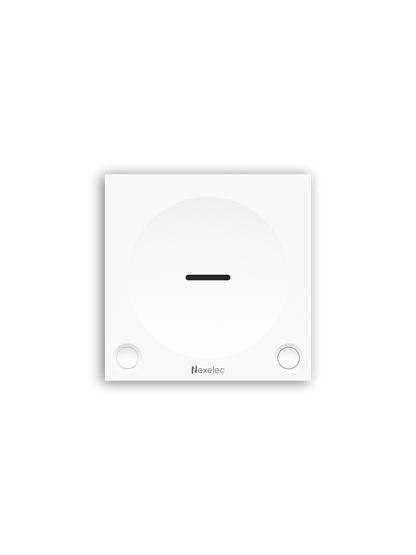

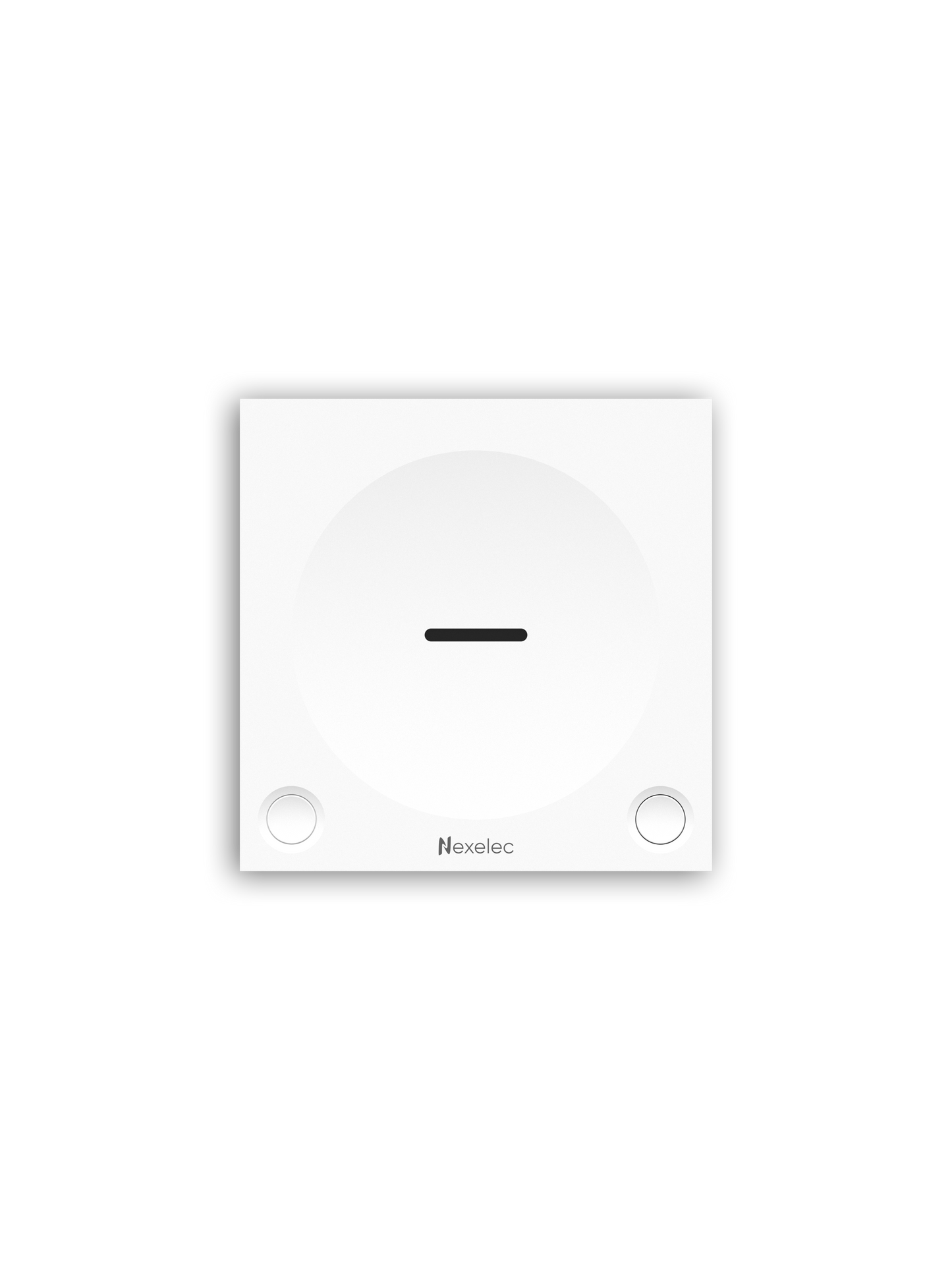

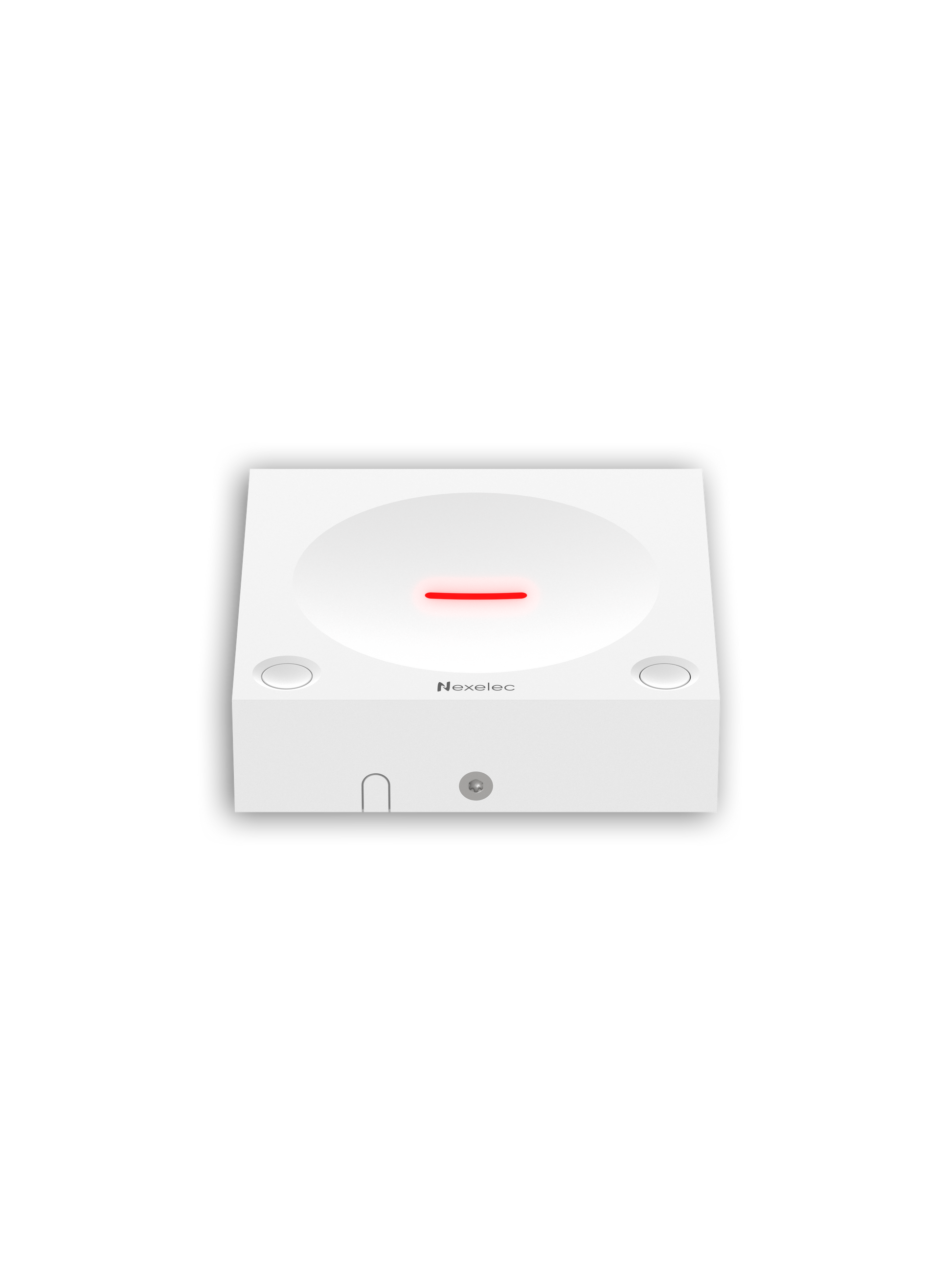

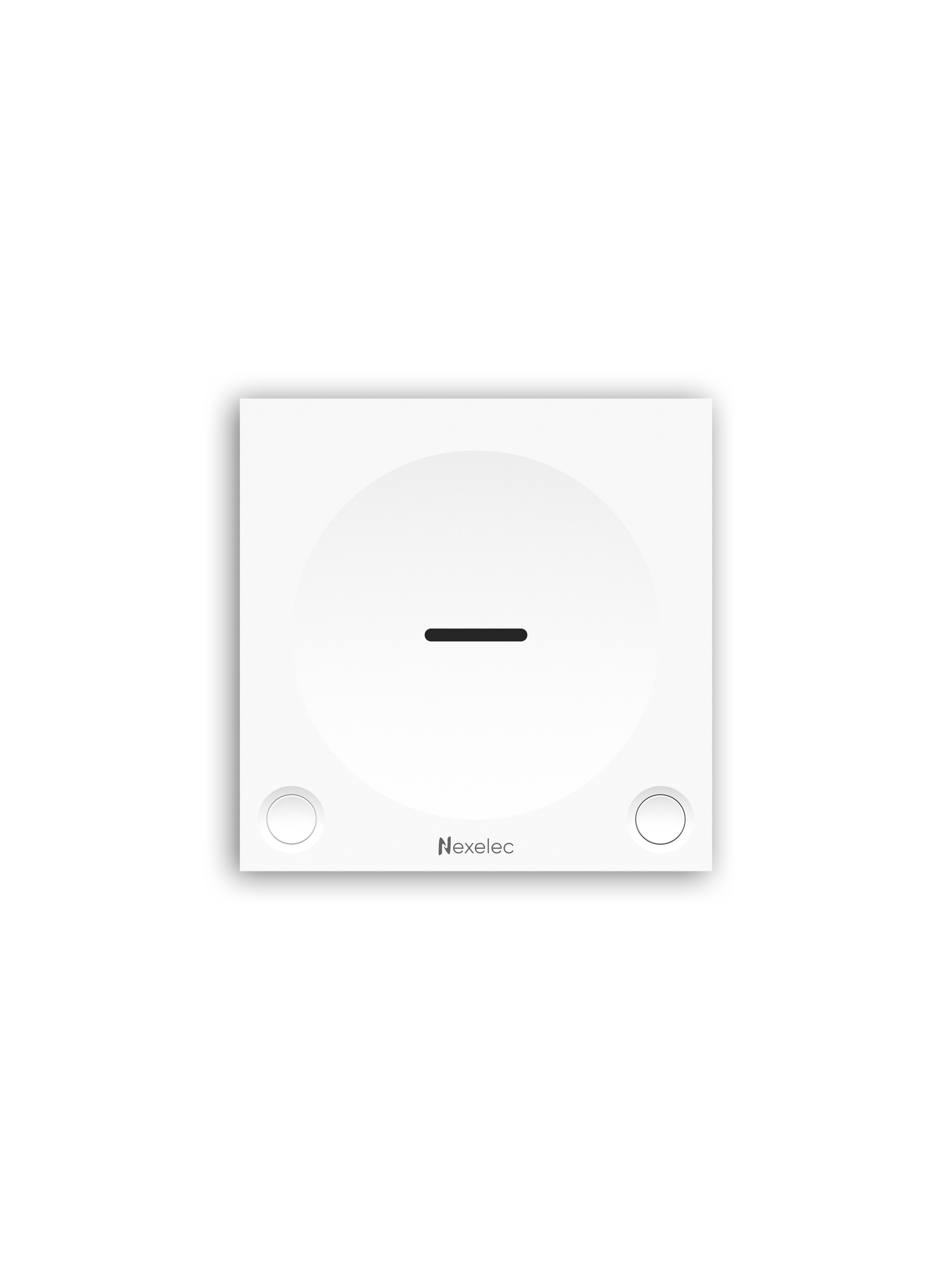

The Nexelec FEEL is a 2-in-1 LoRaWAN room sensor that measures temperature and humidity in offices, homes, and other indoor environments. All measurements transmit wirelessly to a secure cloud platform for remote monitoring and data logging.
FEEL combines high-accuracy sensing with a compact, minimalist enclosure suitable for free-standing placement or wall mounting. Configuration is done wirelessly via NFC using the Nexelec TOUCH smartphone app - no tools, no wiring, no need to open the enclosure.
Key Features
- Temperature measurement: Resolution 0.1°C, accuracy ±0.2°C, range −30°C to +70°C
- Humidity measurement: Resolution 0.5% RH, accuracy ±2% RH, range 0–100% RH
- Dual wireless connectivity: LoRaWAN and Sigfox (X580LS); LoRaWAN only (X580LR)
- Multi-band LoRaWAN: Configurable for EU868, US915, AU923, and other regional frequencies via NFC
- NFC configuration: Over 25 parameters adjustable via Nexelec TOUCH app — measurement interval, transmission interval, LED/buzzer indicators, radio frequency band, and more. Settings can be made through the packaging before the battery is installed.
- Data transmission modes: Periodic and bundled datalog with redundancy (each frame sent three times to maximize gateway reception)
- End-to-end encryption: Double AES-128 encryption on all transmitted data
- Long battery life: Up to 20 years(1) with one SAFT LS14500 2600 mAh lithium battery. A second battery slot doubles available autonomy.

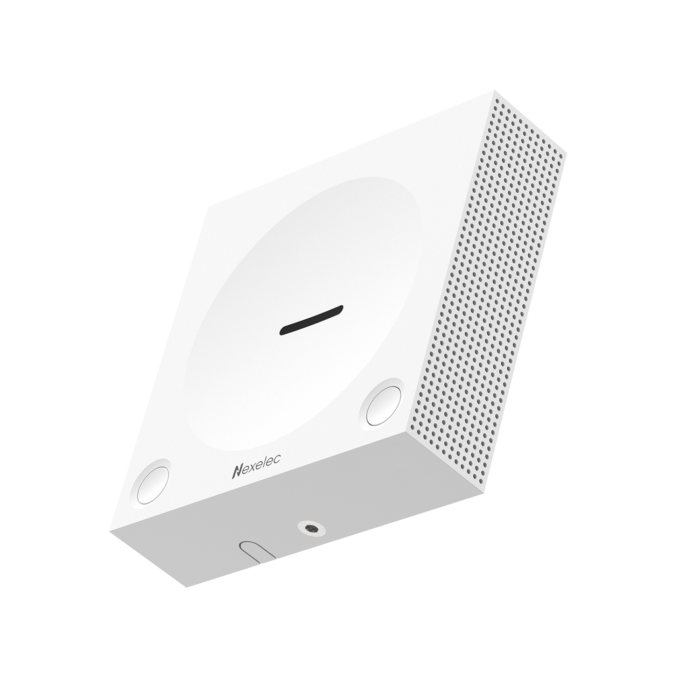

- 270° air circulation: Numerous side openings for better ambient air sampling
- Insect barrier: Integrated pest screen protects the sensing chamber
- On-demand measurement: Front button triggers an immediate measurement and data transmission
- Anti-tamper: Lockable mounting base; alert message sent if the sensor is removed
- Mounting: Free-standing, wall-mounted (screws/plugs included), or 3M adhesive fastener (included) - no drilling required
- Calibration: Sensor calibration certificate from a COFRAC-accredited independent metrology laboratory
- Certifications: CE, UKCA, FCC
Applications
- Office and commercial building climate monitoring
- Residential comfort monitoring
- Cold chain and storage environment monitoring
- Facility management and building automation
- Large-scale IoT sensor deployments via LoRaWAN or Sigfox networks
- Integration with NAVIXIS IoT platform for dashboard visualization, threshold alerts, and data export
Important Notes
- Intended for indoor use only. Operating range: −20°C to +50°C, 0–99% RH non-condensing.
- LoRaWAN gateway and network server not included. A LoRaWAN or Sigfox network must be available at the installation site.
- Battery life estimate is typical, not guaranteed; actual life depends on configuration, environment, and network conditions. Use the Nexelec VOLT tool to calculate projected autonomy for your deployment.
- NFC configuration requires the free Nexelec TOUCH app (Android or iOS).
- The X580LR variant supports LoRaWAN only; the X580LS variant supports both LoRaWAN and Sigfox.
Specifications
| Temperature | |
| Resolution | 0.1°C |
| Accuracy | ±0.2°C |
| Measurement range | −30°C to +70°C |
| Humidity | |
| Resolution | 0.5% RH |
| Accuracy | ±2% RH |
| Measurement range | 0–100% RH |
| Connectivity | |
| Radio (X580LR) | LoRaWAN |
| Radio (X580LS) | LoRaWAN + Sigfox |
| Supported frequencies | EU868, US915, AU923, and other regional LoRaWAN bands (configurable via NFC) |
| Antenna | Integrated optimized PCB antenna |
| Encryption | Double AES-128 end-to-end |
| Power | |
| Battery | 1× SAFT LS14500 lithium, 2600 mAh (included); second slot available to double autonomy |
| Typical battery life | Up to 20 years(1) (1 battery; actual life varies by settings and use) |
| Configuration | |
| Method | NFC (Nexelec TOUCH app, Android / iOS) |
| Configurable parameters | 25+, including measurement interval, transmission interval, radio frequency band, LED/buzzer indicators |
| Mechanical | |
| Dimensions | 87 × 87 × 23 mm |
| Weight | 150 g (including battery) |
| Mounting | Free-standing, wall-mounted, or 3M adhesive |
| Anti-tamper | Lockable base, anti-tear alert |
| Environmental | |
| Operating temperature | −20°C to +50°C |
| Operating humidity | 0–99% RH, non-condensing |
| Location | Indoor only |
| Compliance | |
| Certifications | CE, UKCA, FCC |
| Calibration | Certificate from COFRAC-accredited metrology laboratory |
| Warranty | 2 years |
| Package Contents | |
| Included | 1× FEEL sensor 1× SAFT LS14500 battery 1× Mounting base 2× Nylon screws and wall plugs 1× 3M adhesive fastener |
Technical Documents
Contact us if you need a different connectivity and frequency band option.
