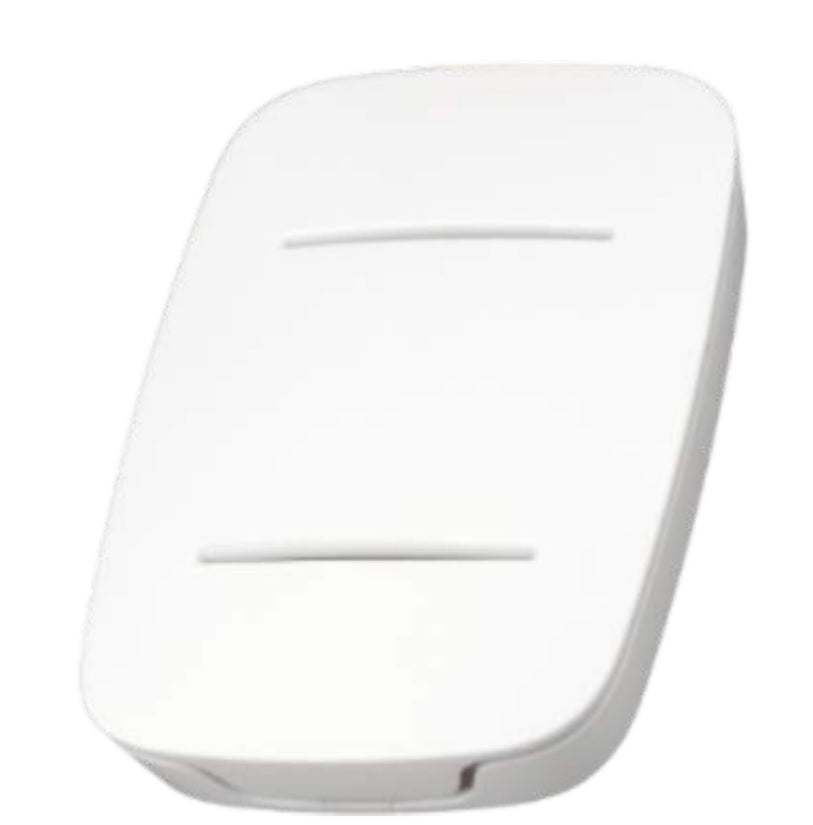

OY1211 LoRaWAN® CO2 meter US915

OY1211 LoRaWAN® CO2 meter US915

Regular price $ 210.00 $ 0.00

LoRaWAN® sensor measures temperature, humidity, and CO2, and comes with a maintenance-free lifetime of 5 years at a 20-minute reporting interval. Designed for US915 frequency plans, it supports adaptive reporting functionality to detect rapid changes in CO2 levels.

COVID-19 & CO2 air quality monitoring

With its adaptive reporting functionality, the OY1210 LoRaWAN is the go-to sensor when it comes to COVID-19 monitoring in indoor environments. CO2 levels give an indication of the air quality, as CO2 is a residue of human breathing. If levels are high, productivity and well-being drop, while the risk of airborne spreading of diseases increases.

HVAC optimization

The OY1210 LoRaWAN CO2 meter is designed for optimization of HVAC systems. Measurement data of temperature, humidity, and carbon dioxide levels forms the basis for demand-driven HVAC steering, where the building’s heating, ventilation, and cooling are activated only when necessary. This results in better air quality, as you will not find any rooms under-ventilated, which improves health, productivity, and comfort. On top of that, the solution typically results in energy savings between 10% and 30%, making for a strong financial and sustainability argument.

Adaptive data reporting functionality

Talkpool’s OY1210 LoRaWAN CO2 meter comes with a function that is unique on the market: adaptive data reporting. This functionality makes the sensor report directly when a rapid increase in CO2 levels is detected. This low latency is crucial when a meeting room or a classroom suddenly fills up with people and air quality diminishes.

Operating principle

Non-dispersive infrared (NDIR)

Yes

Sample method

Diffusion

Accuracy and range

Temperature accuracy

± 0,2 °C (conditions 0 °C to +50 °C)

Temperature range

-20 °C to +60 °C

Humidity accuracy

± 2% (conditions 10-90% RH)

Humidity range

0% to 100% non-condensing

Measurement range

CO2 400 – 5000 ppm

Accuracy

CO2 ±30ppm ±3% of reading

RMS noise CO2

0.7ppm @ 400ppm

1.4ppm @2000ppm (filtered)

Accuracy of ± 0,1 °C and ± 1,5% humidity available upon request

Connectivity

Network

LoRaWAN

Frequency bands

868 MHz

Provisioning

Over the air & personalization

Size

Size

111 x 77 x 26 mm

Weight

136g

Security

Algorithms

AES-128

Hardware

Cryptographic co-processor

Features

Secure boot

Secure firmware upgrade

Hardware based ultra-secure key storage

Battery life

Battery life length

>5 years (at 20 minute intervals, SF12)

Battery type

2x Lithium-thionyl 3.6V (replaceable)

Capacity

3.6Ah

Configuration

Measurement intervals

1 minute, configurable over the air

Transmission intervals

20 minutes, configurable over the air

Adaptive reporting

Extra transmission for CO2 level changes >100ppm

Unique App EUI available upon request

Enclosure

IP30

Certifications

RoHS compliant

FCC

LoRaWAN

Order Product Numbers (OPN)

Version

OPN

OY1211 LoRaWAN CO2 meter US915

TP-T1211-000-1-US

OY1210 LoRaWAN CO2 meter EU868

TP-T1210-000-1-EU

LoRaWAN is a registered trademark of the LoRa Alliance. LoRa is a registered trademark of Semtech Corporation. All other trademarks are the property of their respective owners.
