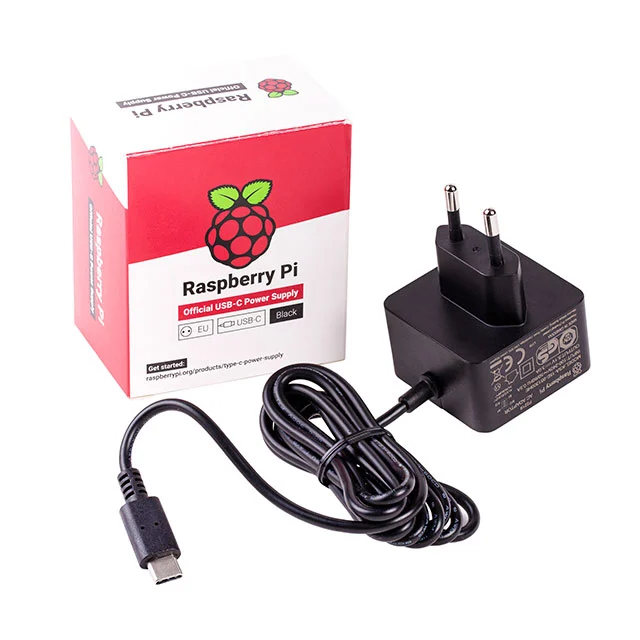

Raspberry Pi 15W USB-C Power Supply
Raspberry Pi 15W USB-C Power Supply
Regular price
$ 9.60 USD
Regular price
Sale price
$ 9.60 USD
Unit price
per
SKU:123004165
Out of stock — Available on backorder
Couldn't load pickup availability

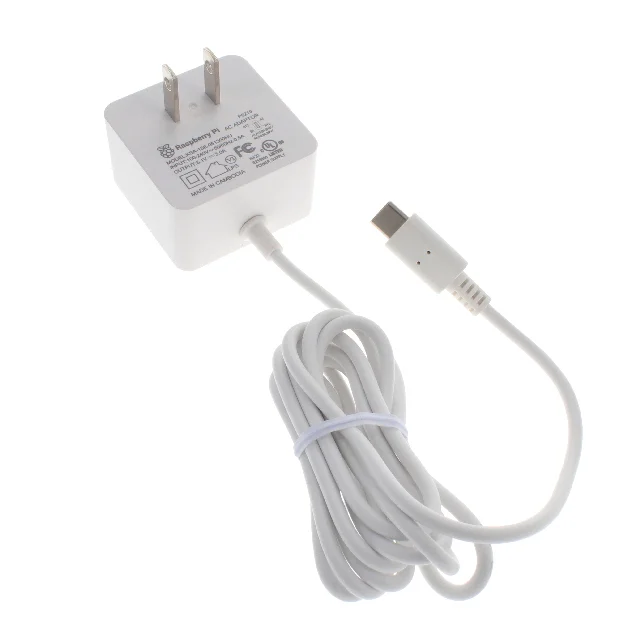

The official Raspberry Pi 15W USB-C Power Supply is designed to power Raspberry Pi 4 Model B and Raspberry Pi 400 computers. Featuring a captive 1.5m USB-C cable, the power supply is available in Black or White with five plug types to suit different international power sockets.
Key Features
- Designed for Raspberry Pi 4 and Pi 400: Delivers a stable 5.1V at 3A — the recommended supply for Raspberry Pi 4 Model B and Raspberry Pi 400.
- Captive USB-C cable: 1.5m, 18AWG cable permanently attached for a reliable, low-resistance connection.
- Wide input range: 100–240V ac for worldwide use.
- Built-in protections: Short circuit, overcurrent, and over-temperature protection.
- Color and region options: Available in Black or White, with plug types for US/Canada, Europe, India, UK, and Australia/New Zealand.
Specifications
| Category | Details |
|---|---|
| Output voltage | +5.1V DC |
| Output current | 3.0A nominal |
| Maximum power | 15.0W |
| Connector | USB Type-C |
| Cable | 1.5m, 18AWG, captive (white or black) |
| Input voltage | 100–240V ac rated; 96–264V ac operating |
| Input frequency | 50/60Hz ±3Hz |
| Input current | 0.5A maximum |
| No-load power consumption | 0.075W maximum |
| Efficiency | 81% minimum (at 25%, 50%, 75%, 100% load) |
| Load regulation | ±5% |
| Line regulation | ±2% |
| Ripple & noise | 120mVp-p |
| Operating temperature | 0–40°C |
| Protection | Short circuit, overcurrent, over-temperature |
| Plug types | Type A (US/Canada), Type C (Europe), Type D (India), Type G (UK), Type I (Australia/New Zealand) |
| Compliance | See pip.raspberrypi.com for full local and regional approvals. |
Ordering Information
| SKU | Description |
|---|---|
| SC0218 | Raspberry Pi 15W USB-C Power Supply, Black US |
| SC0445 | Raspberry Pi 15W USB-C Power Supply, White US |
| SC0216 | Raspberry Pi 15W USB-C Power Supply, Black UK |
| SC0443 | Raspberry Pi 15W USB-C Power Supply, White UK |
| SC1412 | Raspberry Pi 15W USB-C Power Supply, Black EU |
| SC0753 | Raspberry Pi 15W USB-C Power Supply, White EU |
| SC0479 | Raspberry Pi 15W USB-C Power Supply, Black IN |
| SC0478 | Raspberry Pi 15W USB-C Power Supply, White IN |
| SC0219 | Raspberry Pi 15W USB-C Power Supply, Black AU |
| SC0523 | Raspberry Pi 15W USB-C Power Supply, White AU |
What's in the Box
- 1x Raspberry Pi 15W USB-C Power Supply (color and plug type per SKU ordered)
- 1x 1.5m USB-C cable (captive/attached)
Technical Documents
