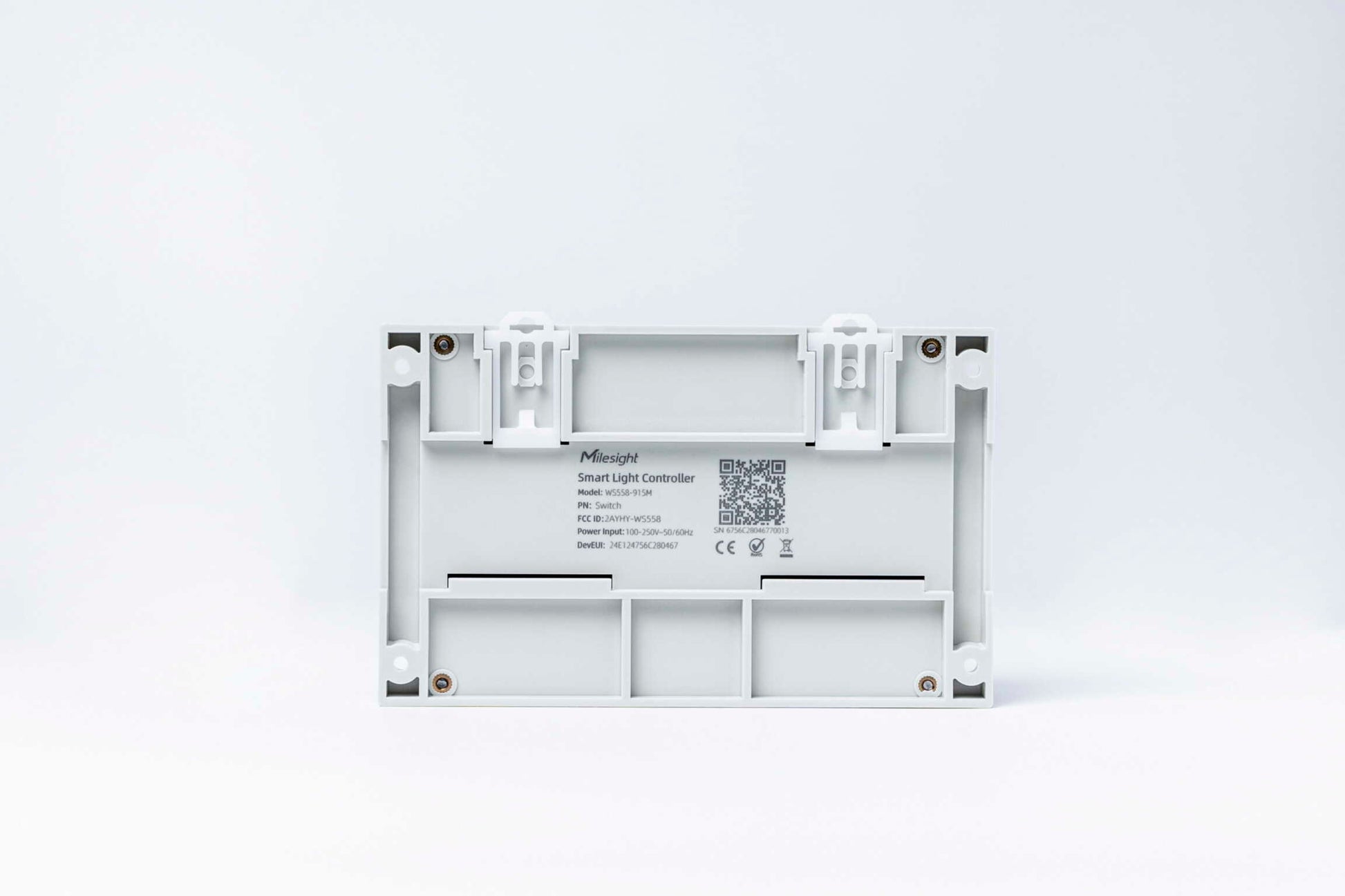

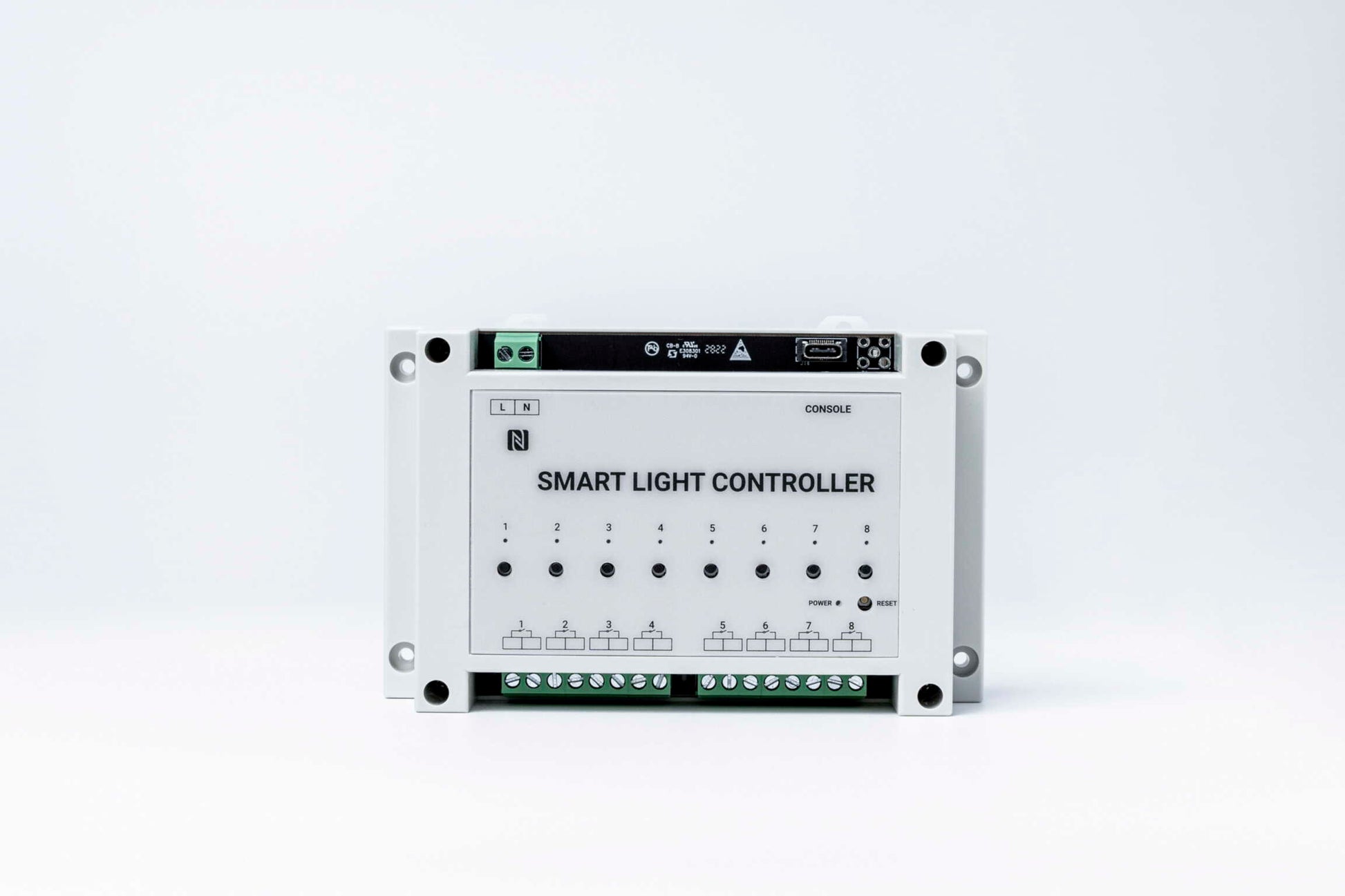

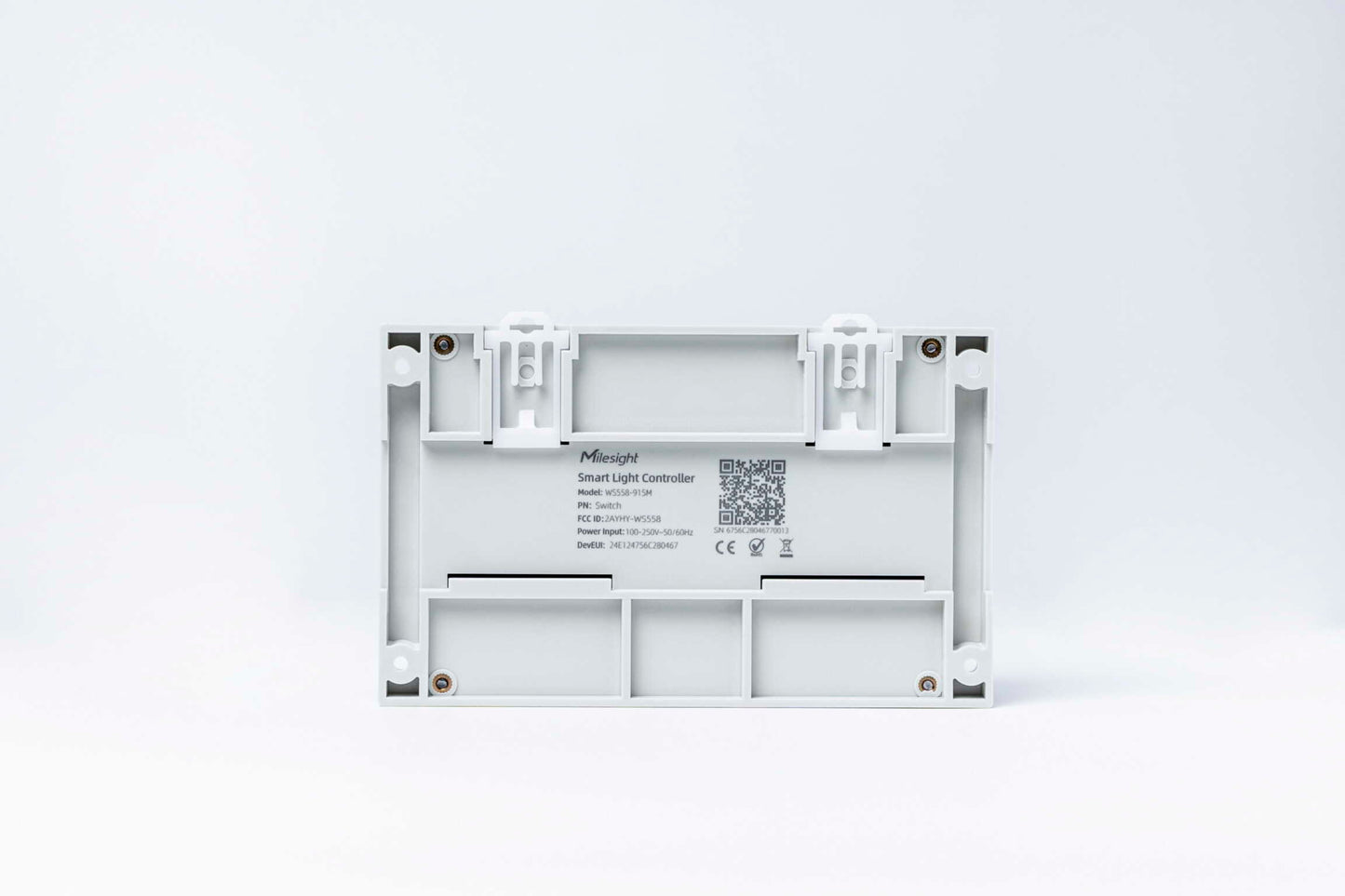

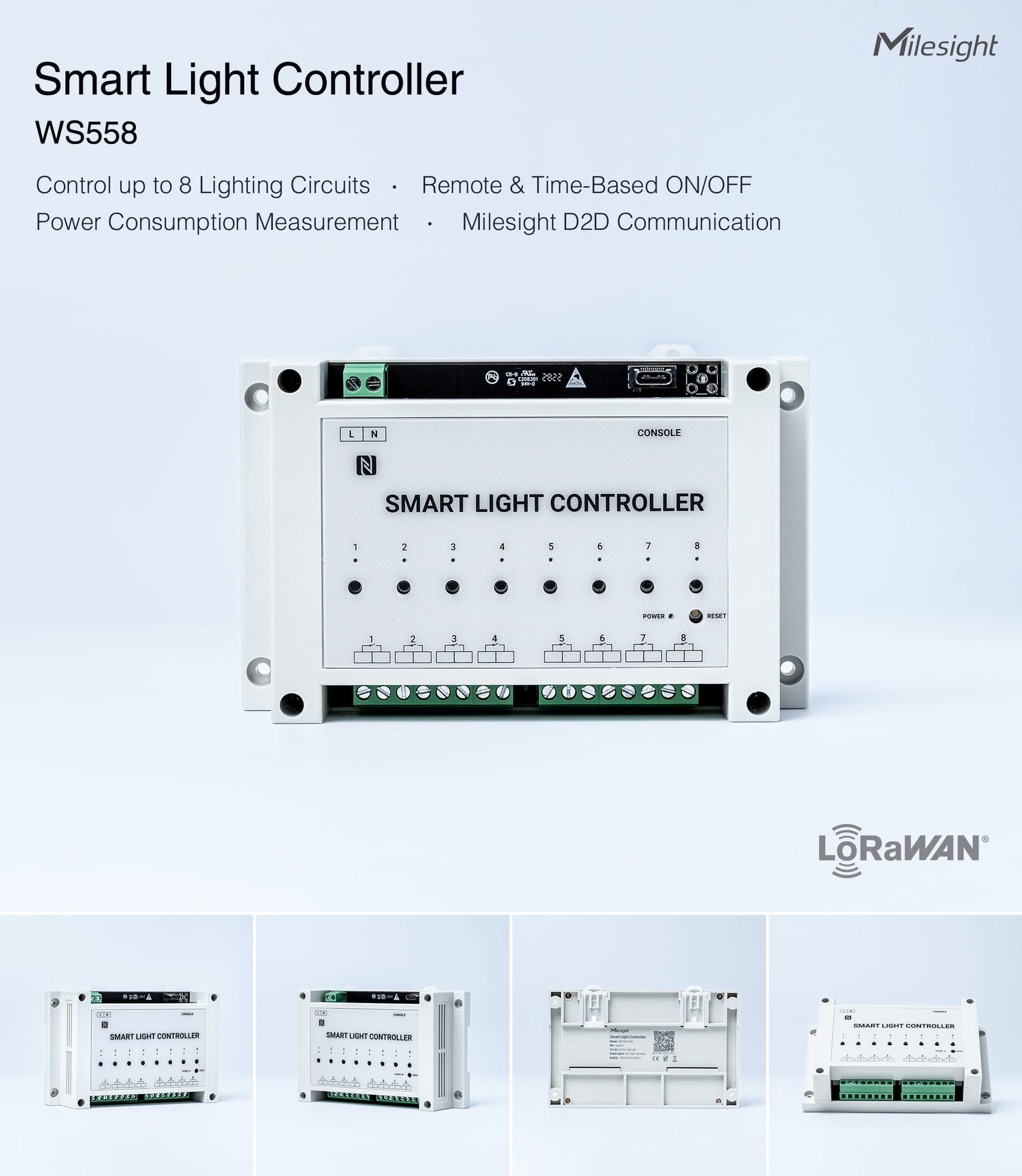

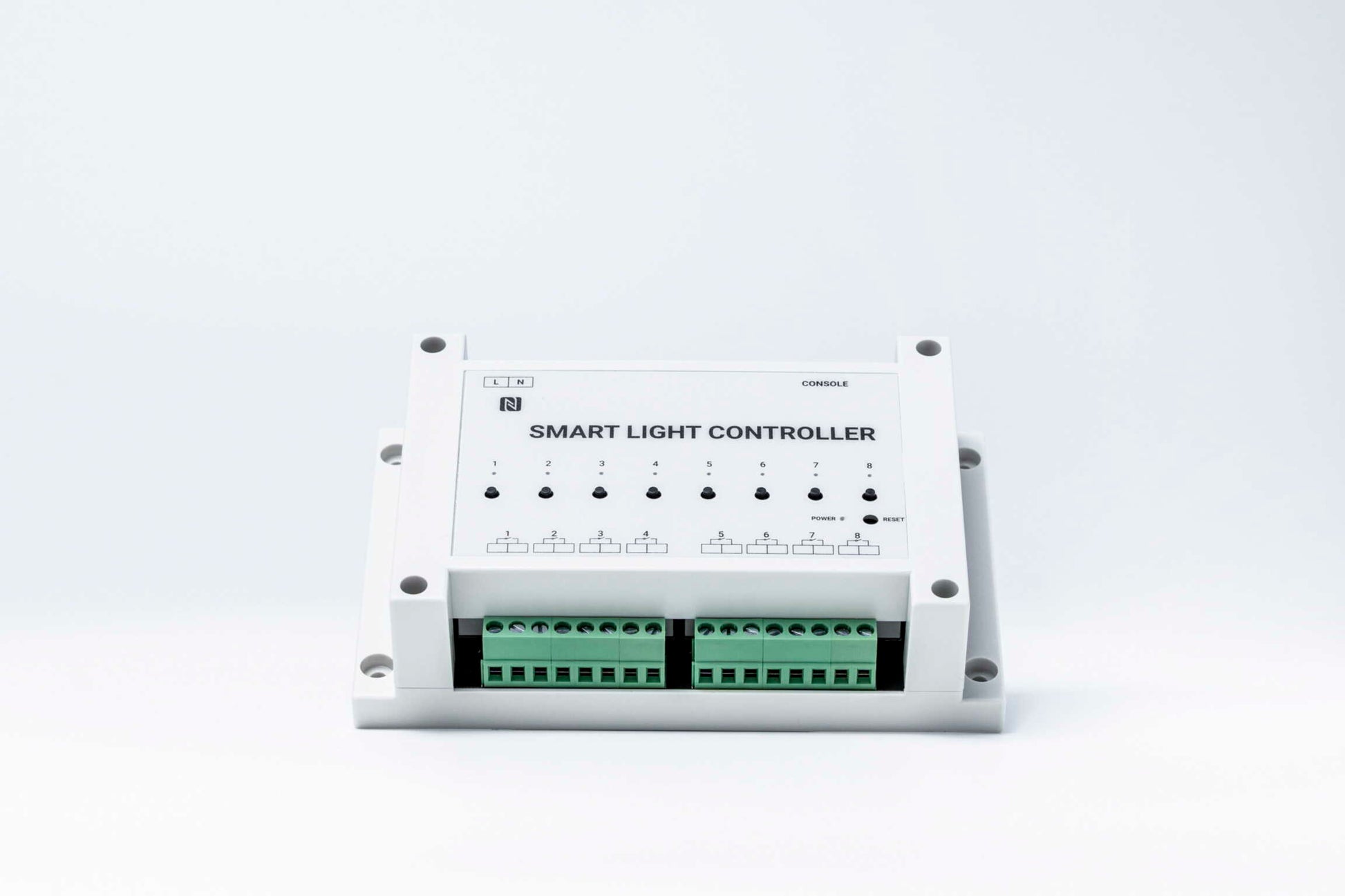

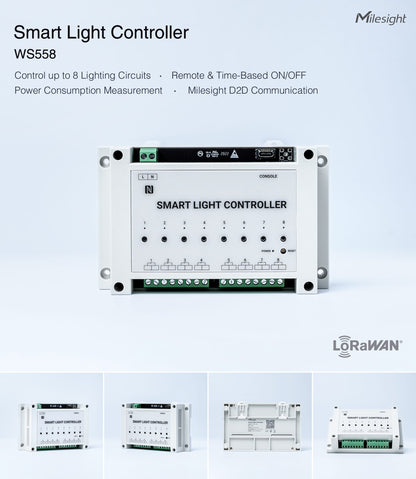

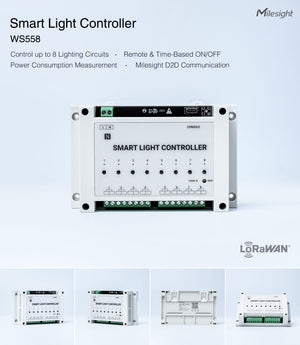

Smart Light Controller WS558
WS558 is a LoRaWAN® Smart Light Controller for monitoring and controlling lights locally or remotely. With 2 circuit types and 8 switches, it fits different rooms without the need for re-wiring, reducing the renovation costs. Compliant with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, WS558 can be monitored and controlled via a webpage or mobile App remotely and triggered by other Milesight sensors. Besides, WS558 supports Milesight D2D communication protocol, which can set up connections quickly and be controlled without a gateway. WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.
Features
- LN type or switch type optional, capable of controlling up to 8 circuits of lights, adopts different indoor wiring
- Supports local switch button control, able to test the lamp status without networking after the wiring is completed
- Collects data on current, voltage, power, and electrical consumption for smart management
- Ultra-wide-distance wireless transmission up to the line of sight of 15 km
- Equipped with NFC for one-touch configuration, supports card emulation mode
- Compliant with standard LoRaWAN gateways and network servers
- Compliant with Milesight IoT Cloud
- Supports Milesight D2D protocol to enable ultra-low latency control without gateway
- Supports multicast for control in bulk
Specifications
|
Model |
WS558-LN |
WS558-Switch |
|
Electrical |
||
|
Circuit Type |
LN Type |
Switch Type |
|
Input Voltage |
100~240 VAC, 50~60 Hz |
|
|
Output |
8 Active Outputs |
8 Passive Switches |
|
Capacitive & Inductive Load |
Maximum 5A per output, total 16A |
Maximum 5A per switch |
|
Resistive Load |
Maximum 10A per output, total 16A |
Maximum 10A per switch |
|
Electrical Measurement |
Voltage (VAC), Current (mA), Power Factor (%), Power (W), Power Consumption (kW·h) |
----- |
|
Wireless Transmission |
||
|
Protocol |
LoRaWAN, Milesight D2D |
|
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
|
|
Sensitivity |
-137dBm |
|
|
Mode |
OTAA/ABP Class C |
|
|
Software |
||
|
Configuration |
NFC, USB Type-C or Downlink |
|
|
Switch Control |
Local Press or Remote Control |
|
|
Advanced Features |
Multicast, Remote Schedule Switch, Overcurrent Protection, Milesight D2D Agent |
|
|
Physical Characteristics |
||
|
Color/ Material |
Creamy-white, ABS |
|
|
Operating Temperature |
-20°C to +60°C (-4℉ to +140℉) |
|
|
Relative Humidity |
≤ 95% (Non-condensing) |
|
|

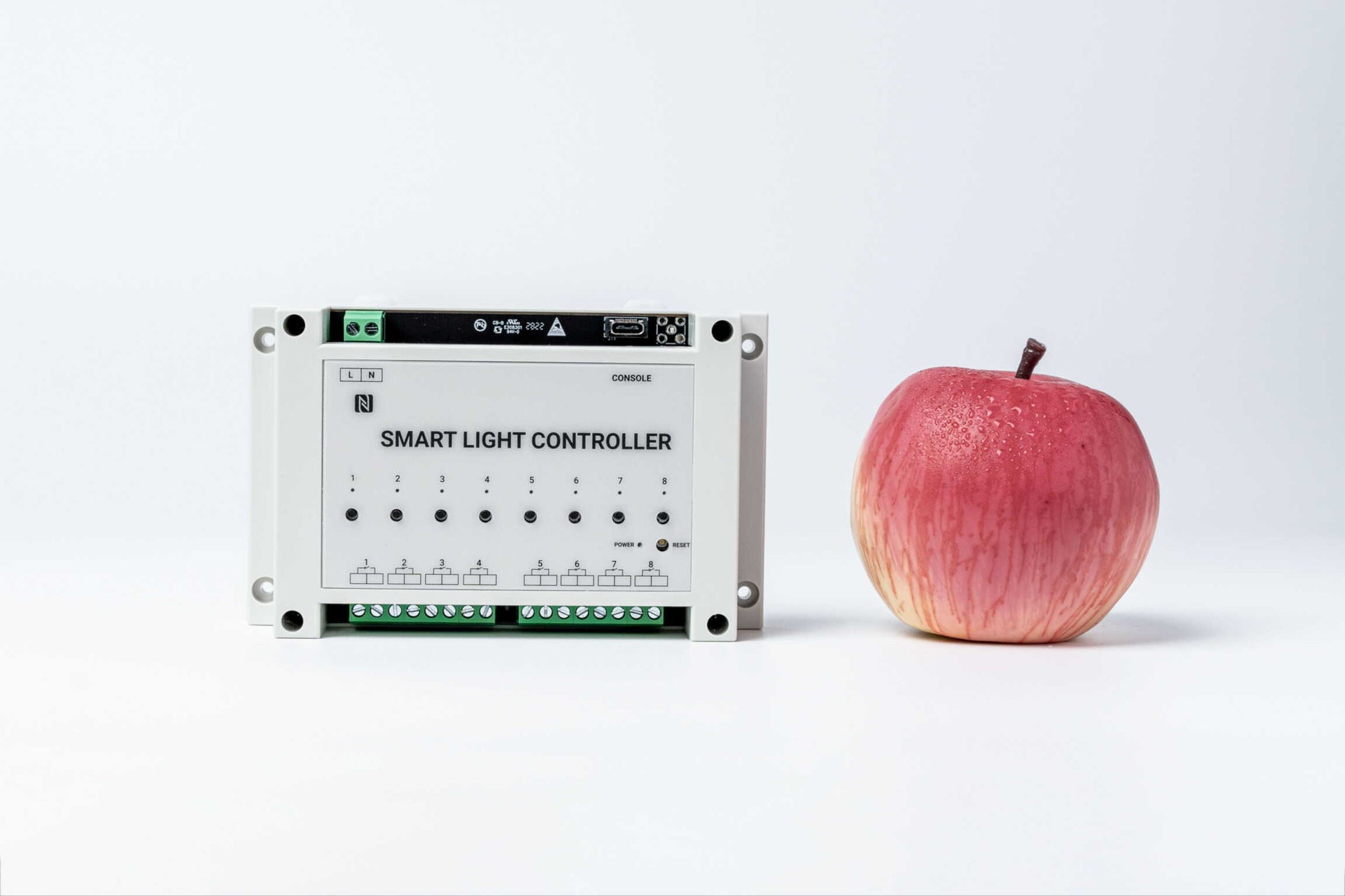

Dimensions |
145 × 90 × 40 mm (5.7 × 3.54 × 1.57 in) |
|
|
Installation |
Wall Mounting, DIN Rail Mounting |
|
