Regular price $ 70.00 $ 0.00

SKU: 123002779

In-Stock: 3

WS136 & WS156 LoRaWAN® Smart Scene Panel gives a multi button control panel that can simply activate different pre-defined scenes with one-press. Without any additional cable, WS136 & WS156 can be easily installed anywhere and used to control devices via LoRaWAN or Milesight D2D communication protocol. Besides, it’s equipped a user-defined E-ink screen to suit different scenes. Compliant with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, WS136 & WS156 can be linked to control another Milesight devices without any development. WS136 & WS156 can be widely used for wireless control in smart office, smart home and hotel multi-scene controls, etc.

Features

  • Equipped with a programmable E-ink screen for flexible display
  • Up to 6 scenes settable, each scene can consist of multiple devices
  • Equipped with NFC for one-touch configuration, supporting card emulation mode
  • Support Milesight D2D protocol to enable ultra-low latency and direct control without gateway
  • Compliant with standard LoRaWAN gateways and network servers
  • Compliant with Milesight IoT Cloud
  • Easy installation and multiple installation ways without wiring

Specifications

Wireless Transmission

Technology

LoRaWAN, Milesight D2D

Frequency

CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137dBm

Mode

OTAA/ABP Class A

Interface



Display

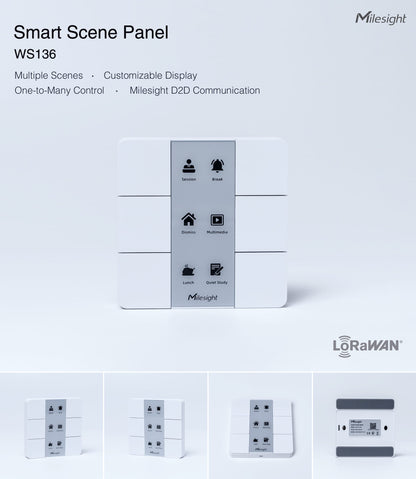

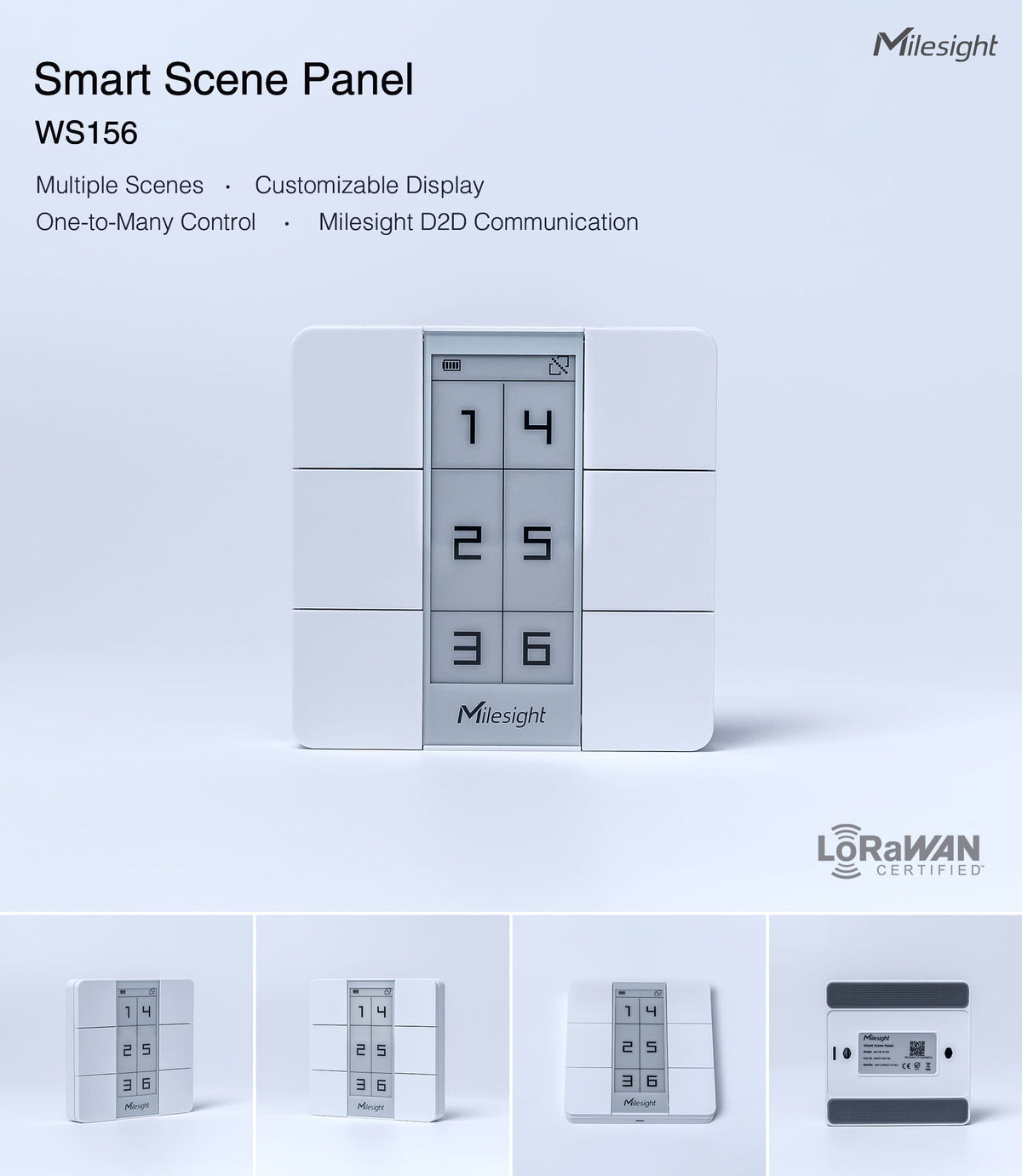

WS156: 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels WS136: PVC Sticker (Customizable)

Scene Button

6 Buttons

Button Light

Blue

Others

1 × Reset Button (Internal) + 1 × LED Indicator

Software

Configuration

NFC

Advanced Features

Milesight D2D Controller, Screen Display Customization

Physical Characteristics

Power Supply

2 × 590 mAh CR2450 Lithium Coin Cell Batteries

Battery Life*

Over 3 years (1080 min interval + 20 presses per day, 25°C)

Ingress Protection

IP30

Color & Material

White, PC + ABS (Flame-retardant)

Operating Temperature

-10°C to +50°C (E-Ink Screen: 0°C - 50°C)

Relative Humidity

≤ 90% (Non-condensing)

Dimensions

86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)

Installation

Desktop, 3M Tape Mounting, 86 Box Mounting

Approvals

Regulatory

CE, FCC, LoRaWAN Certified

Environmental

RoHS

Technical Documents
