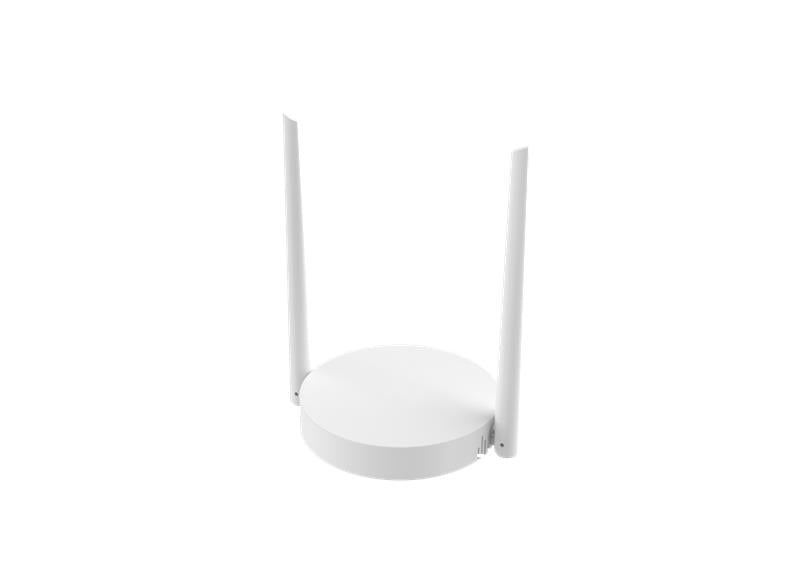

The Things Industries Indoor Gateway Pro

The Things Industries Indoor Gateway Pro

$ 150.00 USD
$ 150.00 USD
Sale Sold out
Frequency Band
Prepaid period

123003785

Out of stock — Available on backorder

The next-generation managed LoRaWAN® gateway.

Seamlessly integrated with The Things Stack, zero-touch provisioning, cellular data included and fully cloud managed for unparalleled LoRaWAN connectivity.

This product requires a subscription to The Things Stack.

Core features and benefits of The Things Indoor Gateway Pro:

  1. Zero-Touch Provisioning: Simplifies deployment and setup, enabling quick and easy installation without the need for technical expertise.
  2. Cellular Data included: Roaming SIM card with data included, so all you need is power and you can get started.
  3. Enhanced Device Management: Includes features such as mTLS, FOTA, remote reboot, spectral scan, and smarter filtering capabilities.
  4. Fully Cloud-Managed: Offers comprehensive remote management capabilities, including firmware updates, device monitoring, and real-time insights.
  5. Future-Proof Technology: Simplifies deployment and setup, enabling quick and easy installation without the need for technical expertise.
  6. Integrated with The Things Stack: Cloud, Sandbox, Enterprise, and Open Source.

For more details, refer the TTI website.

Technical specifications

Feature Details
LoRa®
Antenna Connector 1 x External Antenna
Concentrator SX1302, 8 Channels (Half-duplex)
Frequency Band US915 / EU868
Sensitivity -140 dBm Sensitivity at SF12
Output Power Up to 27 dBm
Ethernet Interface
Port 1 x RJ45 WAN Port
Physical Layer 10/100 Base-T (IEEE 802.3)
Data Rate 10/100 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi
Standards IEEE 802.11 b/g/n, 2.4 GHz
Cellular Interface
Network 4G LTE (Cat 1 bis) / GSM
Antenna 1 x External Antenna
SIM Slot 1 (Micro SIM-3FF)
Others
Button 1 x Reset Button
Console Port 1 x USB 2.0 (Type-C) for Power Supply and Console
LED Indicators 1 x Controller, 1 x The Things Stack
Power Supply and Consumption
Power Input 1. 5V via USB Type-C Port2. 5~12V DC via 3.5mm 2-pin Terminal Block
