MCCI
MCCI U.FL whip antenna
MCCI U.FL whip antenna
Regular price
$ 5.80 USD
Regular price
Sale price
$ 5.80 USD
Unit price
per
SKU:123001414
Low stock: 6 left
Couldn't load pickup availability

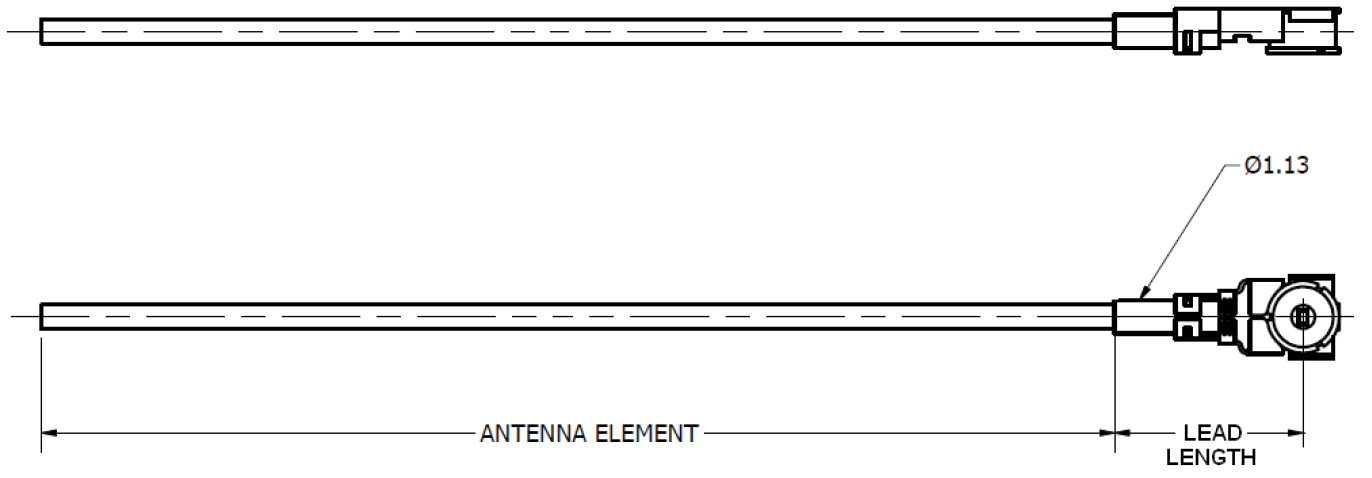

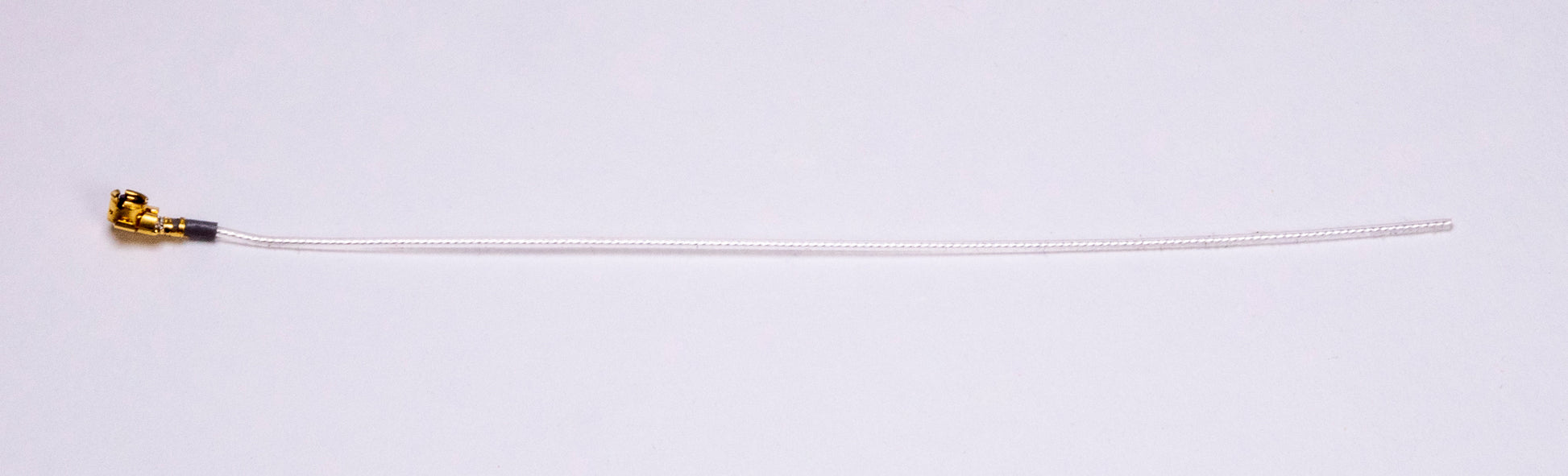

This is the antenna we ship with our U.FL Catena boards. We've had great experience in our field trials. Available in two lengths, 82mm for 915 MHz bands (US, AU, AS923), and 86mm for 866 MHz bands (EU, IN, etc.)
Specs:
| Impedance | 50 ohms |
| Gain | 3 dBi |
| VSWR | 1.7 max |
| Radiation pattern | Omni directional, polarized per antenna orientation. |
| Length | 82±1 mm | 86±1 mm |
| Center Frequency | 915 MHz | 866 MHz |
