MCCI Catena® 4801 RS-485 node
Note: due to a fire at a semiconductor fab in Japan, the LoRaWAN module used in many MCCI IoT products is very hard to obtain. Please contact MCCI via email at firstname.lastname@example.org for current information on price and delivery of these products.

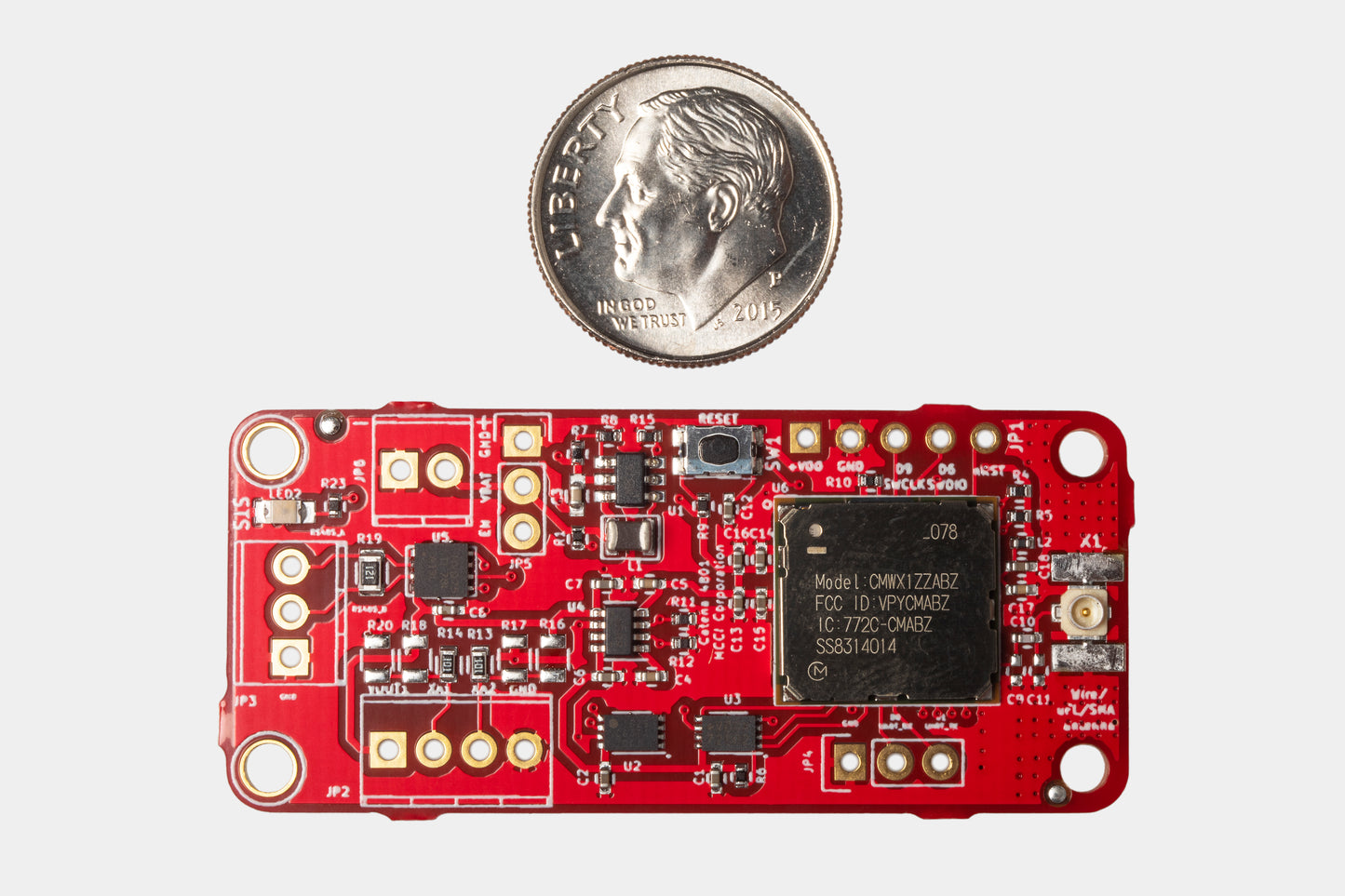

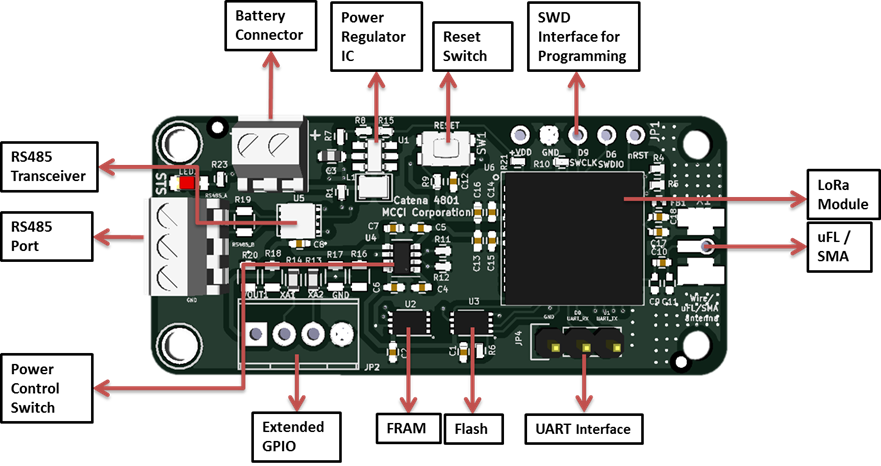

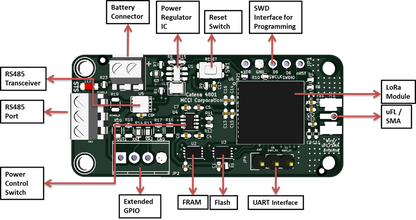

The MCCI Catena® 4801 RS-485 Node for LoRaWAN® technology networks is a complete open-source single-board IoT device that can monitor and control remote Modbus, M-Bus and other industrial devices.
Based on the Murata CMWX1ZZABZ-078, the Catena 4801 is a great platform for RS-485/Modbus based LoRaWAN investigation and deployment. It works well with The Things Network, or any LoRaWAN 1.0 or 1.1 network in the 865 to 923 MHz range. Sigfox networks are also supported.
As a Modbus controller, the Catena 4801 can control a large number of Modbus devices and communicate results via the LoRaWAN network, limited only by system memory and polling rate. As a Modbus device, the Catena 4801 can bridge an existing Modbus controller to the LoRaWAN network.
The standard model includes a U.FL connector. Other variants are available on request.
Software development requires an ST-LINK/V2 or equivalent, plus an USB to serial adapter. MCCI's Catena Development Starter Kit includes everything needed.
For more information, see the product home page at mcci.com. You can also find the datasheet here.
