Heltec Helium Miner Hotspot/Gateway
The HT-M2808 is a compact, low power, high quality Helium (HNT) cryptocurrency miner and LoRaWAN® hotspot/gateway for indoor use. It's manufactured by Heltec, a LoRaWAN pioneer, and fully supported by MCCI 's LoRaWAN experts.

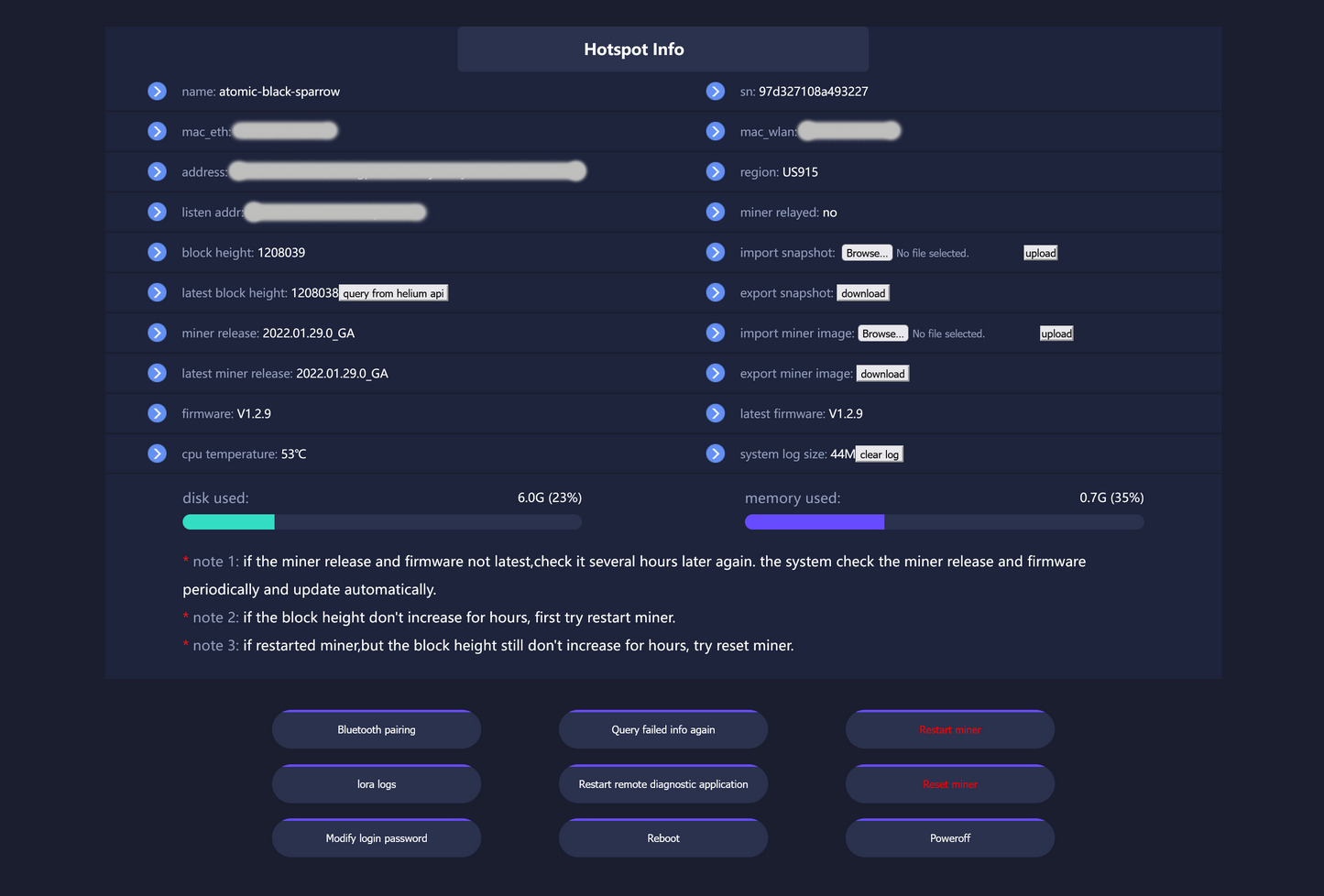

Connect it to your router via Ethernet or Wi-Fi, configure it using the Helium application on your smart phone, and you're ready to move traffic and participate in the Helium blockchain network. (Note: a public IP address is strongly recommended for best results.)
When you buy from MCCI, you not only get a quality product backed by expert support. You also support a company that has invested heavily in open source hardware and software, and in helping to build community networking via The Things Network New York. MCCI is an authorized distributor of Heltec.
Gateways are in stock, with next-day shipping.
|Connectivity||LoRa baseband||SX1308 + SX1255/7 chipset. Sensitivity -142.5 dBm @ 300 bps. Transmit power up to 27 dBm.|
|LoRa antenna||Table-top external antenna with 1.5m (60") cable|
|Wi-Fi||IEEE 802.11a/b/g/n/ac 2.4 GHz/5 GHz double frequency with internal antenna|
|Bluetooth||Bluetooth V5.0 EDR and BLE with internal antenna|
|Platform||CPU||Quad-core Cortex-A53 64-bit CPU 1.5 GHz|
|RAM||2 GB DDR4|
|ROM||32 GB eMMC 5.1|
|Power||12V DC, 500mA max, 160mA typical (2W). 120/220V external AC adapter included. Barrel connector, 5.5mm/2.1mm|
|Package||Case Size||120 mm x 115 mm x 35 mm (4.72" x 4.53" x 1.38")|
|Footprint||120 mm x 122.5mm x 40mm (with feet, and including LoRa antenna connector)|
|Material||Case: 6063 aluminum alloy; top: tempered glass|
|Antenna Connector||RP-SMA female. (Mating is RP-SMA male, "inner hole, inner thread".)|

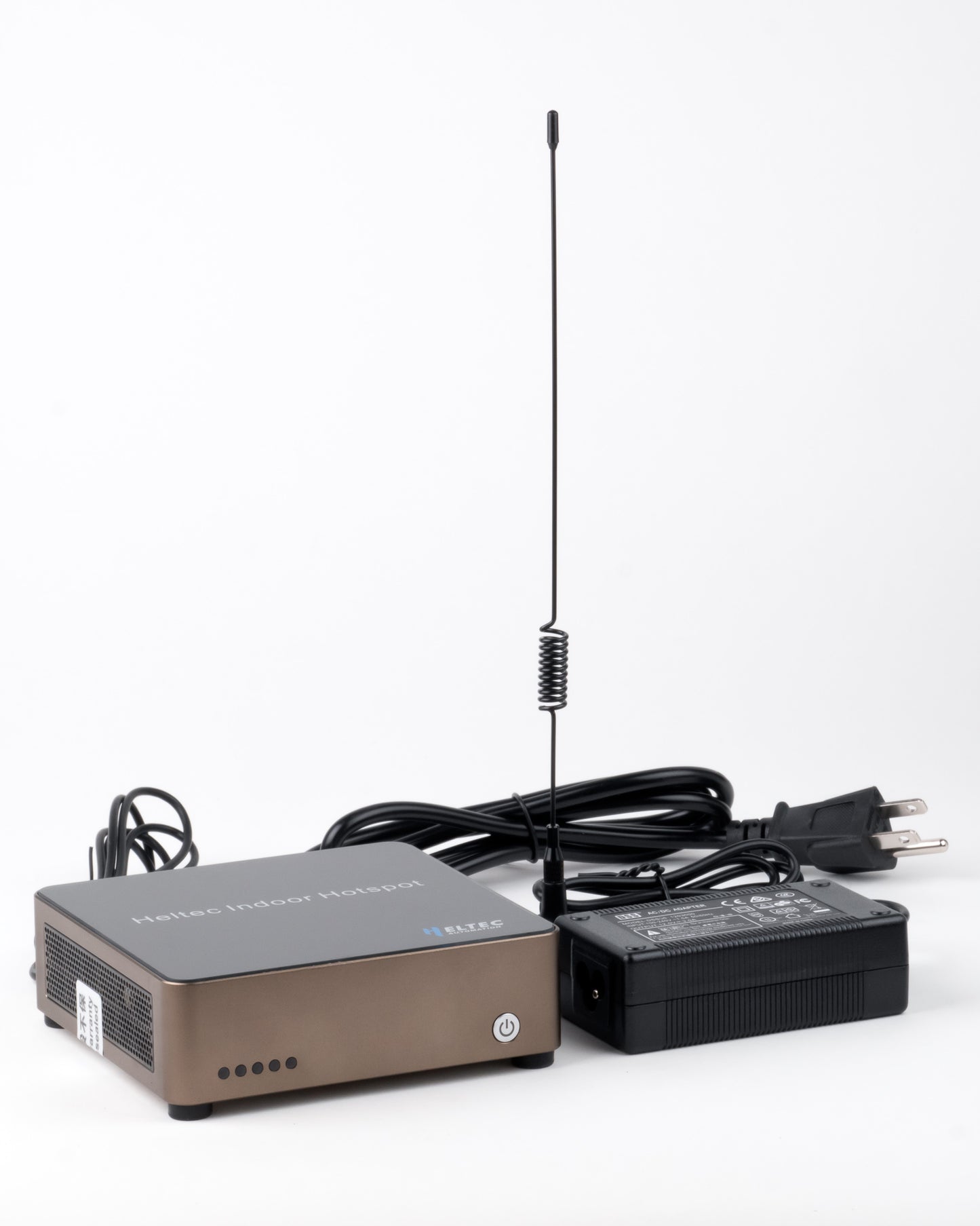

- Helium Miner Hotspot/Gateway
- 12V AC adapter
- Power cable
- Indoor LoRa Antenna
- For PoE use, MCCI suggests a 12V, 2A Power-over-Ethernet splitter (not included)
- Range is maximized by mounting an outdoor antenna, such as our 5dBi antenna kit
- Volume discounts are available. Other regions are also available. Contact us via email for more information
