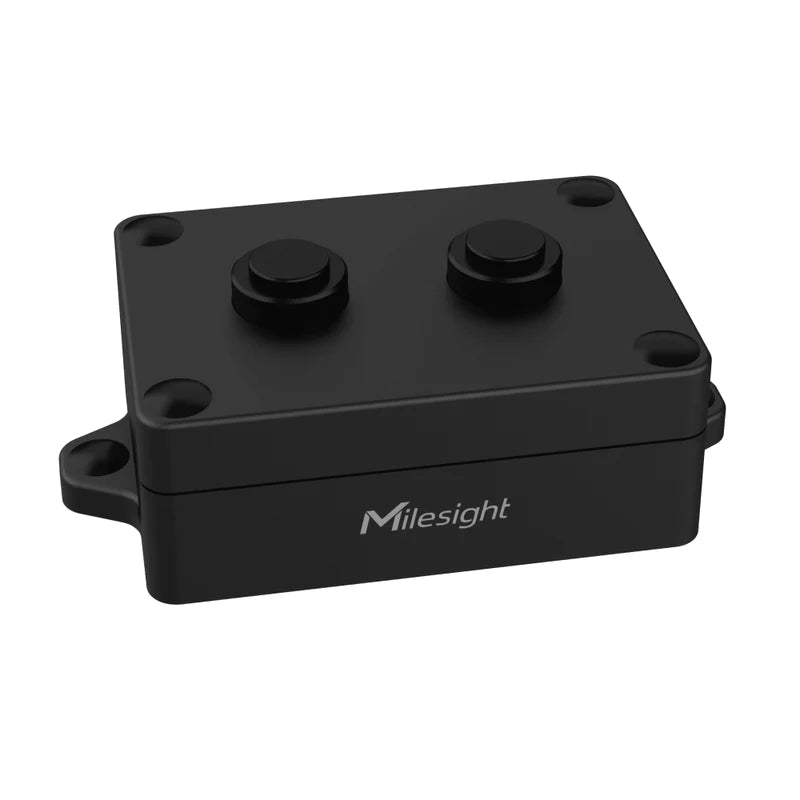

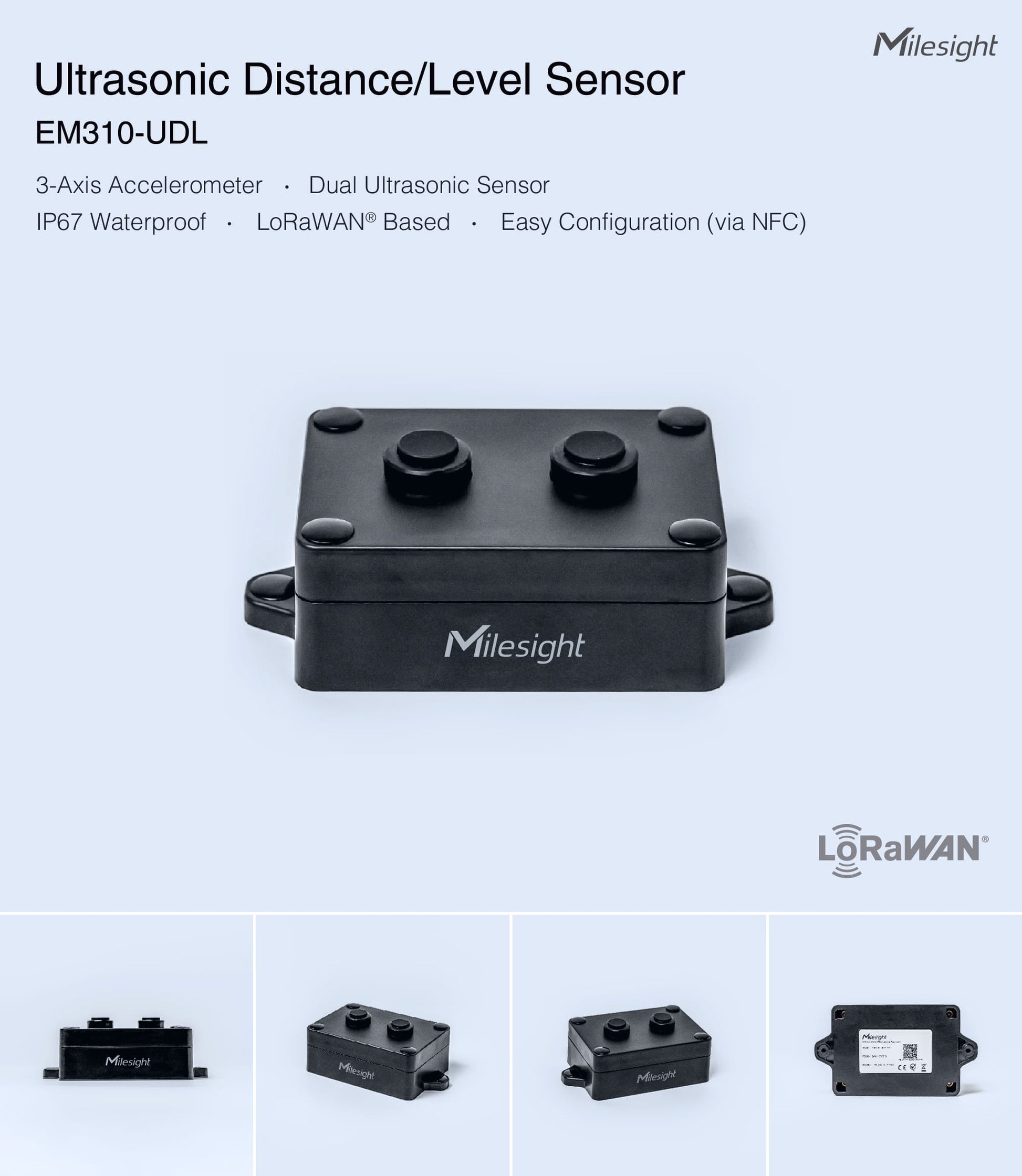

Milesight EM310-UDL is a LoRa ultrasonic distance sensor mainly for the detection of waste bin and other container’s fill levels. With a compact size and wide measurement range, EM310-UDL can be installed to any types of waste bins or containers to monitor solid or liquid levels. Besides, EM310-UDL equips with 3-axis accelerometer to detect the status of container cover. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the container status and fill-in level in real-time via browser or mobile App remotely. EM310-UDL can be widely used in waste management, water tank monitoring, manhole cover monitoring, etc.

Features

• 3-450 cm wide measuring range with a short blind zone
• Easy to install, suitable for various types of waste bins or containers
• Built-in 3-axis accelerometer sensor to monitor device tilt status
• IP67 waterproof and salt spray resistant enclosure for outdoor applications and easy to clean
• Ultra-wide-distance wireless transmission up to the line of sight of 15 km
• Equipped with NFC for one-touch configuration, support card emulation mode
• Function well with standard LoRaWAN® gateways and network servers
• Compliant with Milesight IoT Cloud

Specifications

Technical Documents

• Datasheet
• User Guide
