EDATEC Wall Mounted Bracket for ED-IPC3020 and ED-PAC3020

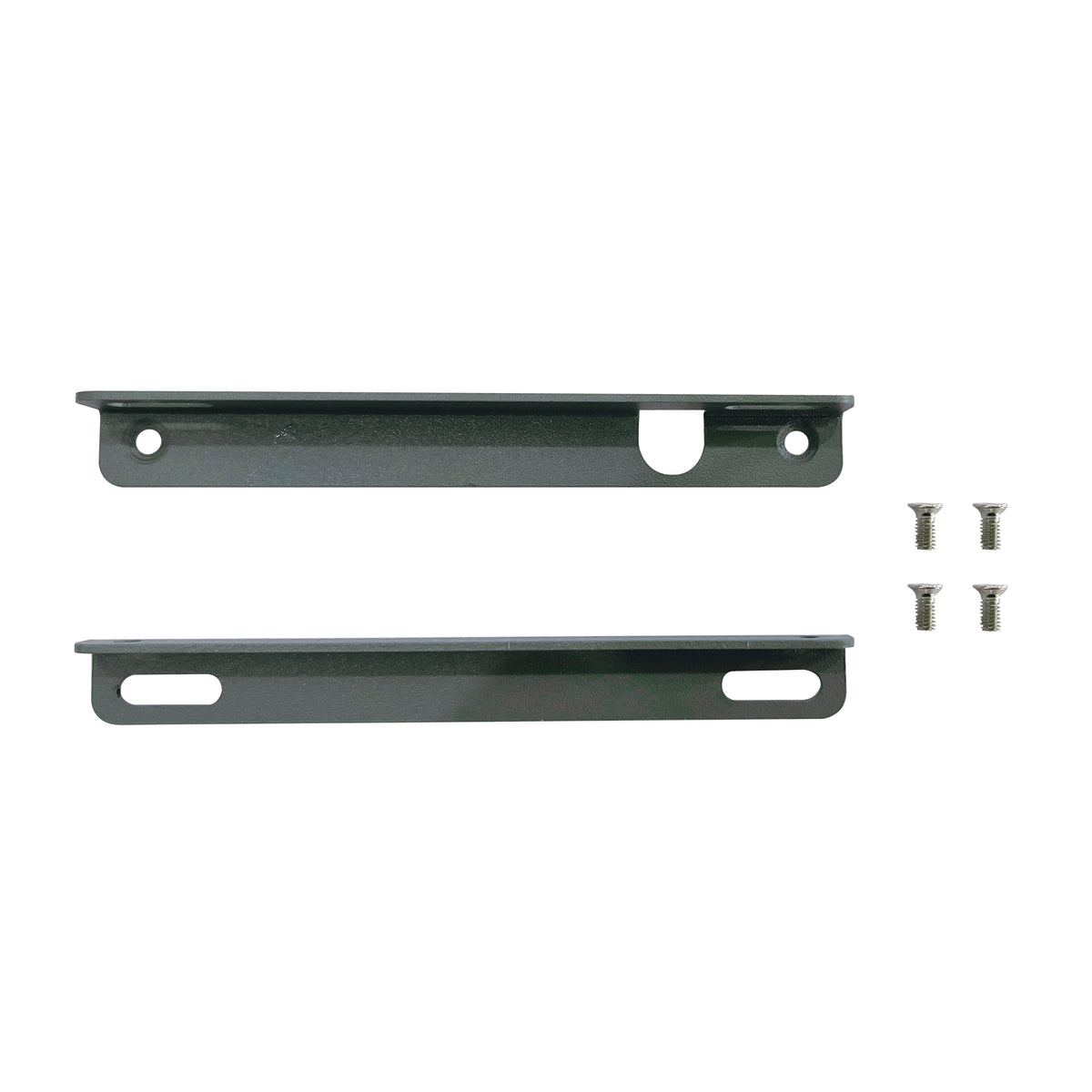

The ED-ACCBKT-L3020 is a wall-mounted bracket kit for securing an ED-IPC3020 or ED-PAC3020 industrial computer to a wall. The kit includes left and right galvanized steel brackets with a powder-coat finish, plus the screws needed to attach the brackets to the device. Wall-mounting hardware (anchors, wall screws) is not included and must be sourced separately based on your wall type.

Key Features

• Compatible devices: ED-IPC3020 and ED-PAC3020
• Material: Galvanized steel sheet with powder-coating process
• Color: Gray
• Weight: About 23 g
• Mounting hardware included: 4x M2.5×6 Phillips screws for attaching brackets to the device
• Complete kit: Left and right brackets included in one package

Specifications

Installation Notes

A Phillips screwdriver is required. Wall-mounting hardware (anchors, wall screws) is not included.

• Using a Phillips screwdriver, unscrew the four M2.5 screws on the sides of the ED-IPC3020 or ED-PAC3020 counterclockwise.
• Align the left and right brackets of the ED-ACCBKT-L3020 with the screw holes on both sides of the device. Insert the four included M2.5×6 screws and tighten clockwise to secure the brackets.
• Using the bracket wall-hole spacing and diameter as a guide (see datasheet for dimensions), drill holes in the wall, then proceed with wall-mounted installation.

Note: ED-IPC3020 / ED-PAC3020 and wall-mounting hardware are not included. See the online documentation for detailed dimension diagrams.

Ordering Information

What's in the Box

• 1x ED-ACCBKT-L3020 left bracket
• 1x ED-ACCBKT-L3020 right bracket
• 4x M2.5×6 Phillips screws

Technical Documents

• DataSheet
