EDATEC Industrial Computer Based on Raspberry Pi 5 ED-IPC3020
EDATEC Industrial Computer Based on Raspberry Pi 5 ED-IPC3020
Regular price
$ 360.00 USD
Regular price
Sale price
$ 360.00 USD
Unit price
per
SKU:123004085
Out of stock — Available on backorder
Couldn't load pickup availability
This listing is for the ED-IPC3020: Raspberry Pi 5-based industrial computer with dual 4K HDMI, RS232, RS485, Gigabit Ethernet, and fanless passive cooling. Contact us if you need a specific RAM or storage configuration.

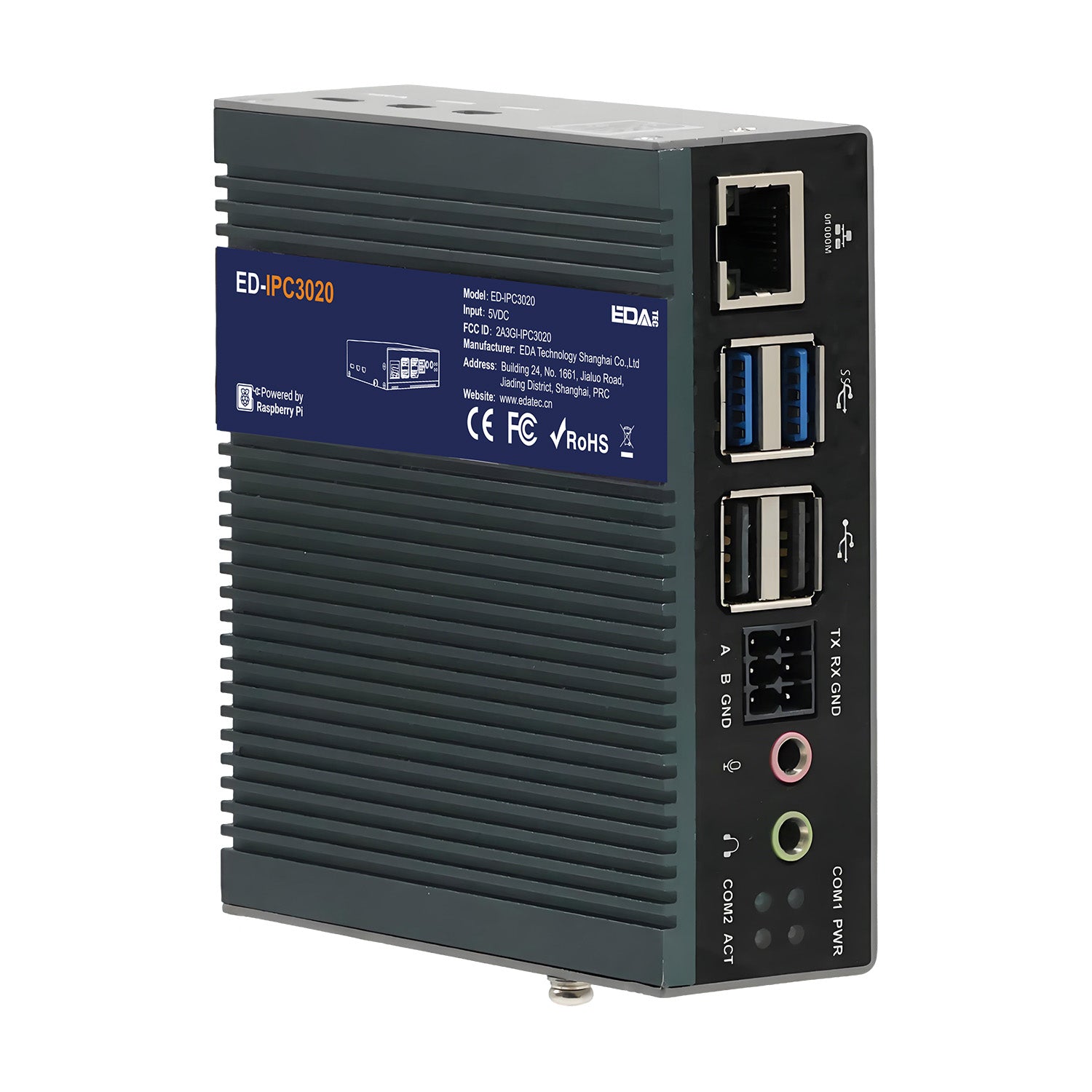

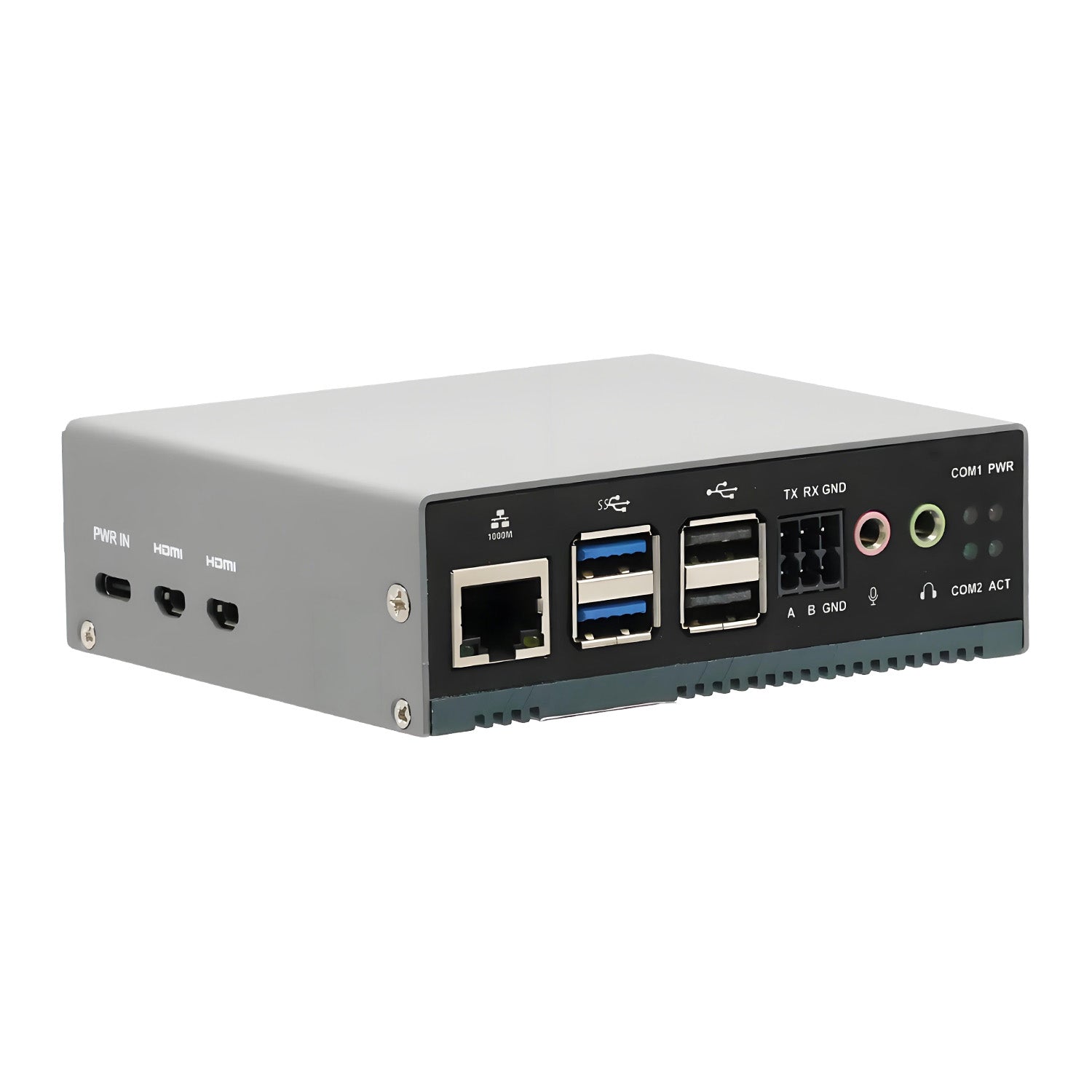

The ED-IPC3020 is a powerful, fanless industrial computer built on the Raspberry Pi 5, delivering a significant performance leap for edge computing, industrial automation, digital signage, and IoT applications. Driven by the Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with up to 16GB LPDDR4X RAM, it supports dual 4K HDMI displays, M.2 NVMe SSD storage, RS232, RS485, Gigabit Ethernet with optional PoE, and a full suite of USB ports -- all housed in a premium metal enclosure with a large heatsink for completely silent operation.
Key Features
- Processor: Broadcom BCM2712, 2.4GHz quad-core 64-bit Arm Cortex-A76
- Memory: 4GB, 8GB, or 16GB LPDDR4X-4267 SDRAM
- Storage: Micro SD card slot (no card / 32GB / 64GB) + M.2 NVMe SSD slot (no SSD / 128GB / 256GB, supports OS boot)
- Display: 2x Micro HDMI ports, supporting 4K @ 60Hz each
- USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
- Serial: 1x RS485 and 1x RS232 (both 3-pin 3.5mm Phoenix terminals)
- Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45) with optional PoE support
- Wireless: Dual-band Wi-Fi 802.11ac and Bluetooth 5.0 / BLE
- Audio: Stereo audio input (LINE IN) and output (HPO) via separate 3.5mm jacks
- Power: 5V/5A DC via USB Type-C with ON/OFF power button
- RTC: Built-in RTC with 1F SuperCAP backup; optional CR1220 battery base available
- Buzzer: Onboard buzzer for configurable alerts and alarms
- Cooling: Fanless passive design with high-quality metal case and large heatsink
- Installation: Desktop placement or wall mounting (bracket sold separately)
- Certifications: FCC, CE
- OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)
SKU Configuration Guide
The ED-IPC3020 ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | IPC3020 |
| RAM | 04 = 4GB | 08 = 8GB | 16 = 16GB |
| SD Card | 00 = no SD card | 32 = 32GB | 64 = 64GB |
| NVMe SSD | 000 = no SSD | 128 = 128GB | 256 = 256GB |
Specifications
| Category | Details |
|---|---|
| CPU | Broadcom BCM2712, 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| VPU | 4Kp60 HEVC decoder |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 4GB / 8GB / 16GB LPDDR4X-4267 SDRAM |

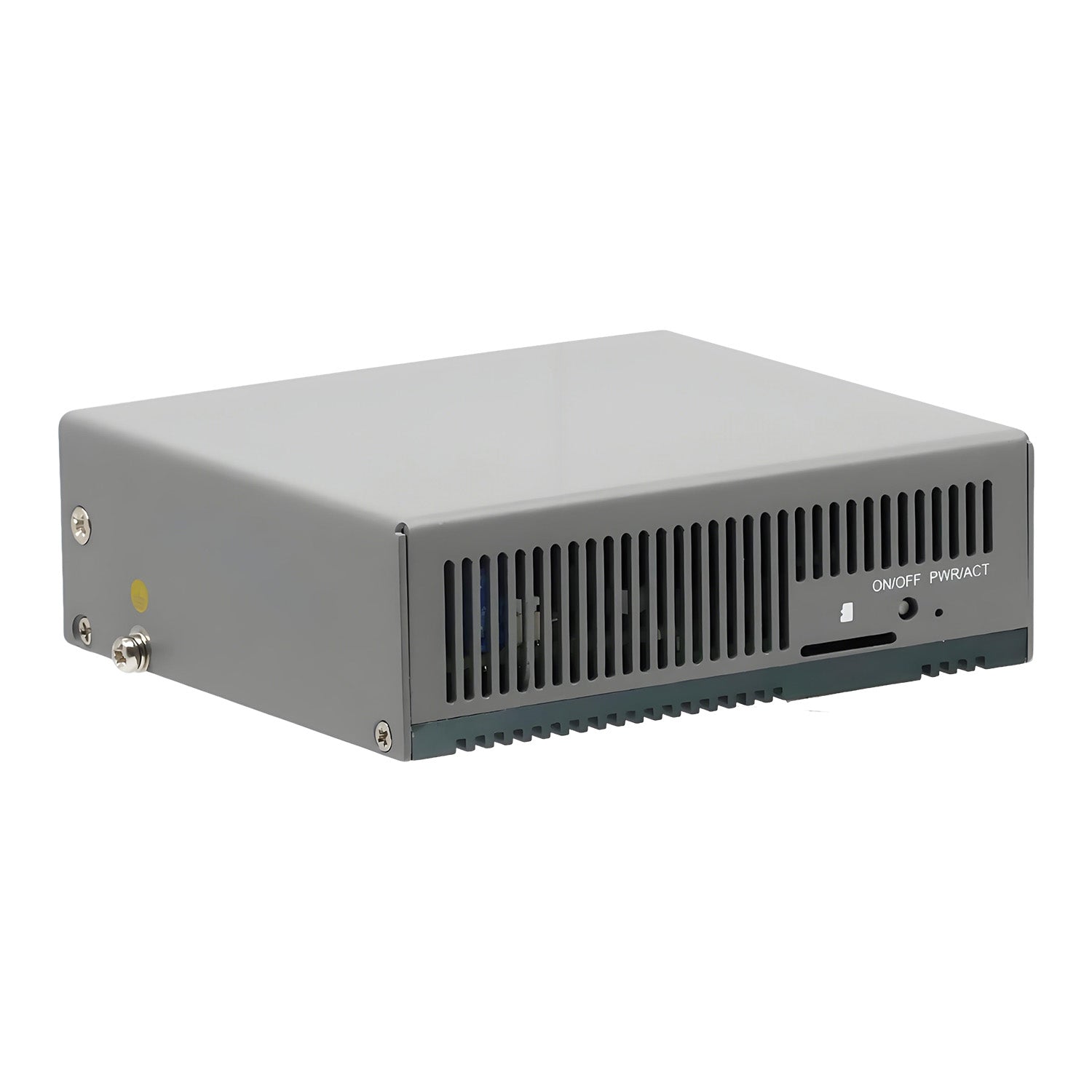

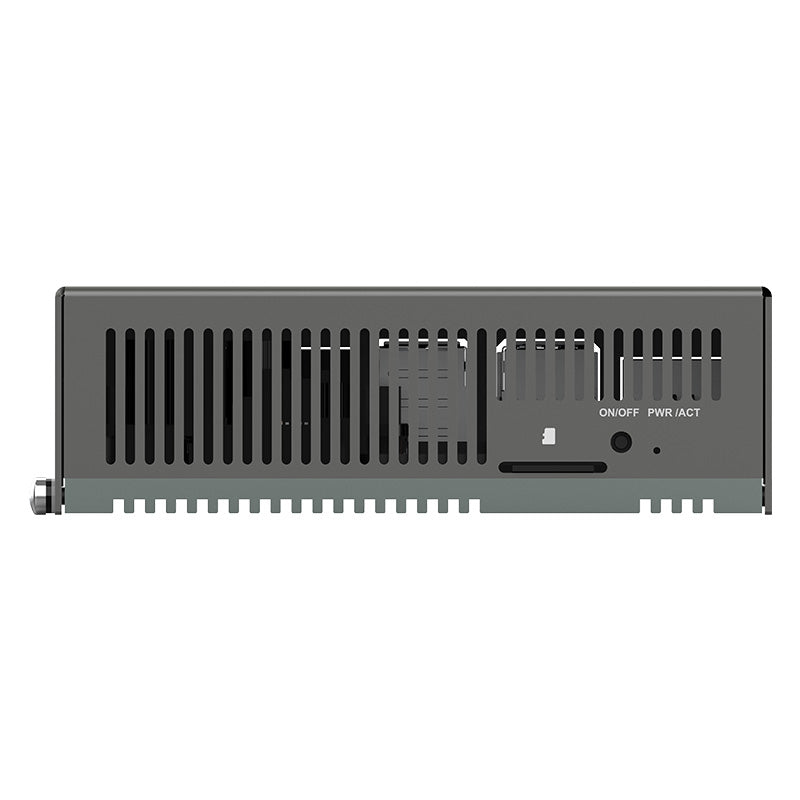

| Storage -- SD | 1x Micro SD card slot (rear); no card / 32GB / 64GB; supports OS boot from SD card |
| Storage -- SSD | M.2 M Key (2230 / 2242 / 2260); no SSD / 128GB / 256GB NVMe SSD; supports OS boot |

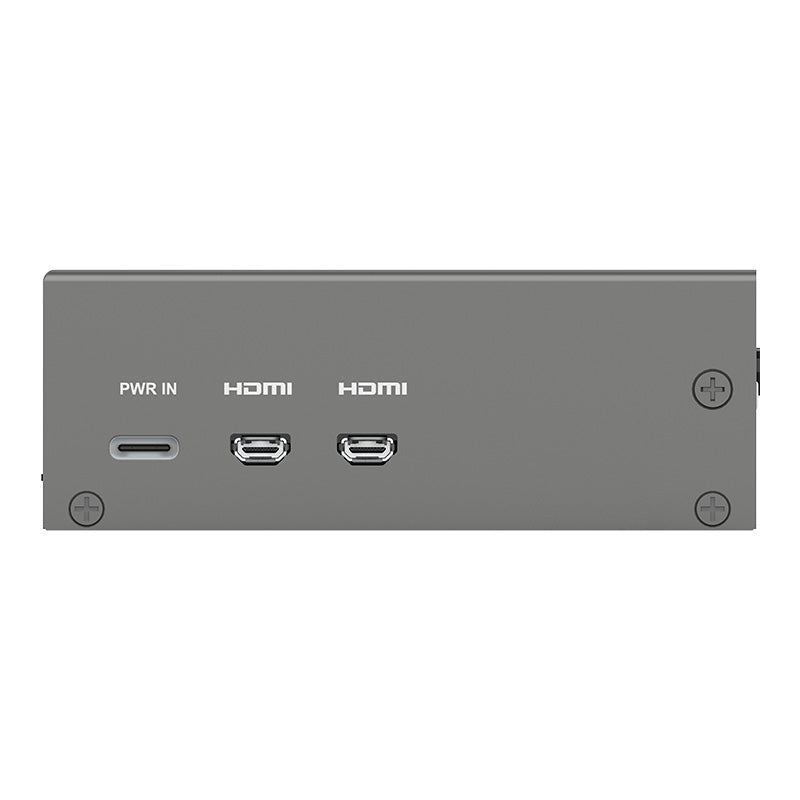

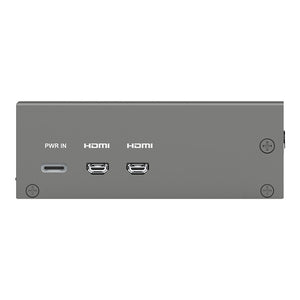

| HDMI | 2x Micro HDMI (side), 4K @ 60Hz each |
| USB 3.0 | 2x USB 3.0, Type-A, dual-layer connector (up to 5Gbps each) |
| USB 2.0 | 2x USB 2.0, Type-A, dual-layer connector (up to 480Mbps each) |
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet, RJ45, optional PoE |
| RS485 | 1x RS485, 3-pin 3.5mm Phoenix terminal; signals: GND/A/B; 120Ω terminal resistor |
| RS232 | 1x RS232, 3-pin 3.5mm Phoenix terminal; signals: GND/TX/RX |
| Audio OUT | 1x 3.5mm stereo headphone output (green jack) |
| Audio IN | 1x 3.5mm stereo line input (red jack) |
| Wi-Fi | Dual-band 802.11ac (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Power Input | 5V DC, USB Type-C connector (5V/5A) |
| Power Button | 1x ON/OFF power button |
| Power Consumption | 25W (max) |
| RTC | RTC with 1F SuperCAP backup; optional CR1220 battery base available separately |
| Buzzer | Configurable for alerts and alarms |

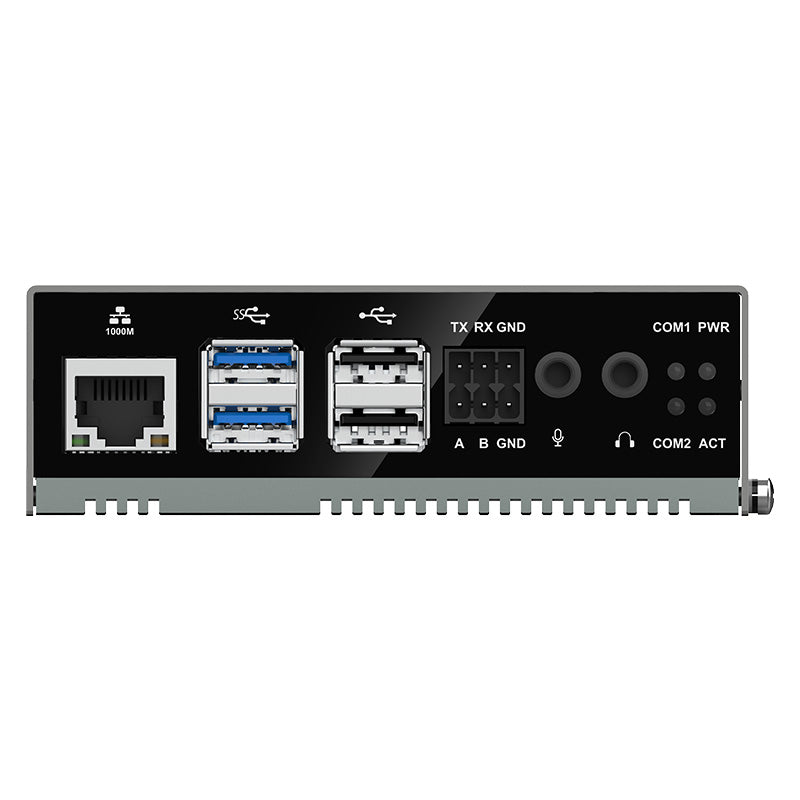

| Indicators | PWR (red, power on/off status), ACT (green, system activity), COM1--COM2 (green, one per serial port) |
| Cooling | Fanless passive cooling via metal case and large heatsink |
| Dimensions | 102.8 x 89.5 x 32.5mm (W x D x H, antennas not included) |
| Weight | ~300g |
| Installation | Desktop placement and wall mounting |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC (47 CFR Part 15 Subpart B), CE (EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.3.2, ETSI EN 301 489-17 V3.2.6, EN 55032:2015 + A1:2020 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.2.1) |
| Operating System | Raspberry Pi OS 64-bit (Desktop & Lite) |
Optional Accessories
Power Adapters (Raspberry Pi 27W USB-C):
| Model | Description |
|---|---|
| SC1149 | Raspberry Pi 27W USB-C Power Supply -- White, UK plug |
| SC1150 | Raspberry Pi 27W USB-C Power Supply -- White, AU plug |
| SC1151 | Raspberry Pi 27W USB-C Power Supply -- White, IN plug |
| SC1152 | Raspberry Pi 27W USB-C Power Supply -- White, EU plug |
| SC1153 | Raspberry Pi 27W USB-C Power Supply -- White, US plug |
| SC1154 | Raspberry Pi 27W USB-C Power Supply -- Black, UK plug |
| SC1155 | Raspberry Pi 27W USB-C Power Supply -- Black, AU plug |
| SC1156 | Raspberry Pi 27W USB-C Power Supply -- Black, IN plug |
| SC1157 | Raspberry Pi 27W USB-C Power Supply -- Black, EU plug |
| SC1158 | Raspberry Pi 27W USB-C Power Supply -- Black, US plug |
Note: Power adapter sold separately.
Cable:
| Model | Description |
|---|---|
| SC0358 | Raspberry Pi Micro-HDMI to Standard HDMI (A/M) cable, 1m |
Note: It is recommended to use the official Raspberry Pi Micro-HDMI cable for reliable HDMI connections.
Mounting Bracket:
| Model | Description |
|---|---|
| ED-ACCBKT-L3020 | Wall-mount bracket for ED-IPC3020 and ED-PAC3020 |
What's in the Box
- 1x ED-IPC3020 Unit
- 4x Pads
- 1x Tweezers (for inserting / removing SD card)
Technical Documents
