EDATEC Wall Mounted Bracket for ED-IPC2100, ED-IPC2200, and ED-IPC2600

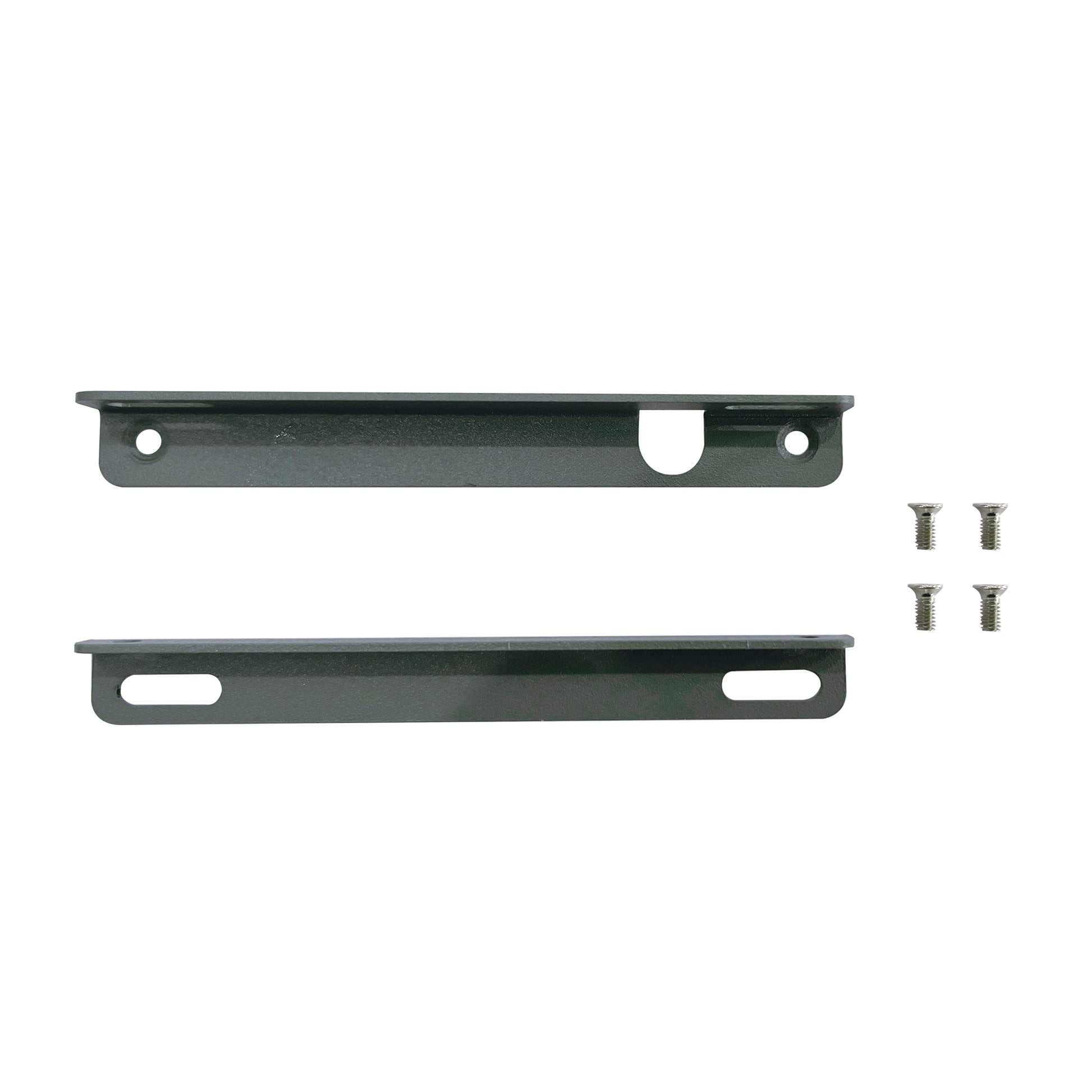

The ED-BKT-LB is a wall-mounted bracket kit for securing an ED-IPC2100, ED-IPC2200, or ED-IPC2600 industrial computer to a wall. The kit includes left and right galvanized steel brackets with a powder-coat finish, plus the screws needed to attach the brackets to the device. Wall-mounting hardware (anchors, wall screws) is not included and must be sourced separately based on your wall type.

Key Features

• Compatible devices: ED-IPC2100, ED-IPC2200, and ED-IPC2600
• Material: Galvanized steel sheet with powder-coating process
• Color: Gray
• Weight: About 25 g
• Mounting hardware included: 4x M2.5×6 Phillips screws for attaching brackets to the device
• Complete kit: Left and right brackets included in one package

Specifications

Installation Notes

A Phillips screwdriver is required. Wall-mounting hardware (anchors, wall screws) is not included. The steps below use the ED-IPC2100 as an example; the procedure is identical for ED-IPC2200 and ED-IPC2600.

• Using a Phillips screwdriver, unscrew the four M2.5 screws on the sides of the device counterclockwise.
• Align the left and right brackets of the ED-BKT-LB with the screw holes on both sides of the device. Insert the four included M2.5×6 screws and tighten clockwise to secure the brackets.
• Using the bracket wall-hole spacing and diameter as a guide (see datasheet for dimensions), drill holes in the wall, then proceed with wall-mounted installation.

Note: ED-IPC2100 / ED-IPC2200 / ED-IPC2600 and wall-mounting hardware are not included. See the online documentation for detailed dimension diagrams.

Ordering Information

What's in the Box

• 1x ED-BKT-LB left bracket
• 1x ED-BKT-LB right bracket
• 4x M2.5×6 Phillips screws

Technical Documents

• DataSheet
