EDATEC Industrial Computer Based on Raspberry Pi CM4 ED-IPC2110
EDATEC Industrial Computer Based on Raspberry Pi CM4 ED-IPC2110
Regular price
$ 280.00 USD
Regular price
Sale price
$ 280.00 USD
Unit price
per
SKU:123004088
Out of stock — Available on backorder
Couldn't load pickup availability
This listing is for the ED-IPC2100 Series: CM4-based industrial computer with 4x isolated serial ports, dual Ethernet, optional Wi-Fi/Bluetooth and 4G LTE. Contact us if you need a specific RAM, storage, 4G region, or serial port configuration.
The ED-IPC2100 Series is a professional-grade industrial computer built on the Raspberry Pi Compute Module 4 (CM4), designed for demanding automation, IoT, and edge computing environments. Powered by the Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5GHz with up to 8GB LPDDR4 RAM and 32GB eMMC storage, it offers an exceptional combination of processing power, industrial-grade connectivity, and robust protection. With 4 isolated RS232/RS485 ports, dual Ethernet, optional dual-band Wi-Fi, Bluetooth, 4G LTE, and a wide 9V--36V power input range, the ED-IPC2100 Series is built to handle real-world industrial challenges -- all in a high-quality metal enclosure supporting DIN rail and wall mounting.
Key Features
- Processor: Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
- Storage: 8GB, 16GB, or 32GB eMMC; Micro SD card slot (user expansion); M.2 NVMe SSD (128GB / 256GB / 512GB)
- Display: 1x HDMI Type-A (HDMI 2.0), supports 4K @ 60Hz
- Networking: 1x Gigabit Ethernet (10/100/1000M) + 1x 100M Ethernet (10/100M)
- Serial Ports: 4x isolated RS232/RS485 with electrostatic and surge protection (port configuration varies by model)
- USB: 2x USB 2.0 (Type-A, 480Mbps)
- Wireless (Optional): 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth
- 4G LTE (Optional): Mini PCIe 4G module with Nano SIM card slot (CN / NA / AU / EU / SEA variants)
- Power Input: Wide-range 9V--36V DC with TVS transient voltage protection and reverse polarity protection
- Reliability: RTC with optional 1F SuperCAP backup, Watchdog (via RTC Alarm), EEPROM, Crypto Authentication, Buzzer
- Expansion: 40-pin GPIO header, M.2 B Key SSD slot
- Cooling: Fanless, passive cooling via high-quality metal enclosure
- Installation: DIN rail and wall mounting
- Operating Temperature: -25°C to 60°C
- Certifications: FCC, CE
- OS Support: Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)
Model Variants -- Serial Port Configurations
All models share the same CM4 platform, dual Ethernet, USB, HDMI, GPIO, and power input. Contact us to order a specific configuration.
| Model | RS485 Ports | RS232 Ports | Notable Extras |
|---|---|---|---|
| ED-IPC2110 | 2x RS485 | 2x RS232 | - |
| ED-IPC2120 | 2x RS485 | 2x RS232 | Audio In/Stereo Out (3.5mm jack) |
| ED-IPC2130 | 3x RS485 | 1x RS232 | - |
| ED-IPC2140 | 4x RS485 | None | - |
SKU Configuration Guide
The ED-IPC2100 ordering code breaks down as follows. This table is provided for reference when discussing configurations with us.
| Field | Options |
|---|---|
| Model | 2110 (2x RS485 + 2x RS232) | 2120 (2x RS485 + 2x RS232 + Audio) | 2130 (3x RS485 + 1x RS232) | 2140 (4x RS485) |
| Wi-Fi & Bluetooth | 0 = without | 1 = with |
| RAM | 01 = 1GB | 02 = 2GB | 04 = 4GB | 08 = 8GB |
| eMMC | 08 = 8GB | 16 = 16GB | 32 = 32GB |
| 4G Module | blank = none | 4CN = EC20-CE (China/India) | 4US = EC25-AFX (North America + GNSS) | 4EU = EC25-EUX (Europe/MEA/Thailand + GNSS) | 4AU = EC25-AUX (Latin America/AU/NZ + GNSS) | 4EF = EC25-EFA (Europe/MEA/SE Asia + GNSS) |
| Super Capacitor | blank = without | S = with |
Specifications
| Category | Details |
|---|---|
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz |
| VPU | H.265 (HEVC) up to 4Kp60 decode; H.264 up to 1080p60 decode / 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | 1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM |
| eMMC Storage | 8GB / 16GB / 32GB eMMC |
| SD Card | 1x Micro SD card slot (user data expansion) |
| M.2 NVMe SSD | M.2 B Key (2230 / 2242); 128GB / 256GB / 512GB options |
| HDMI | 1x HDMI Type-A, HDMI 2.0, 4K @ 60Hz |
| Gigabit Ethernet | 1x 10/100/1000M, RJ45 |
| 100M Ethernet | 1x 10/100M, RJ45 |
| USB 2.0 | 2x USB 2.0, Type-A (up to 480Mbps each) |
| RS232/RS485 | 4x isolated ports via 12-pin 3.5mm Phoenix terminals with electrostatic & surge protection (configuration varies by model); RS485 signals: IGND/A/B; RS232 signals: IGND/TX/RX |
| Audio (Optional) | 1x Audio In/Stereo Out, 3.5mm jack; switches to headphone output when connected. ED-IPC2120 only. |
| SIM Card | 1x Nano SIM card slot (for 4G) |
| eMMC Flash Port | 1x Micro USB (for eMMC flashing) |
| Wi-Fi (Optional) | 2.4GHz (802.11 b/g/n) + 5GHz (802.11 a/n/ac), external SMA antenna |
| Bluetooth (Optional) | 2402MHz ~ 2480MHz, external SMA antenna |
| 4G LTE (Optional) | Mini PCIe 4G module, Nano SIM slot, external SMA antenna (CN / NA / AU / EU / SEA variants) |
| Power Input | 9V--36V DC, 2-pin 3.5mm Phoenix terminal (VIN+/GND); TVS transient voltage protection and reverse polarity protection |
| Power Consumption | 24W (max) |
| RTC | RTC with optional 1F SuperCAP backup; CR1220 battery base also available separately |
| Watchdog | Watchdog via RTC Alarm |
| EEPROM | 4K byte onboard storage |
| Crypto Authentication | Onboard hardware security element |
| Buzzer | Configurable for alerts and alarms |
| Reset | Hardware reset button |

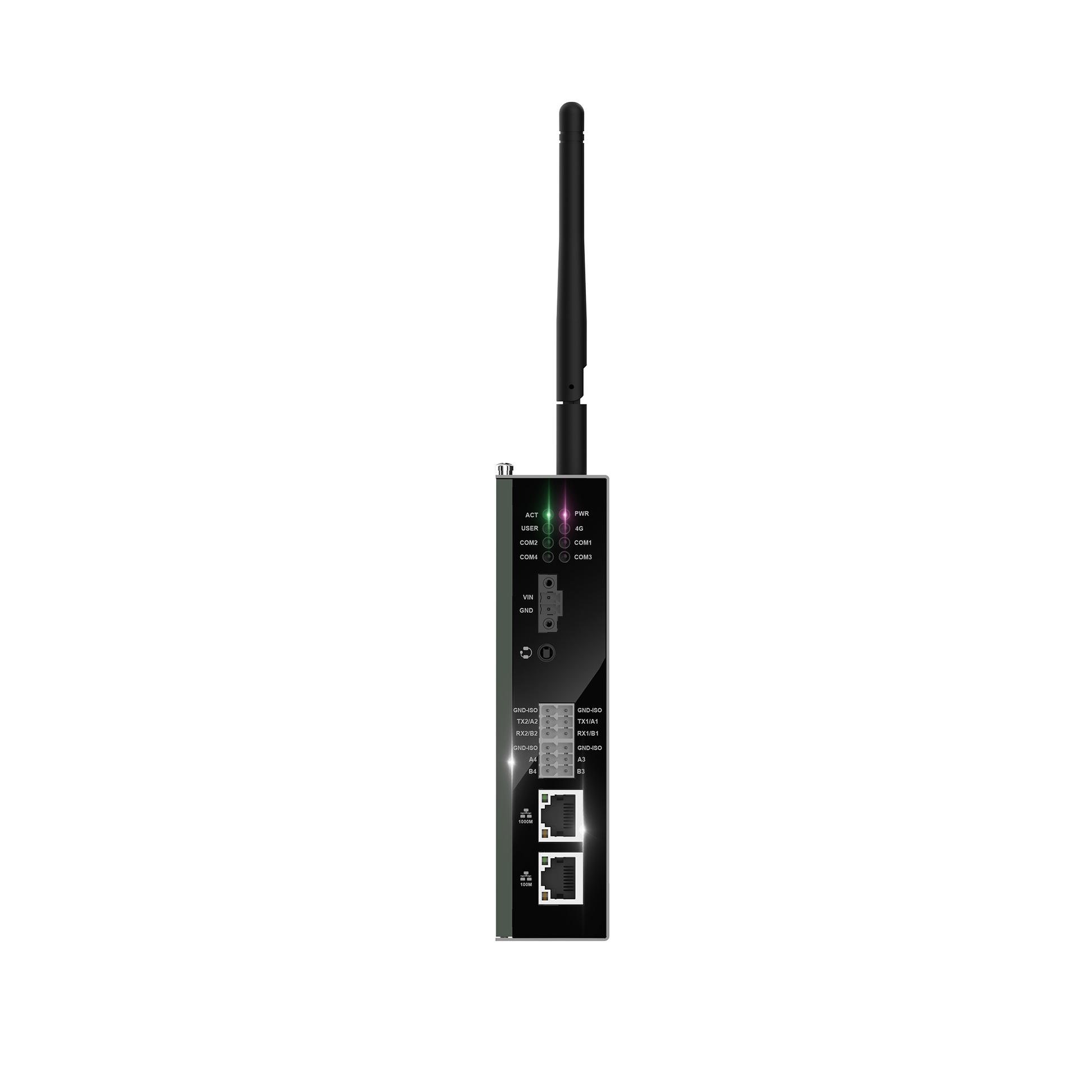

| Indicators | PWR (red, power on/off status), 4G (green), ACT (green, system activity), USER (green, user-configurable), COM1--COM4 (green, one per serial port) |
| 40-pin GPIO | 2x20-pin, 2.54mm pitch (GPIO1--GPIO27 / 3V3 / 5V2 / GND) |
| Cooling | Fanless passive cooling, high-quality metal enclosure |
| Dimensions | 143 x 100 x 35mm (W x D x H, DIN-rail bracket & antenna not included) |
| Weight | ~750g |

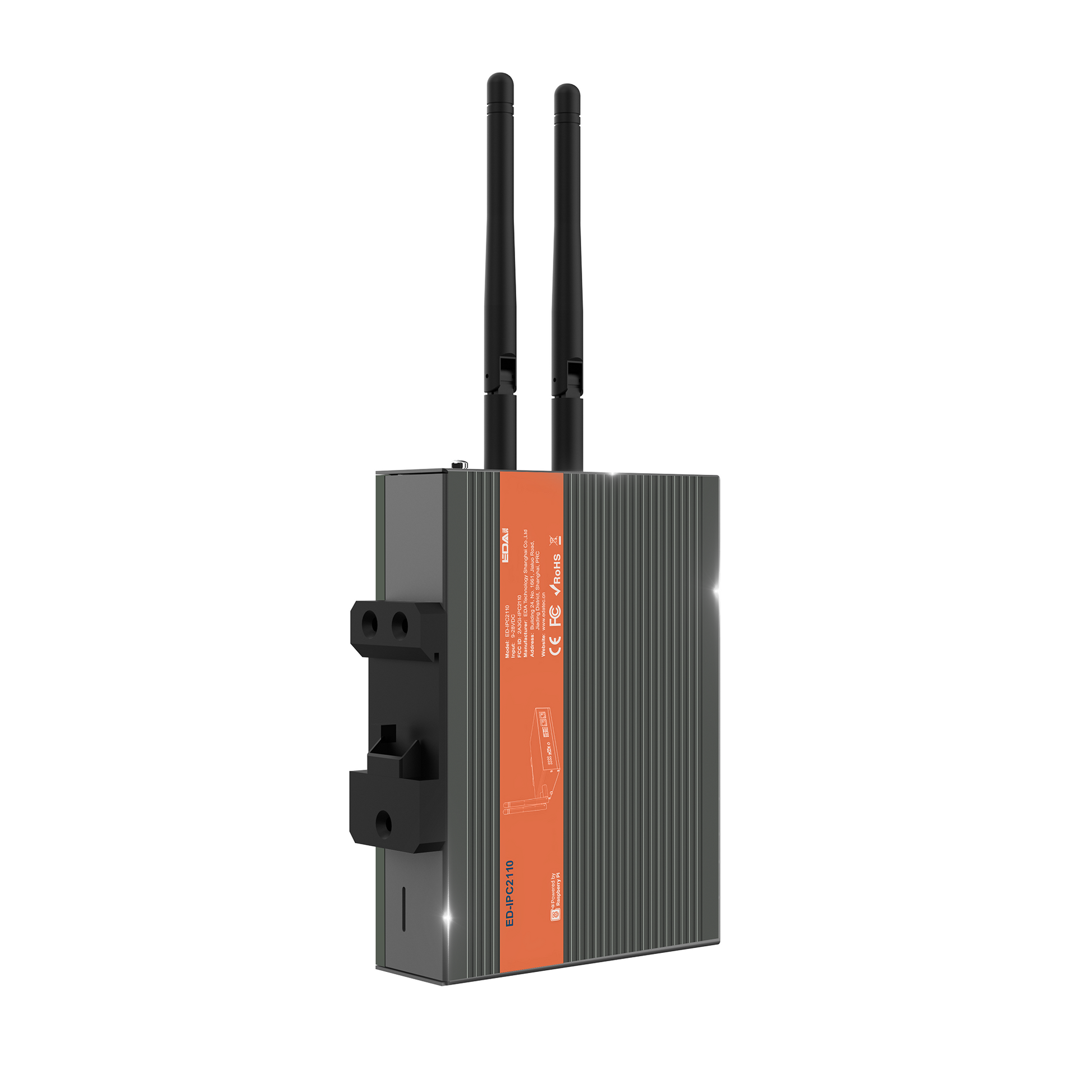

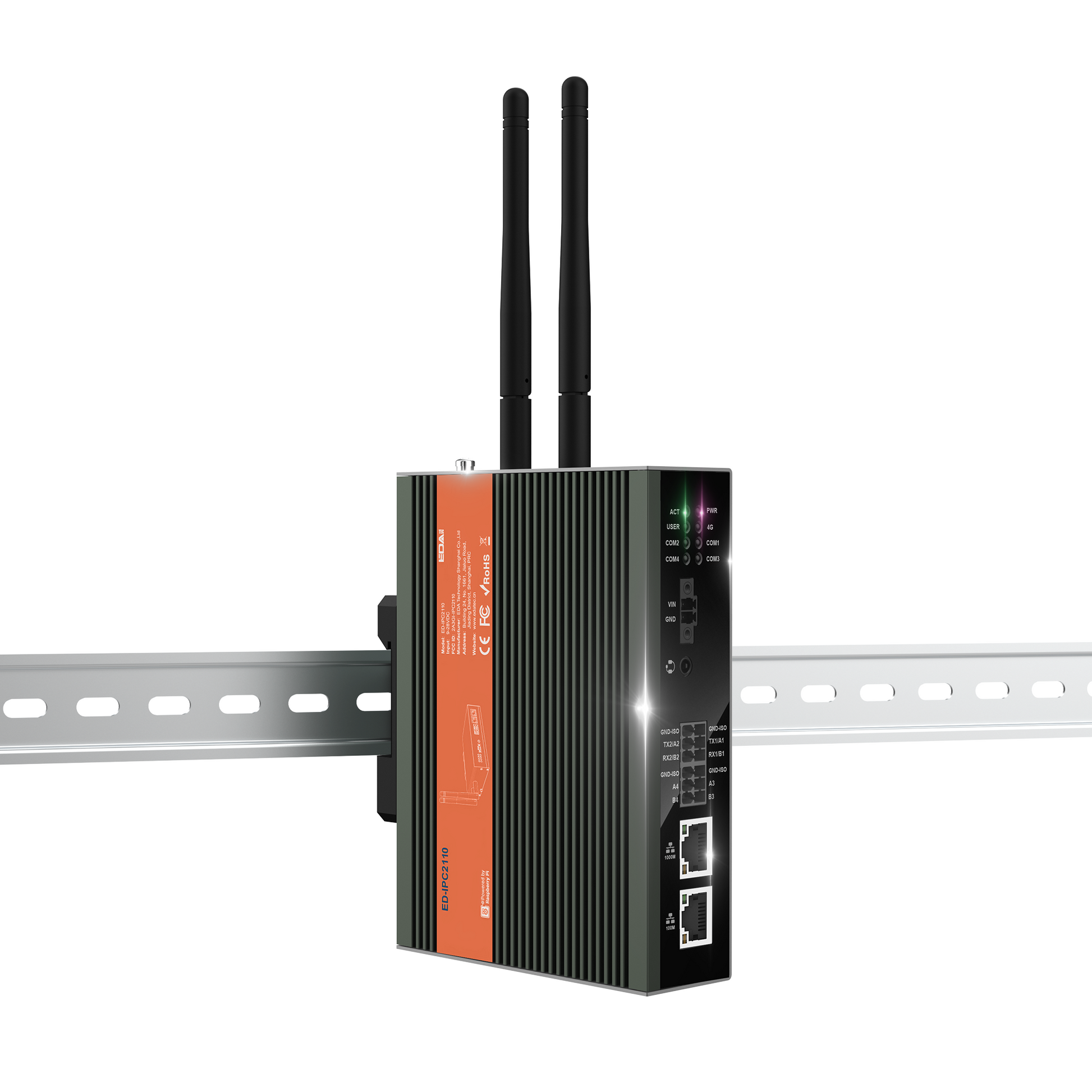

| Installation | DIN rail mounting and wall mounting |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC (47 CFR Part 15 Subpart B), CE (EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.6, ETSI EN 301 489-52 V1.2.1, EN 55032:2015 + A1:2020 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 908-13 V13.2.1) |
| Operating System | Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit) |
4G LTE Module Options
Not included by default. Provided for reference if you need a 4G-enabled configuration -- contact us.
| Module | Region | Supported Bands | GNSS |
|---|---|---|---|
| EC20-CE | China / India | LTE FDD: B1/B3; LTE TDD: B38/B39/B40/B41; TD-SCDMA: B34/B39; WCDMA: B1; CDMA 1x/EVDO: BC0; GSM: 900/1800 MHz | Optional |
| EC25-AFX | North America | LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71; LTE TDD; WCDMA: B2/B4/B5; GSM/EDGE | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-AUX | Latin America / Australia / New Zealand | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40; WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-EUX | Europe / Middle East / Africa / Thailand | LTE FDD: B1/B3/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM/EDGE: B3/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
| EC25-EFA | Europe / Middle East / Africa / South-East Asia | LTE FDD: B1/B3/B7/B8/B20/B28; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM/EDGE: B3/B8 | GPS/GLONASS/BDS/Galileo/QZSS |
Optional Accessories
Power Adapters:
| Model | Description |
|---|---|
| ED-PSU1202-US-3.5PL | 100~240VAC to 12VDC/2A Adapter, US plug, 3.5mm pitch Phoenix plug with lock |
| ED-PSU1202-EU-3.5PL | 100~240VAC to 12VDC/2A Adapter, EU plug, 3.5mm pitch Phoenix plug with lock |
| ED-PSU1202-UK-3.5PL | 100~240VAC to 12VDC/2A Adapter, UK plug, 3.5mm pitch Phoenix plug with lock |
| ED-PSU1202-AU-3.5PL | 100~240VAC to 12VDC/2A Adapter, AU plug, 3.5mm pitch Phoenix plug with lock |
Note: Each adapter model includes only one plug type. Power adapter sold separately.
Mounting Brackets:
| Model | Description |
|---|---|
| ED-BKT-LB | Wall-mount bracket for ED-IPC2100, ED-IPC2200, and ED-IPC2600 |
What's in the Box
- 1x ED-IPC2100 Unit
- 1x 2.4GHz/5GHz Wi-Fi/BT Antenna (Wi-Fi/BT version only)
- 1x 4G/LTE Antenna (4G version only)
- 1x 2-Pin Phoenix Terminal with lock
- 2x 6-Pin Phoenix Terminals
