EDATEC Raspberry Pi CM5 Active Cooler
EDATEC Raspberry Pi CM5 Active Cooler
SKU:123004097
Out of stock — Available on backorder
Couldn't load pickup availability
For Raspberry Pi CM4, see the Passive Cooler for CM4.
This listing is for the ED-CM5ACOOLER: active cooler for the Raspberry Pi Compute Module 5 (CM5). Contact us if you have questions about compatibility with your CM5 carrier board.

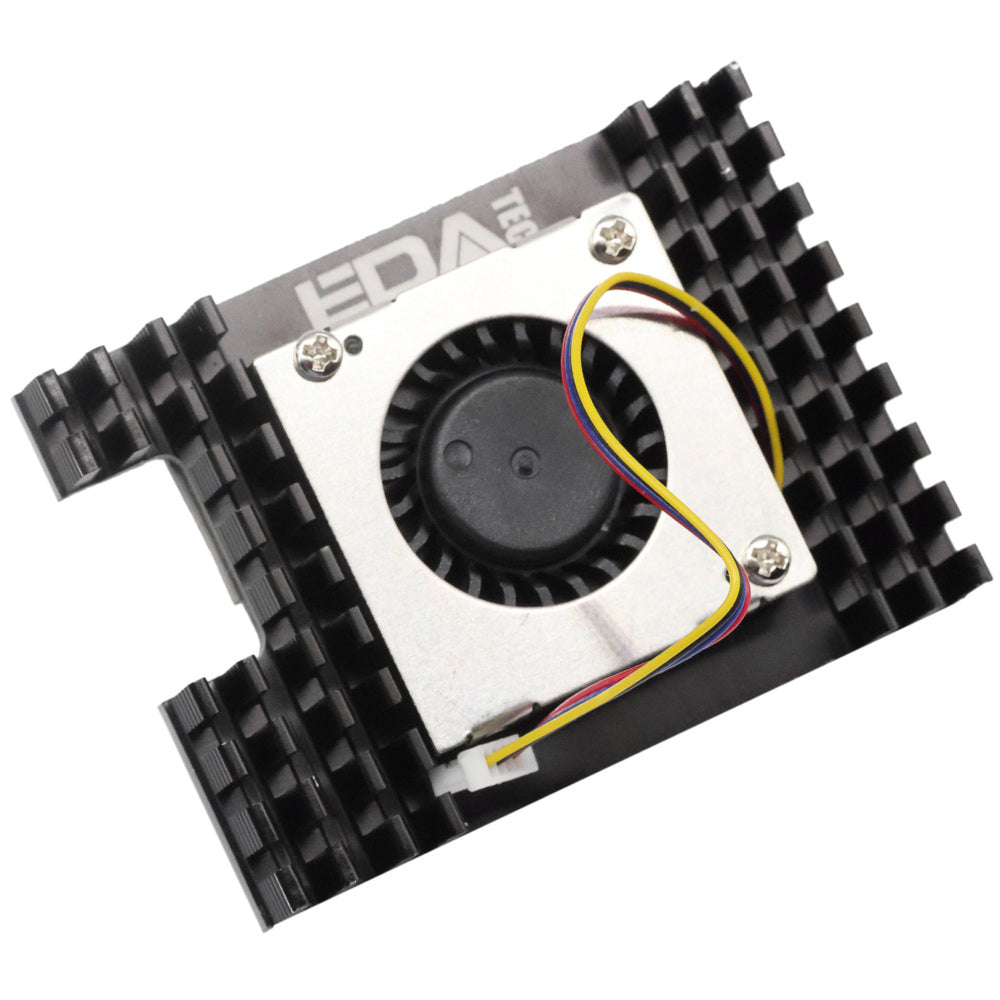

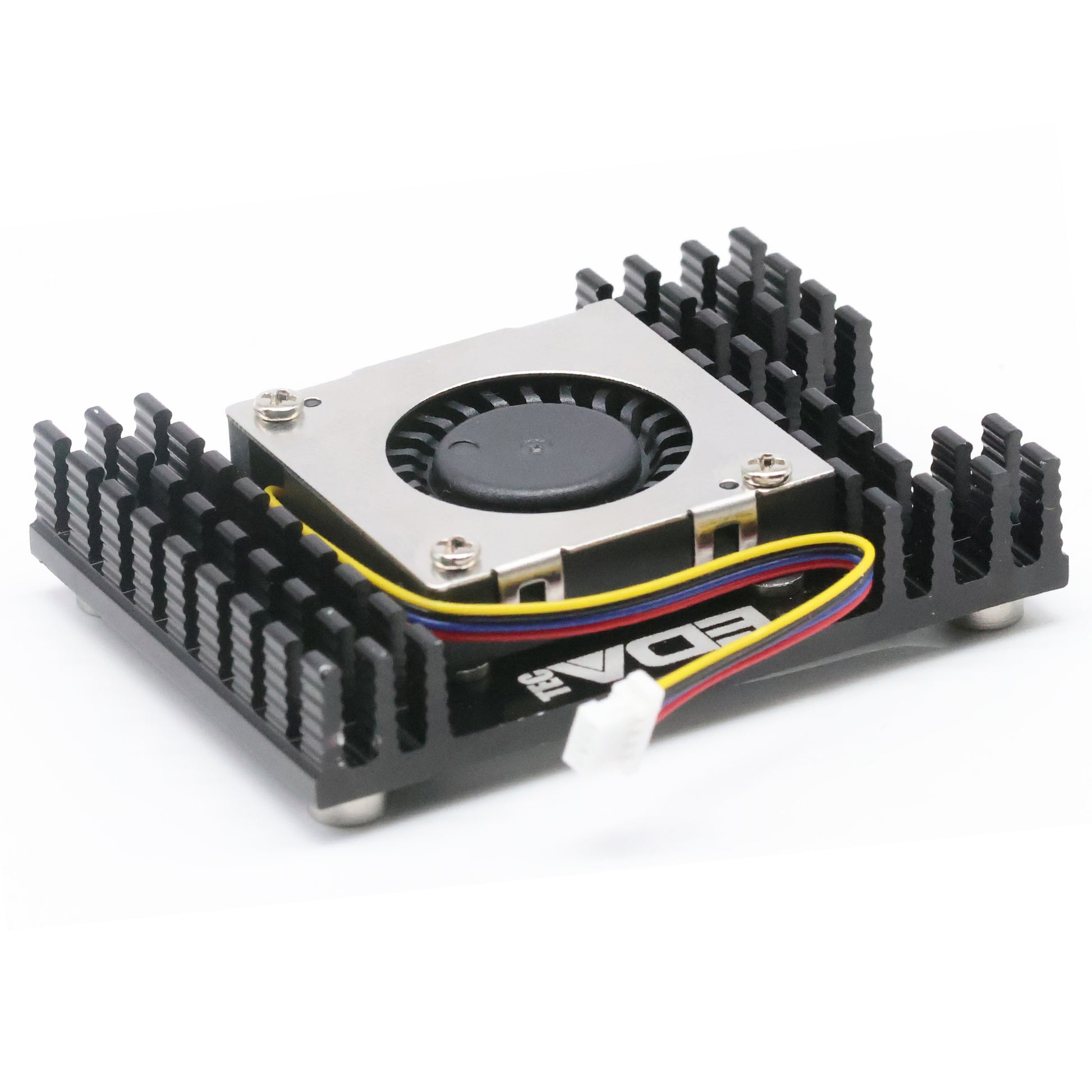

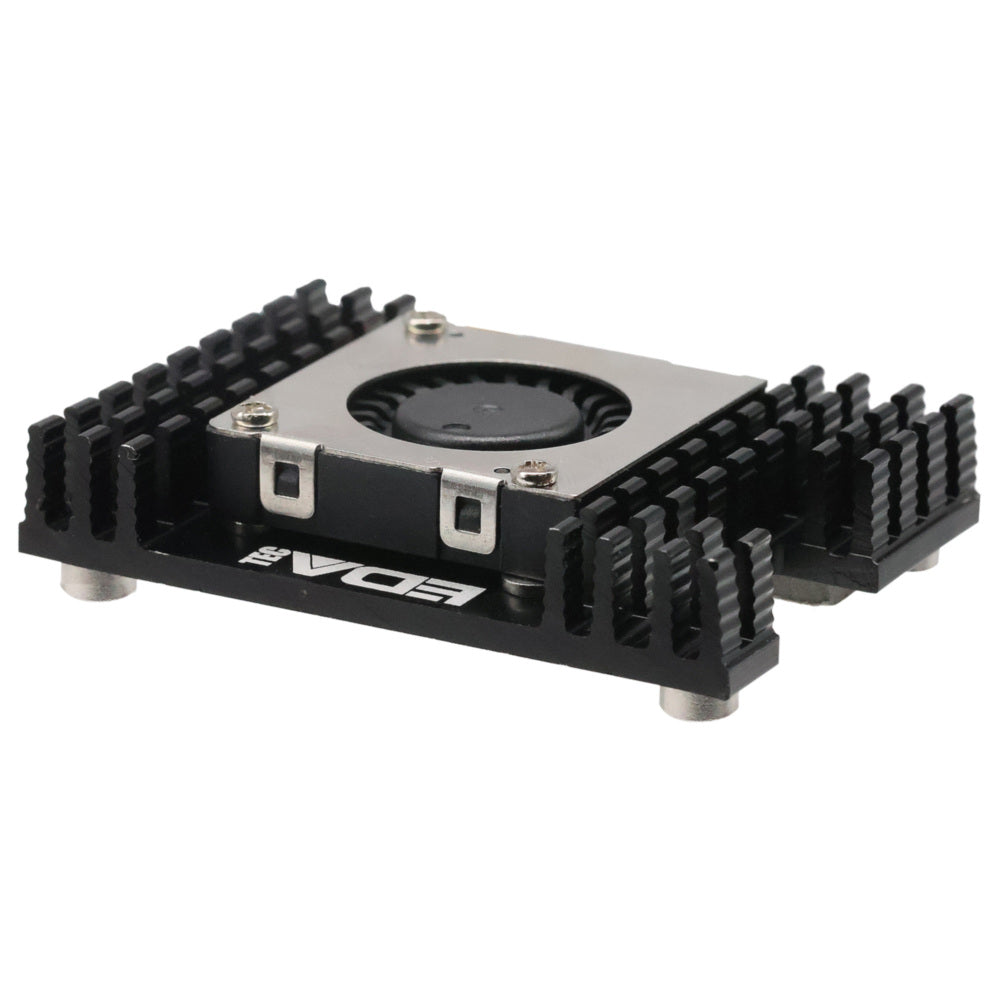

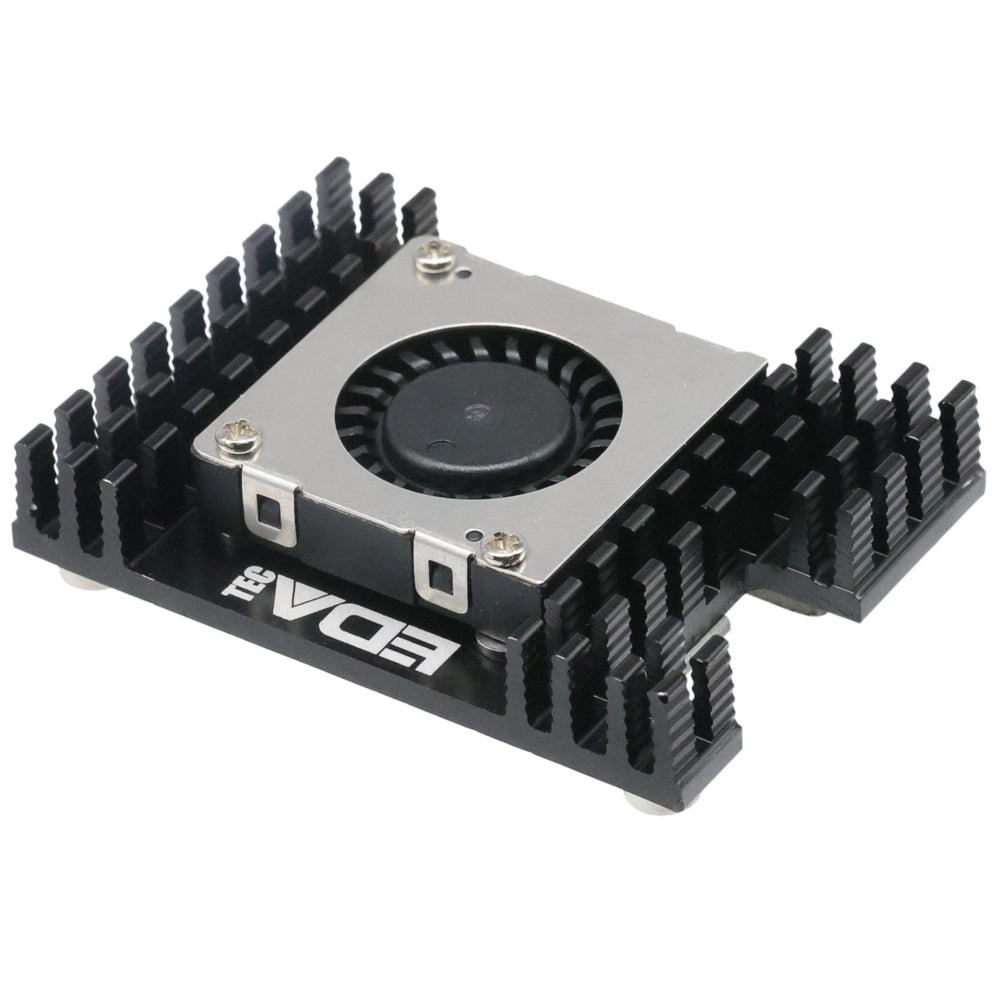

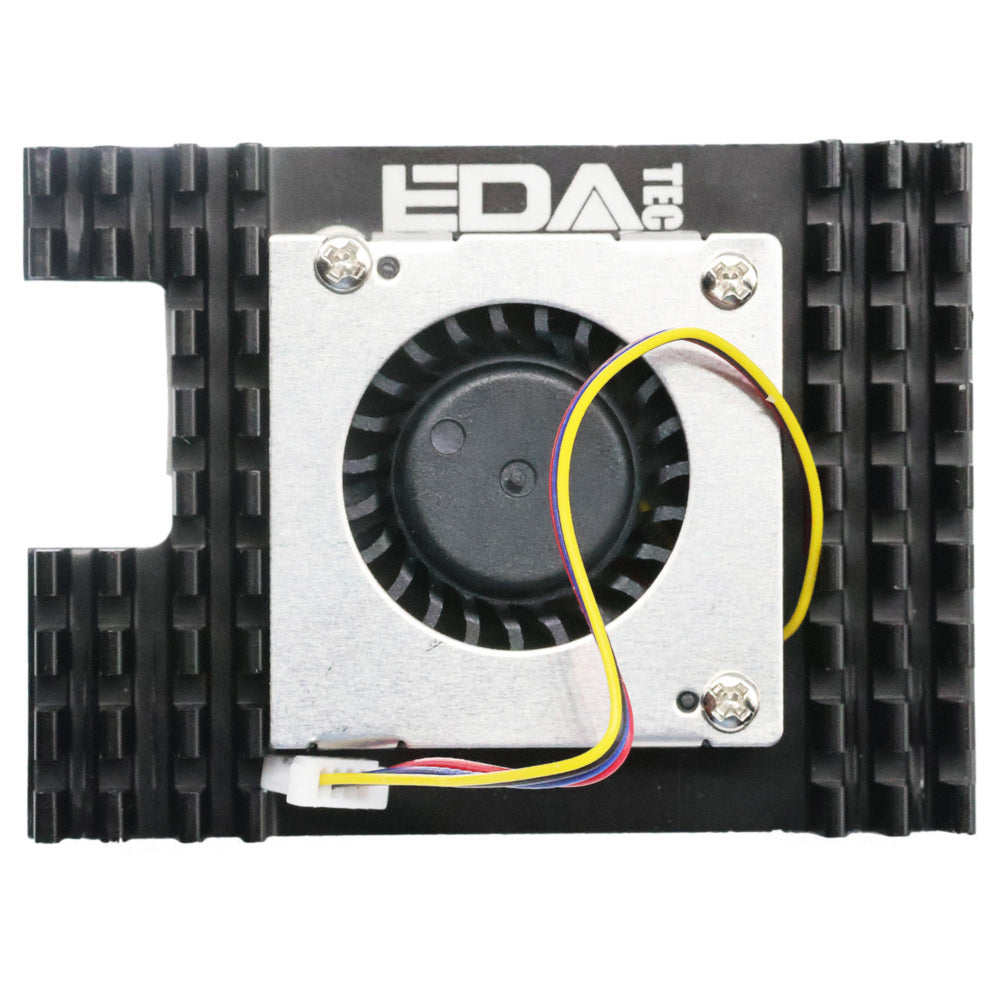

The ED-CM5ACOOLER is an active cooling solution purpose-built for the Raspberry Pi Compute Module 5 (CM5). Combining a precision-cut aluminium profile heatsink with an integrated temperature-controlled radial blower fan and pre-installed thermal conductive silicone, it delivers outstanding heat dissipation -- reducing CPU temperature by 27°C in a 25°C ambient environment. Easy to install with included screws and nylon gaskets, the ED-CM5ACOOLER is the essential thermal accessory for CM5-based designs running at full performance. Reviewed and recommended by Jeff Geerling, Tom's Hardware, CNX Software, and other leading Raspberry Pi media outlets.
Key Features
- Designed for: Raspberry Pi Compute Module 5 (CM5)
- Construction: Aluminium profile, CNC cut -- durable and excellent thermal conductivity
- Fan: Temperature-controlled radial blower fan -- speed automatically adjusts based on CM5 temperature via PWM control with tachometer
- Thermal Interface: Pre-installed thermal conductive silicone -- no paste required
- Cooling Coverage: Cools CM5 CPU, Wi-Fi module, and power management chip simultaneously
- Cooling Performance: Reduces CPU temperature by 27°C in a 25°C environment (84.3°C → 57.6°C at full CPU load)
- Fan Specs: 5V DC (3.5~5.5V), max 8,000 RPM ± 15%, 1.09 CFM airflow, 27.7 dB noise level, 0.75W power consumption
- Dimensions: 56.5 x 41 x 14.1mm (W x D x H)
- Weight: ~31g
- Installation: Screw mount with included M2.5×8 screws and nylon gaskets (1.5mm and 3mm heights included)
Specifications
| Category | Details |
|---|---|
| Compatible Module | Raspberry Pi Compute Module 5 (CM5) |
| Construction | Aluminium profile, CNC cut |
| Fan Type | Radial blower fan, temperature-controlled |
| Fan Speed Control | Pulse width modulation (PWM) with tachometer (FG) |
| Fan Input Voltage | 5V DC (3.5~5.5V) via 4-pin fan header on motherboard |
| Start Voltage | ≥ 3.5V |
| Max Fan Speed | 8,000 RPM ± 15% (at 25°C, after 3~5 minutes running) |
| Airflow | 1.09 CFM |
| Noise Level | 27.7 dB |
| Power Consumption | 0.75W |
| Rated Current | 0.15 ± 0.02A |
| Thermal Interface | Pre-installed thermal conductive silicone |
| Cooling Performance | CPU temperature reduction of 27°C (84.3°C → 57.6°C at 25°C ambient, full CPU load via sysbench) |
| Cooling Coverage | CPU, Wi-Fi module, and power management chip |
| Dimensions | 56.5 x 41 x 14.1mm (W x D x H) |
| Weight | ~31g |
| Installation | Screw mount; 4x M2.5×8 screws, 4x M2.5×H1.5 nylon gaskets, 4x M2.5×H3 nylon gaskets included |
Installation Notes
- Remove the white protective paper from the thermal silicone before installing.
- Check your CM5 carrier board connector height before selecting nylon gaskets: use M2.5×H1.5 gaskets for 1.5mm connector height, or M2.5×H3 gaskets for 3mm connector height.
- If designing a custom case, position heatsink openings close to the blower fan air outlet for best airflow.
- After mounting, plug the fan power cable into the FAN connector on the motherboard.
What's in the Box
- 1x ED-CM5ACOOLER unit (with pre-installed thermal conductive silicone)
- 1x Accessory set: 4x M2.5×8 screws, 4x M2.5×H1.5 nylon gaskets, 4x M2.5×H3 nylon gaskets
