EDATEC 10.1" Industrial HMI Based on Raspberry Pi 4 ED-HMI2002

$ 80.00 USD

Sale Sold out

EDATEC P/N ED-HMI2002-101C-0000

Quantity

SKU:123004094

Out of stock — Available on backorder

This listing is for the ED-HMI2002-101C: 10.1-inch industrial HMI based on the Raspberry Pi 4, with 1280x800 capacitive touch, dual 4K Micro HDMI, Gigabit Ethernet, and optional 8MP front camera. Contact us if you need a specific RAM, storage, or camera configuration.

The ED-HMI2002-101C is a 10.1-inch industrial Human-Machine Interface (HMI) built on the Raspberry Pi 4, powered by the Broadcom BCM2711 quad-core Arm Cortex-A72 processor at 1.8GHz. Featuring a sharp 1280x800 TFT display with a 10-point capacitive touch screen, dual 4K Micro HDMI outputs, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, and an optional 8-megapixel front camera, it delivers a versatile and capable HMI platform for machine operator panels, smart building controls, kiosks, and a wide range of embedded industrial display applications. Housed in a precision-machined Aluminum CNC and sheet metal fanless enclosure, it supports embedded installation and VESA standard bracket installation, with a wide -20°C to 60°C operating temperature range.

Key Features

Display: 10.1" TFT, 1280x800 resolution, 250 cd/m² brightness, 1000:1 contrast ratio, 30ms response time, LED backlight, MTBF >30,000h
Touch Screen: 10-point capacitive touch, 6H surface hardness, ≥85% transmittance, I2C interface, Linux driver support
Viewing Angle (CR≥10): 80° Left / 80° Right / 80° Up / 80° Down
Processor: Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.8GHz
Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
Storage: 32GB or 64GB SD card (Micro SD slot)
HDMI: 2x Micro HDMI, 4K @ 60Hz each
Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
Audio: 1x 3.5mm 4-pole stereo audio jack
Camera (Optional): Built-in 8-megapixel front camera
Wireless: Dual-band 802.11ac Wi-Fi + Bluetooth 5.0 / Bluetooth Low Energy (BLE)
Power: 5V DC via USB Type-C (5V/3A)
Enclosure: Aluminum CNC + sheet metal case, fanless design

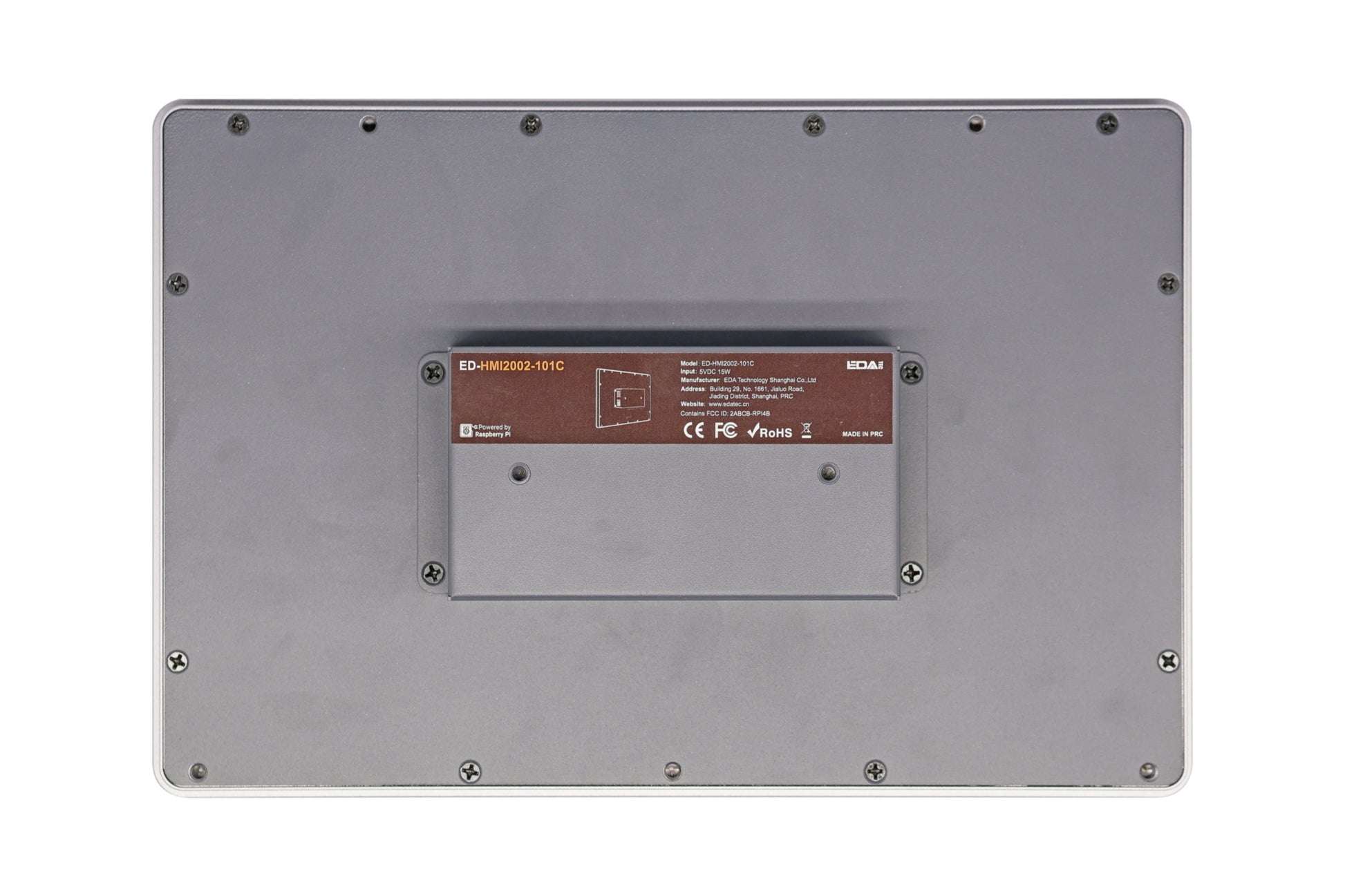

Installation: Embedded installation, compatible with VESA standard bracket installation
OS Support: Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)

SKU Configuration Guide

The ED-HMI2002-101C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Field	Options
Model	HMI2002-101C
RAM	01 = 1GB \| 02 = 2GB \| 04 = 4GB \| 08 = 8GB
SD Card	32 = 32GB \| 64 = 64GB
Camera	blank = without \| C = with 8MP front camera

Specifications

System

Category	Details
CPU	Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.8GHz
VPU	H.265 (HEVC) up to 4Kp60 decode; H.264 up to 1080p60 decode / 1080p30 encode
GPU	OpenGL ES 3.1 & Vulkan 1.0
Memory	1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM
Storage	32GB or 64GB SD card (Micro SD slot)
Wi-Fi	Dual-band 802.11ac (2.4GHz & 5GHz)
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)
Operating System	Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)

Display

Category	Details

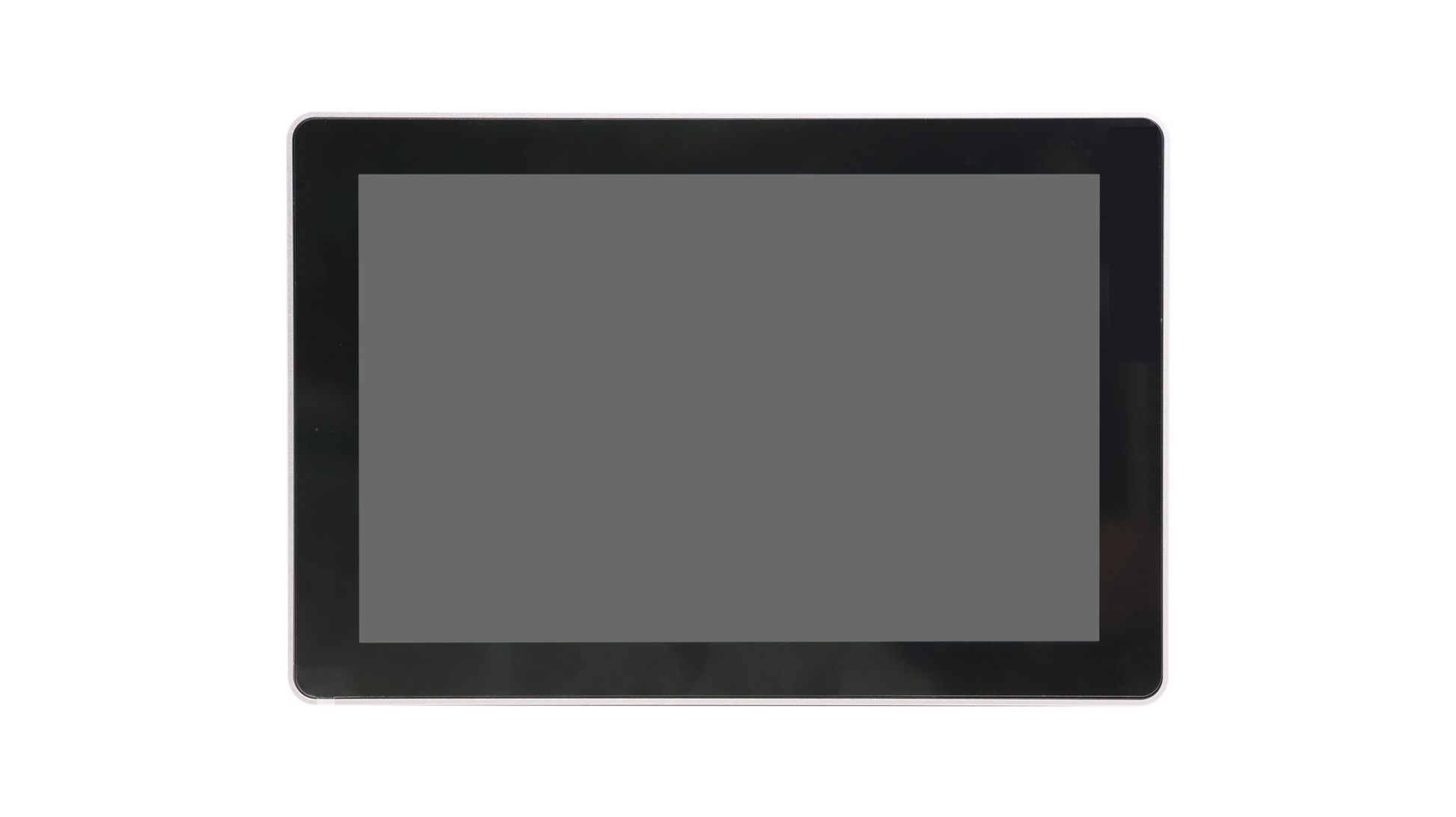

Panel Type	10.1" TFT LCD
Resolution	1280 x 800
Color Depth	16.7M colors
Active Area	216.576mm (H) x 135.36mm (V)
Backlight	LED
MTBF	>30,000h
Luminance	250 cd/m²
Contrast Ratio	1000:1
Response Time	30ms
Viewing Angle (CR≥10)	80° (L) / 80° (R) / 80° (U) / 80° (D)

Touch Screen

Category	Details
Type	Multi-point Capacitive Touch Screen
Multi-Touch Points	Up to 10 points
Controller Interface	I2C
Connection Method	COF
Transmittance	≥85%
Surface Hardness	6H
Driver Support	Linux

I/O & Connectivity

Category	Details
HDMI	2x Micro HDMI, 4K @ 60Hz each

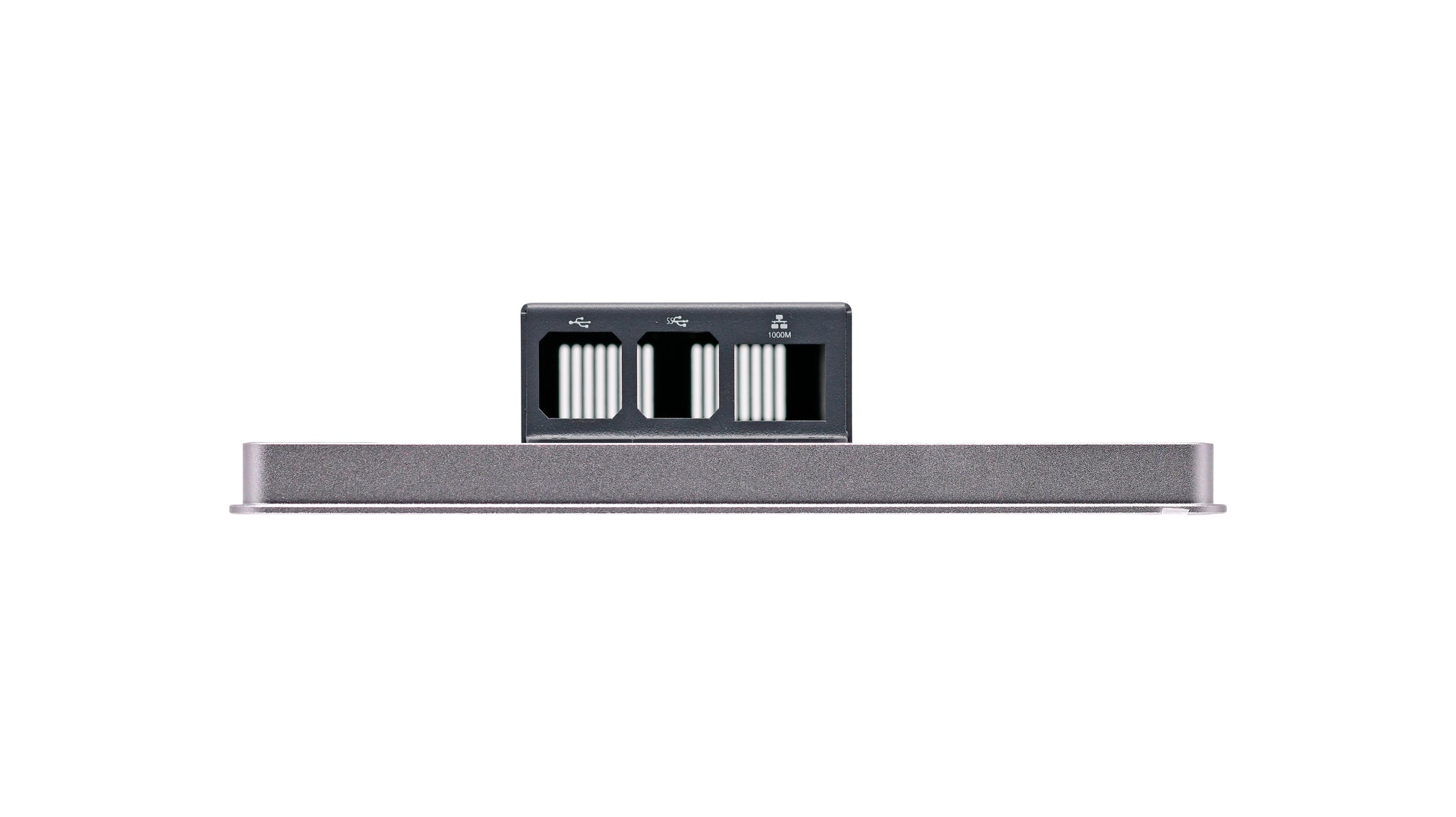

Ethernet	1x 10/100/1000M adaptive Gigabit Ethernet, RJ45
USB 2.0	2x USB 2.0, Type-A, dual-layer connector (up to 480Mbps each)
USB 3.0	2x USB 3.0, Type-A, dual-layer connector (up to 5Gbps each)
Audio	1x 3.5mm audio jack connector, 4-pole stereo audio
Camera (Optional)	Built-in 8-megapixel front camera
SD Card	1x Micro SD card slot; supports OS boot from Micro SD card

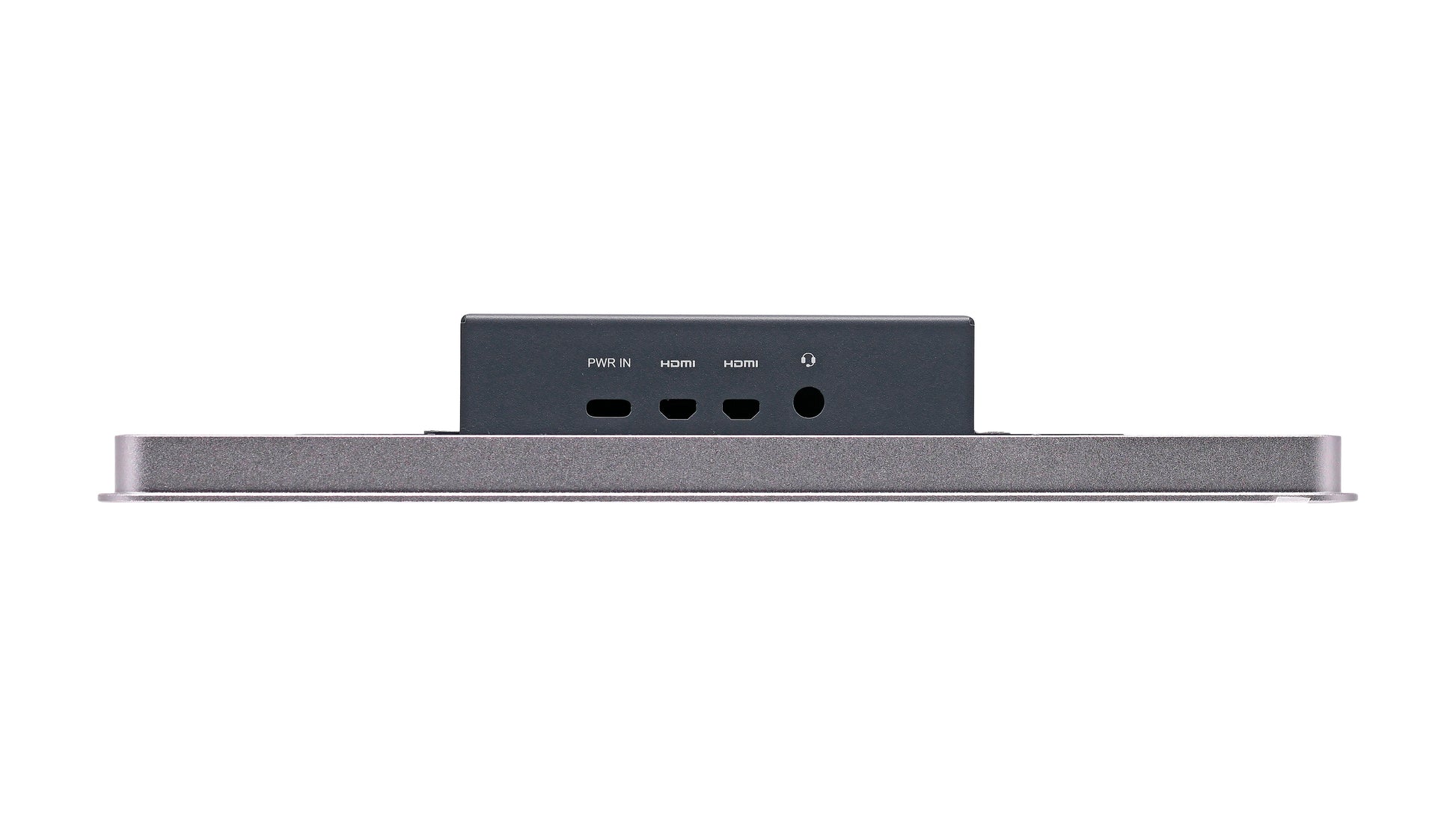

Power	5V DC, USB Type-C connector (5V/3A)

Mechanical & Environmental

Category	Details
Input Voltage	5V DC (USB Type-C, 5V/3A)
Power Consumption	15W (max)

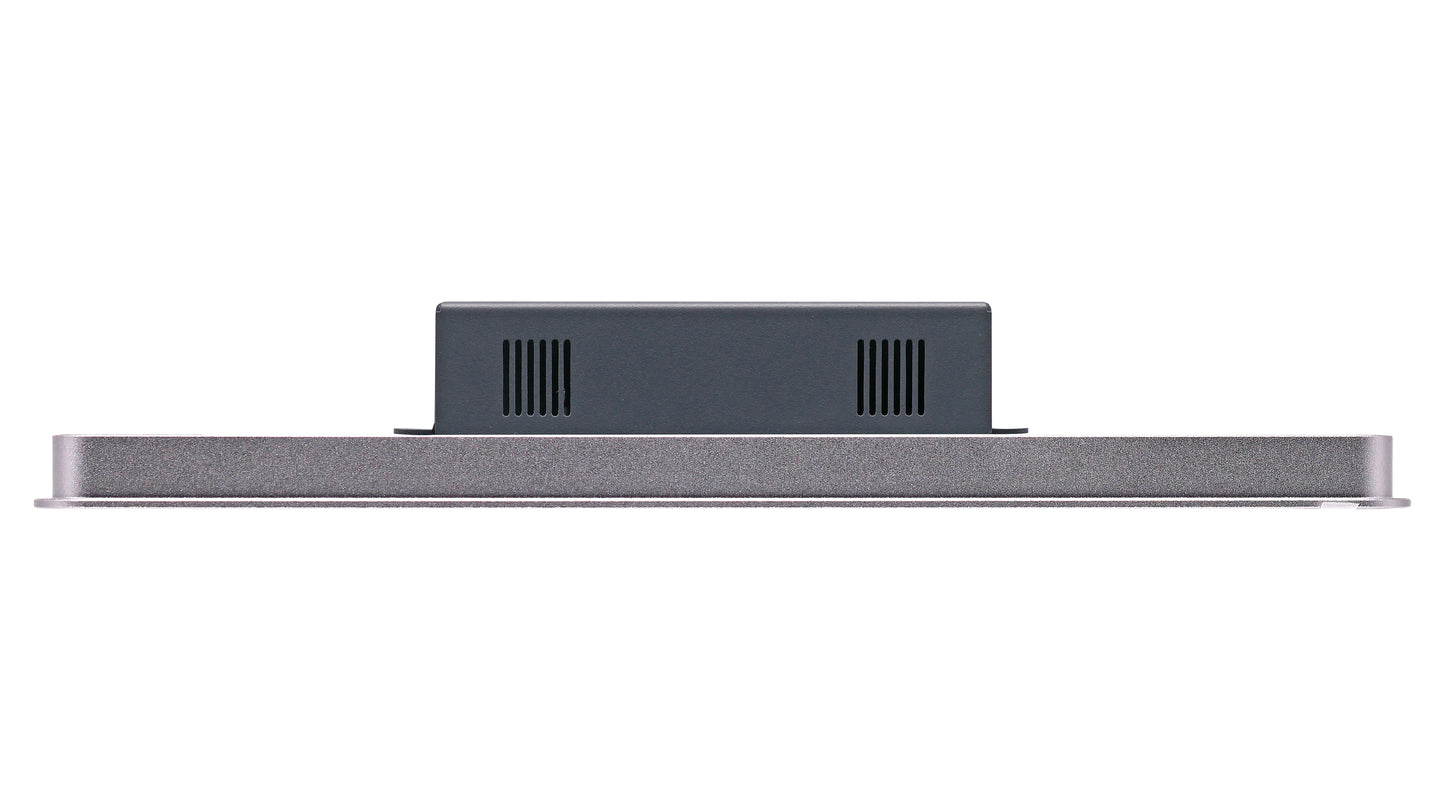

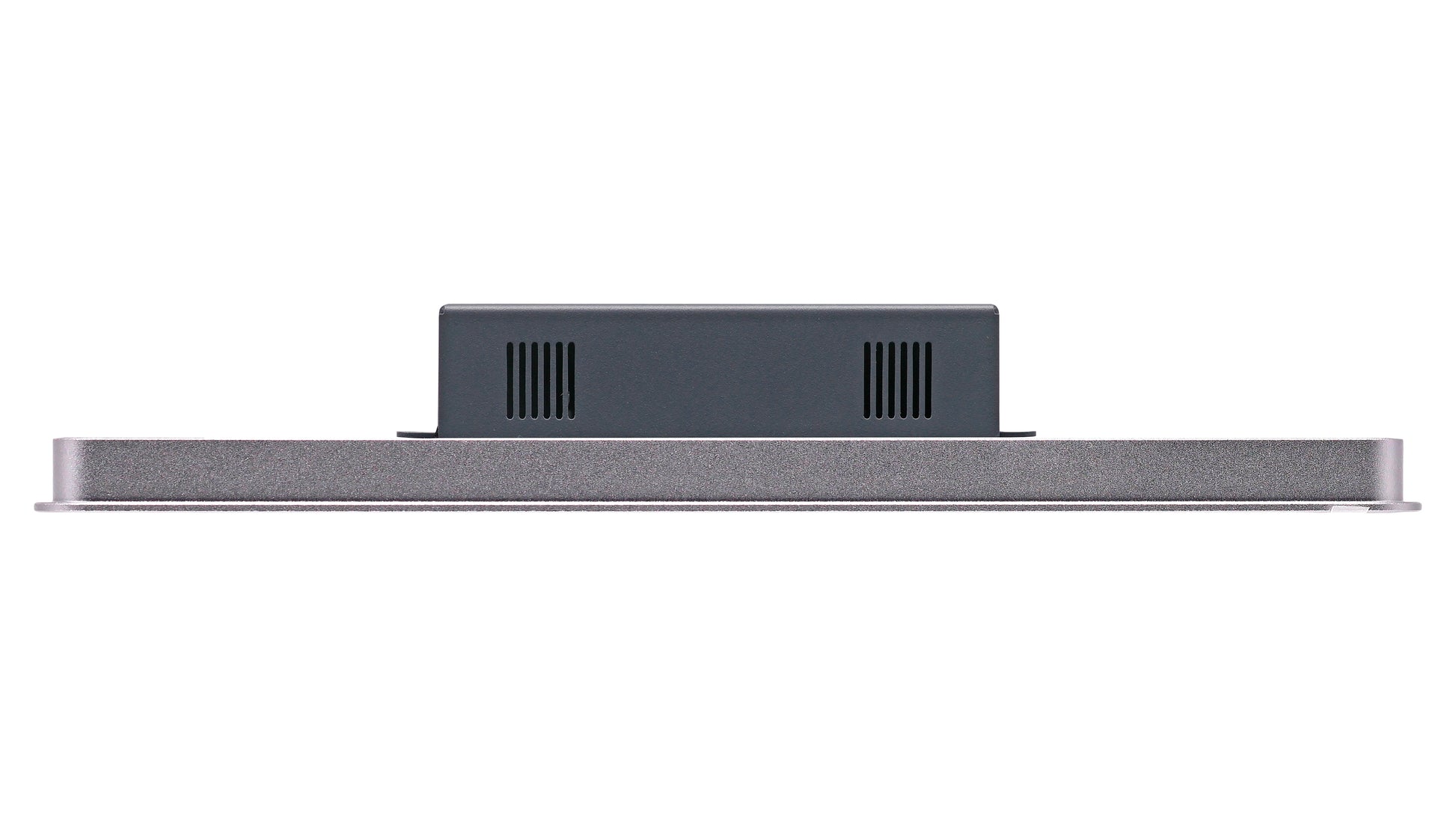

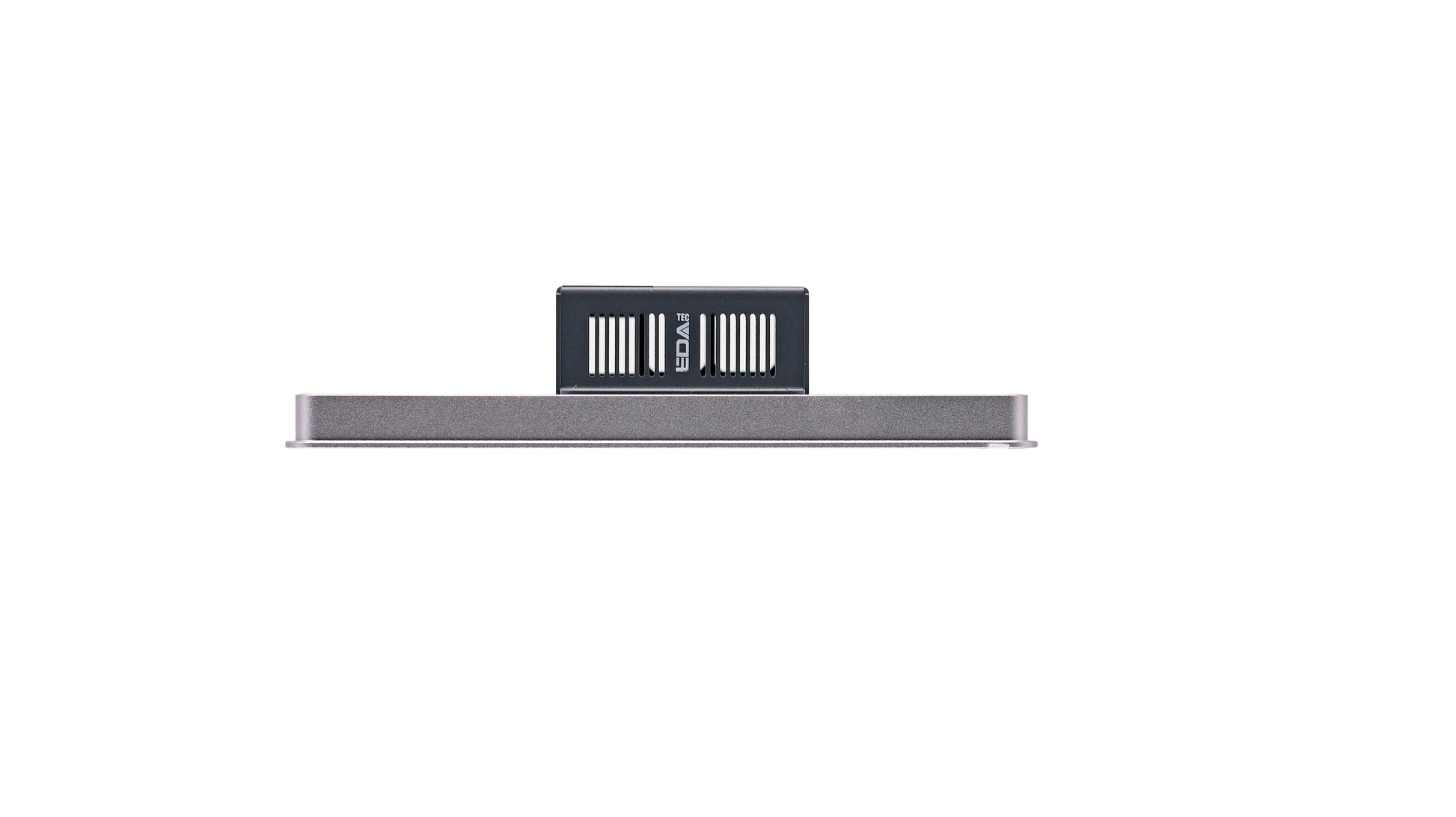

Enclosure	Aluminum CNC + sheet metal case, fanless design
Dimensions	258 x 172 x 38.5mm (W x D x H)
Weight	~900g
Installation	Embedded front installation
Operating Temperature	-20°C to 60°C
Storage Temperature	-25°C to 60°C
Humidity	5% ~ 95% (non-condensing)

Optional Accessories

HMI Mounting Kit (required for embedded front installation -- sold separately):

Model	Description
ED-ACCHMI-Front	HMI Mounting Kit for front installation -- includes 4x buckles, 4x M4×10 screws, 4x M4×16 screws

Note: The standard package does not include the mounting kit. Purchase separately if embedded front installation is required.

Passive Cooler:

Model	Description
ED-Pi4PCOOLER	Passive Cooler for Raspberry Pi 4

Power Adapters (Raspberry Pi 15W USB-C):

Model	Description
SC0218	Raspberry Pi 15W USB-C Power Supply -- Black, US plug
SC0445	Raspberry Pi 15W USB-C Power Supply -- White, US plug
SC1412	Raspberry Pi 15W USB-C Power Supply -- Black, EU plug
SC0753	Raspberry Pi 15W USB-C Power Supply -- White, EU plug
SC0216	Raspberry Pi 15W USB-C Power Supply -- Black, UK plug
SC0443	Raspberry Pi 15W USB-C Power Supply -- White, UK plug
SC0219	Raspberry Pi 15W USB-C Power Supply -- Black, AU plug
SC0523	Raspberry Pi 15W USB-C Power Supply -- White, AU plug
SC0479	Raspberry Pi 15W USB-C Power Supply -- Black, IN plug
SC0478	Raspberry Pi 15W USB-C Power Supply -- White, IN plug

Note: Power adapter sold separately.

What's in the Box

1x ED-HMI2002-101C Unit

Note: The HMI Mounting Kit for embedded front installation is not included in the standard package and must be purchased separately (ED-ACCHMI-Front).
