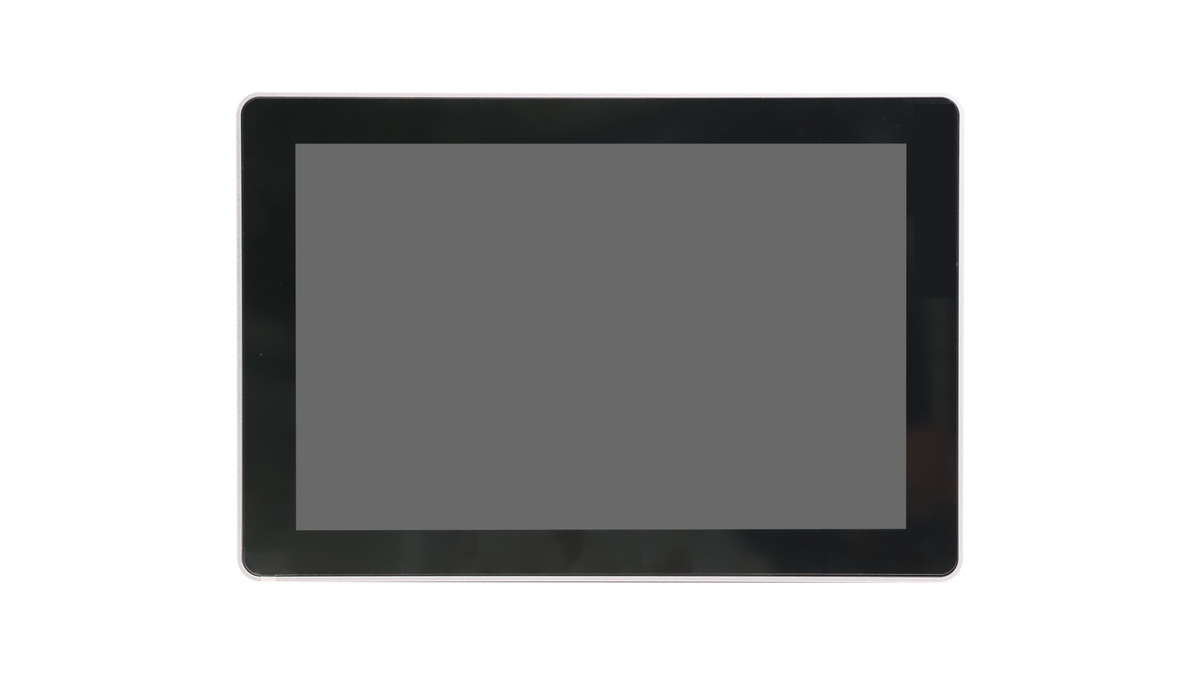

EDATEC 10.1" Industrial HMI Based on Raspberry CM 4 ED-HMI2020-101C
EDATEC 10.1" Industrial HMI Based on Raspberry CM 4 ED-HMI2020-101C
SKU:123004264
Out of stock — Available on backorder
Couldn't load pickup availability
This listing is for the ED-HMI2020-101C-1216: 10.1-inch industrial HMI based on the Raspberry Pi Compute Module 4 (CM4), with 1GB RAM, 16GB eMMC,1280x800 10-point capacitive touch, HDMI, Gigabit Ethernet, built-in speaker, and optional 8MP front camera. Contact us if you need a specific RAM, storage, wireless, or camera configuration.
The ED-HMI2020-101C is a 10.1-inch industrial Human-Machine Interface (HMI) built on the Raspberry Pi Compute Module 4 (CM4), powered by the Broadcom BCM2711 quad-core Arm Cortex-A72 processor at 1.5GHz. Featuring a bright 1280x800 TFT display with a 10-point capacitive touch screen, HDMI 2.0 output, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth, a built-in speaker, and an optional 8-megapixel front camera, it delivers a versatile HMI platform for machine operator panels, smart building controls, kiosks, and a wide range of embedded industrial display applications. Housed in a high-quality metal fanless enclosure, it supports embedded front installation and VESA standard bracket installation, with a wide 9V-28V DC input and a -25°C to 60°C operating temperature range.
Key Features
- Display: 10.1" TFT, 1280x800 resolution, 400 cd/m² brightness, 1000:1 contrast ratio, 30ms response time, LED backlight, MTBF >30,000h
- Touch Screen: 10-point capacitive touch, 6H surface hardness, ≥85% transmittance, I2C interface, Linux driver support
- Viewing Angle (CR≥10): 80° Left / 80° Right / 80° Up / 80° Down
- Processor: Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz
- Memory: 1GB, 2GB, 4GB, or 8GB LPDDR4-3200 SDRAM
- Storage: 8GB, 16GB, or 32GB eMMC; Micro SD card slot (user storage expansion)
- HDMI: 1x HDMI Type-A, HDMI 2.0, 4K @ 60Hz
- Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
- USB: 2x USB 3.0 (5Gbps) + 1x USB 2.0 (480Mbps)
- Audio: 1x 3.5mm Audio In/Stereo Out jack; built-in 4Ω 3W speaker
- Camera (Optional): Built-in 8-megapixel front camera
- Wireless (Optional): 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth
- Expansion: 40-pin GPIO header
- Reliability: RTC with CR1220 battery backup, EEPROM (4K), crypto authentication, buzzer, reset button, PWR & ACT LED indicators
- Power: 9V-28V DC via DC jack (5.5x2.5mm), with reverse polarity, overvoltage & overcurrent protection
- Enclosure: High-quality metal case, fanless design
- Installation: Embedded front installation, compatible with VESA standard bracket installation
- OS Support: Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit)
SKU Configuration Guide
The ED-HMI2020-101C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | HMI2020-101C |
| RAM | 02 = 2GB | 04 = 4GB | 08 = 8GB | 12 = 1GB |
| eMMC | 08 = 8GB | 16 = 16GB | 32 = 32GB |
Available standard configurations include HMI2020-101C-0232, -0416, -0832, -1208, -1232, -1408, -1416, -1432, -1808, and -1832. Contact us to confirm availability of a specific RAM/eMMC combination.
Specifications
System
| Category | Details |
|---|---|
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARMv8) 64-bit @ 1.5GHz |
| VPU | H.265 (HEVC) up to 4Kp60 decode; H.264 up to 1080p60 decode / 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | 1GB / 2GB / 4GB / 8GB LPDDR4-3200 SDRAM |
| Storage | 8GB / 16GB / 32GB eMMC; Micro SD card slot (user storage expansion) |
| Wi-Fi | Dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz), optional |
| Bluetooth | 2402MHz ~ 2480MHz frequency range, optional |
| Operating System | Raspberry Pi OS (Desktop/Lite, 32-bit & 64-bit) |
Display
| Category | Details |
|---|---|
| Panel Type | 10.1" TFT LCD |
| Resolution | 1280 x 800 |
| Color Depth | 16.7M colors |
| Active Area | 216.576mm (H) x 135.36mm (V) |
| Backlight | LED |
| MTBF | >30,000h |
| Luminance | 400 cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 30ms |
| Viewing Angle (CR≥10) | 80° (L) / 80° (R) / 80° (U) / 80° (D) |
Touch Screen
| Category | Details |
|---|---|
| Type | Multi-point Capacitive Touch Screen |
| Multi-Touch Points | Up to 10 points |
| Controller Interface | I2C |
| Connection Method | COF |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Driver Support | Linux |
I/O & Connectivity
| Category | Details |
|---|---|
| HDMI | 1x HDMI Type-A, HDMI 2.0, 4K @ 60Hz |
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet, RJ45 |
| USB 3.0 | 2x USB 3.0, Type-A (up to 5Gbps each) |
| USB 2.0 | 1x USB 2.0, Type-A (up to 480Mbps) |
| Audio | 1x 3.5mm Audio In/Stereo Out jack (MIC IN / Audio OUT, switches to headphone when connected); built-in 4Ω 3W speaker |
| Camera (Optional) | Built-in 8-megapixel front camera |
| Antenna (Optional) | 1x SMA port for Wi-Fi/BT antenna |
| SD Card | 1x Micro SD card slot (user data storage) |
| GPIO | 40-pin GPIO header (expansion) |
| Power | 1x DC IN, DC jack connector (5.5x2.5mm), 9V-28V input |
Buttons, Indicators & Expansion
| Category | Details |
|---|---|
| Reset Button | 1x Reset button (resets the device) |
| Programming Button | 1x PROGRAMMING button (used to flash the eMMC) |
| Power Indicator | 1x red PWR LED (power-on/off status) |
| System Indicator | 1x green ACT LED (system working status) |
| EEPROM | 4K byte onboard storage |
| Crypto Authentication | Onboard hardware security element |
| RTC | RTC with CR1220 battery backup (keeps system clock through power-off) |
| Buzzer | Configurable for alerts and alarms |
Mechanical & Environmental
| Category | Details |
|---|---|
| Input Voltage | 9V-28V DC (DC jack, 5.5x2.5mm) |
| Power Consumption | 20W (max) |
| Enclosure | High-quality metal case, fanless design |
| Dimensions | 258 x 172 x 40mm (W x D x H, antenna not included) |
| Weight | About 1.1kg |
| Installation | Embedded front installation; VESA standard bracket compatible |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC (47 CFR Part 15 Subpart B); CE (EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.6 (draft), EN 55032:2015 + A1:2020 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1) |
Optional Accessories
HMI Mounting Kit (required for embedded front installation -- sold separately):
| Model | Description |
|---|---|
| ED-ACCHMI-Front | HMI Mounting Kit for front installation -- includes 4x buckles, 4x M4×10 screws, 4x M4×16 screws |
Note: The standard package does not include the mounting kit. Purchase separately if embedded front installation is required.
Passive Cooler:
| Model | Description |
|---|---|
| ED-CM4Cooler | Passive Cooler for Raspberry Pi Compute Module 4 (CM4) |
What's in the Box
- 1x ED-HMI2020-101C Unit
- 1x HMI Mounting Kit
Note: The HMI Mounting Kit for embedded front installation is not included in the standard package and must be purchased separately (ED-ACCHMI-Front).
