EDATEC 7" Industrial HMI Based on Raspberry Pi 5 ED-HMI3010
EDATEC 7" Industrial HMI Based on Raspberry Pi 5 ED-HMI3010
SKU:123004095
Out of stock — Available on backorder
Couldn't load pickup availability
This listing is for the ED-HMI3010-070C: 7.0-inch industrial HMI based on the Raspberry Pi 5, with 1024x600 capacitive touch, dual 4K Micro HDMI, Gigabit Ethernet, and optional 8MP front camera. Contact us if you need a specific RAM or storage configuration.

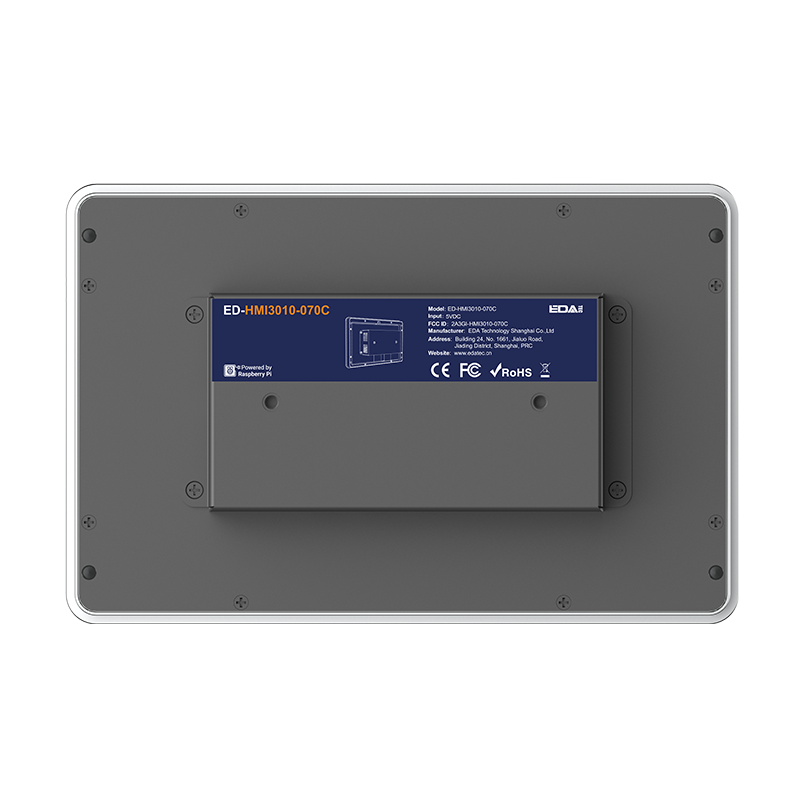

The ED-HMI3010-070C is a compact 7.0-inch industrial Human-Machine Interface (HMI) built on the Raspberry Pi 5, powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz -- bringing a significant performance upgrade over Pi 4-based HMIs. Featuring a 1024x600 TFT display with a 5-point capacitive touch screen, 400 cd/m² brightness, dual 4K Micro HDMI outputs, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0 / Bluetooth Low Energy (BLE), onboard PCIe 2.0 and PoE expansion ports, and an optional 8-megapixel front camera, the ED-HMI3010-070C offers excellent processing power and expandability in a compact, fanless Aluminum CNC and sheet metal enclosure. Certified to FCC and CE standards, it is ideal for machine operator panels, industrial control interfaces, kiosks, and embedded display applications requiring the latest Raspberry Pi 5 performance.
Key Features
- Display: 7.0" TFT, 1024x600 resolution, 400 cd/m² brightness, 800:1 contrast ratio, 30ms response time, LED backlight, MTBF >30,000h
- Touch Screen: 5-point capacitive touch, 6H surface hardness, ≥85% transmittance, I2C interface, Linux driver support
- Viewing Angle (CR≥10): 85° Left / 85° Right / 85° Up / 85° Down
- Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz (Raspberry Pi 5)
- Memory: 4GB, 8GB, or 16GB LPDDR4X-4267 SDRAM
- Storage: 32GB or 64GB SD card (Micro SD slot)
- HDMI: 2x Micro HDMI, 4K @ 60Hz each
- Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
- USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
- Wireless: Dual-band 802.11ac Wi-Fi + Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- Camera (Optional): Built-in 8-megapixel front camera
- Internal Expansion: 1x PCIe 2.0 port (reserved for peripherals) + 1x PoE port (reserved for PoE module)
- Power: 5V DC via USB Type-C (5V/5A)
- Enclosure: Aluminum CNC + sheet metal case, fanless design
- Installation: Embedded front installation
- Certifications: FCC, CE
- OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)
Model Variants - Bundle Configurations
All models share the same display, processor platform, and I/O. The variants differ only in SD card, camera, and cooler inclusion. Contact us to order other RAM configurations.
| Model | SD Card | Camera | Pi5 Active Cooler |
|---|---|---|---|
| ED-HMI3010-070C-0000-L | None | No | No |
| ED-HMI3010-070CC-0000 | None | Yes | Yes |
| ED-HMI3010-070C-0032 | 32GB | No | Yes |
| ED-HMI3010-070CC-0064-L | 64GB | Yes | No |
SKU Configuration Guide
The ED-HMI3010-070C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.
| Field | Options |
|---|---|
| Model | HMI3010-070C |
| Camera | blank = without camera | C suffix = with 8MP front camera (e.g. 070CC) |
| SD Card | 0000 = no SD card | 0032 = 32GB | 0064 = 64GB |
| Active Cooler | blank = with Pi5 Active Cooler included | -L = without Pi5 Active Cooler |
Note: If you purchase a model with Raspberry Pi 5, you need to select the Pi5 Active Cooler accessory (SC1148) if not already included in the bundle.
Specifications
System
| Category | Details |
|---|---|
| CPU | Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz |
| VPU | 4Kp60 HEVC decoder |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| Memory | 4GB / 8GB / 16GB LPDDR4X-4267 SDRAM |
| Storage | 32GB or 64GB SD card (Micro SD slot) |
| Wi-Fi | Dual-band 802.11ac (2.4GHz & 5GHz) |
| Bluetooth | Bluetooth 5.0 / Bluetooth Low Energy (BLE) |
| Operating System | Raspberry Pi OS 64-bit (Desktop & Lite) |

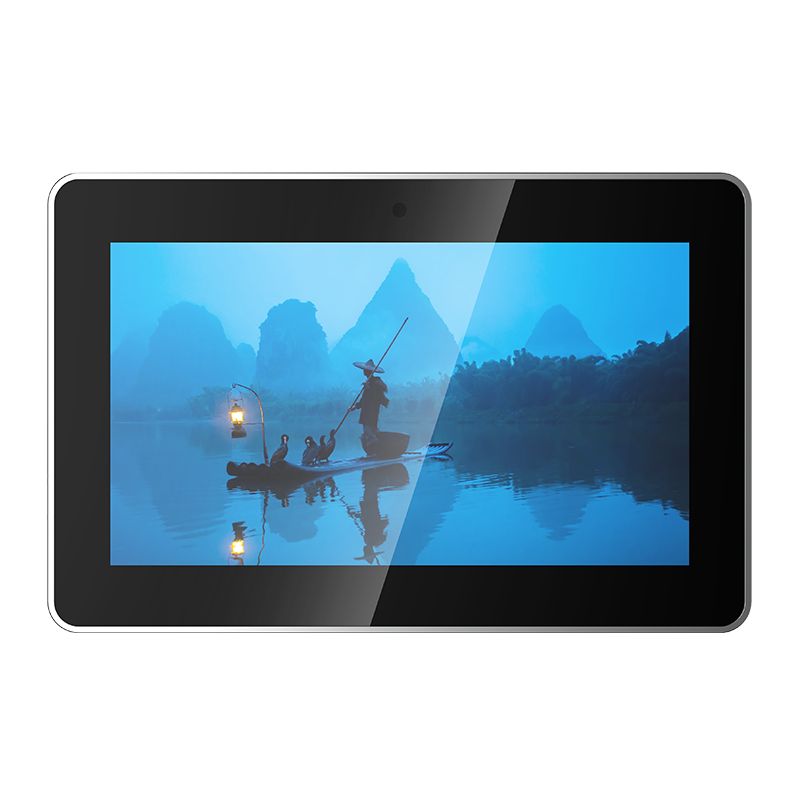

Display
| Category | Details |
|---|---|
| Panel Type | 7.0" TFT LCD |
| Resolution | 1024 x 600 |
| Color Depth | 16.7M colors |
| Active Area | 154.21mm (H) x 85.92mm (V) |
| Backlight | LED |
| MTBF | >30,000h |
| Luminance | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Response Time | 30ms |
| Viewing Angle (CR≥10) | 85° (L) / 85° (R) / 85° (U) / 85° (D) |
Touch Screen
| Category | Details |
|---|---|
| Type | Multi-point Capacitive Touch Screen |
| Multi-Touch Points | Up to 5 points |
| Controller Interface | I2C |
| Connection Method | COF |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Driver Support | Linux |

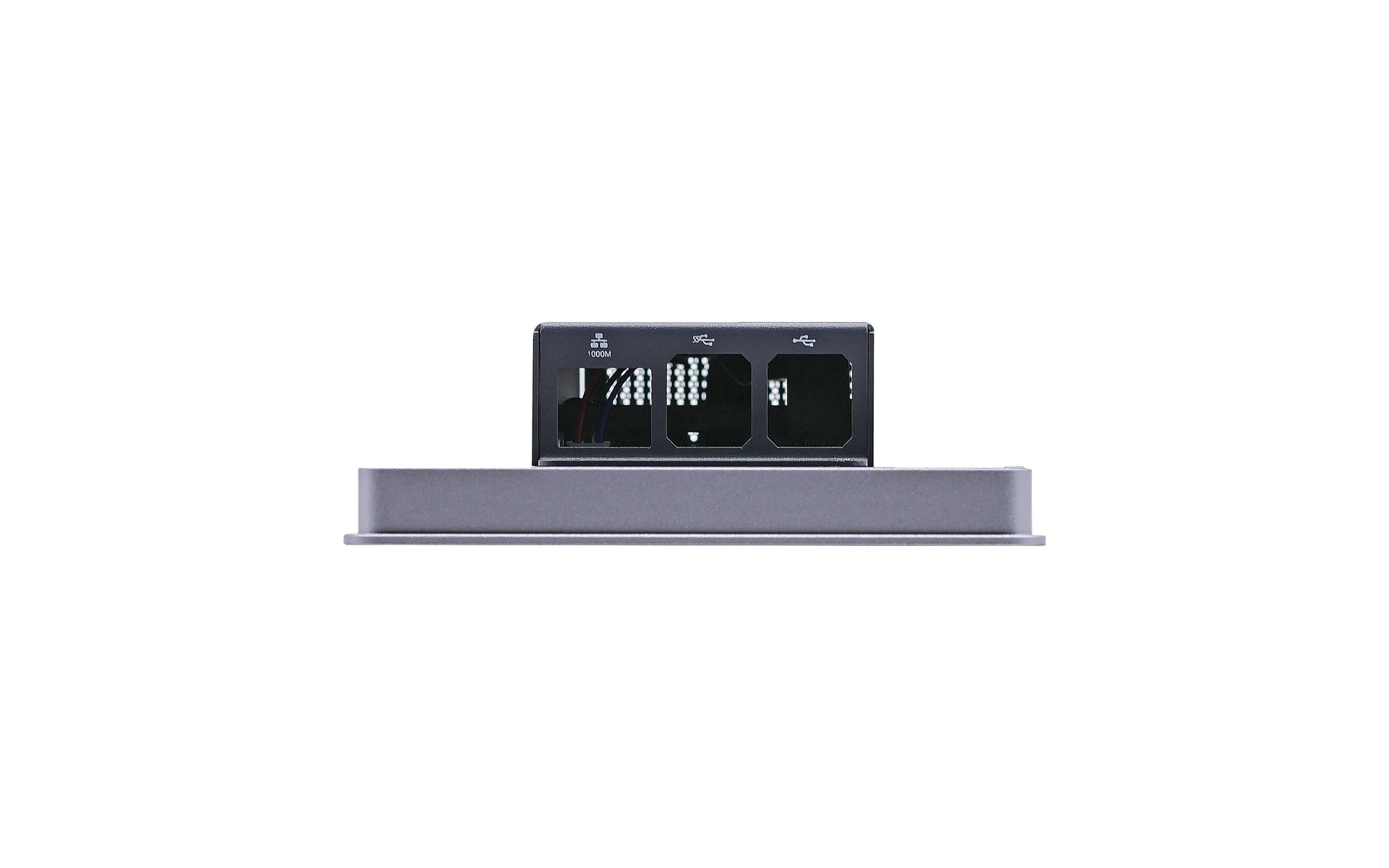

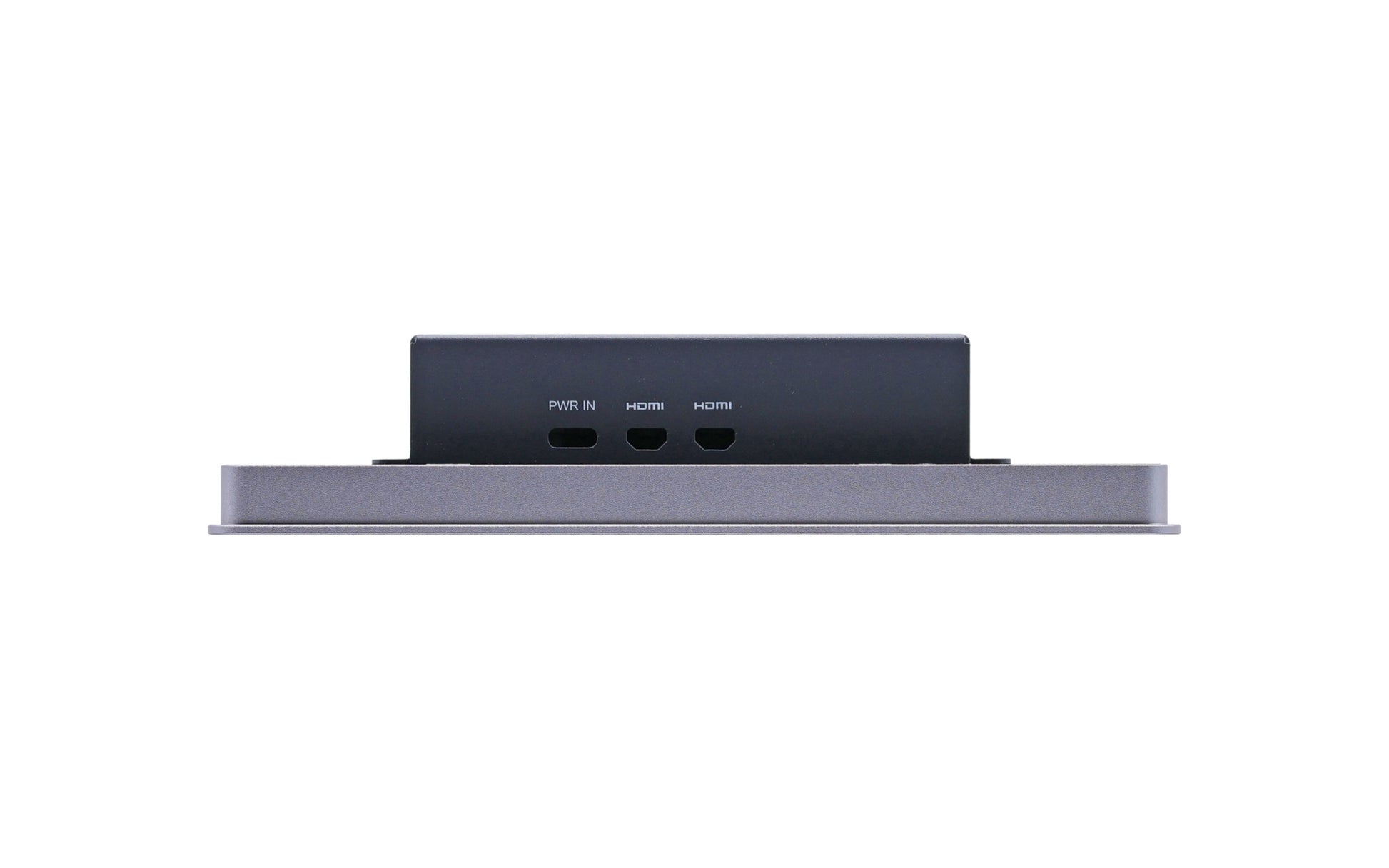

I/O & Connectivity
| Category | Details |
|---|---|
| HDMI | 2x Micro HDMI, 4K @ 60Hz each |
| Ethernet | 1x 10/100/1000M adaptive Gigabit Ethernet, RJ45 |
| USB 2.0 | 2x USB 2.0, Type-A, dual-layer connector (up to 480Mbps each) |
| USB 3.0 | 2x USB 3.0, Type-A, dual-layer connector (up to 5Gbps each) |
| Camera (Optional) | Built-in 8-megapixel front camera |
| SD Card | 1x Micro SD card slot; supports OS boot from SD card |
| PCIe (Internal) | 1x PCIe 2.0 port; reserved for peripherals |
| PoE (Internal) | 1x PoE port; reserved for PoE module |
| Power | 5V DC, USB Type-C connector (5V/5A) |

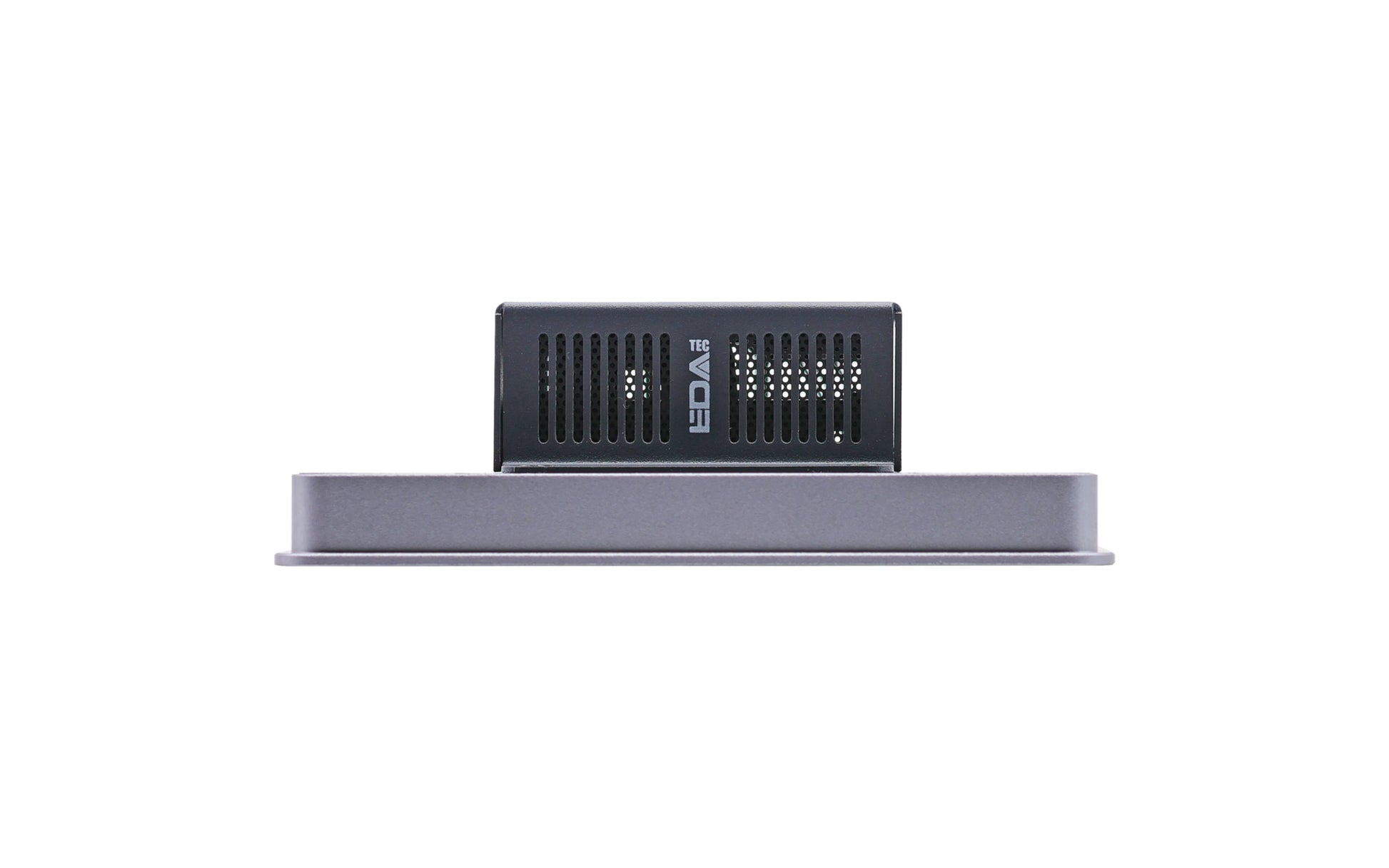

Mechanical & Environmental
| Category | Details |
|---|---|
| Input Voltage | 5V DC (USB Type-C, 5V/5A) |
| Power Consumption | 25W (max) |
| Enclosure | Aluminum CNC + sheet metal case, fanless design |
| Dimensions | 188 x 123 x 39mm (W x D x H) |
| Weight | ~800g |
| Installation | Embedded front installation |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC (47 CFR Part 15 Subpart B), CE (EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.3.2, ETSI EN 301 489-17 V3.2.6, EN 55032:2015 + A1:2020 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, ETSI EN 300 328 V2.2.2, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.2.1) |
Optional Accessories
Cooling:
| Model | Description |
|---|---|
| SC1148 | Raspberry Pi Active Cooler (required for Raspberry Pi 5) |
Power Adapters (Raspberry Pi 27W USB-C):
| Model | Description |
|---|---|
| SC1153 | Raspberry Pi 27W USB-C Power Supply -- White, US plug |
| SC1158 | Raspberry Pi 27W USB-C Power Supply -- Black, US plug |
| SC1152 | Raspberry Pi 27W USB-C Power Supply -- White, EU plug |
| SC1157 | Raspberry Pi 27W USB-C Power Supply -- Black, EU plug |
| SC1149 | Raspberry Pi 27W USB-C Power Supply -- White, UK plug |
| SC1154 | Raspberry Pi 27W USB-C Power Supply -- Black, UK plug |
| SC1150 | Raspberry Pi 27W USB-C Power Supply -- White, AU plug |
| SC1155 | Raspberry Pi 27W USB-C Power Supply -- Black, AU plug |
| SC1151 | Raspberry Pi 27W USB-C Power Supply -- White, IN plug |
| SC1156 | Raspberry Pi 27W USB-C Power Supply -- Black, IN plug |
Note: Power adapter sold separately.
What's in the Box
- 1x ED-HMI3010-070C Unit
- 1x Mounting Kit (4x buckles, 4x M4×10 screws, 4x M4×16 screws)
