EDATEC 10.1" Industrial HMI Based on Raspberry Pi 5 ED-HMI3010

This listing is for the ED-HMI3010-101C: 10.1-inch industrial HMI based on the Raspberry Pi 5, with 1280x800 capacitive touch, dual 4K Micro HDMI, Gigabit Ethernet, and optional 8MP front camera. Contact us if you need a specific RAM or storage configuration.

The ED-HMI3010-101C is a 10.1-inch industrial Human-Machine Interface (HMI) built on the Raspberry Pi 5, powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz. Featuring a crisp 1280x800 TFT display with a 5-point capacitive touch screen, 250 cd/m² brightness, 1000:1 contrast ratio, dual 4K Micro HDMI outputs, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0 / Bluetooth Low Energy (BLE), onboard PCIe 2.0 and PoE expansion ports, and an optional 8-megapixel front camera, it delivers excellent Raspberry Pi 5 performance in a compact, fanless Aluminum CNC and sheet metal enclosure. Certified to FCC and CE standards and rated for -20°C to 60°C operation, it is ideal for machine operator panels, industrial control interfaces, kiosks, and embedded display applications.

Key Features

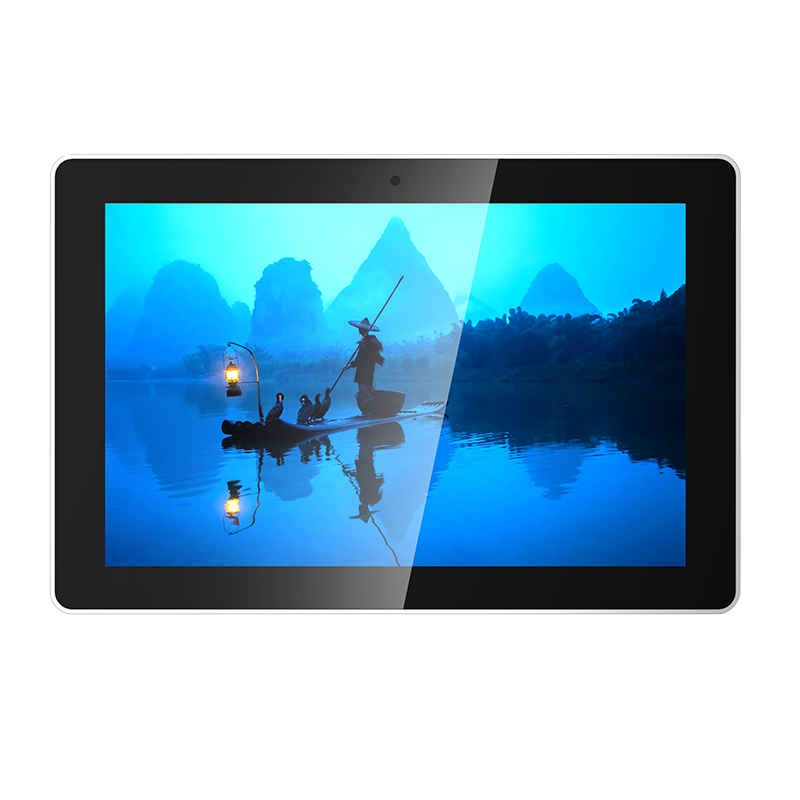

• Display: 10.1" TFT, 1280x800 resolution, 250 cd/m² brightness, 1000:1 contrast ratio, 30ms response time, LED backlight, MTBF >30,000h
• Touch Screen: 5-point capacitive touch, 6H surface hardness, ≥85% transmittance, I2C interface, Linux driver support
• Viewing Angle (CR≥10): 80° Left / 80° Right / 80° Up / 80° Down
• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 64-bit @ 2.4GHz (Raspberry Pi 5)
• Memory: 4GB, 8GB, or 16GB LPDDR4X-4267 SDRAM
• Storage: 32GB or 64GB SD card (Micro SD slot)

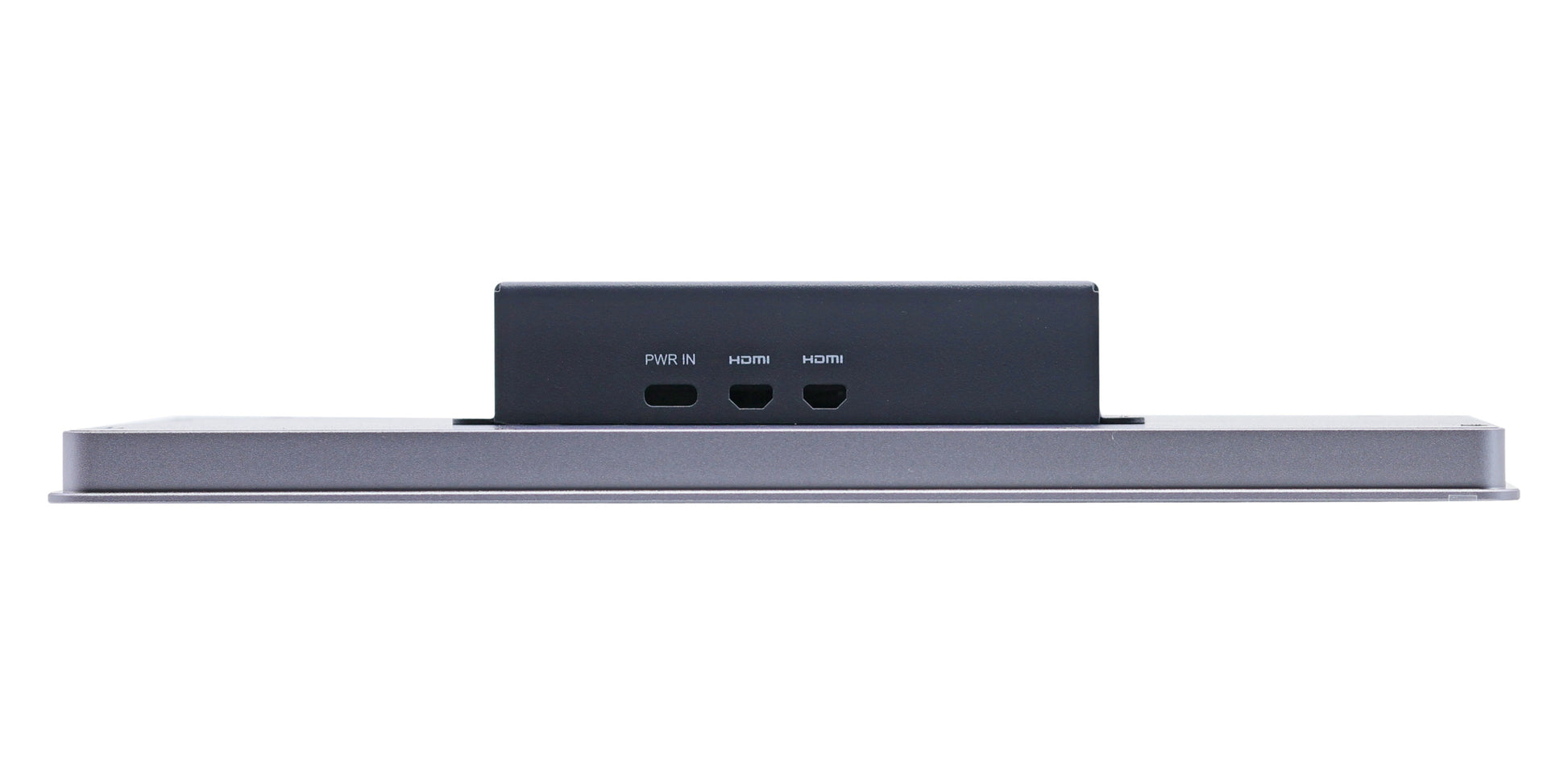

• HDMI: 2x Micro HDMI, 4K @ 60Hz each

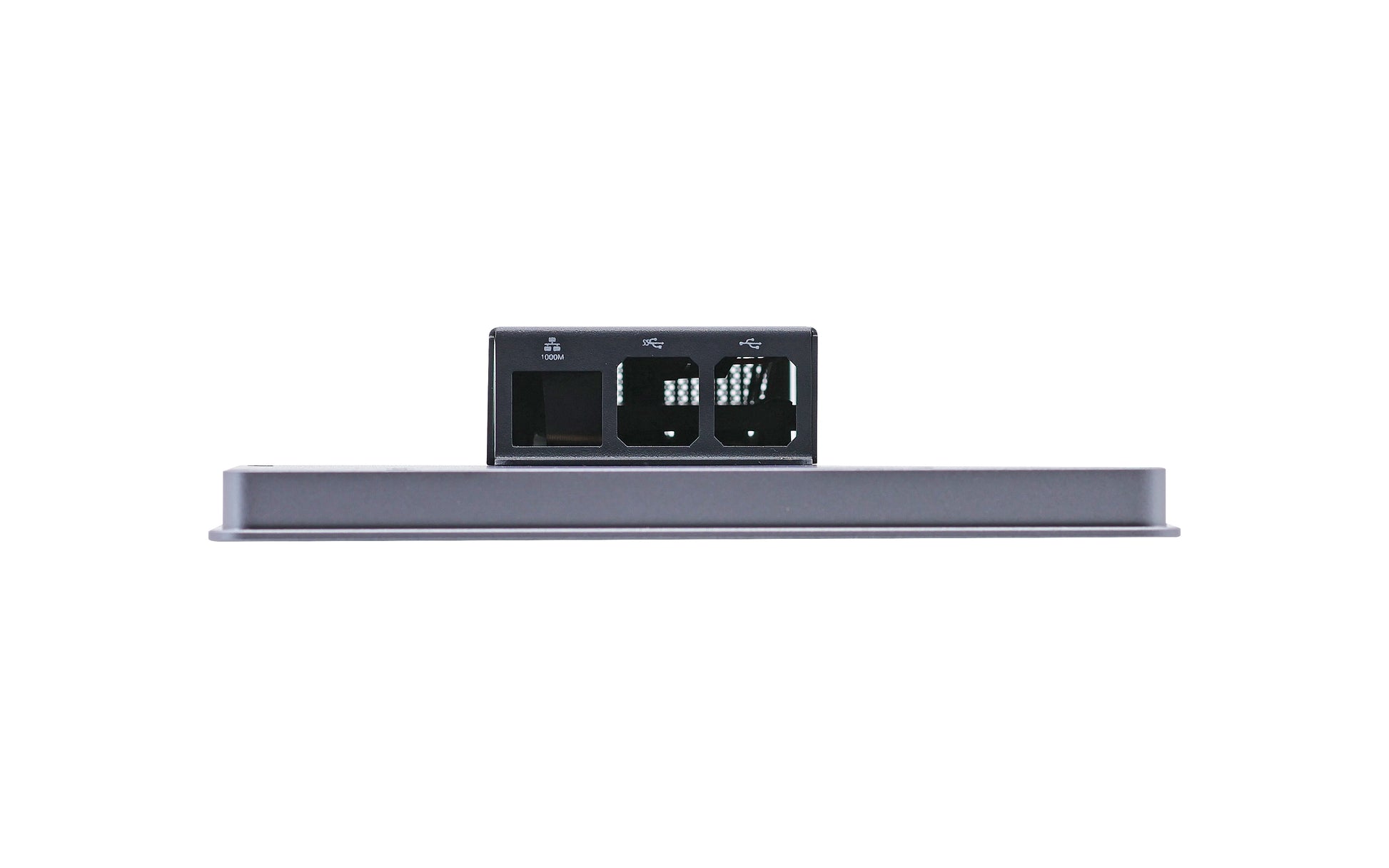

• Networking: 1x Gigabit Ethernet (10/100/1000M, RJ45)
• USB: 2x USB 3.0 (5Gbps) + 2x USB 2.0 (480Mbps)
• Wireless: Dual-band 802.11ac Wi-Fi + Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• Camera (Optional): Built-in 8-megapixel front camera
• Internal Expansion: 1x PCIe 2.0 port (reserved for peripherals) + 1x PoE port (reserved for PoE module)
• Power: 5V DC via USB Type-C (5V/5A)

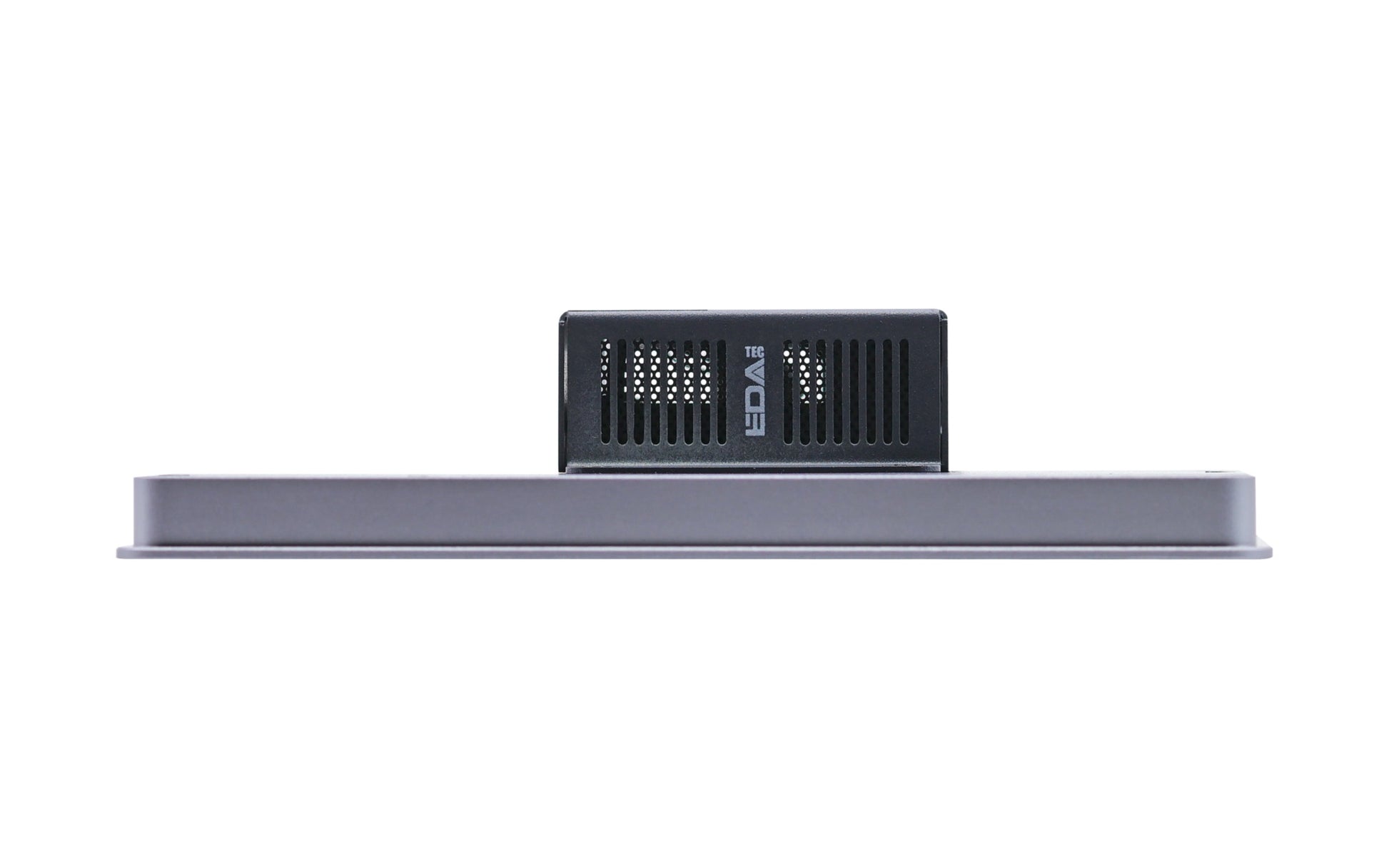

• Enclosure: Aluminum CNC + sheet metal case, fanless design
• Installation: Embedded front installation
• Certifications: FCC, CE
• OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)

Model Variants - Bundle Configurations

All models share the same display, processor platform, and I/O. The variants differ only in SD card, camera, and cooler inclusion. Contact us to order other RAM configurations.

SKU Configuration Guide

The ED-HMI3010-101C ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Note: If you purchase a model with Raspberry Pi 5, you need to select the Pi5 Active Cooler accessory (SC1148) if not already included in the bundle.

Specifications

System

Display

Touch Screen

I/O & Connectivity

Mechanical & Environmental

Optional Accessories

Cooling:

Power Adapters (Raspberry Pi 27W USB-C):

Note: Power adapter sold separately.

What's in the Box

• 1x ED-HMI3010-101C Unit
• 1x Mounting Kit (4x buckles, 4x M4×10 screws, 4x M4×16 screws)

Technical Documents

• DataSheet
• User Manual
