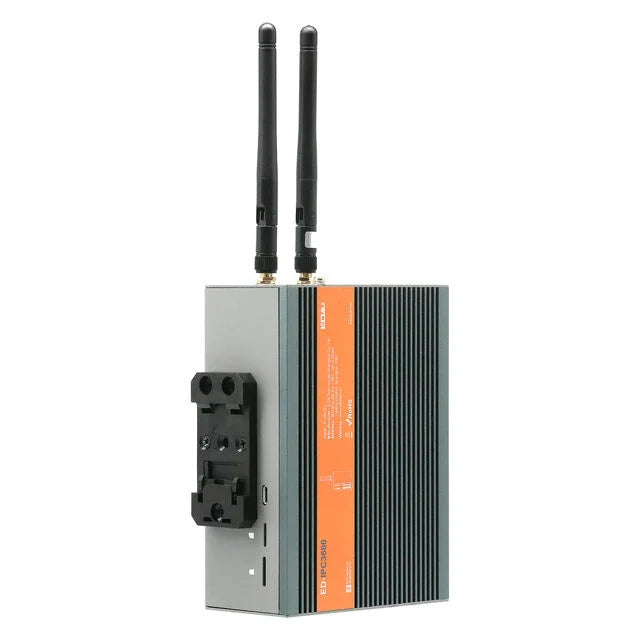

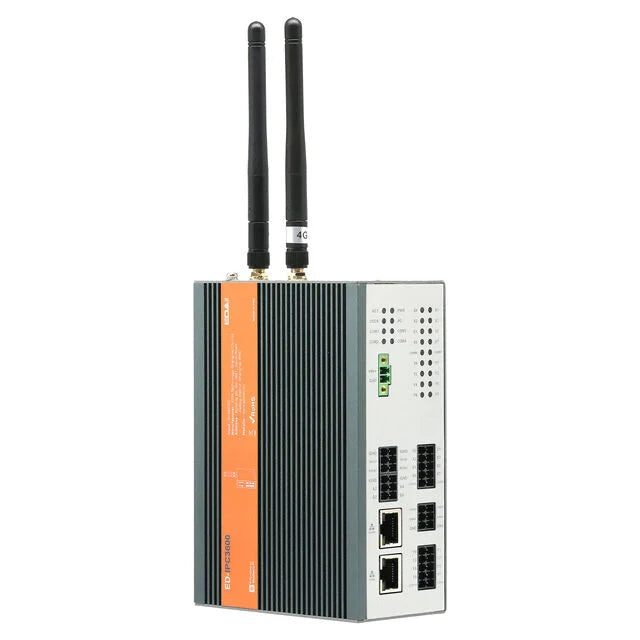

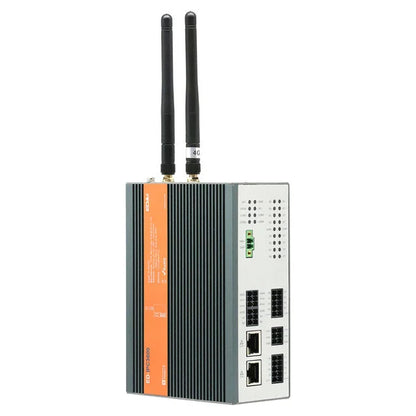

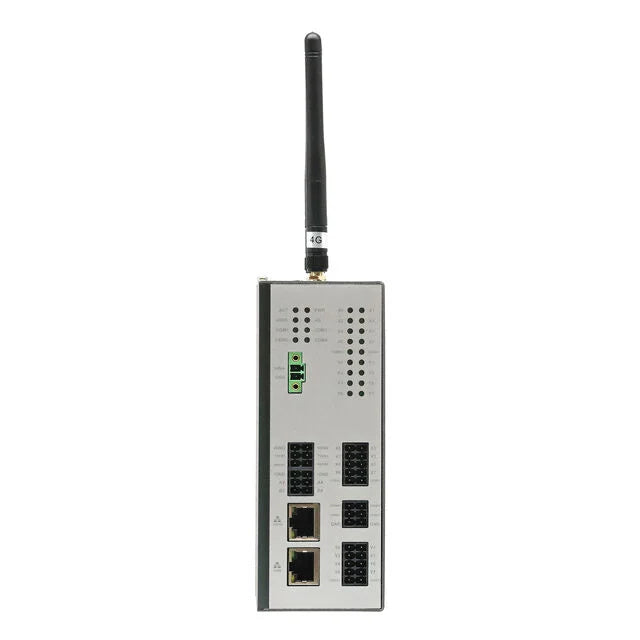

EDATEC Industrial Computer Based on Raspberry Pi CM5 ED-IPC3632

This listing is for the ED-IPC3632: CM5-based industrial computer with 4x isolated serial ports (2x RS485 + 2x RS232), 2x isolated CAN 2.0B, 8x isolated DI, 8x isolated DO, dual Ethernet, optional Wi-Fi/Bluetooth and 4G LTE. Contact us if you need a different RAM, storage, 4G region, or serial port configuration.

The ED-IPC3632 is EDATEC's most I/O-rich industrial computer, built on the Raspberry Pi Compute Module 5 and powered by the Broadcom BCM2712 quad-core Arm Cortex-A76 processor at 2.4GHz -- the same architecture as the Raspberry Pi 5. Designed for demanding industrial automation, robotics, data acquisition, and smart manufacturing applications, it combines a powerful CM5 compute core with an extensive suite of industrial interfaces -- including 4 isolated RS232/RS485 ports, 2 isolated CAN bus ports, 8 isolated digital inputs, 8 isolated digital outputs, dual Ethernet, optional Wi-Fi, Bluetooth, and 4G LTE. With optional CODESYS Control support, a wide 9V--36V DC power input, and a fanless metal enclosure rated for -25°C to 60°C, the ED-IPC3630 Series is engineered for real-world industrial edge control deployments.

Key Features

• Processor: Broadcom BCM2712, quad-core Arm Cortex-A76 (ARMv8) 64-bit @ 2.4GHz
• Memory: 2GB, 4GB, 8GB, or 16GB LPDDR4-4267 SDRAM
• Storage: 16GB, 32GB, or 64GB eMMC; Micro SD card slot (user expansion); M.2 NVMe SSD (128GB / 256GB / 512GB optional)
• Display: 1x HDMI Type-A (HDMI 2.0), supports 4K @ 60Hz
• Networking: 1x Gigabit Ethernet (10/100/1000M) + 1x 100M Ethernet (10/100M)
• Serial Ports: 4x isolated RS232/RS485 with electrostatic and surge protection (configuration varies by model)
• CAN Bus: 2x isolated CAN 2.0B ports, 3KV isolation, 10--1000 kbps baud rate, with LED indicators
• Digital Inputs: 8x isolated DI (5KV isolation), supports AC input, NPN/PNP wet contact and dry contact, with LED indicators
• Digital Outputs: 8x isolated DO (5KV isolation), NPN type, 5--36VDC output, max 1.5A per channel, with LED indicators and overcurrent protection
• USB: 2x USB 2.0 (Type-A, 480Mbps)
• Wireless (Optional): 2.4GHz & 5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac) + Bluetooth 5.0
• 4G LTE (Optional): Mini PCIe 4G module with Nano SIM card slot; supports GNSS on most modules
• CODESYS (Optional): CODESYS Control for Raspberry Pi MC SL support
• Power Input: Wide-range 9V--36V DC with reverse polarity, overvoltage, and overcurrent protection
• Reliability: RTC with optional 1F SuperCAP backup, Watchdog (hardware reserved), EEPROM (4K), hardware crypto authentication, Buzzer
• Cooling: Fanless passive cooling via high-quality metal enclosure
• Installation: DIN rail mounting
• Operating Temperature: -25°C to 60°C
• Certifications: FCC, CE
• OS Support: Raspberry Pi OS 64-bit (Desktop & Lite)

Model Variants - Serial Port Configurations

All models share the same CM5 platform, dual Ethernet, USB, HDMI, CAN bus, DI/DO, and power input. Serial port configuration is the only difference between variants. Contact us to order other configurations.

SKU Configuration Guide

The ED-IPC3632 ordering code breaks down as follows. This table is provided for reference when discussing other configurations with us.

Specifications

4G LTE Module Options

Not included by default. Provided for reference if you need a 4G-enabled configuration -- contact us.

Optional Accessories

Power Adapters:

Note: Each adapter model includes only one plug type. Power adapter sold separately.

What's in the Box

• 1x ED-IPC3632 unit (with DIN rail bracket)
• 1x 2.4GHz/5GHz Wi-Fi/BT antenna (optional Wi-Fi/BT version)
• 1x 4G/LTE antenna (optional 4G version)

Technical Documents

• DataSheet
• User Manual
