EDATEC Raspberry Pi 4 Passive Cooling Open Aluminium CNC Case
EDATEC Raspberry Pi 4 Passive Cooling Open Aluminium CNC Case
SKU:123004103
Out of stock — Available on backorder
Couldn't load pickup availability
Looking for the Raspberry Pi 5 version? See the Open Aluminium Case for Raspberry Pi 5 or the Fully-Enclosed Aluminium Box for Raspberry Pi 5.
This listing is for the ED-Pi4Case-OB: open aluminium CNC case for the Raspberry Pi 4. Contact us if you have questions about compatibility with your setup.

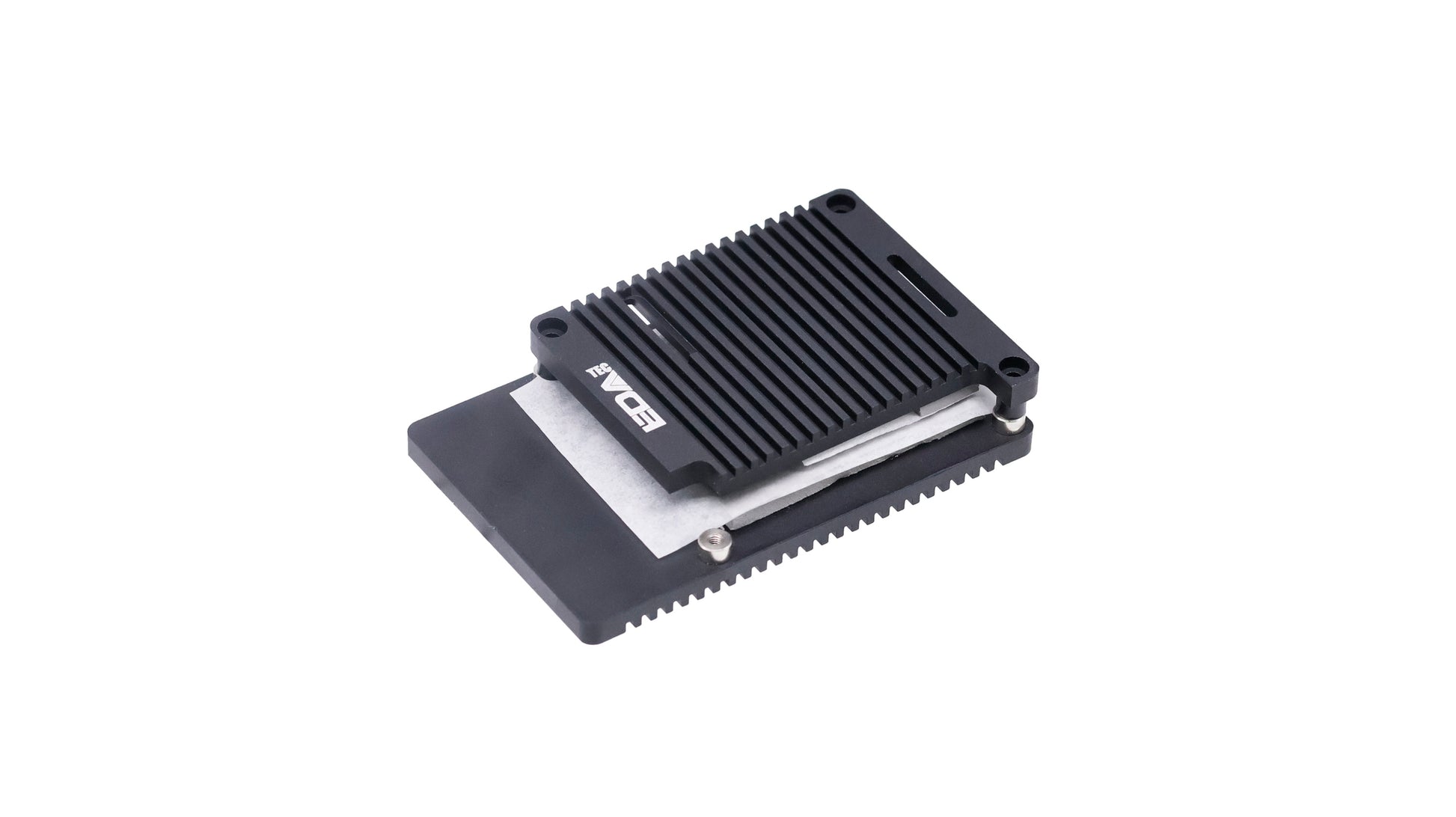

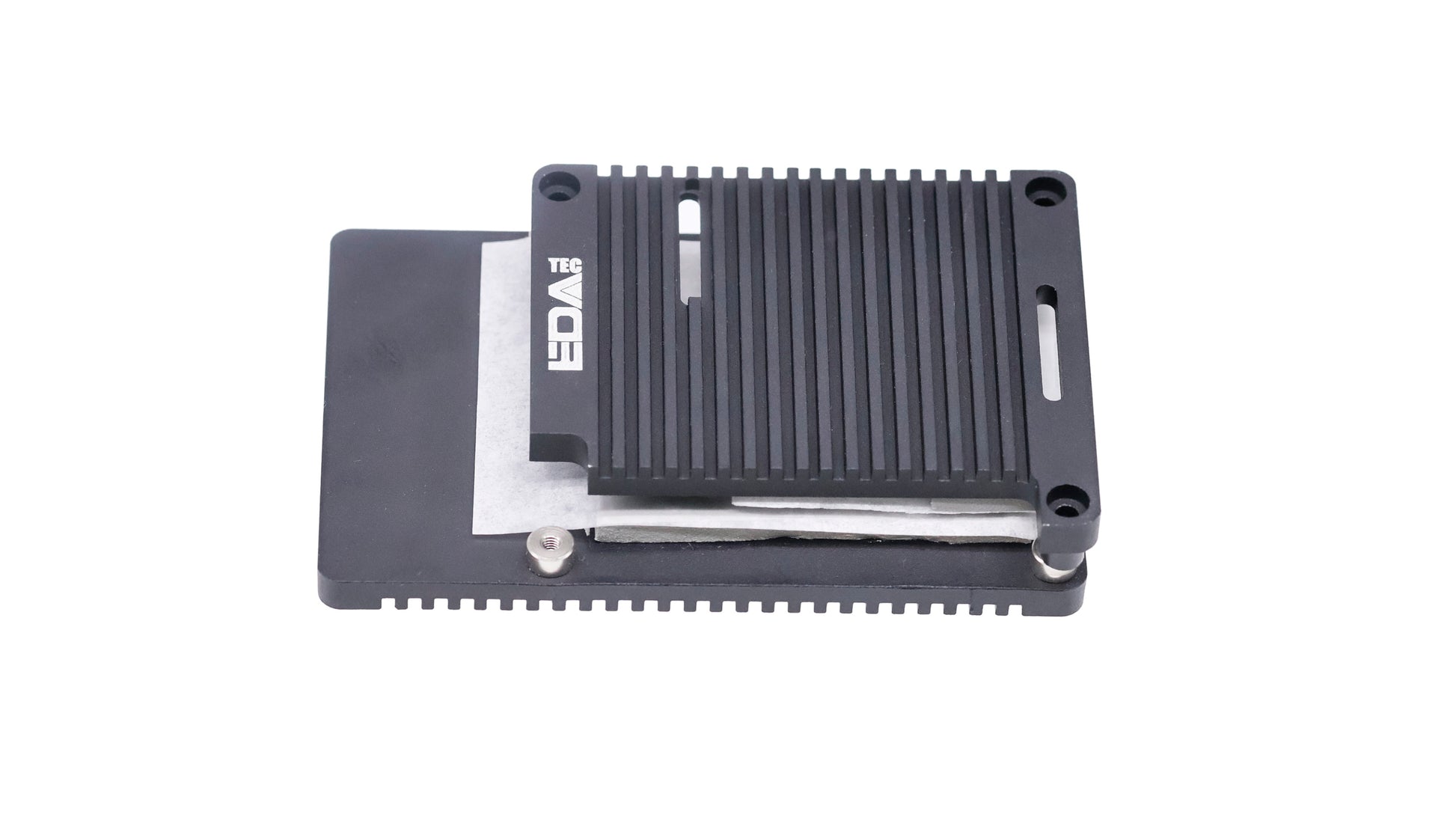

The ED-Pi4Case-OB is a high-quality open aluminium CNC enclosure designed specifically for the Raspberry Pi 4, combining passive cooling performance with a sleek, professional appearance. Both the top and bottom covers provide passive cooling via thermal pads and the aluminium body, reducing CPU temperature by approximately 25°C (81.9°C → 56.5°C at full CPU load) and enabling continuous operation at the maximum frequency of 1800MHz, completely silently. The open-frame design keeps all Raspberry Pi 4 interfaces fully accessible at all times, while also protecting the board from dust and physical damage. Constructed from sheet metal (top cover) and aluminium profile (bottom cover) with an oxidized surface finish.
Key Features
- Compatible with: Raspberry Pi 4 Model B (all RAM variants)

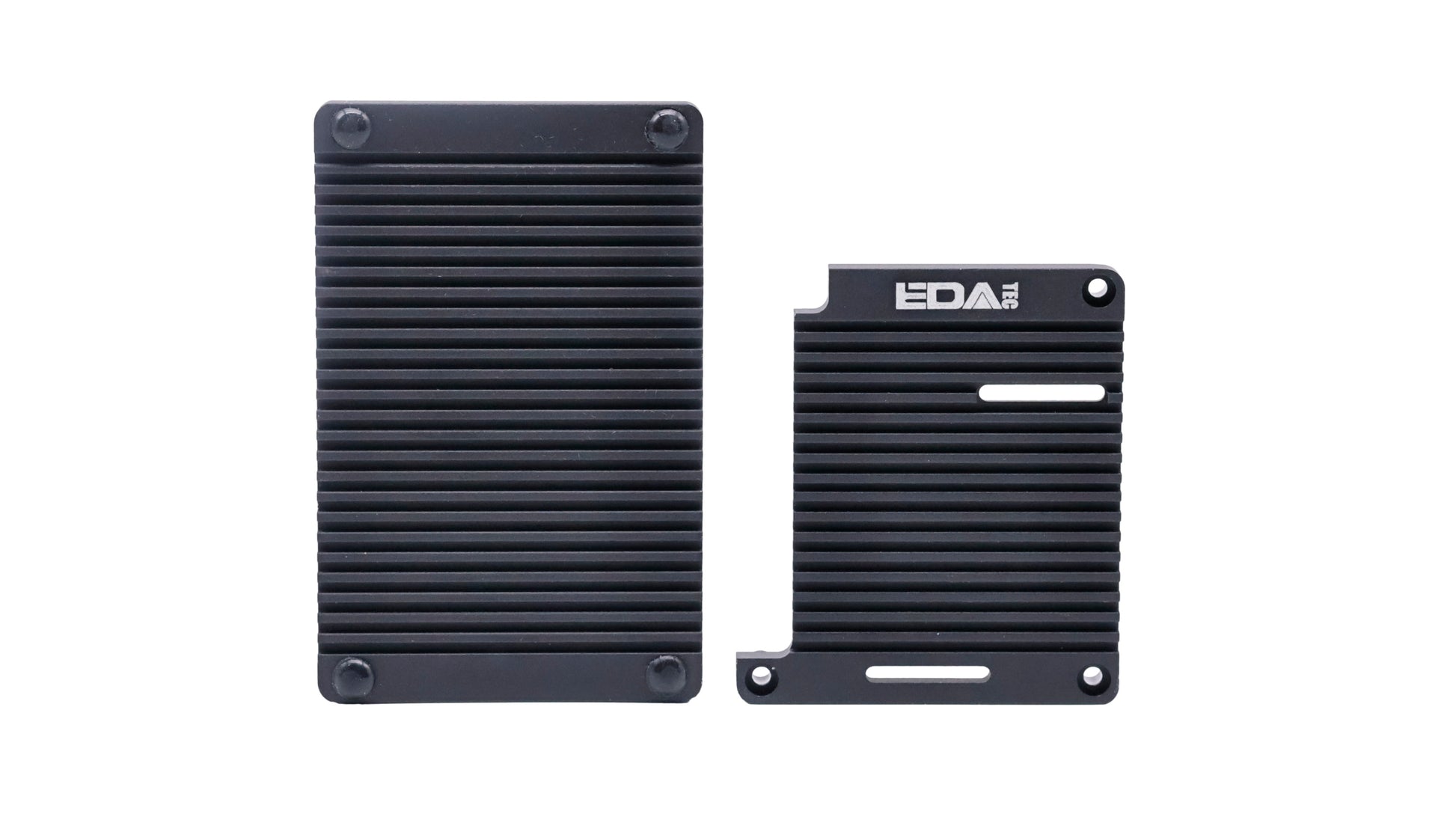

- Construction: Sheet metal top cover + aluminium profile bottom cover, CNC machined, oxidized surface finish
- Cooling: Both top and bottom covers provide passive cooling via thermal pads and aluminium body -- completely silent, no fans
- Cooling Performance: CPU temperature reduction of ~25°C (81.9°C → 56.5°C at 25°C ambient, full CPU load via sysbench)
- Sustained Performance: Allows continuous operation at maximum CPU frequency of 1800MHz

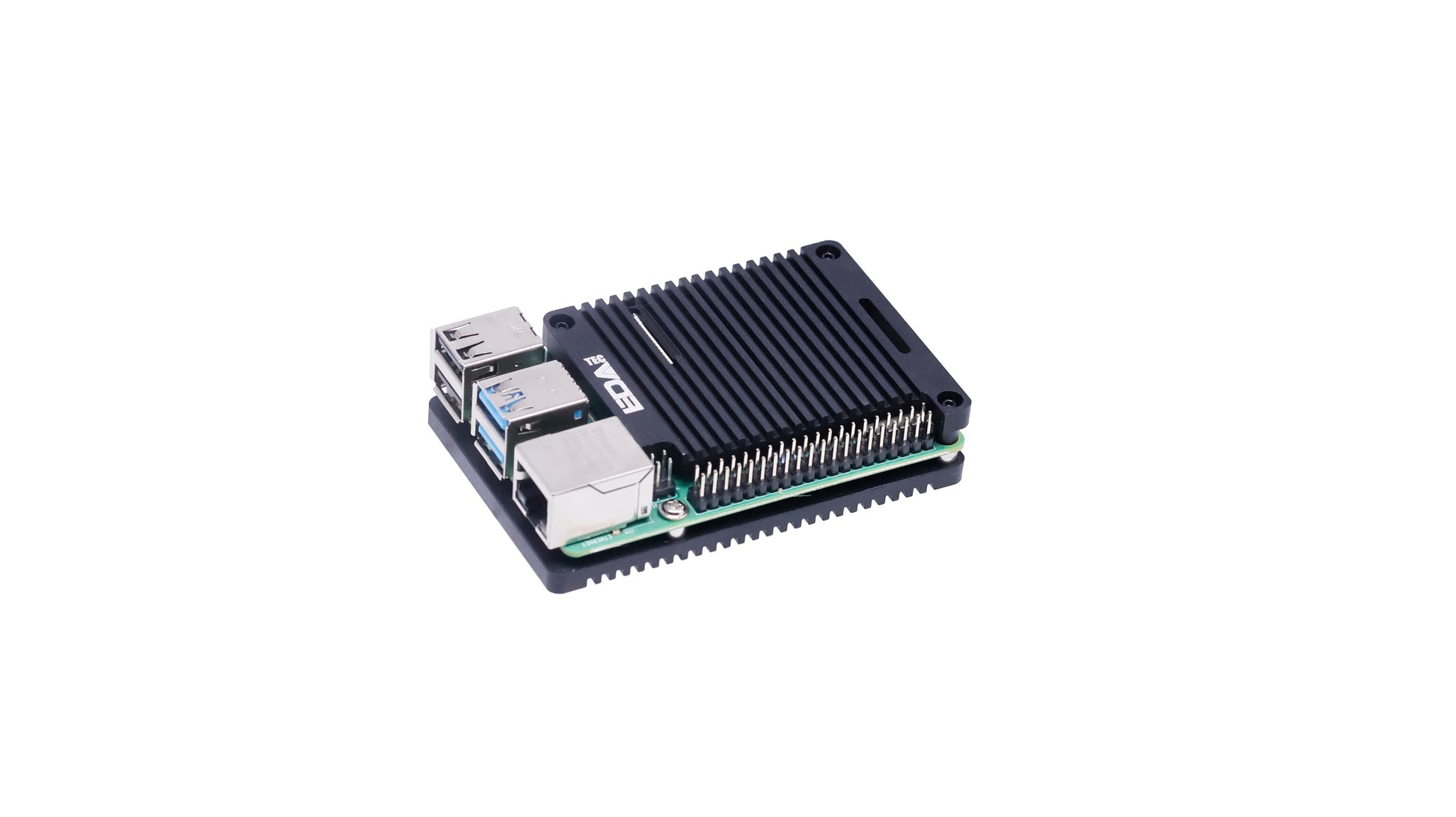

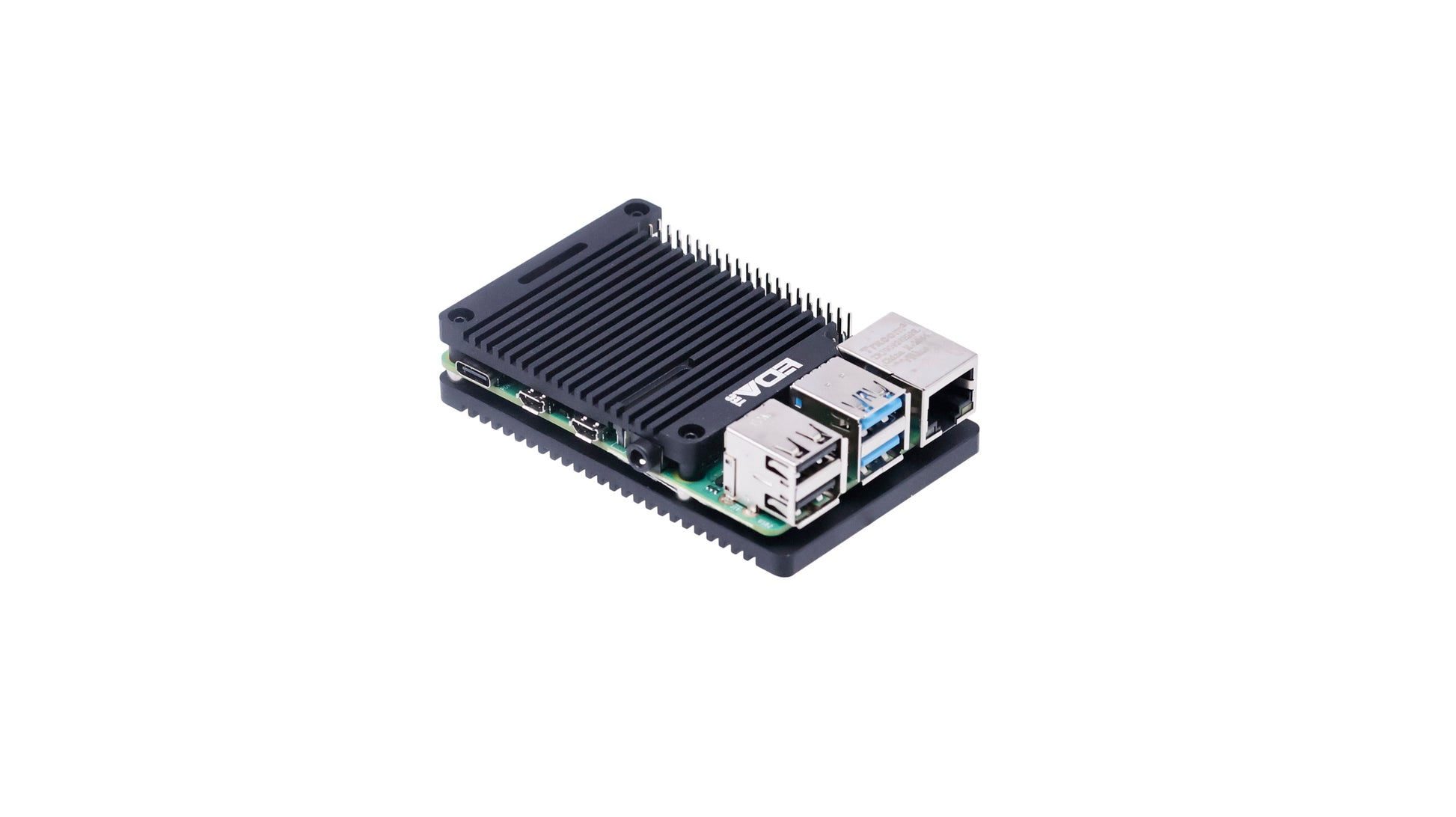

- Design: Open frame -- all Raspberry Pi 4 interfaces remain fully accessible
- Protection: Shields the Pi 4 from dust and physical contact
- Thermal Interface: 4x thermal pads pre-installed on bottom cover
- Colour: Black
Specifications
| Category | Details |
|---|---|
| Compatible Device | Raspberry Pi 4 Model B |
| Top Cover Material | Sheet metal |
| Bottom Cover Material | Aluminium profile |
| Surface Finish | Oxidized |
| Colour | Black |
| Top Cover Dimensions | 65 x 56.5 x 5mm |
| Bottom Cover Dimensions | 88.5 x 56.5 x 5mm |
| Cooling Type | Passive (fanless); thermal pads on top and bottom covers + aluminium body |
| Cooling Performance | CPU temperature reduction of ~25°C (81.9°C → 56.5°C at 25°C ambient, full CPU load via sysbench) |
| Max CPU Frequency Supported | 1800MHz continuous |
| Thermal Interface | 4x thermal pads pre-installed on bottom cover |
| Nylon Posts | 3x integrated nylon posts in top cover (for alignment with Raspberry Pi 4 mounting holes) |
| Port Access | All Raspberry Pi 4 interfaces fully accessible |
| Mounting Hardware | 3x M2.5×11 screws + 1x M2.5×4 screw + 1x 1.5mm allen key (included) |
Installation Notes

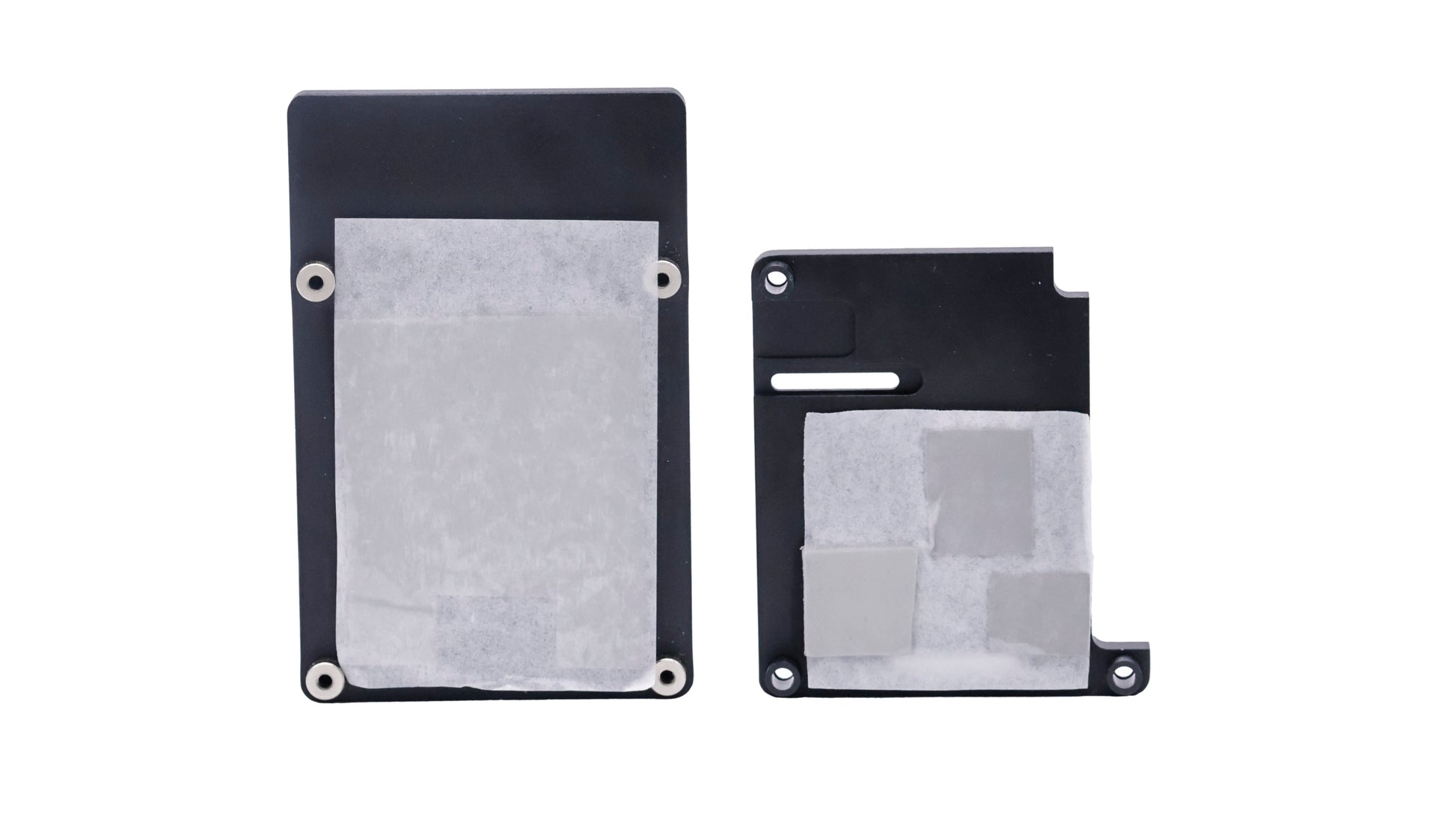

- Remove the white protective paper from the thermal pads on both covers before installing the Pi 4.
- Check that the tops of all 3 nylon posts in the top cover are level. If any post is higher than the others, press it into the mounting hole until level.
- Align the Raspberry Pi 4 with the reserved holes on the bottom cover and place it in position.
- Place the top cover down over the Raspberry Pi 4 and insert 3 M2.5×11 screws and 1 M2.5×4 screw into the holes. Use the included allen key and a cross-head screwdriver to tighten all screws and secure the assembly.
- Raspberry Pi 4 is not included.
What's in the Box
- 1x ED-Pi4Case-OB Top Cover
- 1x ED-Pi4Case-OB Bottom Cover (with 4x thermal pads pre-installed)
- 1x Accessory Set: 3x M2.5×11 screws, 1x M2.5×4 screw, 1x 1.5mm allen key
Note: Raspberry Pi 4 is not included. A cross-head screwdriver is also required for installation.
Technical Documents
