EDATEC Raspberry Pi 5 Passive Cooling Open Aluminium CNC Case

$ 6.00 USD

Sale Sold out

EDATEC P/N ED-Pi5Case-OB

Quantity

SKU:123004101

Out of stock — Available on backorder

Pi 5 case alternatives: Fully-enclosed box version (better thermal coupling), or the Pi 4 open case.

This listing is for the ED-Pi5Case-O: open aluminium CNC case for the Raspberry Pi 5, available in Black (ED-Pi5Case-OB) and Silver (ED-Pi5Case-OS). Contact us if you need a specific colour configuration.

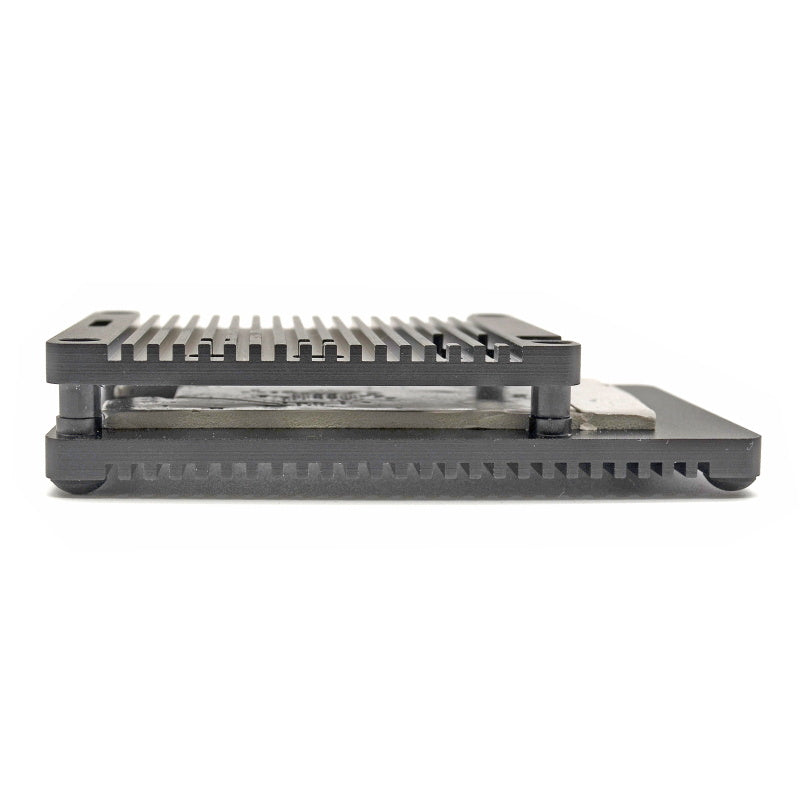

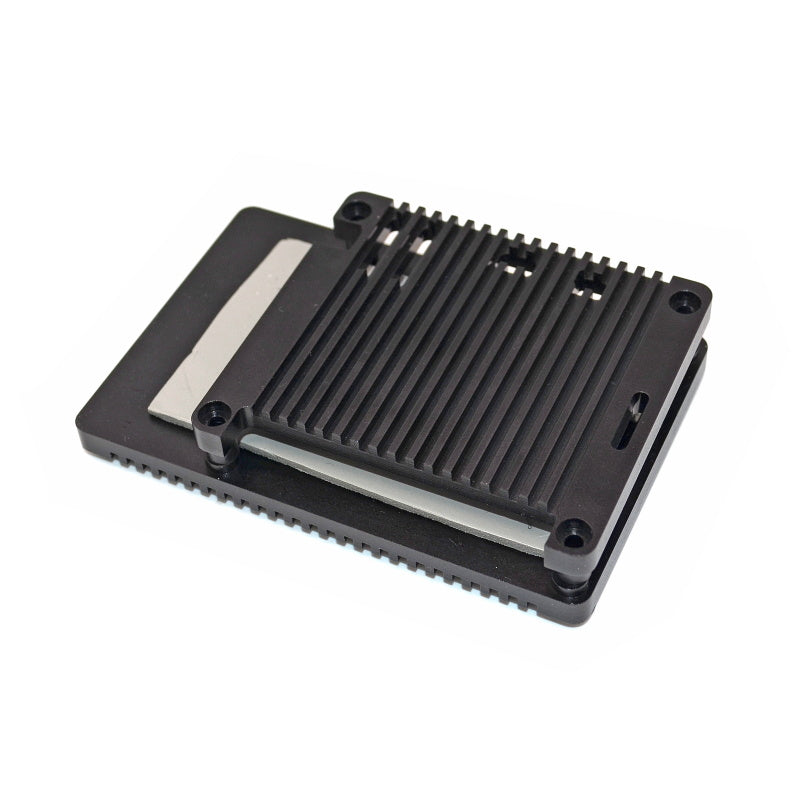

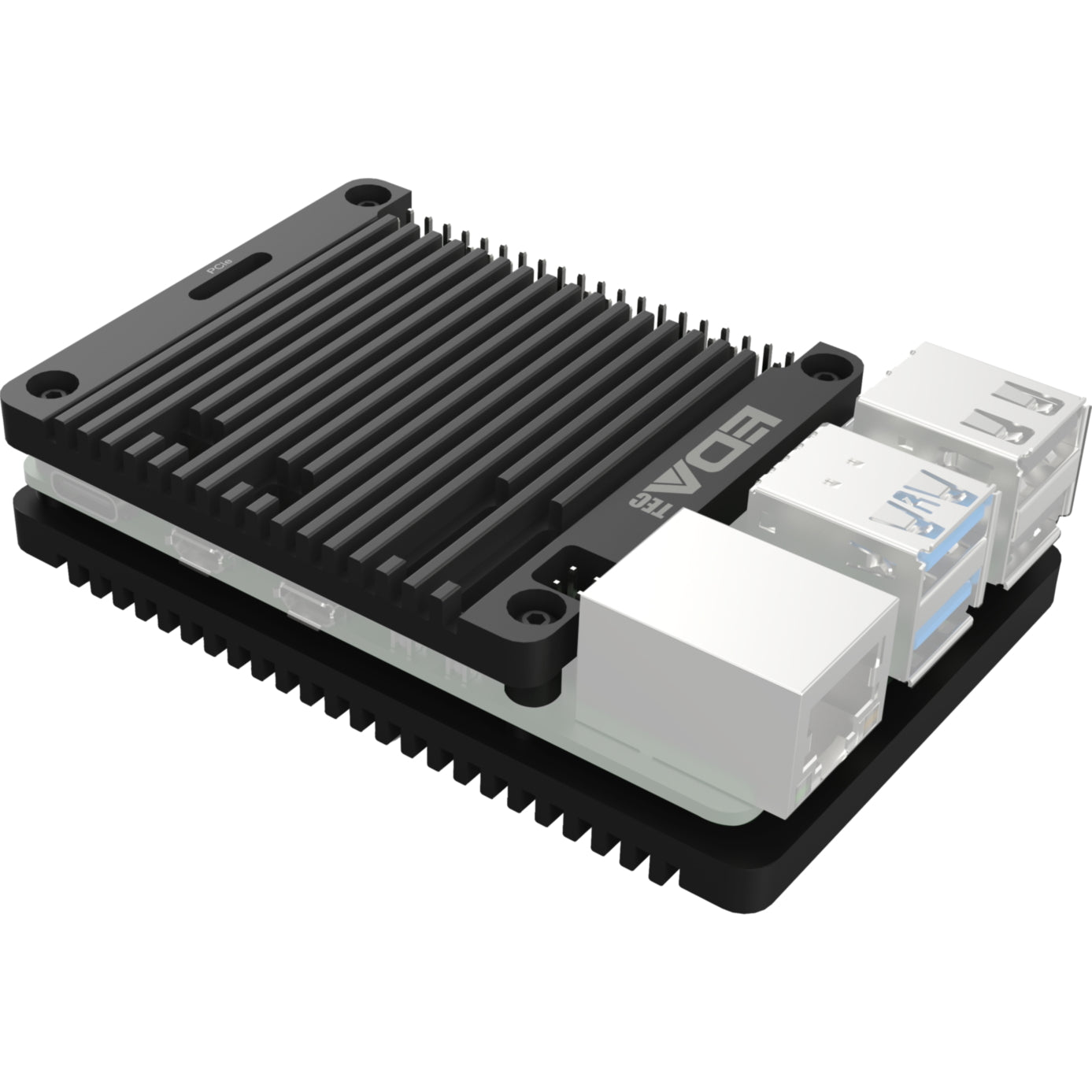

The ED-Pi5Case-O is a premium open-frame aluminium CNC enclosure designed specifically for the Raspberry Pi 5, combining elegant aesthetics with effective passive cooling in a completely fanless design. Precision-machined from high-quality aluminium with an oxidized surface finish, the top and bottom covers provide passive cooling through thermal pads and the aluminium body, keeping the CPU, PMU, and wireless module cool -- reducing CPU temperature by up to 15°C. The open frame design also maintains strong Wi-Fi and Bluetooth connectivity. All Raspberry Pi 5 ports and interfaces remain fully accessible. Available in Black (ED-Pi5Case-OB) and Silver (ED-Pi5Case-OS), it has been widely reviewed and praised by leading Raspberry Pi creators and publications including Jeff Geerling, Leepsvideo, CNX Software, and Tom's Hardware.

Key Features

Compatible with: Raspberry Pi 5 (all RAM variants)
Construction: High-quality aluminium, precision CNC machined, oxidized surface finish

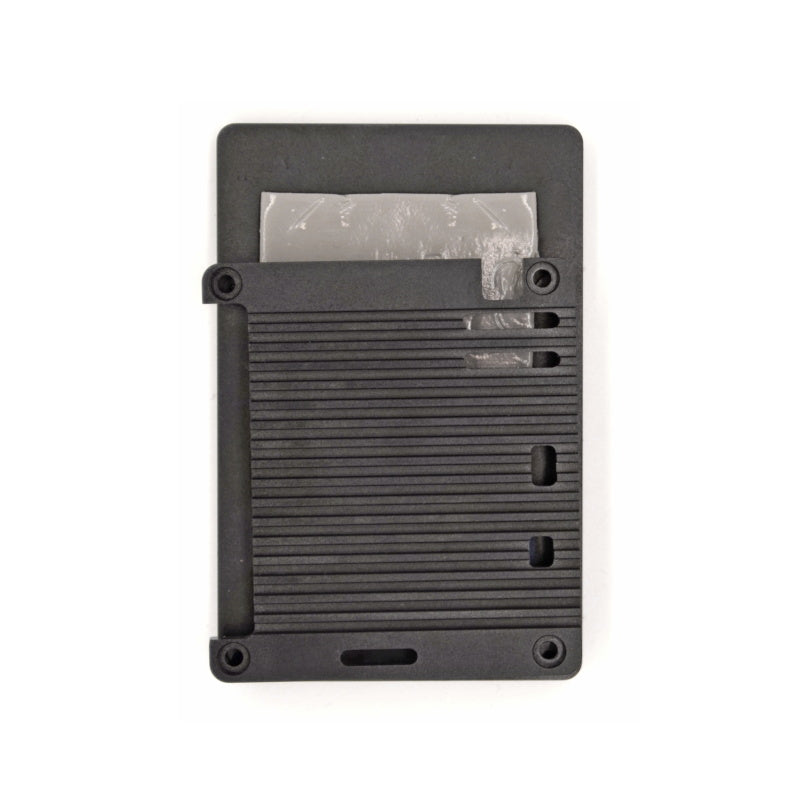

Design: Open-frame enclosure -- top and bottom covers provide passive cooling via thermal pads and aluminium body
Cooling Coverage: Cools CPU, PMU, and wireless module simultaneously
Cooling Performance: CPU temperature reduction of up to 15°C
Cooling: Fully fanless passive cooling -- completely silent, no moving parts
Wireless: Open frame design maintains strong Wi-Fi and Bluetooth connectivity
Port Access: All Raspberry Pi 5 interfaces remain fully accessible
Colour Options: Black (ED-Pi5Case-OB) and Silver (ED-Pi5Case-OS)
Dimensions: 88 x 58 x 26mm

Specifications

Category	Details
Compatible Device	Raspberry Pi 5 (all RAM variants)
Construction	Aluminium CNC, oxidized surface finish
Colour Options	Black (ED-Pi5Case-OB) \| Silver (ED-Pi5Case-OS)
Cooling Type	Passive (fanless); thermal pads on top and bottom covers + aluminium body
Cooling Coverage	CPU, PMU, and wireless module
Cooling Performance	CPU temperature reduction of up to 15°C
Dimensions	88 x 58 x 26mm
Mounting Hardware	4x M2.5×11 screws + 1x 1.5mm allen key (included)

Model Variants

Both models are the same case -- colour is the only difference. Contact us to order a specific colour.

Model	Description
ED-Pi5Case-OB	Raspberry Pi 5 Open Aluminium CNC Case -- Black
ED-Pi5Case-OS	Raspberry Pi 5 Open Aluminium CNC Case -- Silver

SKU Configuration Guide

The ED-Pi5Case-O ordering code breaks down as follows.

Field	Options
Model	Pi5Case-O (open type)
Colour	B = Black (ED-Pi5Case-OB) \| S = Silver (ED-Pi5Case-OS)

Optional Accessories

HAT Extension Kit (for installing a HAT module on the ED-Pi5Case-O):

Model	Description
ED-Pi5Case-HA-B	HAT extension accessory kit, Black -- includes 4x M2.5×8+11 studs, 4x M2.5×5 screws, 1x 40-pin connector
ED-Pi5Case-HA-S	HAT extension accessory kit, Silver -- includes 4x M2.5×8+11 studs, 4x M2.5×5 screws, 1x 40-pin connector

Installation Notes

Remove the white protective paper from the thermal silicone on both the top and bottom covers before installing the Raspberry Pi 5.
Check that the tops of all 4 nylon posts in the top cover are level. If any post is higher than the others, press it into the mounting hole until level.
Align the Raspberry Pi 5 with the reserved holes on the bottom cover and place it in position.
Place the top cover down over the Raspberry Pi 5 and insert 4 M2.5×11 screws. Use the included 1.5mm allen key to tighten the screws and secure the assembly.
Raspberry Pi 5 is not included.
