Looking for the Raspberry Pi 4 version? See the EDATEC Raspberry Pi 4 Passive Cooler.
This listing is for the ED-Pi5PCOOLER: passive heatsink for the Raspberry Pi 5. Contact us if you have questions about compatibility with your setup.

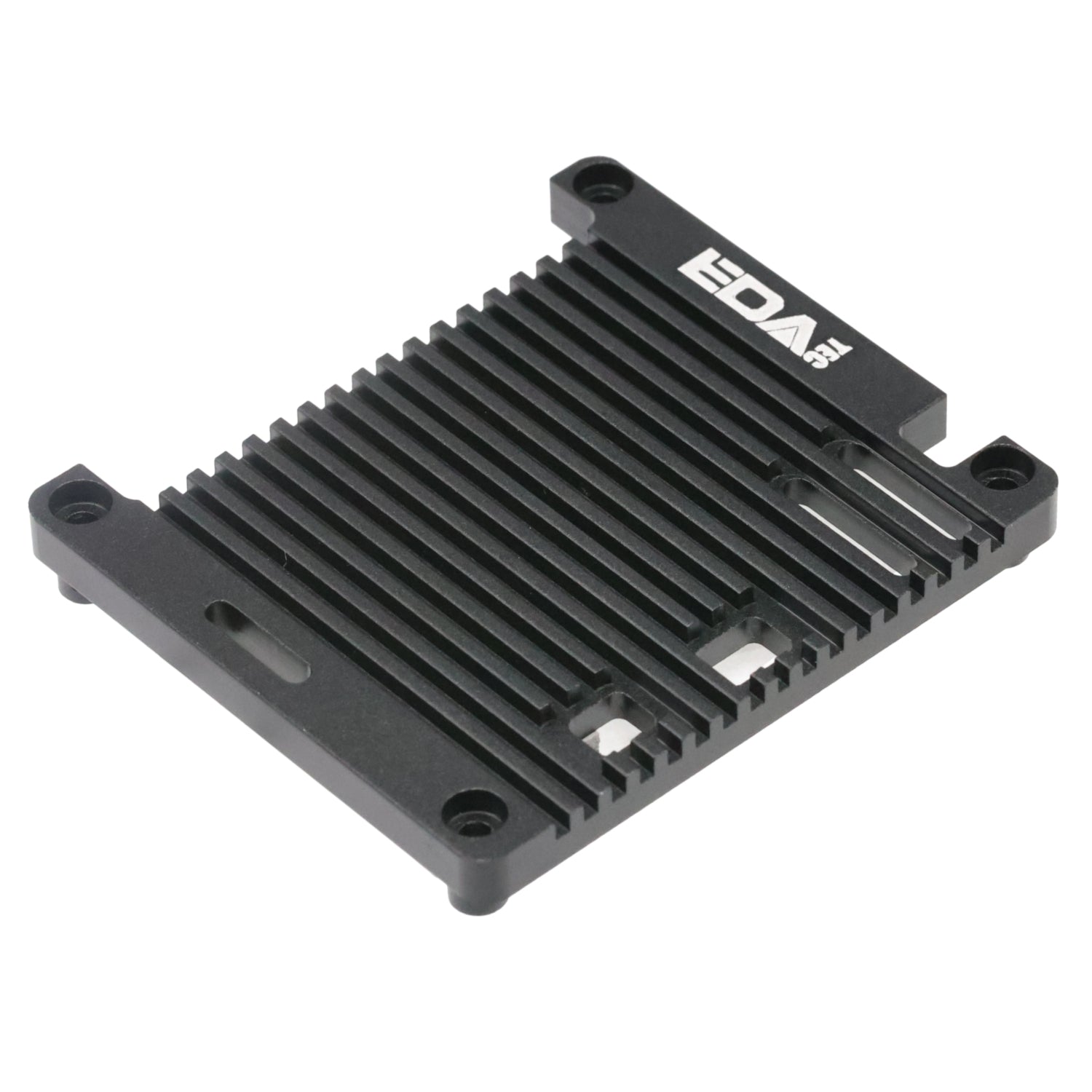

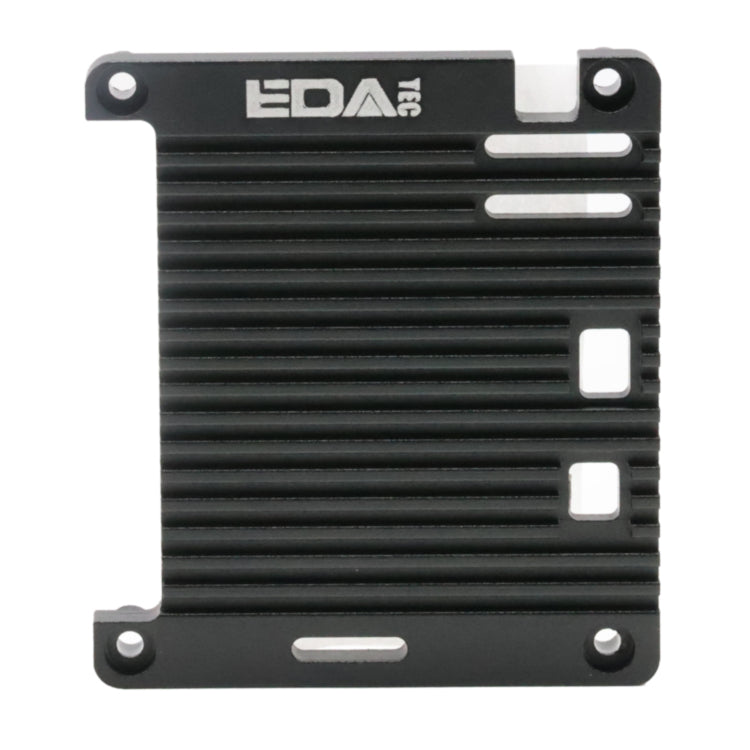

The ED-Pi5PCOOLER is a passive heatsink designed specifically for the Raspberry Pi 5, engineered to keep the more powerful Cortex-A76 processor running cool without a fan. Constructed from sheet metal with a CNC cutting process and pre-installed with thermal conductive silicone, it installs quickly and cleanly -- no thermal paste required. Tested to reduce CPU temperature by approximately 15°C at 25°C ambient under stable load (84.5°C → 69.6°C at full CPU load), the ED-Pi5PCOOLER allows the Raspberry Pi 5 CPU to run continuously at its maximum frequency of 2400MHz without throttling. Compact and lightweight, it leaves all Raspberry Pi 5 ports and interfaces fully accessible. Completely silent -- no fans, no moving parts. Reviewed and recommended by Tom's Hardware.
Key Features
- Compatible with: Raspberry Pi 5 (all RAM variants)
- Construction: Sheet metal, CNC cut -- durable and thermally efficient
- Finish: Black
- Thermal Interface: Pre-installed thermal conductive silicone -- no paste required
- Cooling Performance: Reduces Raspberry Pi 5 CPU temperature by ~15°C at 25°C ambient (84.5°C → 69.6°C at full CPU load via sysbench)
- Sustained Performance: Allows continuous operation at maximum CPU frequency of 2400MHz
- Passive / Fanless: Completely silent -- no moving parts
- Full Port Access: All Raspberry Pi 5 interfaces remain fully accessible after installation
- Dimensions: 65 x 58 x 9.3mm
- Weight: ~40g
- Simple Installation: Screw-mount with included M2.5×12 screws, M2.5 nuts, and integrated nylon posts
Specifications
| Category | Details |
|---|---|
| Compatible Device | Raspberry Pi 5 |
| Construction | Sheet metal, CNC cut |
| Finish | Black |
| Thermal Interface | Pre-installed thermal conductive silicone |
| Cooling Type | Passive (fanless) |
| Cooling Performance | CPU temperature reduction of ~15°C (84.5°C → 69.6°C at 25°C ambient, full CPU load via sysbench) |
| Max CPU Frequency Supported | 2400MHz continuous |
| Dimensions | 65 x 58 x 9.3mm (W x D x H) |
| Weight | ~40g |
| Nylon Posts | 4x integrated nylon posts (for alignment with Raspberry Pi 5 mounting holes) |
| Mounting Hardware | 4x M2.5×12 screws + 4x M2.5 nuts (included) |
Installation Notes

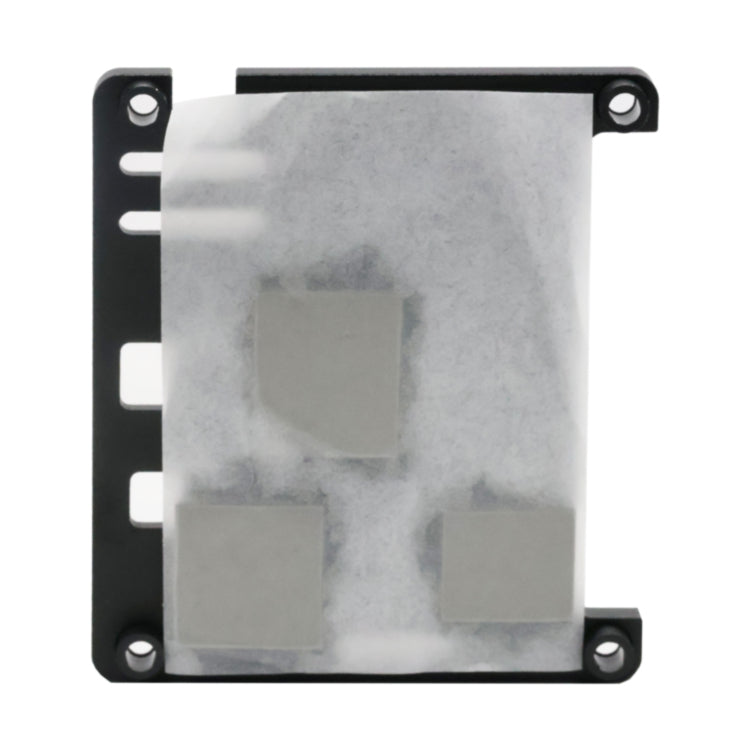

- Remove the protective paper from the pre-installed thermal silicone before mounting.
- Check that the tops of all 4 nylon posts are level before installing. If any post is higher than the others, press it into the mounting hole until level.
- Place the ED-Pi5PCOOLER on the Raspberry Pi 5 so the 4 nylon post holes align with the 4 mounting holes on the Pi 5.
- Place 4 M2.5 nuts under the 4 mounting holes of the Raspberry Pi 5, then insert 4 M2.5×12 screws from the top and tighten clockwise with a screwdriver.
- Raspberry Pi 5 is not included.
What's in the Box
- 1x ED-Pi5PCOOLER unit (with pre-installed thermal conductive silicone and 4x integrated nylon posts)

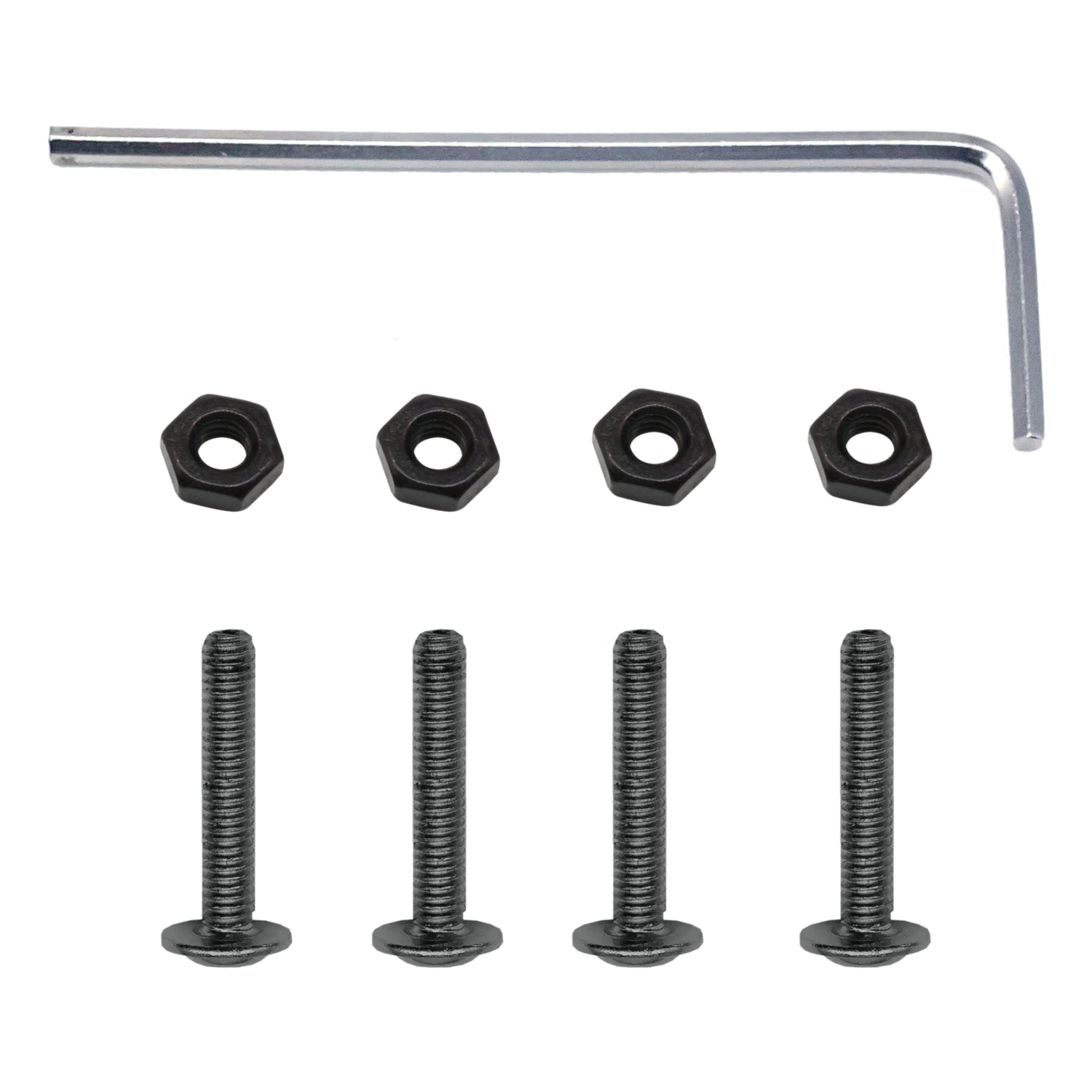

- 1x Accessory Kit: 4x M2.5×12 screws, 4x M2.5 nuts
