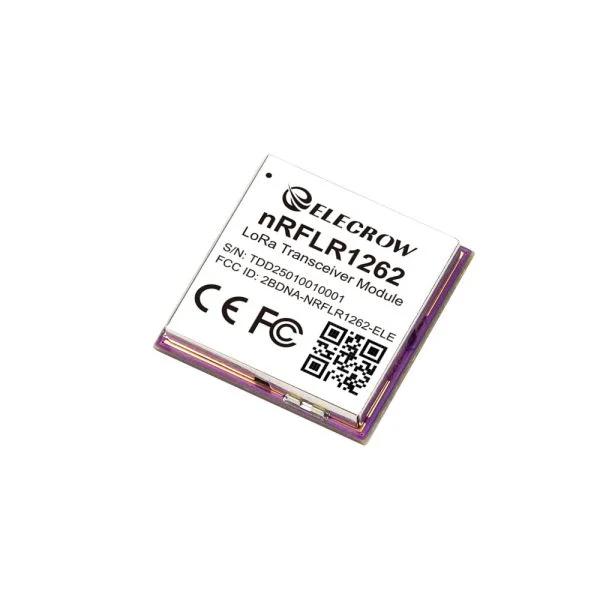

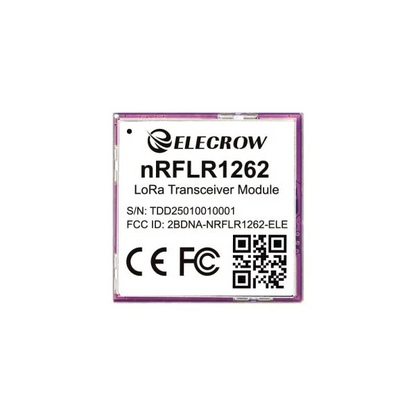

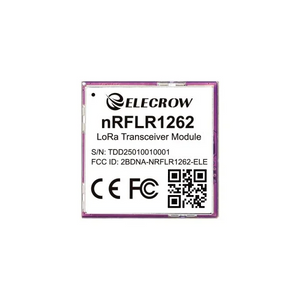

Elecrow nRFLR1262 Wireless Transceiver Module

Name: Elecrow nRFLR1262 Wireless Transceiver Module
Brand: Elecrow
SKU: 123004074
Price: 11.90 USD
Availability: InStock

$ 11.90 USD

Sale Sold out

Quantity

SKU:123004074

Out of stock — Available on backorder

Also in this family: nRFLR1110, nRFLR1121, and nRFLRCC68.

The Elecrow nRFLR1262 Wireless Transceiver Module is a high-performance, low-power, long-range communication solution designed for advanced IoT applications. It integrates the Nordic nRF52840 microcontroller with the Semtech SX1262 LoRa transceiver, delivering reliable wireless connectivity over long distances.

With a maximum transmit power of +20dBm and a communication range of up to 10 km, this module supports a wide transmission rate range from 0.018 to 62.5 Kbps. It operates across the global 850–930 MHz ISM band, supporting both LoRaWAN 1.0.3 (Class A, B, and C) and LoRa point-to-point (P2P) communication modes, enabling flexible deployment for various network architectures.

In addition to LoRa capabilities, the module supports Bluetooth 5.3 and low-energy Bluetooth, along with advanced wireless protocols such as Mesh, NFC, Thread, and Zigbee. Built-in AT command firmware simplifies development, while SDK support allows deep customization for specific application needs.

Designed to industrial standards and developed exclusively by Elecrow, the nRFLR1262 module offers robust performance, compact size, and excellent flexibility-making it ideal for building scalable and energy-efficient IoT systems.

Key Features

High Performance Communication
- Up to +20 dBm transmit power
- Transmission rate: 0.018 ~ 62.5 Kbps
- Sensitivity: -125.5 dBm @ SF12 / BW = 125 kHz
- Link budget up to 170 dB
Ultra-Low Power Consumption
- Sleep current as low as 5 µA for energy-efficient operation
Multi-Protocol Wireless Support
- LoRa & LoRaWAN (Class A/B/C)
- LoRa P2P communication
- Bluetooth 5.3 & BLE
- Supports Mesh, NFC, Thread, and Zigbee
Global Frequency Coverage
- Supports 850 ~ 930 MHz ISM band for worldwide deployment
Flexible Development Options
- Built-in AT command firmware
- SDK support for custom development
- Easy UART-based communication
Rich Peripheral Interfaces
- GPIO, UART, I2C, ADC interfaces available for expansion
Compact Industrial Design

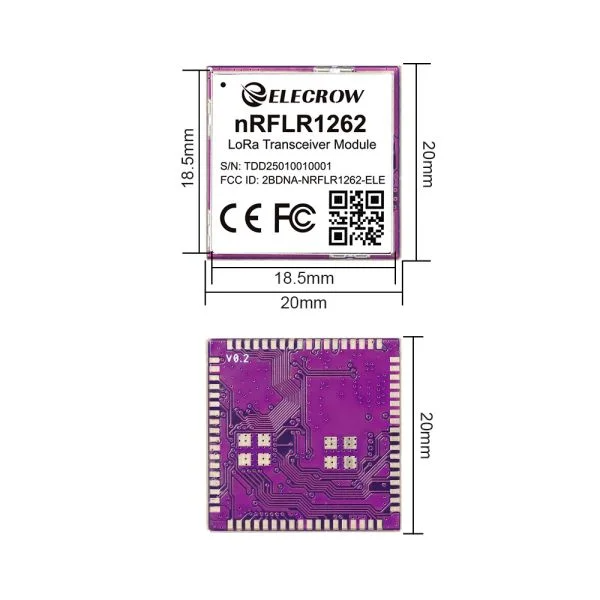

- Size: 20 × 20 × 3.5 mm
- Designed for reliable industrial applications
Certified Quality
- FCC, CE, and RoHS certified

Applications

Smart City Infrastructure
Smart Agriculture Systems
Industrial Automation (IIoT)
Environmental Monitoring
Smart Home Solutions
Logistics & Asset Tracking
Medical & Healthcare Devices

Technical Specifications

Category	Specification
Processor
CPU	nRF52840 processor, dual-core 32-bit, 64MHz main frequency
RF Chip
Chipset	Semtech SX1262
LoRa Specification
Transmit Power (TX)	Up to +20 dBm
Receiving Sensitivity	-125.5 dBm
Link Budget	Up to 170 dB
Demodulator	Supports LoRa / (G)FSK / GMSK modulation
Frequency Range	150 MHz – 960 MHz configurable
Spreading Factor	SF5 ~ SF12
Wireless Communication
Connectivity	Supports BLE, Bluetooth Mesh, NFC, Thread, Zigbee
Data Rate	0.018 ~ 62.5 Kbps
General
Operating Frequency	850 ~ 930 MHz (supports 868 MHz / 915 MHz)
Communication Interface	SPI (0 ~ 10 Mbps)

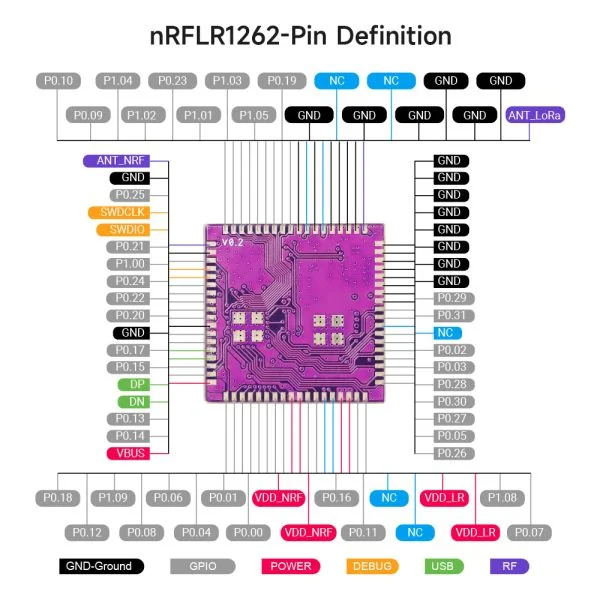

Lead Pins	SPI, VCC, GND, NRST, ANT, TX/RX control, BUSY, NFC, SWD debug
Antenna	External via RF pins
Power Consumption	5 µA (sleep), 120 mA (TX + MCU), 12 mA (RX + MCU)
Communication Distance	5 ~ 6 km typical, up to 10 km
Crystal	Industrial-grade 32 MHz TCXO
LoRaWAN Protocol	Class A / B / C (LoRaWAN 1.0.3)
Operating Voltage	1.8 ~ 3.7 V
Operating Temperature	-40°C ~ +85°C
Package	20 × 20 × 3.5 mm, 80-pin LGA (SMT)
Weight	3 g

Why Choose nRFLR1262?

The Elecrow nRFLR1262 module combines long-range communication, ultra-low power consumption, and multi-protocol support into a compact and versatile design. Whether you're building large-scale IoT networks or custom wireless solutions, this module provides the performance and flexibility needed for modern connected systems.
