Also in this family: nRFLR1262 , nRFLR1110, and nRFLRCC68.

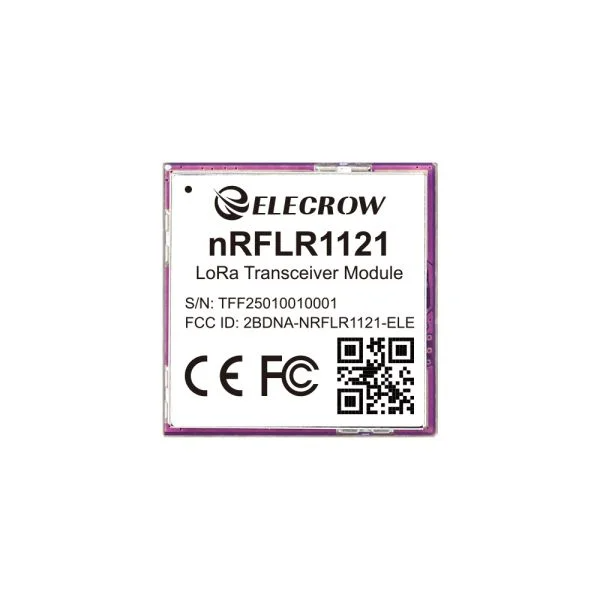

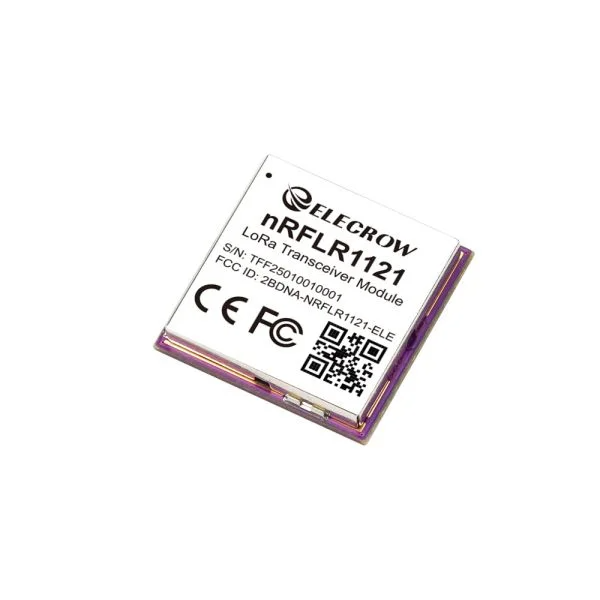

The Elecrow nRFLR1121 Wireless Transceiver Module combines the powerful Nordic nRF52840 microcontroller with the advanced Semtech LR1121 LoRa transceiver, delivering a high-performance, ultra-low-power, and long-range wireless communication solution.

Supporting Bluetooth 5.3, LoRaWAN 1.0.4 (Class A/B/C), and LoRa point-to-point (P2P) communication, this module operates across the 850–930 MHz ISM band (including 868 MHz and 915 MHz). It offers a maximum transmit power of +21 dBm, data rates from 1.91 to 62.5 Kbps, and communication distances of up to 10 km.

The module also supports global 2.4 GHz spectrum and Sub-GHz communication, along with S-band LR-FHSS (Long Range – Frequency Hopping Spread Spectrum) for satellite connectivity (note: satellite and terrestrial modes cannot operate simultaneously). This makes it ideal for remote and infrastructure-free environments, such as meteorological and hydrological monitoring systems.

With built-in AT command firmware, SDK support for custom development, and rich peripheral interfaces, the nRFLR1121 module is designed for industrial-grade reliability and flexibility.

Key Features

High Performance: Up to +21 dBm transmit power, 1.91–62.5 kbps data rate, -141 dBm sensitivity (@SF12/BW=125 kHz), and 166 dB link budget
Ultra-Low Power Consumption: Sleep current as low as 6 µA
Multi-Band Support: Supports Sub-GHz, global 2.4 GHz spectrum, and S-band; enables LoRa point-to-point (P2P) communication
Wide Wireless Compatibility: Supports 850–930 MHz LoRa & LoRaWAN ISM bands, Bluetooth Low Energy, Bluetooth Mesh, NFC, Thread, and Zigbee
Flexible Development: Built-in AT command firmware with SDK support for customized development; easy control via UART interface
Long-Range Communication: Transmission distance up to 10 km
Rich Interfaces: Multiple GPIOs including UART, I2C, ADC, etc., for flexible integration

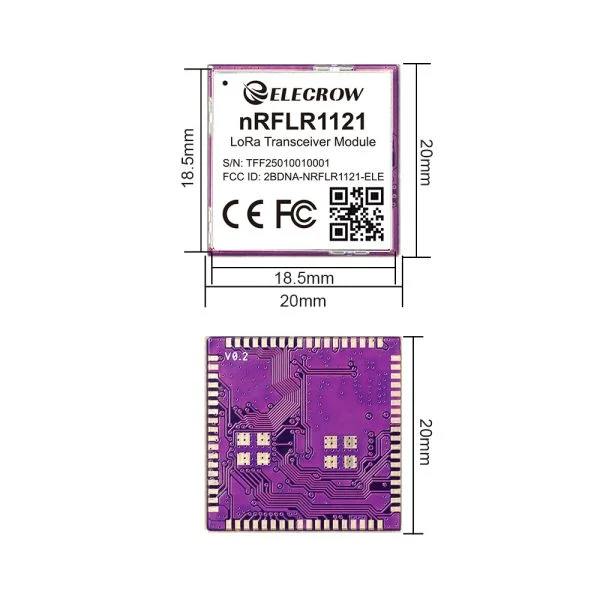

Compact Design: Small form factor of 20 × 20 × 3.5 mm
Certified & Reliable: Complies with FCC, CE, and RoHS standards

Applications

Smart City Infrastructure
Smart Agriculture
Industrial Automation
Environmental Monitoring
Smart Home Systems
Logistics & Asset Management
Medical & Healthcare Devices
Remote Monitoring & IoT Deployments

Technical Specifications

Category	Specification
Processor
CPU	nRF52840 processor, dual-core 32-bit, 64 MHz main frequency
RF Chip
Chipset	Semtech LR1121
LoRa Specification
Transmit Power (TX)	Up to +21 dBm
Receiving Sensitivity	-141 dBm
Link Budget	Up to 166 dB
Demodulator	Supports LoRa / (G)FSK / GMSK / Sigfox modulation; supports S-band satellite frequency hopping spread spectrum communication
LoRa Frequency Range	150 MHz to 960 MHz and 2400 MHz bands (configurable)
Spreading Factor	SF5 ~ SF12
Wireless Connection	Bluetooth Low Energy, Bluetooth Mesh, NFC, Thread, Zigbee
Data Transfer Rate	1.91 – 62.5 Kbps
Other
Frequency	850 ~ 930 MHz (supports 868 MHz and 915 MHz ISM bands)
Communication Interface	SPI (0 ~ 10 Mbps)

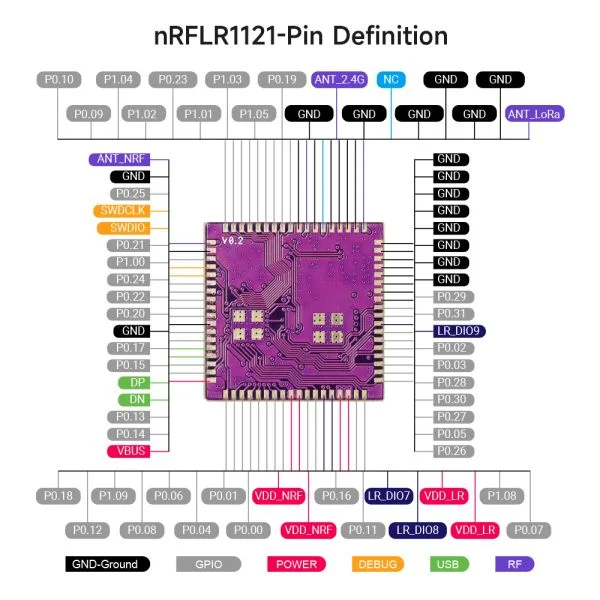

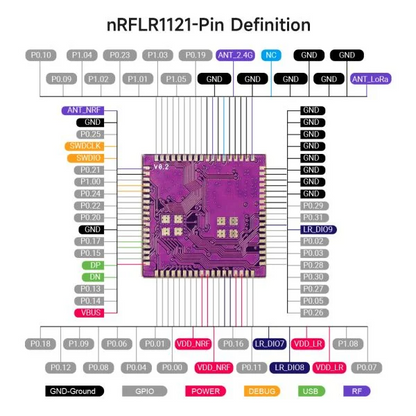

Lead Pin	SPI, VCC, multiple GND, NRST, ANT, TX/RX control, BUSY status, NFC, SWD debugging pins
Antenna	External antenna via RF pins (no onboard antenna)
Power Consumption	6 µA (sleep), 126 mA (transmit + MCU), 18 mA (receive + MCU)
Communication Distance	Typical 5–6 km, up to 10 km
Crystal Type	Industrial-grade 32 MHz TCXO
LoRaWAN Protocol	Class A / B / C (LoRaWAN 1.0.4 compliant)
Operating Voltage	1.8 ~ 3.7 V
Operating Temperature	-40°C to +85°C (industrial grade)
Package Size	20 × 20 × 3.5 mm, 80-pin SMT, LGA package
Weight	3 g

Why Choose nRFLR1121?

The nRFLR1121 module stands out with its dual wireless capability (LoRa + BLE), satellite communication support, and industrial-grade reliability, making it a powerful solution for next-generation IoT deployments-especially in remote and mission-critical applications.
