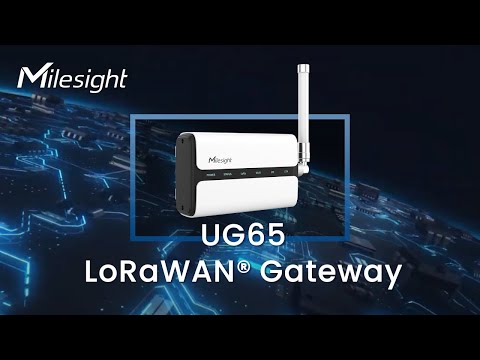

Milesight Semi-industrial LoRaWAN Gateway UG65

UG65 is a robust 8-channel indoor LoRaWAN^® gateway. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart offices, smart buildings, and many other indoor applications.

 UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.

Features

• Quad-core industrial processor with big memory
• Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
• 8 half/full-duplex channels
• IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
• Desktop, wall, or pole mounting
• Multi-backhaul backups with Ethernet, cellular (4G/3G), and Wi-Fi
• DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
• Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
• Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet,
• Detect and analyze the noise level and provide intuitive diagram for deployment
• Built-in network server and MQTT/HTTP/HTTPS API for easy integration
• Embedded Python SDK for users secondary development
• Fast and user-friendly programming by Node-RED development tool

Technical Documents

• DataSheet
• User Guide

UG65-Accessories

• GA01-External LoRa Antenna
