Regular price $ 76.00 $ 0.00

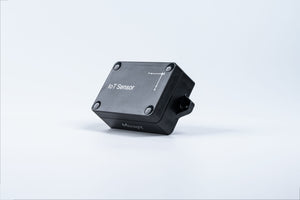

EM310-TILT is a LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM310-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. It can also detect the movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely.EM310-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

Features

  • Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
  • Flexible threshold condition settings, suitable for different kinds of applications
  • Easy to install, suitable for various types of objects as trees, poles, grounds,
  • IP67 waterproof enclosure for outdoor applications and easy to clean
  • Ultra-wide-distance wireless transmission up to line of sight of 15 km
  • Equipped with NFC for one touch configuration, supports card emulation mode
  • Function well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud

Specifications

Wireless Transmission

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity

-137 dBm @300bps

Mode

OTAA/ABP Class A

Measurement

Axis

X, Y, Z

Range

- 90° ~ +90°

Accuracy

± 1°

Resolution

0.01°

Others

Configuration

NFC Configuration via Mobile App

Button

1 × Reset Button (Internal)

Physical Characteristics

Power Supply

2 × 3500 mAh ER17505 Li-SOCl2 Batteries

Battery Life*

Over 5 years (6 triggers per hour)

Operating Temperature

-20°C to +60°C

Relative Humidity

≤95% (non-condensing)

Ingress Protection

IP67

Dimension

111 × 62 × 33 mm (4.37 × 2.44 × 1.30 in)

Material & Color

ABS, Black

Installation

On the flat surfaces with screws
