Model 3501 Type-C SuperMUTT
Model 3501 Type-C SuperMUTT
Model 3501 Type-C SuperMUTT

Model 3501 Type-C SuperMUTT

$ 1,243.75 $ 0.00

MCCI’s Model 3501 Type-C SuperMUTT allows for extensive automatic testing of USB hosts that implement support for USB 3.1 gen1, USB-C™ Power Delivery, and DisplayPort alternate mode, based on the Microsoft SuperMutt.

The Type-C SuperMUTT can be used to verify that a Windows platform properly supports USB 3.1 and Type-C alternate modes and power delivery using the automated testing framework developed by Microsoft.

Features

  • Programmable SuperSpeed device operation with a 5-Gbps SuperSpeed PHY compliant with USB 3.1 Gen 1.
  • Programmable high-speed USB device compliant with USB 2.0 allows testing of high-speed and full-speed communication.
  • Supports control, bulk, bulk streams, interrupt, and isochronous transfers.
  • Additional Type-C Port allows test of Power Delivery communication.
  • Supports 16 IN and 16 OUT endpoints.
  • Impedance controlled, low loss USB data path.
  • DisplayPort port allows test of DisplayPort alternate mode.
  • Connects to system under test with captive USB Type-C Cable.
  • Device emulation based on Cypress CYUSB301X EZ-USB® FX3 SuperSpeed USB Controller.
  • Integrated Lattice FPGA iCE40 UltraPlus provides support for Type-C cable configuration (CC) and Power Delivery (PD) communication.
  • Integrated Programmable switching power supply can source power to the unit under test of up-to 100W (proivded power adapter supports 60W).
  • Bi-directional power allows testing of power supply from system under test to external equipment.
  • 10 FX3 GPIO and 10 FPGA GPIO lines are available through dual-inline connector on rear panel.
  • Integrated fan with automatic temperature control.

Kit Contents

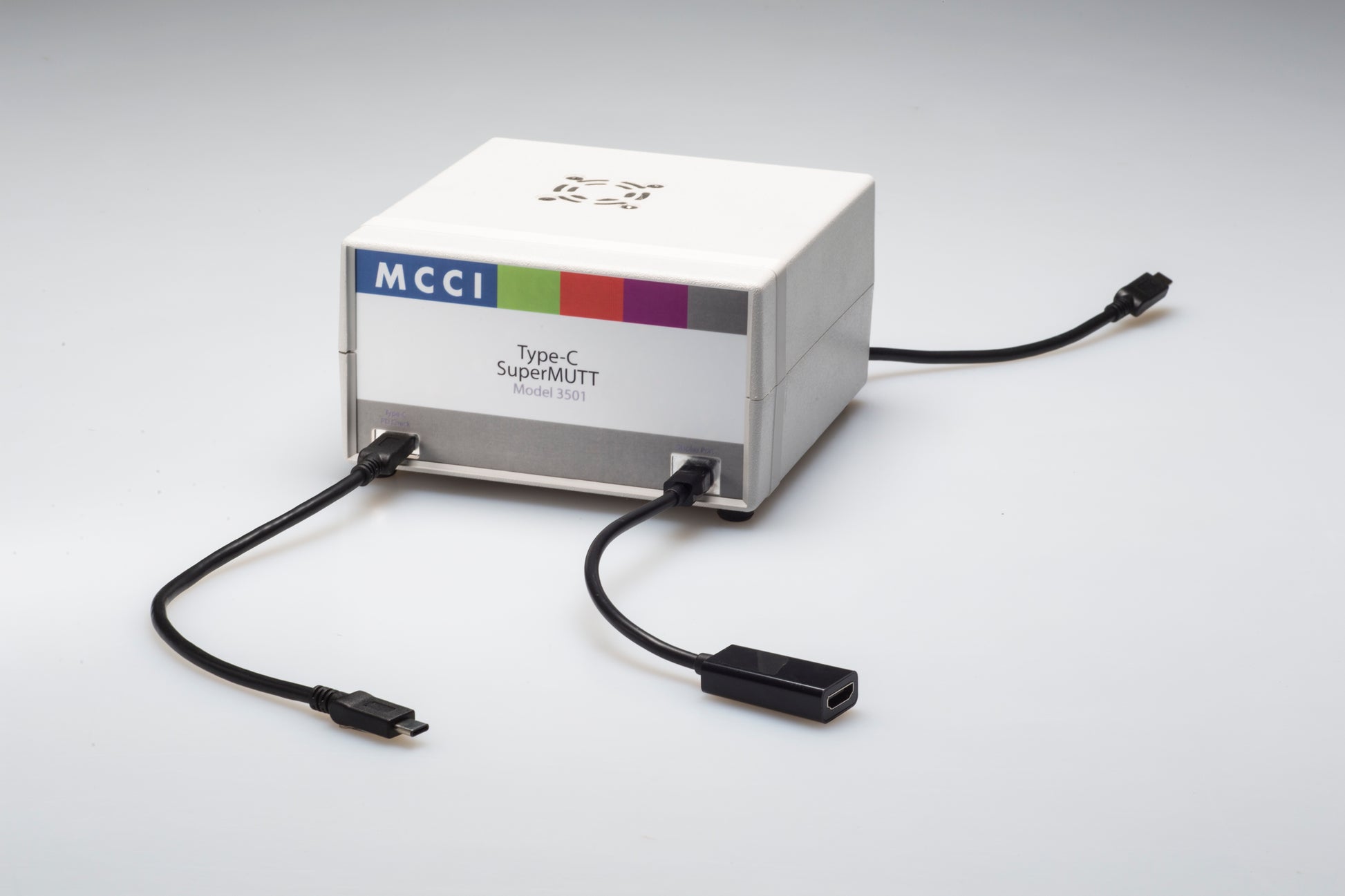

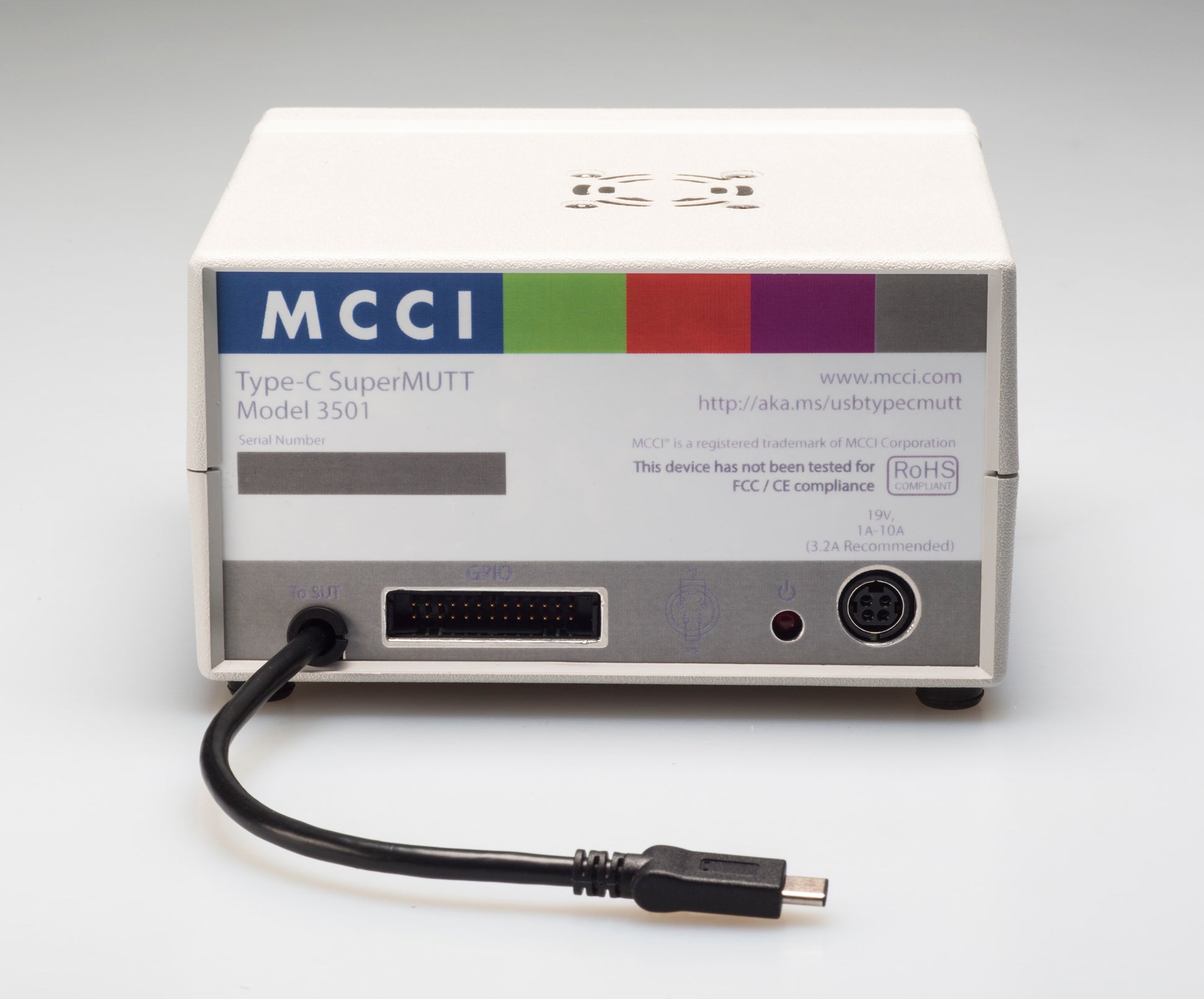

  • Fully assembled and tested Model 3501 Type-C SuperMUTT board with enclosure and captive Type-C cable for connection to system under test.

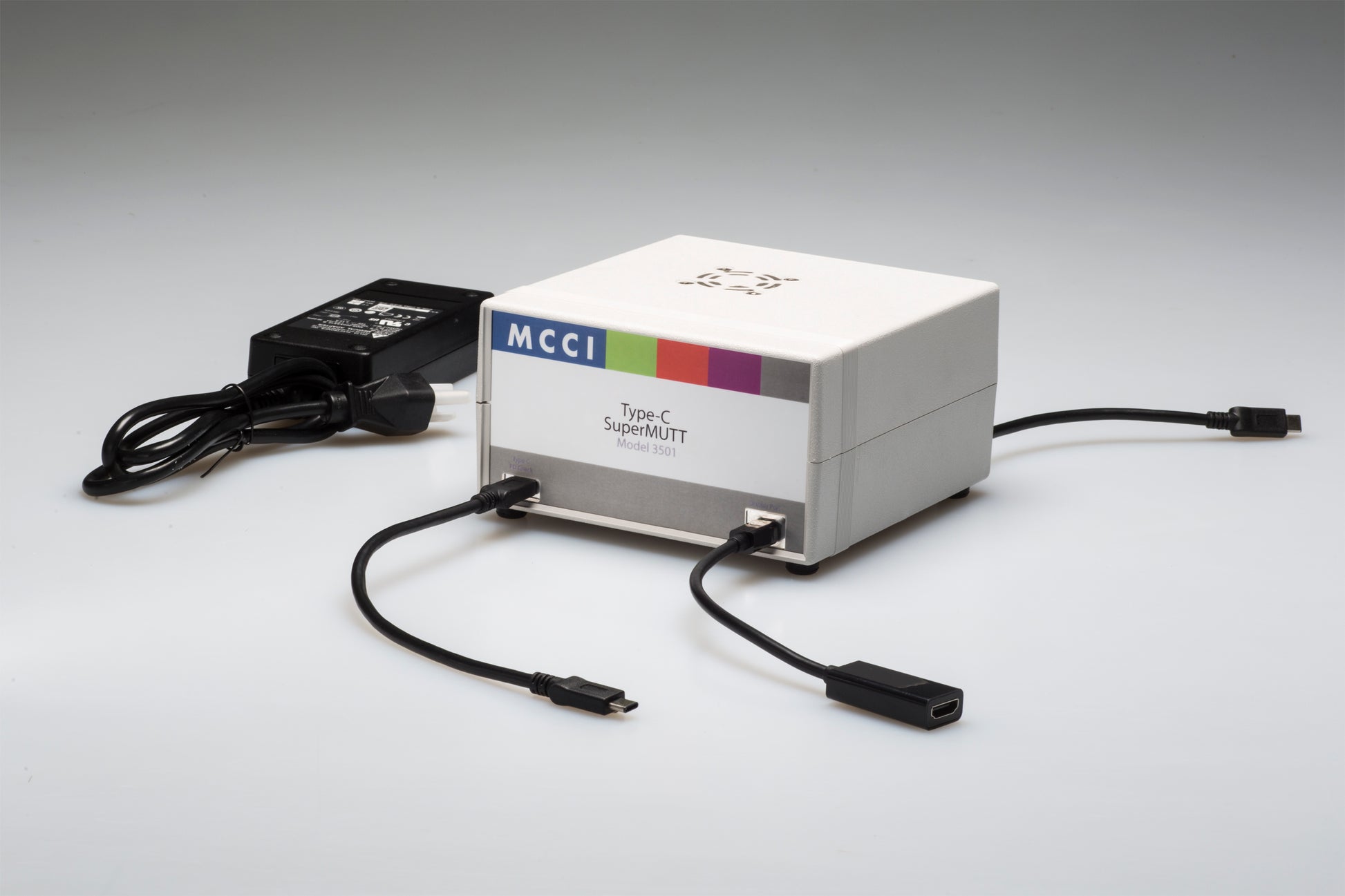

  • 19V, 3.2A international power supply adapter (60W) with IEC 60320 C14 (three-pin) receptacle.
  • NEMA 5-15P to IEC 60320-C13 power cord (ITA Type B: North America/Japan/Taiwan style). Length: one meter.
  • DisplayPort and detachable Type-C cables shown in photos are for reference only, and are not included in the kit.
