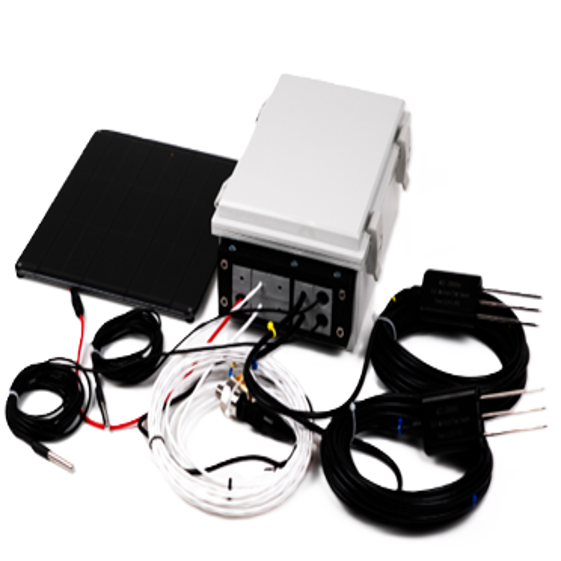

Model 4931 Maple Sugarbush Monitor

The MCCI® Model 4931 is a comprehensive Maple Sugarbush Monitoring System that measures environmental and tree-related parameters. It stores data on an SD card and utilizes LoRaWAN® technology to transmit data for dash-board visualization. The Model 4931 measures various parameters, including: Soil Temperature and Moisture, Tree Temperature and Pressure, Maple Sap Flow, Rain Flow, Ambient Temperature, Relative Humidity and Barometric Pressure. These measurements are transmitted over the customer's choice of LoRaWAN technology (1.0.2 or 1.0.3) networks, whether commercial, community-based, or private. Additionally, all data is stored on an SD card, ensuring access to historical records even when the device is out of network coverage.

Standard Features

• LoRaWAN® V1.0.3 compliant
• Supports regional plans: EU868, US915, AU915, AS923, AS923 (JP), KR920, and IN866
• Automatic data acquisition and transmission every six minutes (default)
• Powered by a single 4.2V, 2200 mAh LiPo battery
• On-board data logging with a microSD card slot
• Robust enclosure for electronics protection
• Solar panel for recharging battery
• Field-proven system engineering

Software Features

• Heater control for the pressure transducer
• Downlink commands to:
  • ✔ Adjust data-limit voltage and transmission interval
  • ✔ Control the heater and uplink timing
  • ✔ Reprovision the network
• Automatic data transmission limitation when battery voltage is low
• Environmental parameter monitoring
• Maple tree parameter recording
• Sap flow and rainfall measurement
• Soil parameter monitoring
• Software updates via SD card

Optional Accessories

• MCCI One Wire DS18B20 Temperature Sensor 4-meter Probe
• MCCI Pressure Sensor 4-meter Probe with Heater
• MCCI MS10 Soil Moisture and Temperature Sensor 6-meter Probe

Volume discounts and custom variants are available. Contact MCCI via email (sales@mcci.com) for assistance.
