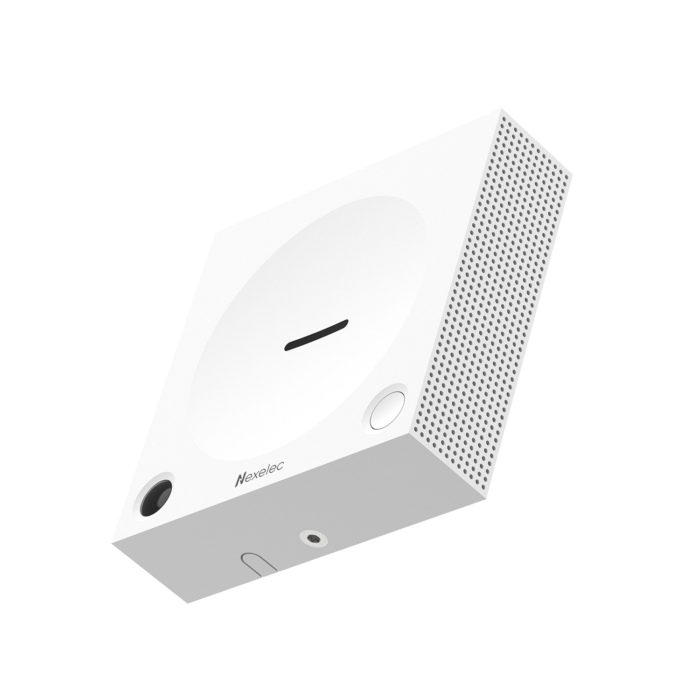

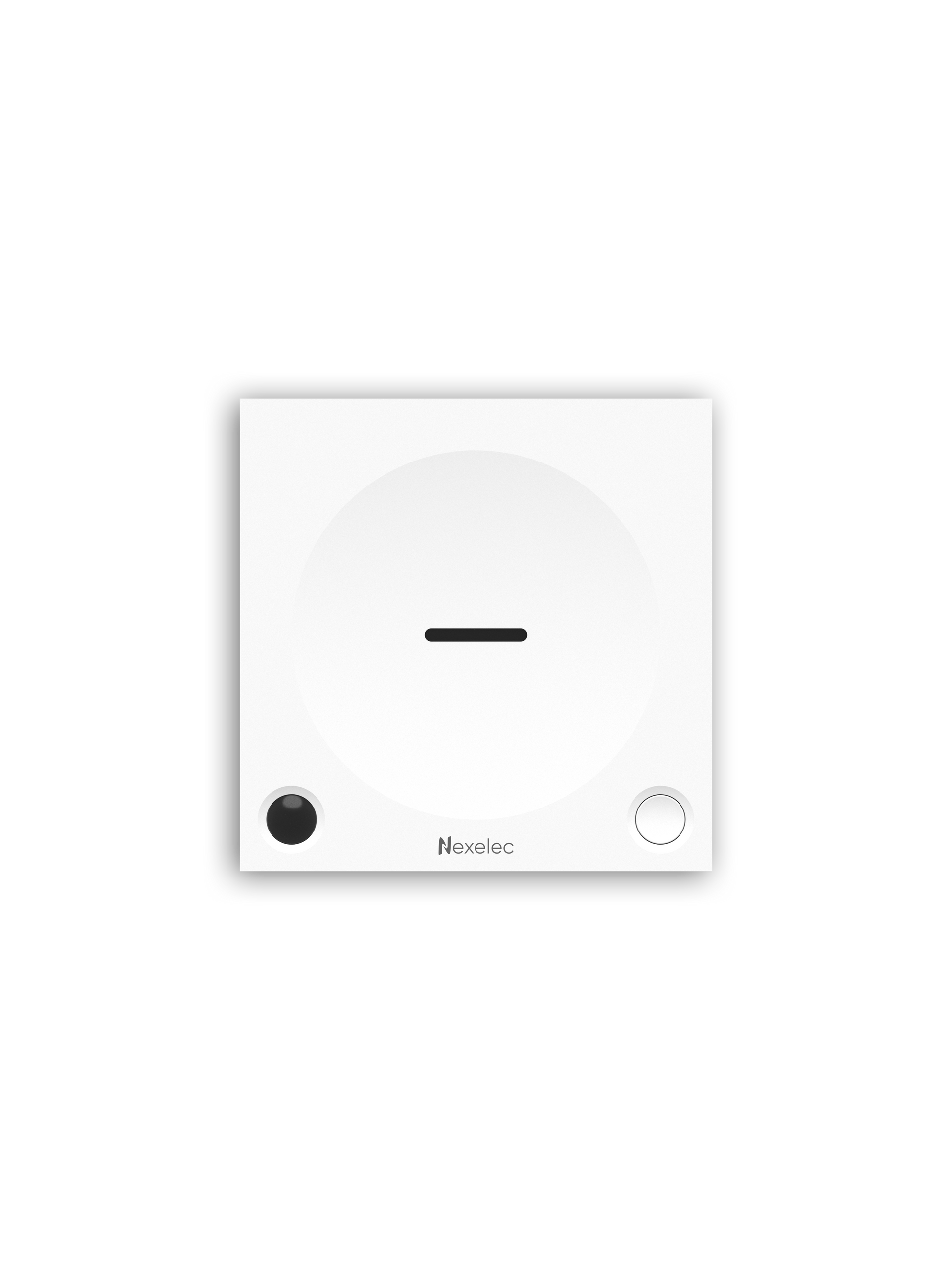

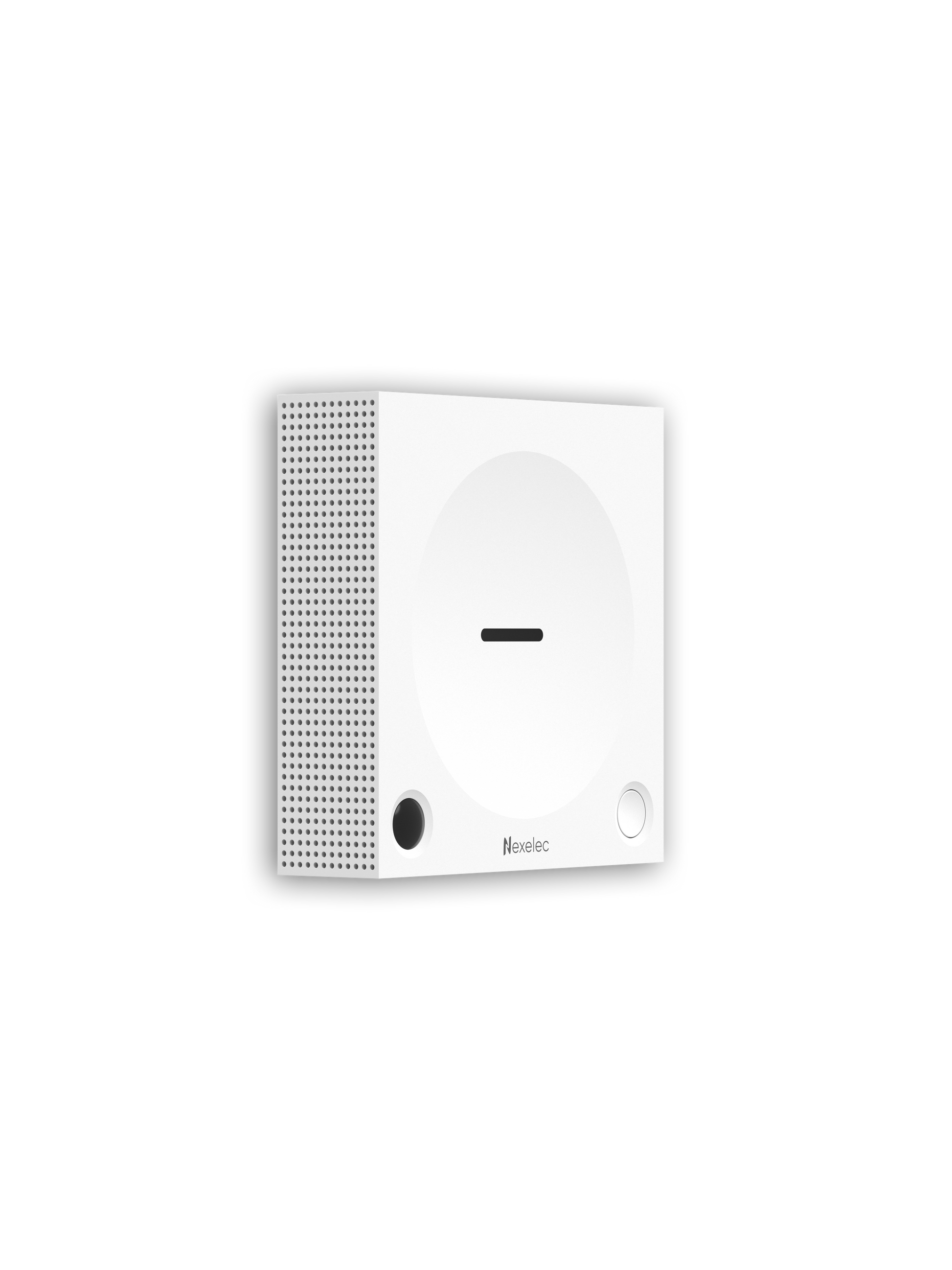

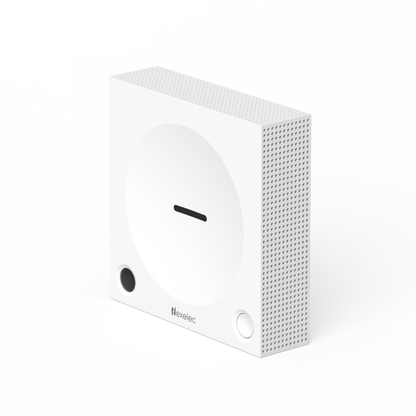

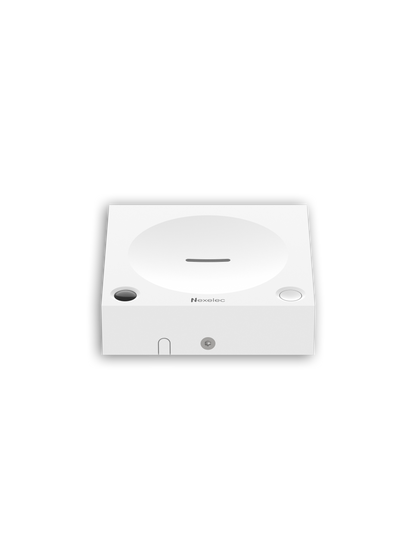

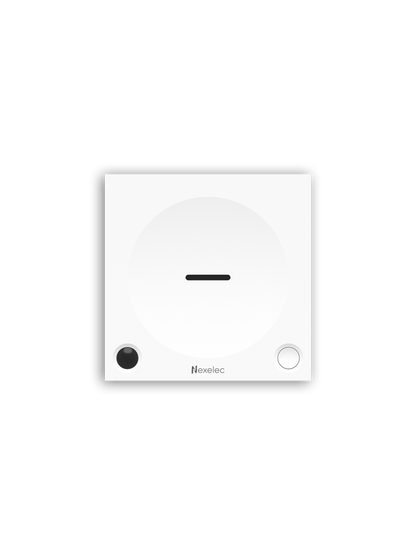

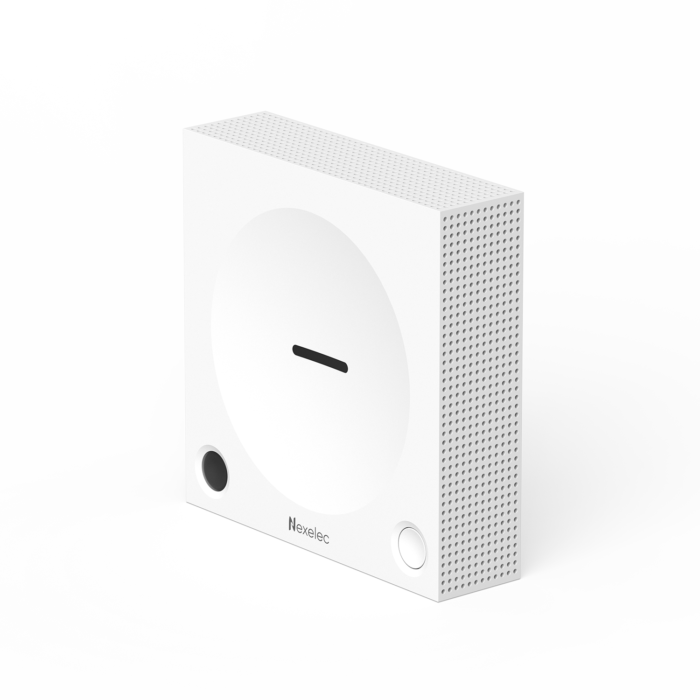

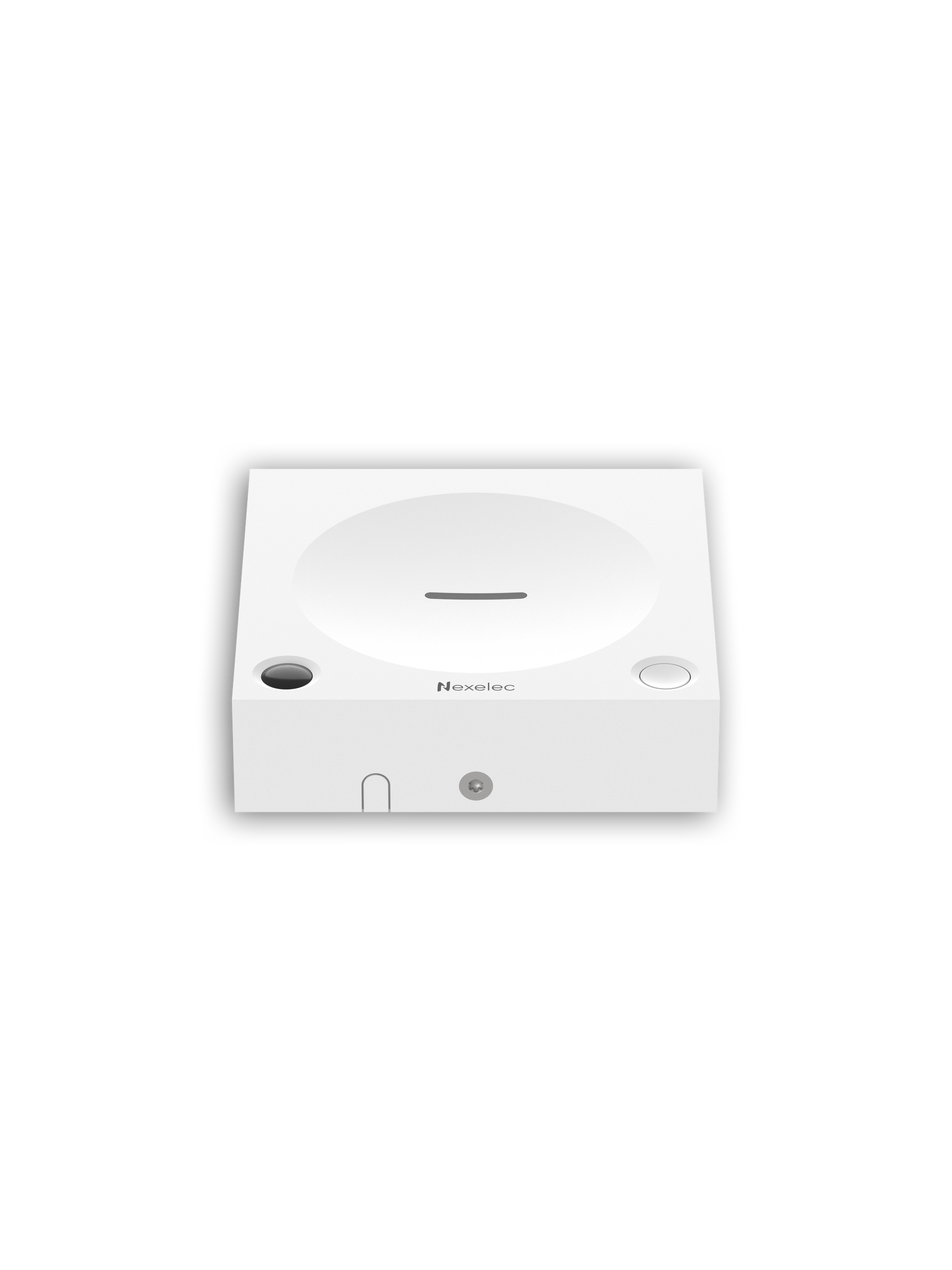

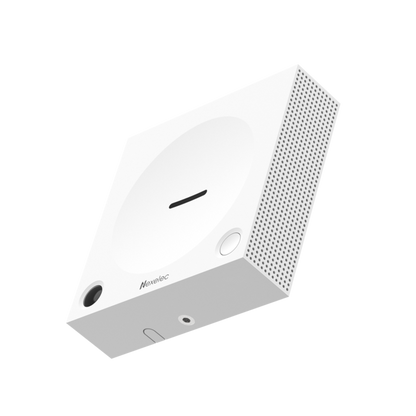

Nexelec MOVE 5-in-1 Room Sensor

$ 129.00 USD

Sale Sold out

Connectivity LoRaWAN Only

Frequency Band US915

Quantity

SKU:123004173

Out of stock — Available on backorder

The Nexelec MOVE is a 5-in-1 LoRaWAN room sensor that measures presence, brightness, noise, temperature, and humidity in offices, homes, and other indoor environments. All measurements transmit wirelessly to a secure cloud platform for remote monitoring and data logging.

MOVE combines five sensors in a single compact enclosure suited for free-standing placement or wall mounting. Configuration is done wirelessly via NFC using the Nexelec TOUCH smartphone app - no tools, no wiring, no need to open the enclosure.

Key Features

Presence detection: Passive infrared (PIR) motion sensor, 92° detection angle (vertical and horizontal), detects people up to 6 m away
Brightness measurement: Resolution 5 lux, accuracy ±5 lux, range 0–5,000 lux — useful for lighting control or temperature adjustment based on sunshine levels
Noise measurement: Resolution 1 dB, accuracy ±5 dB, range 35–120 dB — identifies noise pollution to help preserve a calm environment
Temperature measurement: Resolution 0.1°C, accuracy ±0.2°C, range −30°C to +70°C
Humidity measurement: Resolution 0.5% RH, accuracy ±2% RH, range 0–100% RH
Dual wireless connectivity: LoRaWAN and Sigfox (X590LS); LoRaWAN only (X590LR)
Multi-band LoRaWAN: Configurable for EU868, US915, AU923, and other regional frequencies via NFC
NFC configuration: Over 25 parameters adjustable via Nexelec TOUCH app — measurement interval, transmission interval, LED/buzzer indicators, radio frequency band, and more. Settings can be made through the packaging before the battery is installed.
Data transmission modes: Periodic, on-change, and bundled datalog with redundancy (each frame sent three times to maximize gateway reception)
End-to-end encryption: Double AES-128 encryption on all transmitted data
Long battery life: Up to 20 years(1) with two SAFT LS14500 2600 mAh lithium batteries (both included)
On-demand measurement: Front button triggers an immediate measurement and data transmission
Anti-tamper: Lockable mounting base; alert message sent if the sensor is removed
Mounting: Free-standing, wall-mounted (screws/plugs included), or 3M adhesive fastener (included) — no drilling required
270° air circulation: Numerous side openings for better ambient air sampling
Insect barrier: Integrated pest screen protects the sensing chamber
Calibration: Sensor calibration certificate from a COFRAC-accredited independent metrology laboratory
Certifications: CE, UKCA, FCC

Applications

Office and commercial building occupancy and comfort monitoring
Lighting and HVAC automation based on presence and brightness
Acoustic monitoring and noise pollution management
Residential comfort monitoring
Facility management and building automation
Large-scale IoT sensor deployments via LoRaWAN or Sigfox networks
Integration with NAVIXIS IoT platform for dashboard visualization, threshold alerts, and data export

Important Notes

Intended for indoor use only. Operating range: −20°C to +50°C, 0–99% RH non-condensing.
LoRaWAN gateway and network server not included. A LoRaWAN or Sigfox network must be available at the installation site.
Battery life estimate is not guaranteed; actual life depends on configuration, environment, and network conditions. Use the Nexelec VOLT tool to calculate projected autonomy for your deployment.
NFC configuration requires the free Nexelec TOUCH app (Android or iOS).
The X590LR variant supports LoRaWAN only; the X590LS variant supports both LoRaWAN and Sigfox.

Specifications

Presence
Technology	Passive infrared (PIR)
Detection angle	92° (vertical and horizontal)
Detection distance	Up to 6 m
Brightness
Resolution	5 lux
Accuracy	±5 lux
Measurement range	0–5,000 lux
Noise
Resolution	1 dB
Accuracy	±5 dB
Measurement range	35–120 dB
Temperature
Resolution	0.1°C
Accuracy	±0.2°C
Measurement range	−30°C to +70°C
Humidity
Resolution	0.5% RH
Accuracy	±2% RH
Measurement range	0–100% RH
Connectivity
Radio (X590LR)	LoRaWAN
Radio (X590LS)	LoRaWAN + Sigfox
Supported frequencies	EU868, US915, AU923, and other regional LoRaWAN bands (configurable via NFC)
Antenna	Integrated optimized PCB antenna
Encryption	Double AES-128 end-to-end
Power
Battery	2× SAFT LS14500 lithium, 2600 mAh each (both included)
Battery life	Up to 20 years(1)
Configuration
Method	NFC (Nexelec TOUCH app, Android / iOS)
Configurable parameters	25+, including measurement interval, transmission interval, radio frequency band, LED/buzzer indicators
Mechanical
Dimensions	87 × 87 × 23 mm
Weight	150 g (including battery)
Mounting	Free-standing, wall-mounted, or 3M adhesive
Anti-tamper	Lockable base, anti-tear alert
Environmental
Operating temperature	−20°C to +50°C
Operating humidity	0–99% RH, non-condensing
Location	Indoor only
Compliance
Certifications	CE, UKCA, FCC
Calibration	Certificate from COFRAC-accredited metrology laboratory
Warranty	2 years
Package Contents
Included	1× MOVE sensor 2× SAFT LS14500 batteries 1× Mounting base 2× Nylon screws and wall plugs 1× 3M adhesive fastener
