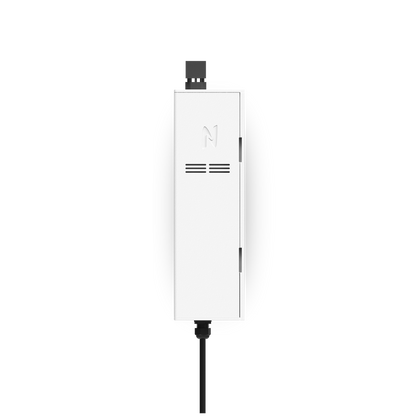

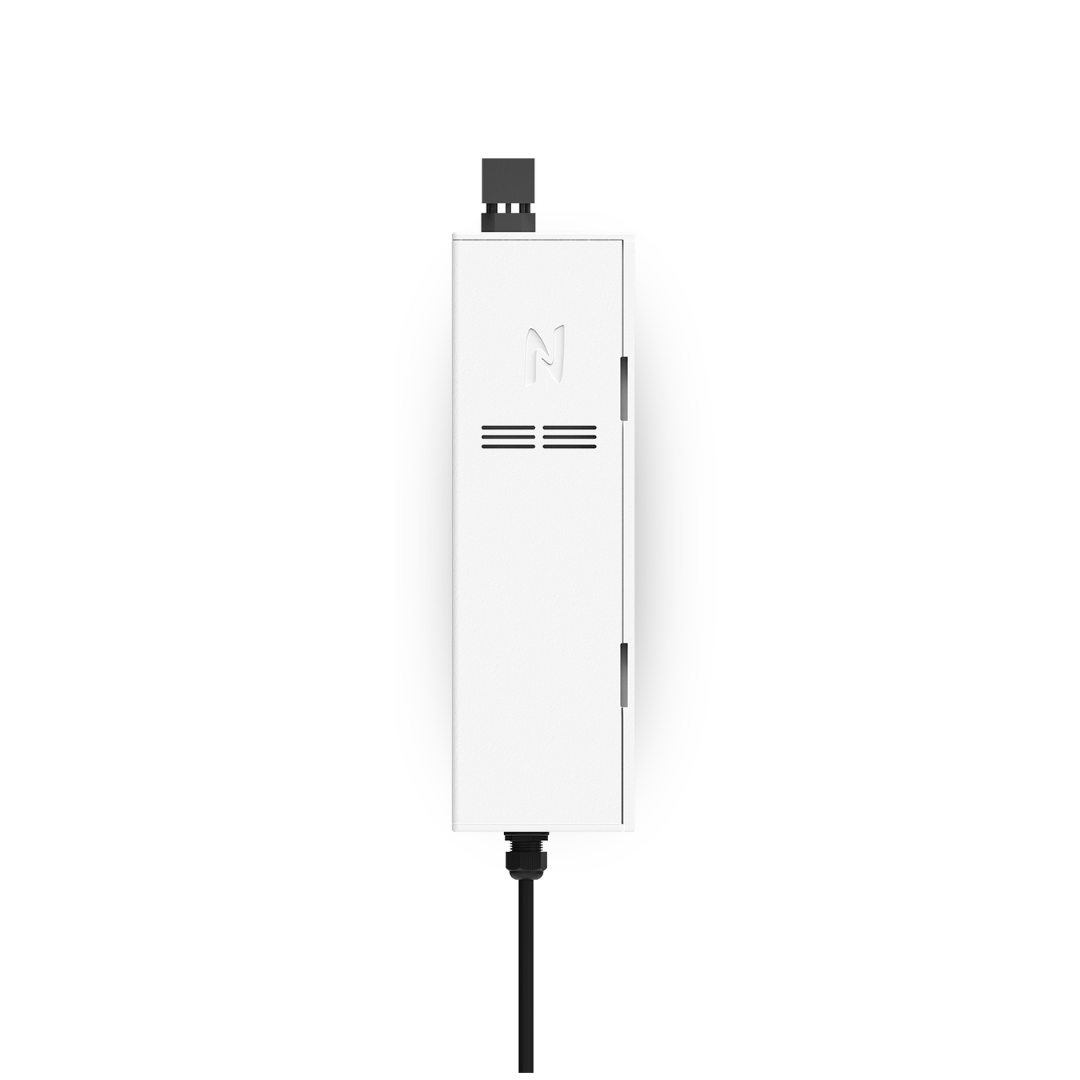

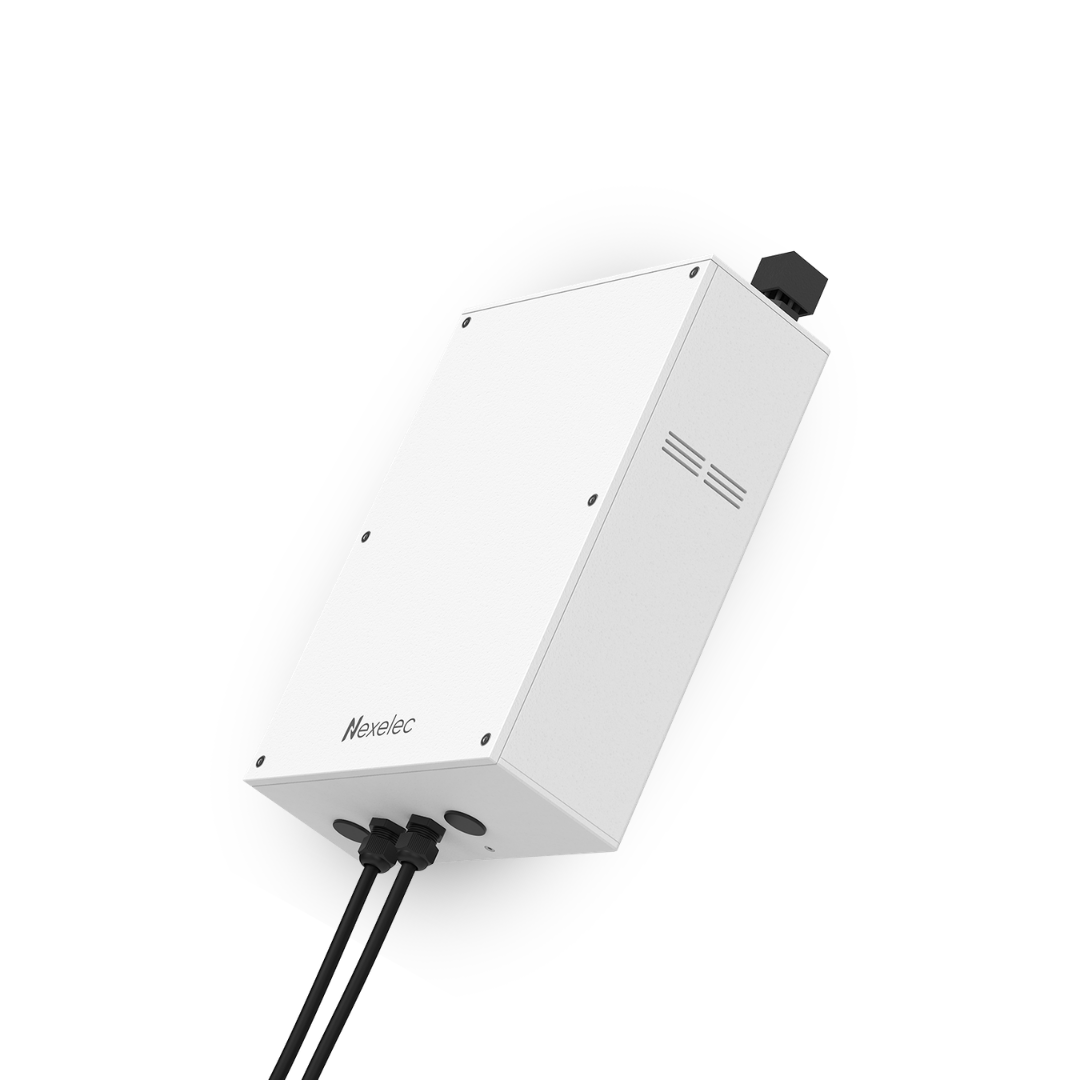

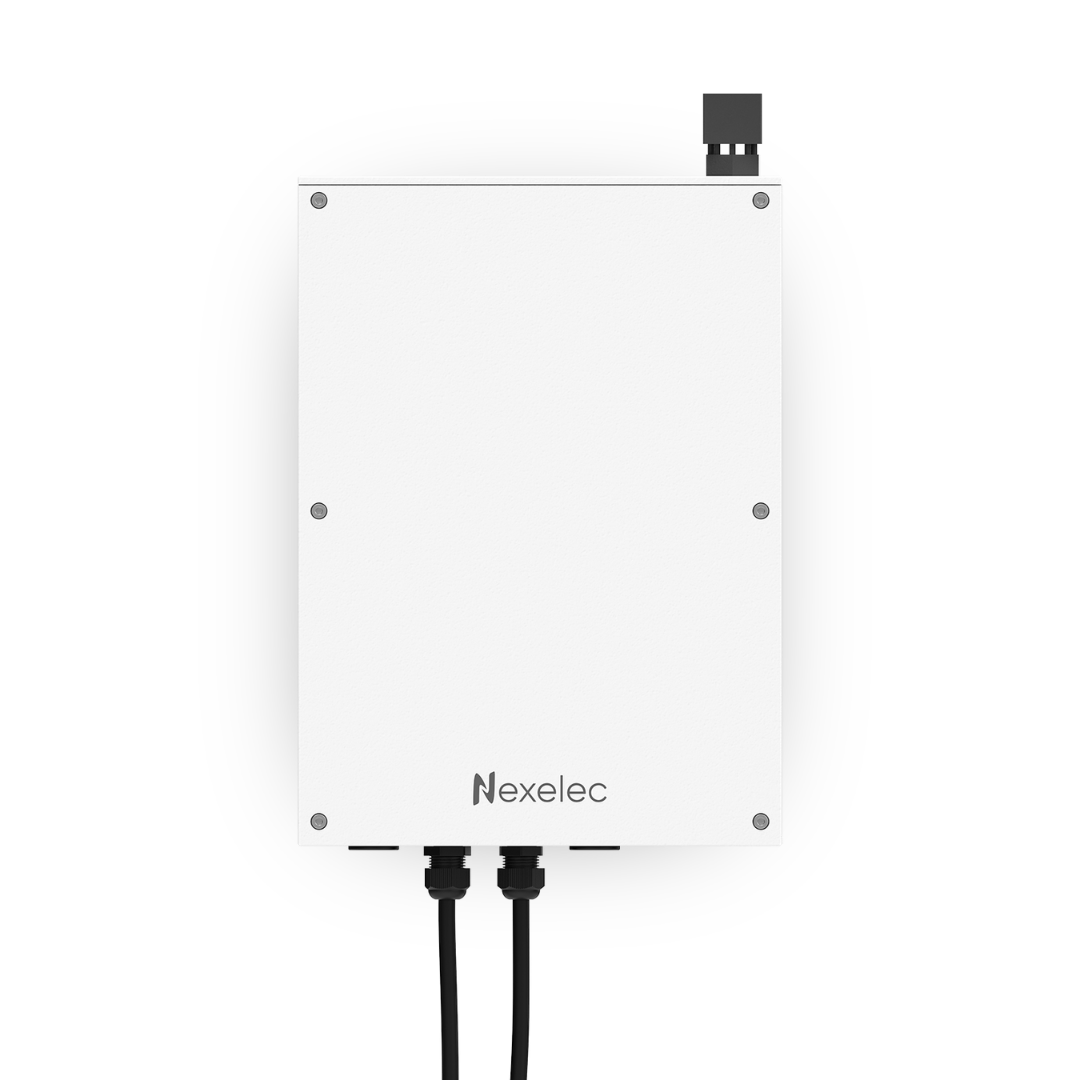

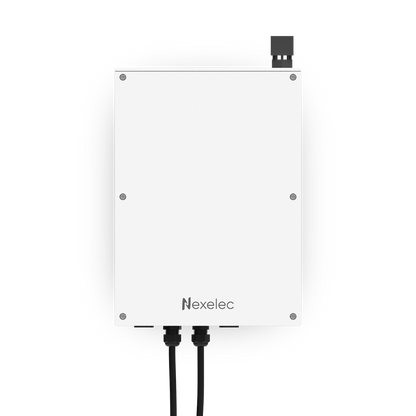

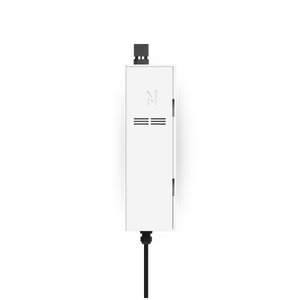

Nexelec TRACK+ Outdoor Air Quality Measurement Station

$ 3,990.00 USD

Sale Sold out

Connectivity LoRaWAN Only

Frequency Band US915

Quantity

SKU:123004190

Out of stock — Available on backorder

The Nexelec TRACK+ is an outdoor air quality measurement station that continuously monitors fine particulate matter (PM0.5, PM1, PM2.5, PM5, PM10), temperature, humidity, and atmospheric pressure. TRACK+ combines LoRaWAN and optional 4G LTE connectivity with built-in GPS geolocation and local SD card data logging, making it suitable for fixed outdoor deployments in any environment.

TRACK+ is designed for low-maintenance continuous operation, with no maintenance required for 5 years in standard configuration. Five BLOCK modular slots allow the station to be extended with additional gas sensors (ozone, NO2, and others) as measurement needs evolve. Power supply adapts to site conditions: mains AC, DC voltage, LFP battery, or optional solar panel.

Key Features

Fine particle measurement (PM): Laser optical sensor with AirFlow 360° sampling. Measures PM0.5, PM1, PM2.5, PM5, and PM10 simultaneously — by mass on 3 channels (0–1,000 µg/m³) and by particle count on 5 channels (0–3,000 pcs/cm³). The station heats the air before measurement to eliminate the effect of ambient humidity on readings. Fine particle sensor validated by an independent metrology laboratory.
Temperature measurement: Resolution 0.1°C, accuracy ±0.3°C, range −30°C to +70°C
Humidity measurement: Resolution 0.5% RH, accuracy ±2% RH, range 0–100% RH
Atmospheric pressure: Resolution 1 hPa, accuracy ±2.5 hPa, range 300–1,100 hPa
AirFlow 360°: Well-ventilated aerosol sampling system allows fine particles to enter from all angles without blind spots, while providing effective protection against rain and wind.
Built-in GPS geolocation: GPS and GLONASS networks automatically locate the station's measured data — useful for mobile deployments or fleet mapping.
BLOCK modular expansion: 5 slots for adding measurement cartridges (ozone, NO2, and other gases), ensuring flexibility and scalability without replacing the station.
LoRaWAN connectivity: LoRaWAN standard (X950LS). Open protocol — measurements can be used freely in any compatible monitoring software.
4G LTE connectivity (optional, P061 CELLULAR): Multi-operator SIM card supplied with the station, providing network coverage in over 150 countries. Includes 5 years' access to the NAVIXIS web platform.
Local data logger: Built-in SD card stores up to 20 years of measurements in CSV format — ensures data continuity in radio dead zones or network outages.
Flexible power supply: Operates on AC mains (110–230V), DC voltage (5–35V), or LFP lithium battery (100 Wh, up to 15 days autonomy). Optional solar panel kit (P066) for isolated environments. Battery recharges automatically when mains power is restored.
NFC configuration: Configuration, diagnostics, and firmware updates via the Nexelec TOUCH mobile app over NFC.
End-to-end encryption: Double AES-128 encryption on all transmitted data
LED status indicators: Status of the various station components visible via onboard LEDs.
Low maintenance: No maintenance required for 5 years in standard configuration. Wearing parts (PM sensor, battery) are replaceable on site without removing the station from its mount.
Insect barrier: Integrated pest screen preserves measurement reliability and is easy to maintain.
Simple installation: Wall mounting kit and pole mounting kit both included. Pole kit fits diameters from 60 to 400 mm. Standard tools only (Phillips screwdriver).
NAVIXIS platform integration: Measurement visualization, CSV export, API/webhook connection, configurable email and SMS alerts, fleet management, and mapping.
SKY outdoor analytics module (optional): Links station measurements with data from nearby public air quality reference stations, calculates air quality indices, and provides advanced dashboards for outdoor air quality reporting.
Certifications: CE

Applications

Urban and peri-urban outdoor air quality monitoring networks
Industrial site perimeter monitoring for dust and particulate emissions
Road traffic and combustion pollution monitoring
Construction site and demolition dust monitoring
School, hospital, and public building perimeter air quality assessment
Environmental regulatory compliance monitoring
Remote or off-grid sites via solar power and 4G LTE connectivity
Mobile or temporary deployments using GPS geolocation
Integration with NAVIXIS and SKY platforms for air quality index calculation and reporting

Important Notes

Designed for outdoor use. Operating range: −20°C to +60°C, 0–95% RH non-condensing.
4G LTE connectivity (P061 CELLULAR), solar power kit (P066), NAVIXIS platform access, and SKY analytics module are optional — contact us to discuss your configuration.
BLOCK sensor cartridges (ozone, NO2, and other gases) are ordered separately. Up to 5 BLOCK slots available per station.
LoRaWAN gateway not included. A LoRaWAN network must be available at the installation site when using LoRaWAN connectivity.
Battery autonomy of 15 days is standard; actual autonomy depends on configuration and measurement frequency.
Wearing parts (PM sensor, LFP battery) are user-replaceable on site without removing the station from its mount. No other maintenance required for 5 years in standard configuration.

Specifications

Particulate Matter (PM)
Channels (by mass)	PM1, PM2.5, PM10
Channels (by count)	PM0.5, PM1, PM2.5, PM5, PM10
Resolution	1 µg/m³ or 1 pcs/cm³
Repeatability error	<3%
Linearity error	<5%
Mass measurement range	0–1,000 µg/m³
Count measurement range	0–3,000 pcs/cm³
Measurement mode	Continuous or intermittent
Humidity compensation	Air heated before measurement
Sampling	AirFlow 360° — all-angle entry, weatherproof
Temperature
Resolution	0.1°C
Accuracy	±0.3°C
Measurement range	−30°C to +70°C
Humidity
Resolution	0.5% RH
Accuracy	±2% RH
Measurement range	0–100% RH
Atmospheric Pressure
Resolution	1 hPa
Accuracy	±2.5 hPa
Measurement range	300–1,100 hPa
Connectivity
Radio (X950LS)	LoRaWAN
4G LTE (optional, P061)	Multi-operator SIM card included; coverage in 150+ countries; 5 years' connectivity included
Encryption	Double AES-128 end-to-end
Geolocation
GPS	GPS and GLONASS; automatic station location
Data Storage
Local storage	Built-in SD card, up to 20 years of data in CSV format
Expansion
BLOCK slots	5 modular slots for additional sensor cartridges (ozone, NO2, etc.)
Power Supply
AC mains	110–230V
DC input	5–35V
LFP battery	100 Wh, up to 15 days autonomy; auto-recharge when mains power returns
Solar (optional, P066)	20 Wp solar panel with mounting bracket; ideal for isolated sites
Configuration
Method	NFC (Nexelec TOUCH app, Android / iOS)
Mechanical
Dimensions	318 × 229 × 97 mm
Weight	2.6 kg
Mounting	Wall or post (both kits included); pole diameter 60–400 mm
Environmental
Operating temperature	−20°C to +60°C
Operating humidity	0–95% RH, non-condensing
Location	Outdoor
Compliance
Certifications	CE
Warranty	2 years
Package Contents
Included	1× TRACK+ station 1× Wall mounting kit 1× Pole mounting kit
Ordering
X950LS	TRACK+ LoRaWAN outdoor air quality station
P061	CELLULAR option (4G LTE + multi-operator SIM + 5 years NAVIXIS access)
P066	SOLAR option (20 Wp solar panel + mounting bracket)
