Nexelec Solar Power Kit

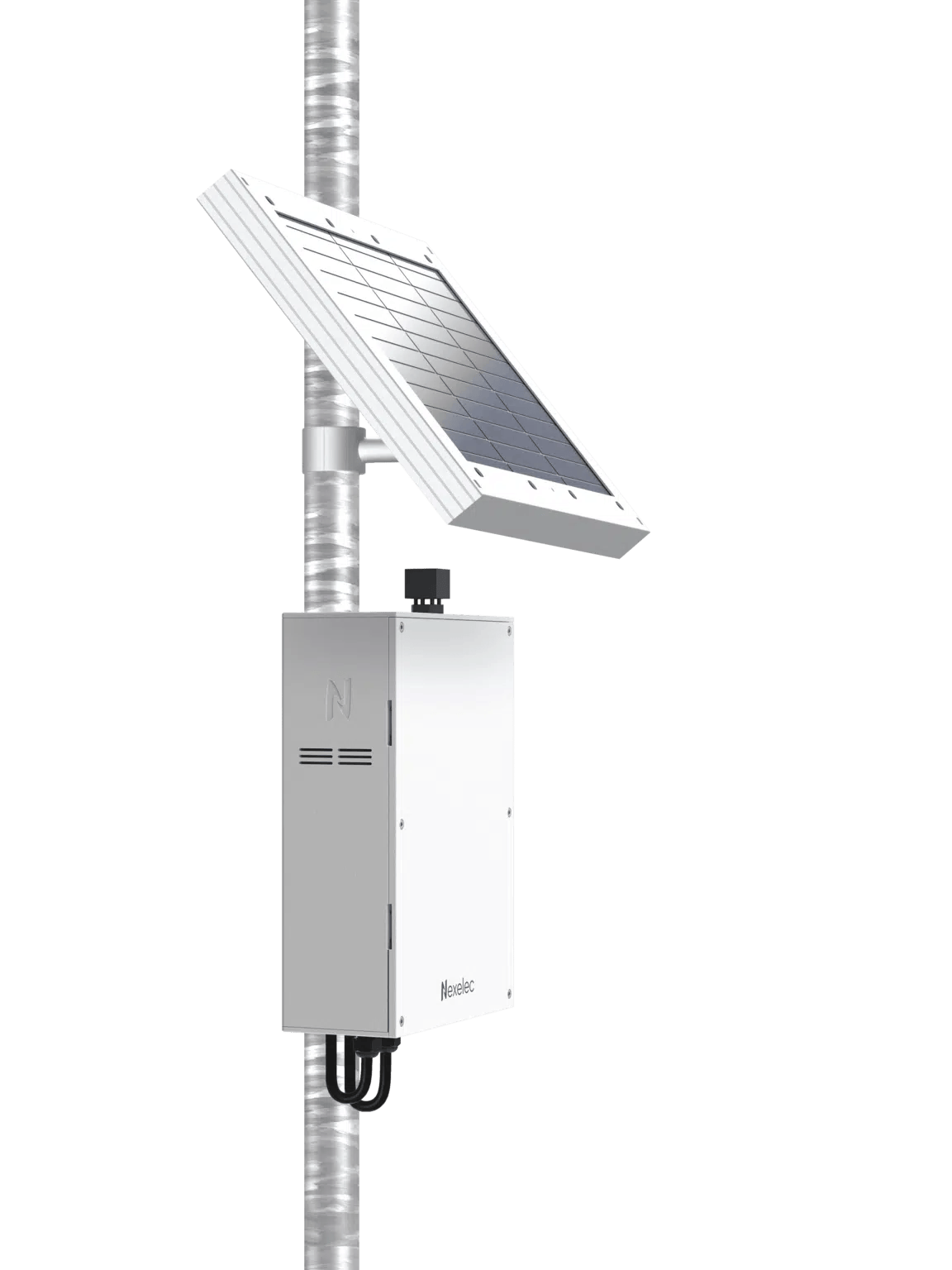

The Nexelec SOLAR (P066) is a solar power kit for the TRACK+ and TRACK+ RAIL outdoor air quality measurement stations. It provides autonomous power via a 20 Wp solar panel, making the station fully self-sufficient in locations without mains or DC power — street lighting poles, rooftops, remote monitoring sites, and other isolated environments.

The kit includes the solar panel, cables, and a mounting bracket. The station's built-in LFP lithium battery (100 Wh) stores energy during daylight hours and sustains operation during periods of low irradiance or nighttime.

Key Features

• Autonomous solar power: 20 Wp photovoltaic panel generates sufficient power to run the TRACK+ station continuously in most outdoor environments without mains power.
• Ideal for isolated environments: Eliminates the need for mains AC or DC power at the installation site — suitable for rooftops, poles, remote green spaces, and off-grid locations.
• Works with built-in LFP battery: The TRACK+ station's integrated 100 Wh LFP lithium battery stores solar energy and sustains operation for up to 15 days without sunlight. Battery recharges automatically when irradiance returns.
• Complete kit: Includes the solar panel, connecting cables, and a mounting bracket. No additional hardware required for installation.
• Compact mounting bracket: Designed for fast, tool-minimal installation on walls, poles, or other structures alongside the TRACK+ station.

Applications

• Off-grid TRACK+ deployments on street lighting poles, rooftops, or open land
• Remote outdoor air quality monitoring where mains power is unavailable or impractical
• Construction sites, temporary monitoring stations, and mobile deployments
• Reducing infrastructure costs in urban monitoring networks by eliminating power cabling

Important Notes

• P066 SOLAR is an optional accessory for TRACK+ and TRACK+ RAIL stations. It does not operate independently and requires a compatible host station.
• The TRACK+ station's LFP battery (100 Wh, included with the station) provides up to 15 days of autonomy without solar input. Actual solar performance depends on panel orientation, local irradiance, and seasonal conditions.
• The solar panel must be oriented to maximize sunlight exposure. Nexelec recommends south-facing installation (in the northern hemisphere) at an angle suited to the local latitude.
• P066 does not include the TRACK+ station or the LFP battery. These are ordered separately.

Specifications

Technical Documents

• TRACK+ DataSheet

Contact us to discuss TRACK+ configurations or solar installation requirements for your deployment.
