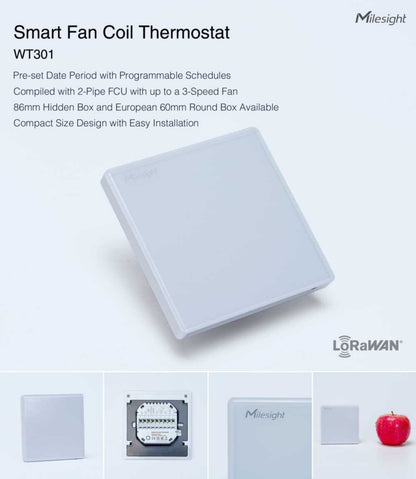

Milesight Smart Fan Coil Thermostat WT301 & WT302
Milesight Smart Fan Coil Thermostat WT301 & WT302
SKU:123003473
Low stock: 1 left
Couldn't load pickup availability
The Milesight WT301 / WT302 Smart Fan Coil Thermostats have reached End of Life (EOL). We recommend upgrading to the new generation thermostats:
- Milesight WT303 Smart Fan Coil Thermostat (On/Off Type)
- Milesight WT304 Smart Fan Coil Thermostat (0–10 V Type)

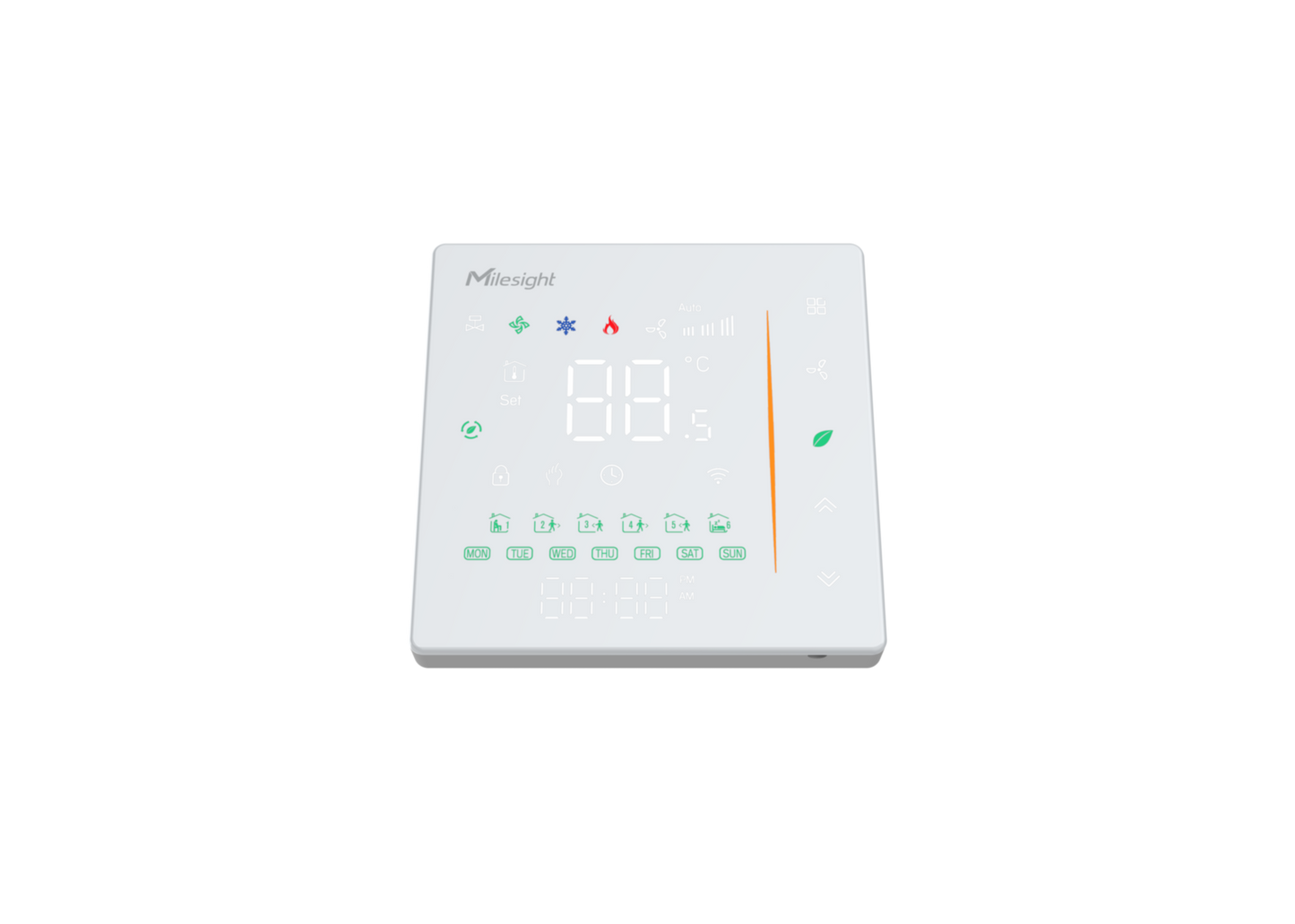

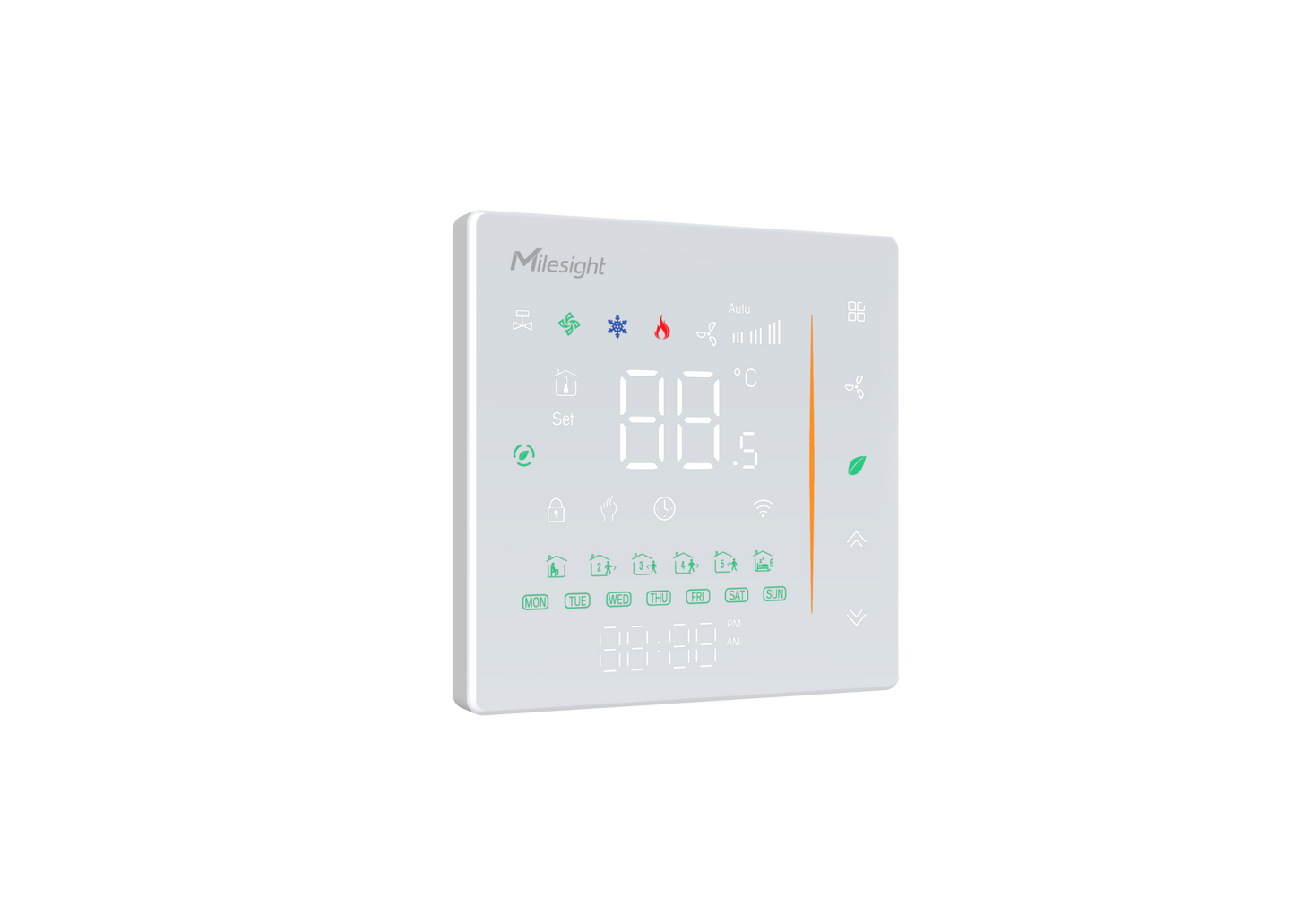

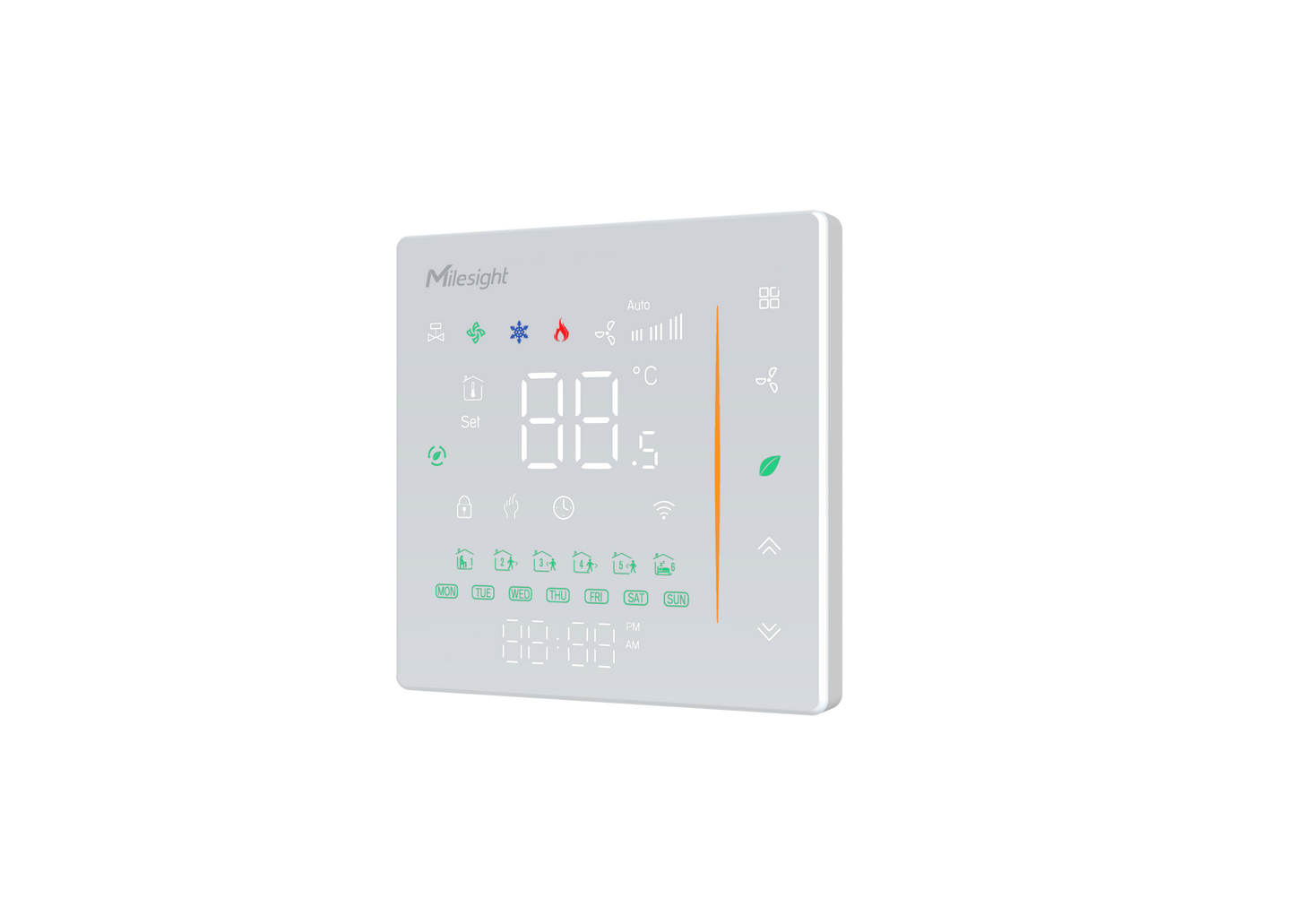

Milesight WT301 & WT302 is an advanced touchscreen room thermostat specifically developed to oversee fan and valve operations in air conditioner applications where a fan coil unit (FCU) is adopted.
It achieves this by continuously comparing the environmental temperature with the pre-set desired temperature, enabling both proactive management and automatic control based on predefined logic. This ensures optimal comfort and energy efficiency in a controlled environment.
With wireless detection and easy configuration, the WT301 & WT302 offer reliable and convenient room temperature arrangement optimization. It is compatible with the standard LoRaWAN® gateway, enabling real-time monitoring of environmental status for effective remote management.
Features
- Adjust the room temperature automatically and manually with a time-controlled regulation.
- Applicable for two pipes and a 3-speed fan coil system, compatible with On/Off relay (WT301) or 0-10V (WT302) valve control.
- 5+1+1 six periods programmable maximize comfort and economy.
- High accuracy of 0.5°C for temperature regulation, enabling precise control of indoor temperature levels.

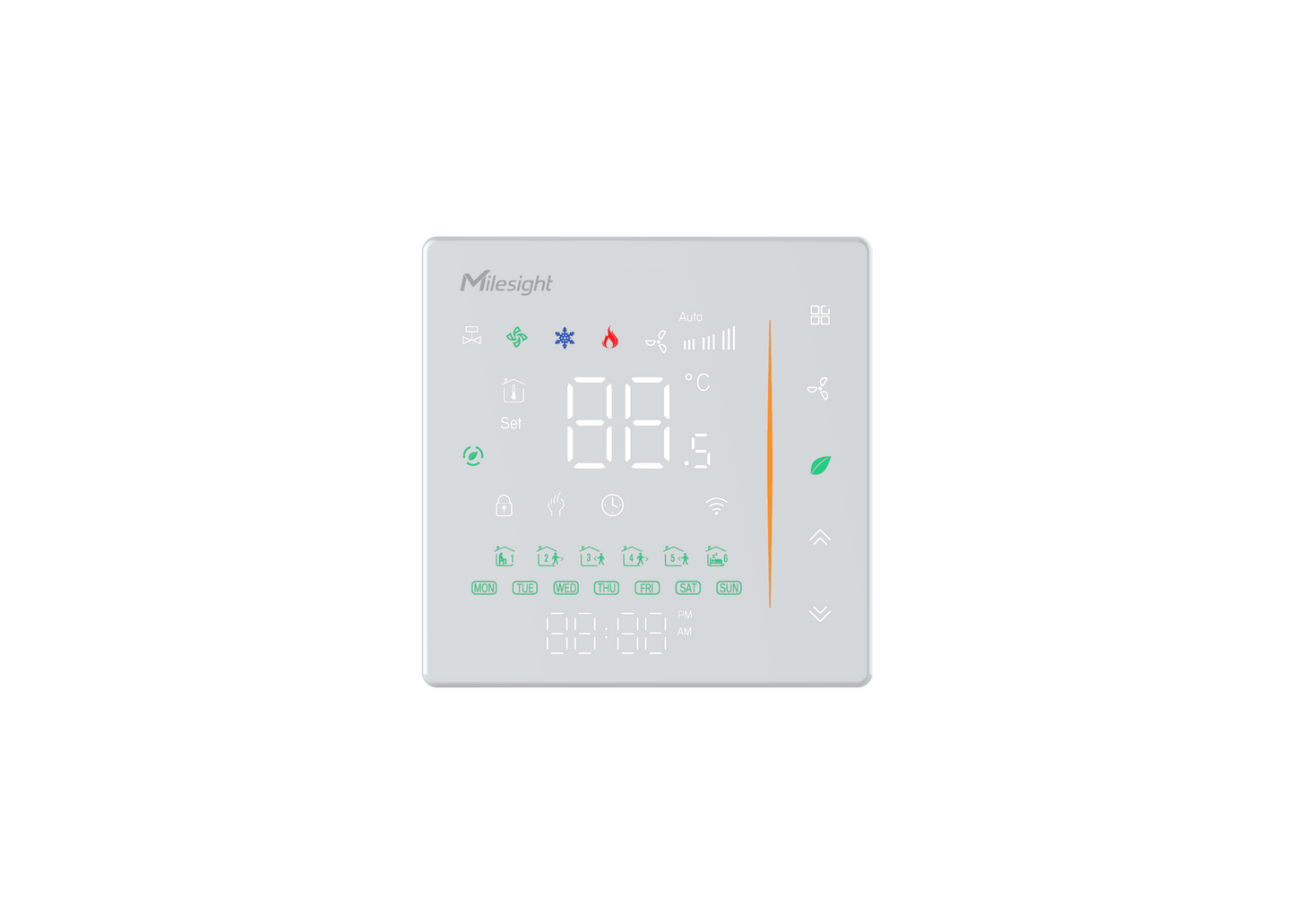

- Adopts an LCD screen with Four-color LED and capacitive touch buttons, providing a better interactive experience.
- With clock display function.

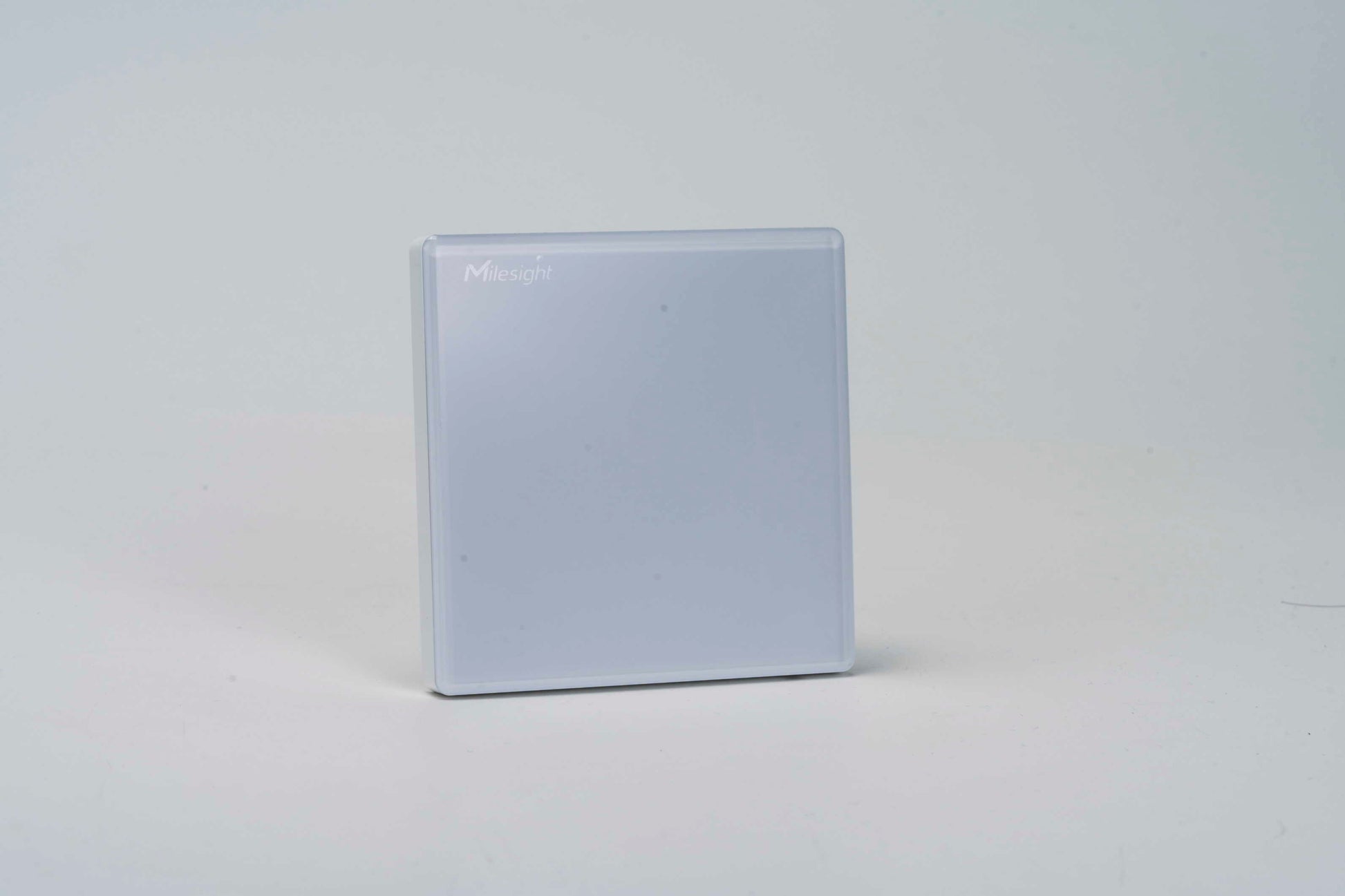

- With a 12cm ultra-thin embedded panel and a sleek, frameless design, it effortlessly blends into different interior styles, offering a minimalist and elegant appearance.
- Equips with external NTC sensor signal input and keycard switch input.
- Function well with standard LoRaWAN gateways and network servers.

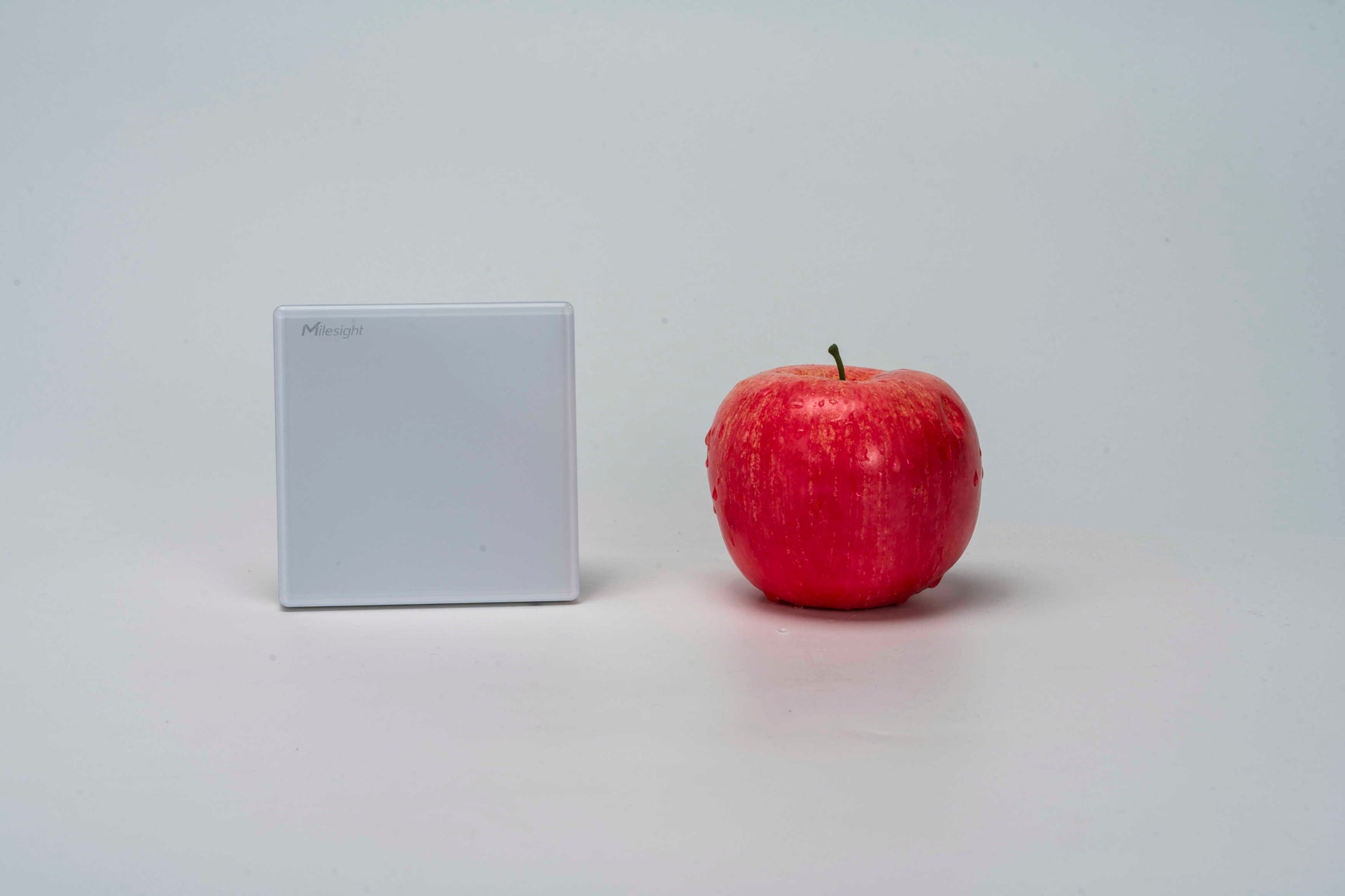

- Easy to install with the compact size.
- Highly adapt to different scenarios with 86mm hidden box and European 60mm round box.
| Feature | WT301 | WT302 |
|---|---|---|
| Thermostat Feature | ||
| Compatible Fan Coil | Two Pipes, 3-Speed Fan, 95~240VAC | |
| Fan Relay Amps | Resistance: 5A, Inductive: 3A | |
| Fan Mode | Low, Medium, High, Auto | |
| Compatible Valve | Two-wire On/Off Motorized Valve | 0-10V Proportional Integral Valve |
| Valve Relay Amps | Resistance: 3A, Inductive: 1A | |
| Temperature | ||
| Internal Sensor Type | NTC10K | |
| Set Temperature Range | 5°C ~ 35°C | |
| Accuracy | ±0.5°C | |
| Others | ||
| Inputs | 1 × Keycard Switch Input (Dry Contact), 1 × NTC Input for External NTC Sensor | |
| Wireless Transmission | ||
| Protocol | LoRaWAN | |
| Frequency |
CN470 EU868/RU864/1N865 AU915/US915/KR920/A5923-1&2&3&4 |
|
| Tx Power | 16dBm (868 MHz) / 19dBm (470 MHz) / 22dBm (915 MHz) | |
| Sensitivity | -137dBm | |
| Mode | OTAA/ABP Class C | |
| Display & Configuration | ||
| Display | LCD Screen with Four-color LED | |
| Display Temperature | 5°C ~ 99°C | |
| Configuration | 5 Capacitive Touch Buttons | |
| Physical Characteristics | ||
| Power Supply | 95 ~ 240 VAC, 50 ~ 60Hz | |
| Power Consumption | <1.5W | |
| Operating Temperature | 0°C ~ 45°C | |
| Storage Temperature | -5°C ~ 45°C | |
| Relative Humidity | 5 ~ 95% (Non-condensing) | |
| Ingress Protection | IP20 | |
| Color & Material | White, PC + ABS (Flame-retardant) | |
| Dimension | 88 × 88 × 41.8 mm | |

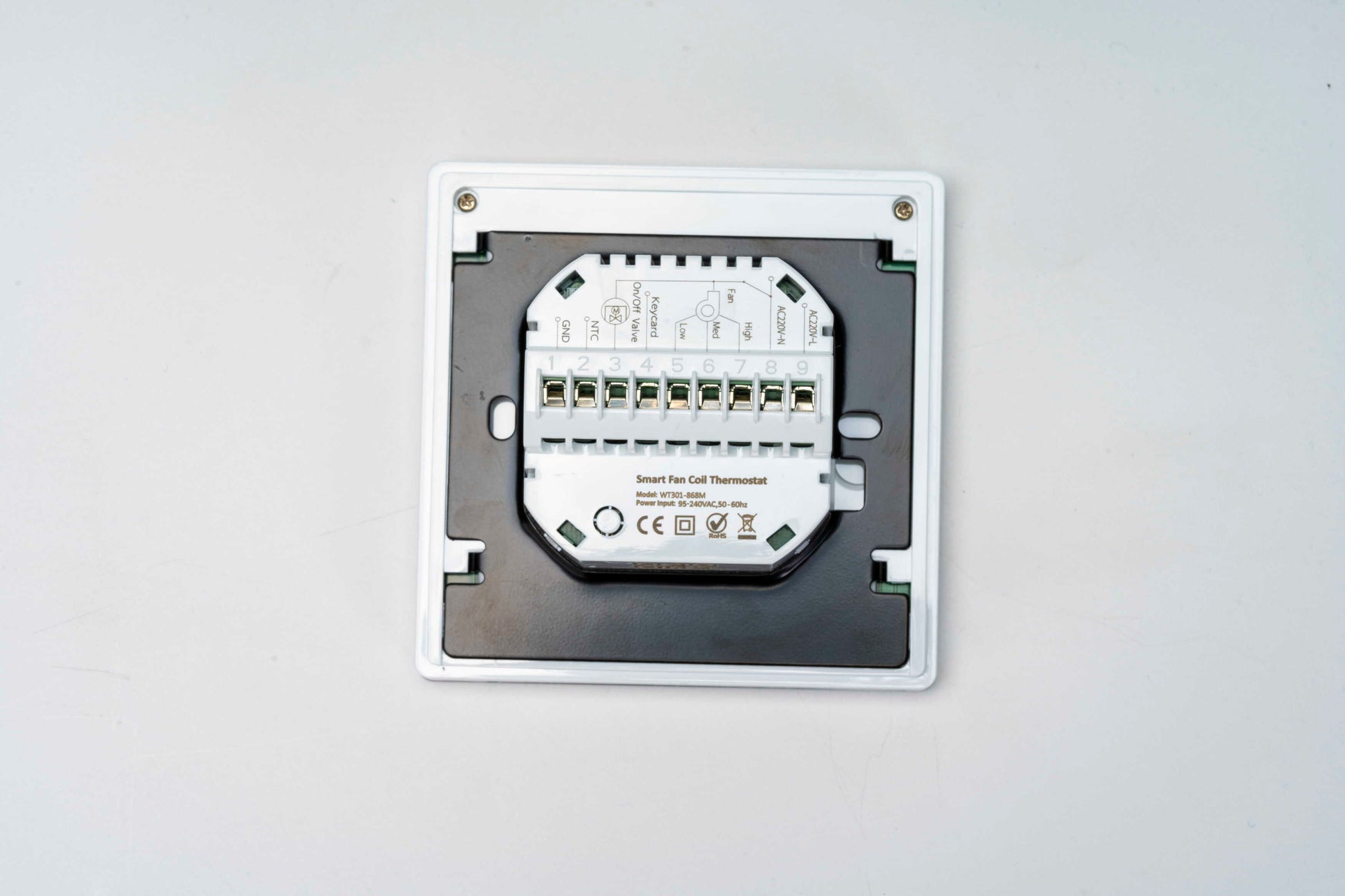

| Wire Connection | 2 x 1.5 mm² or 1 x 2.5 mm² | |
| Installation | 86*86mm Square or European 60mm Round Box Mounting | |
