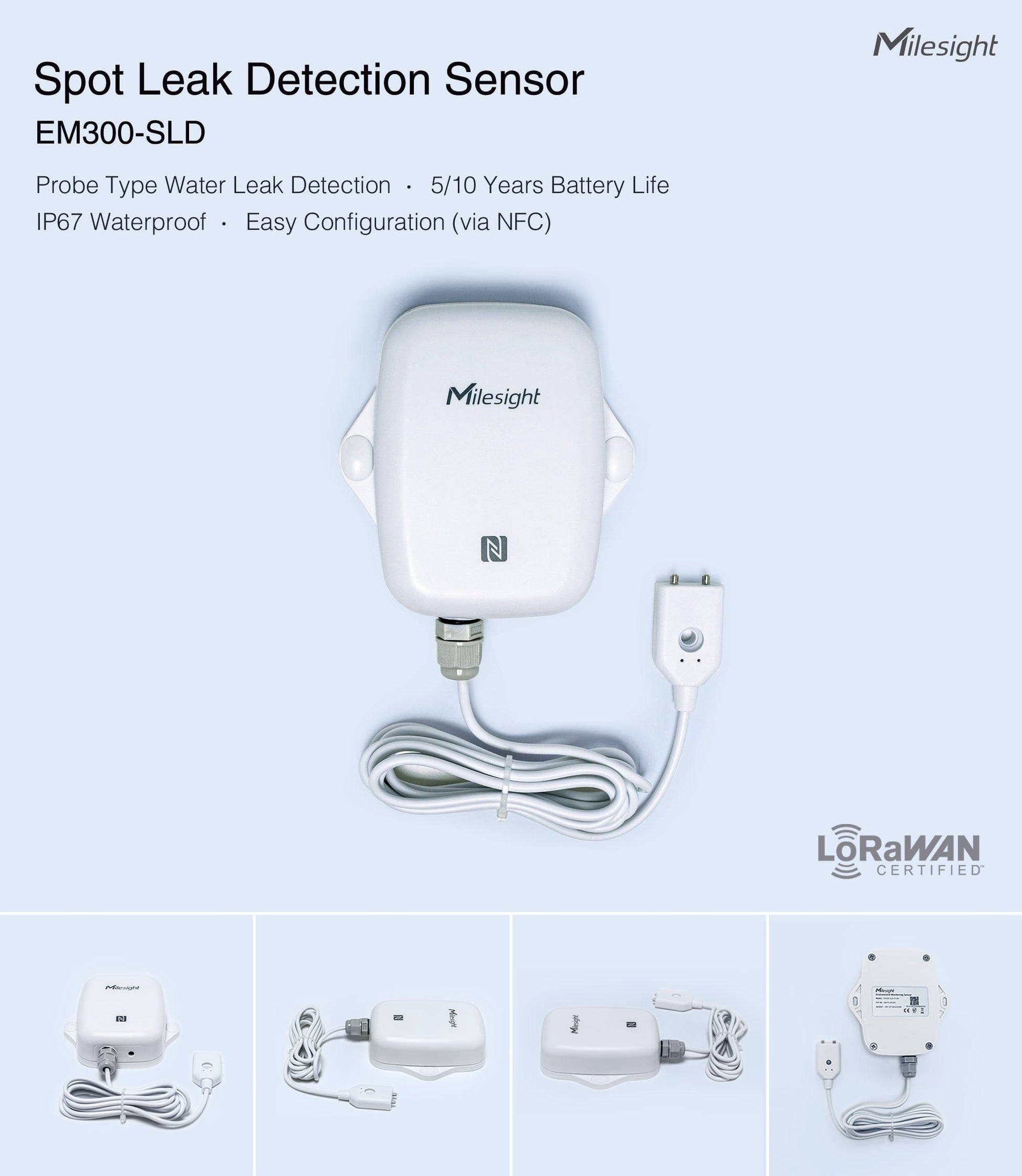

Milesight Spot Leakage Detection Sensor EM300-SLD

Note: Power supply- ER18505 Li-SOCL2 battery: 4000 mAh or 8000 mAh
Battery Life: 5 years for 4000 mAh and 10 years for 8000 mAh (10 min interval)

EM300-SLD is a compact spot leakage detection sensor for detecting the presence of water (or other liquids) and transmitting alarm using LoRaWAN® technology. With this low power consumption technology, EM300-SLD can work up to 5 years with a 4000 mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually and receive alarms via mobile APP.

EM300-SLD also integrates temperature and humidity sensors, which has great use for applications such as pipe leakage monitoring, basement flooding, pump failure, etc.

Features

• Detect the presence of liquids by a small water probe and based on the conductive principle
• Embedded with temperature and humidity sensors for environment monitoring
• Ultra-wide-distance transmission up to line of sight of 10km
• IP67 UV-resistant and waterproof enclosure for harsh environment applications
• Built-in 4000 mAh replaceable battery and works for more than 5 years without replacement
• Store locally 3, 000 historical records and support retransmission to prevent data loss
• Support Milesight D2D protocol to enable ultra-low latency and direct control without gateways
• Equipped with NFC for easily configuration
• Compliant with standard LoRaWAN gateways and network servers
• Quick and easy management with Milesight IoT Cloud solution

Technical Documents

• Datasheet
• User Guide
