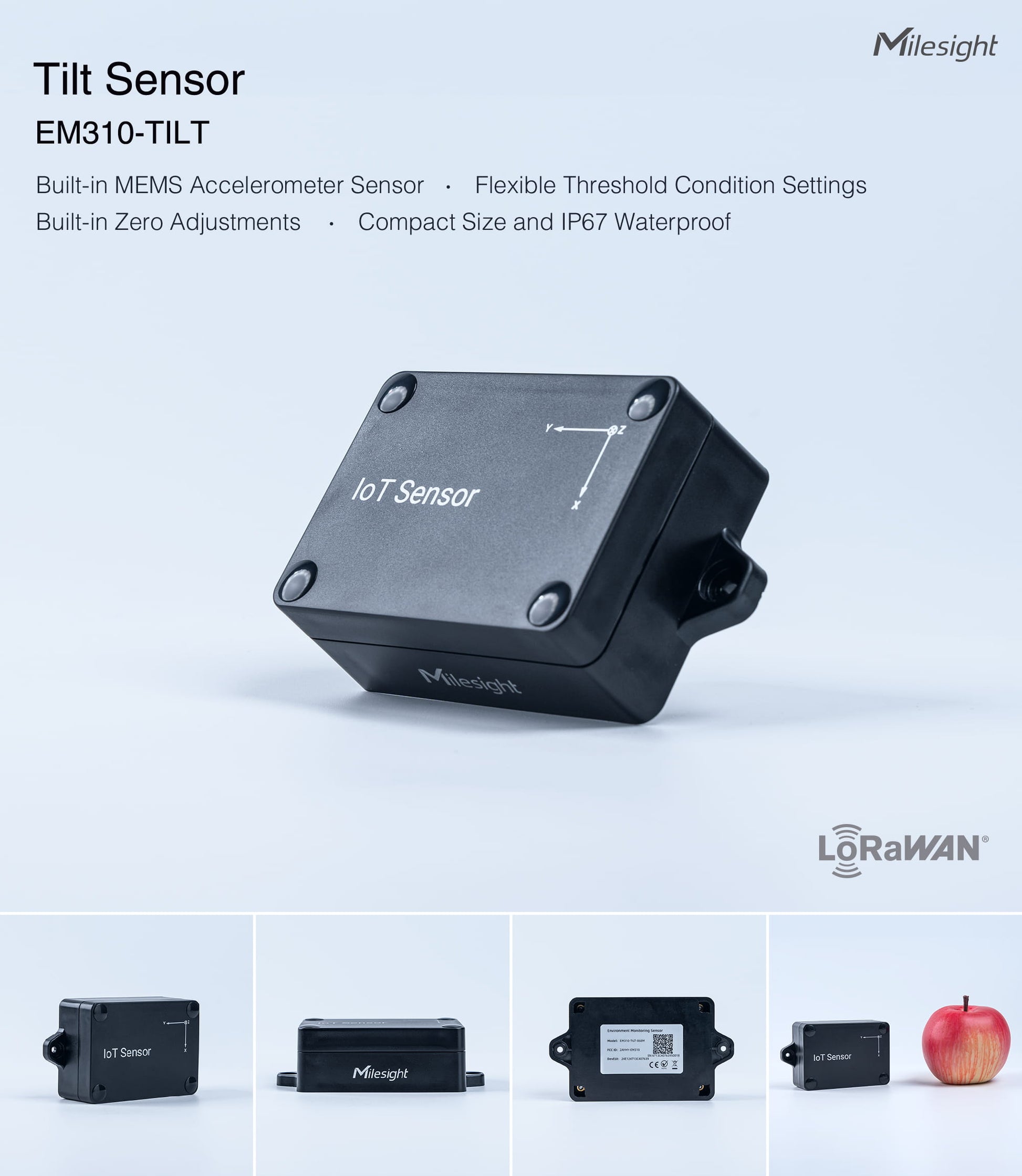

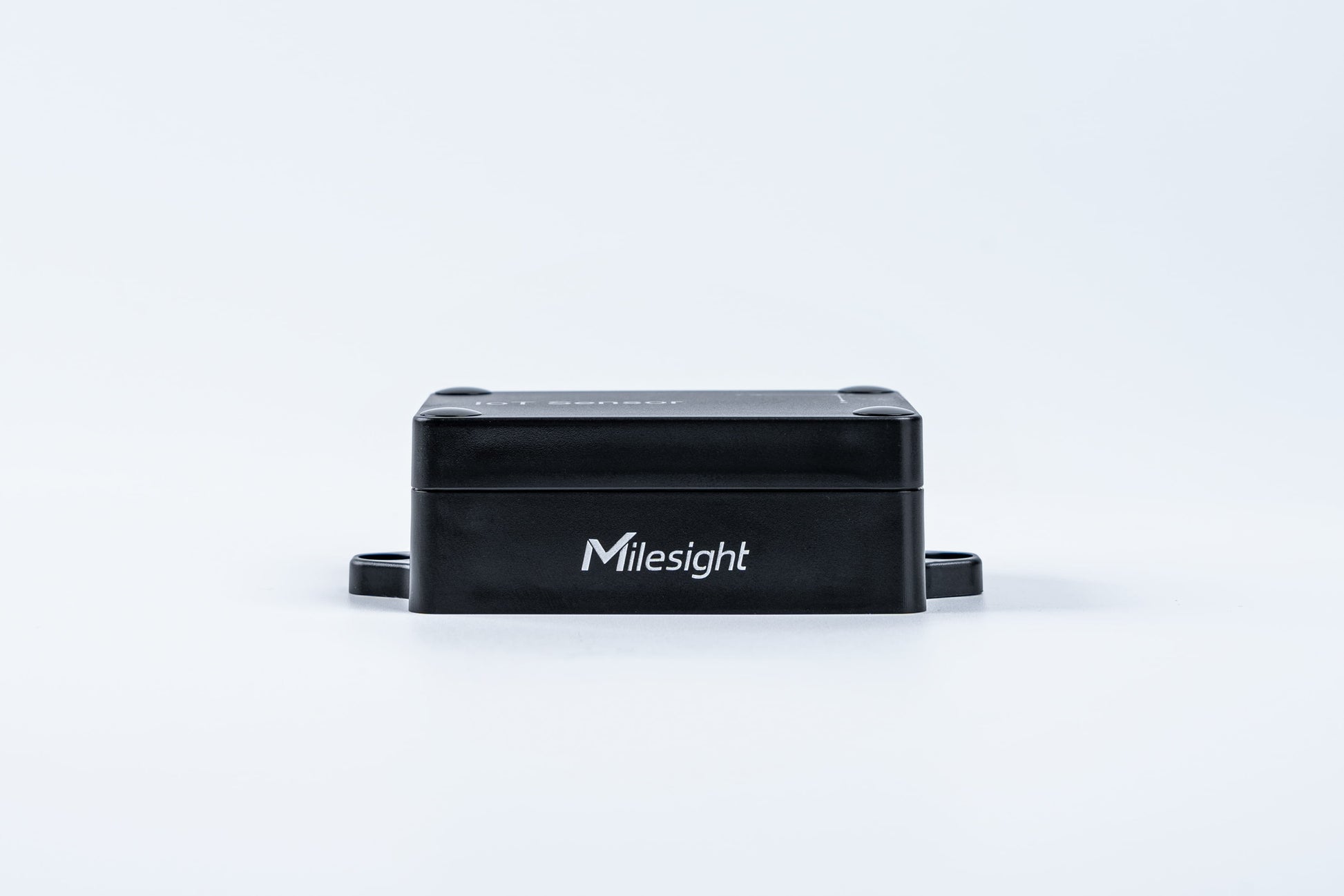

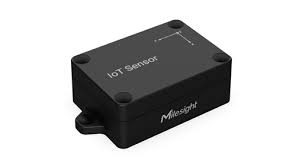

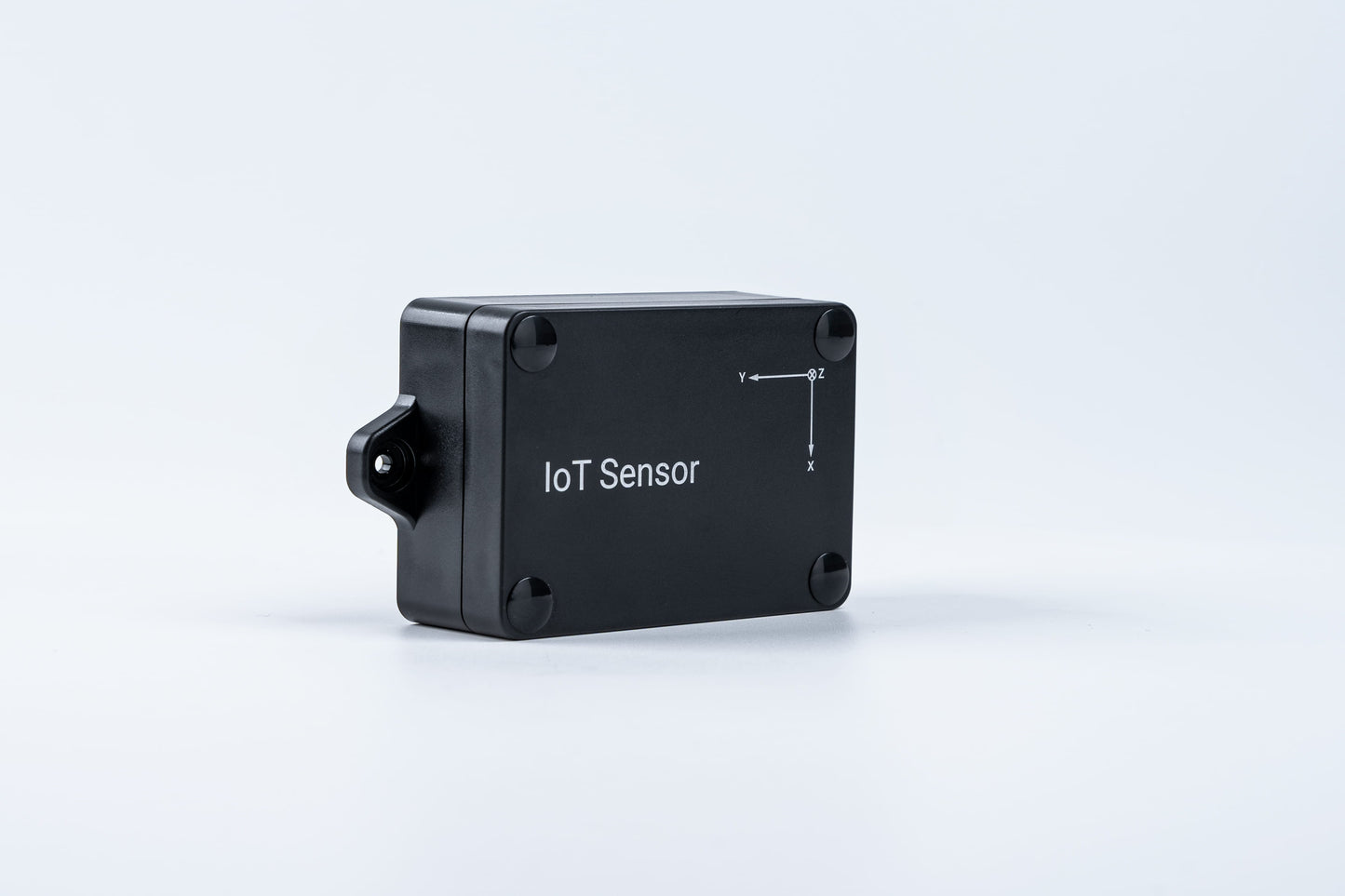

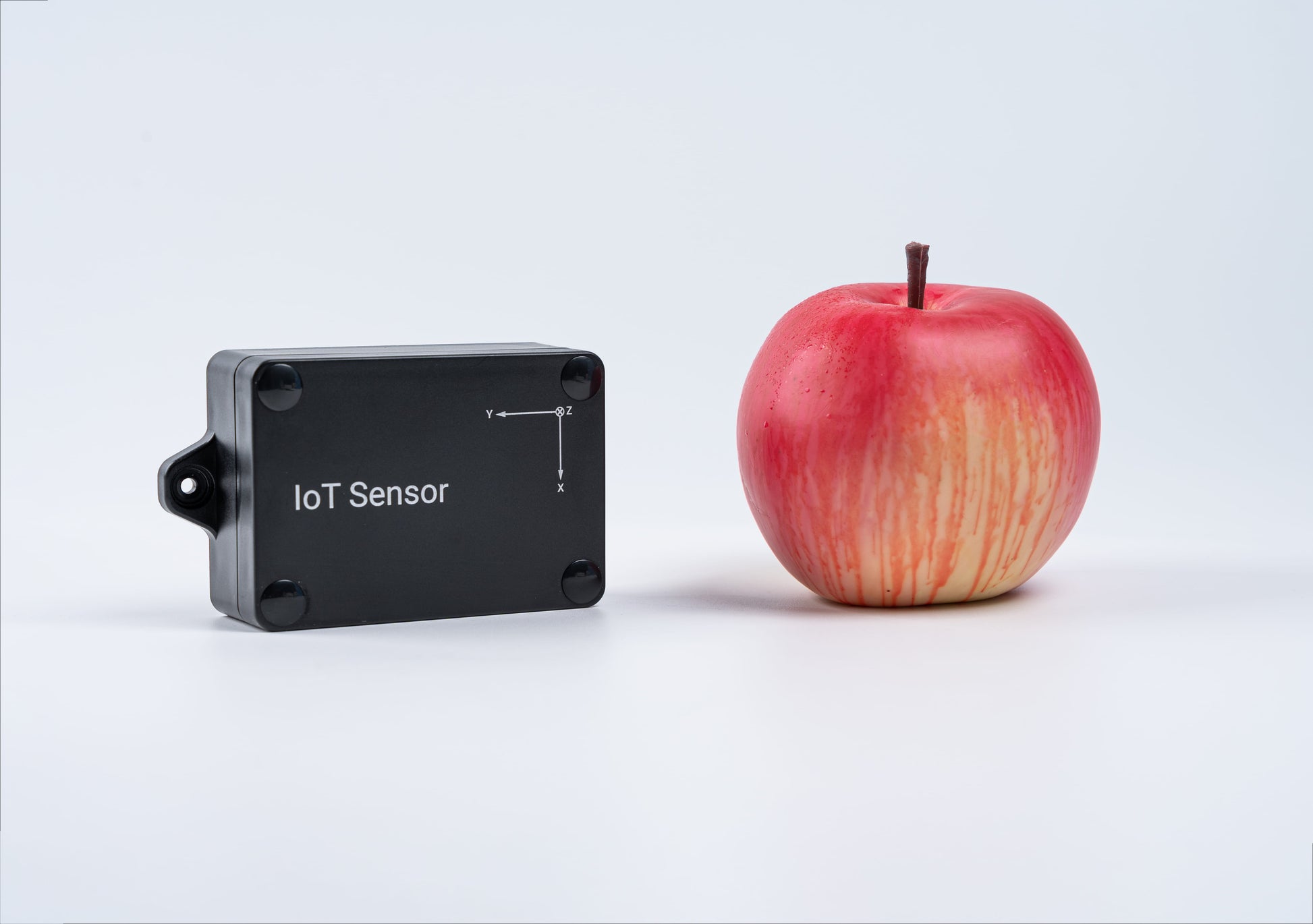

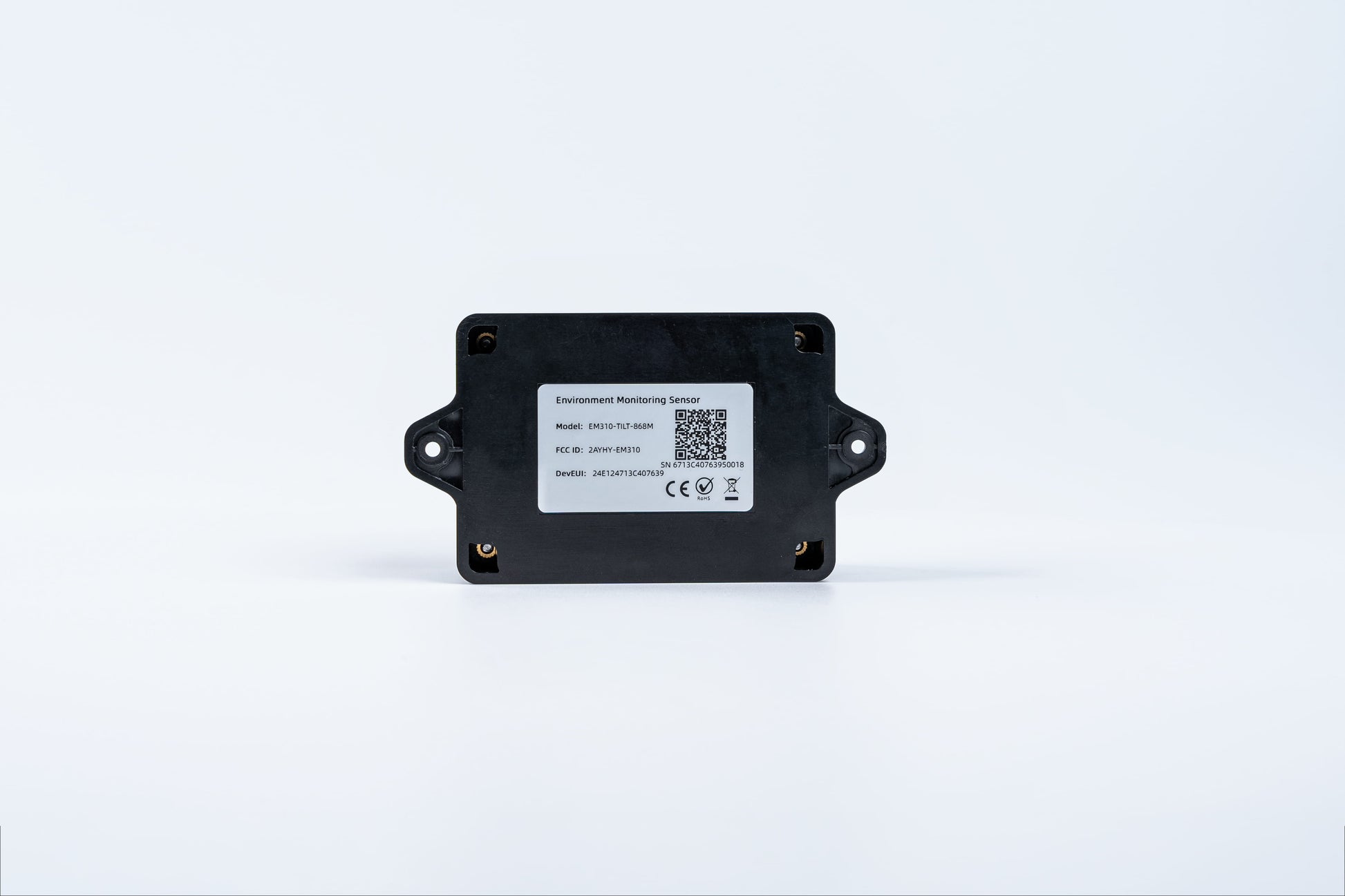

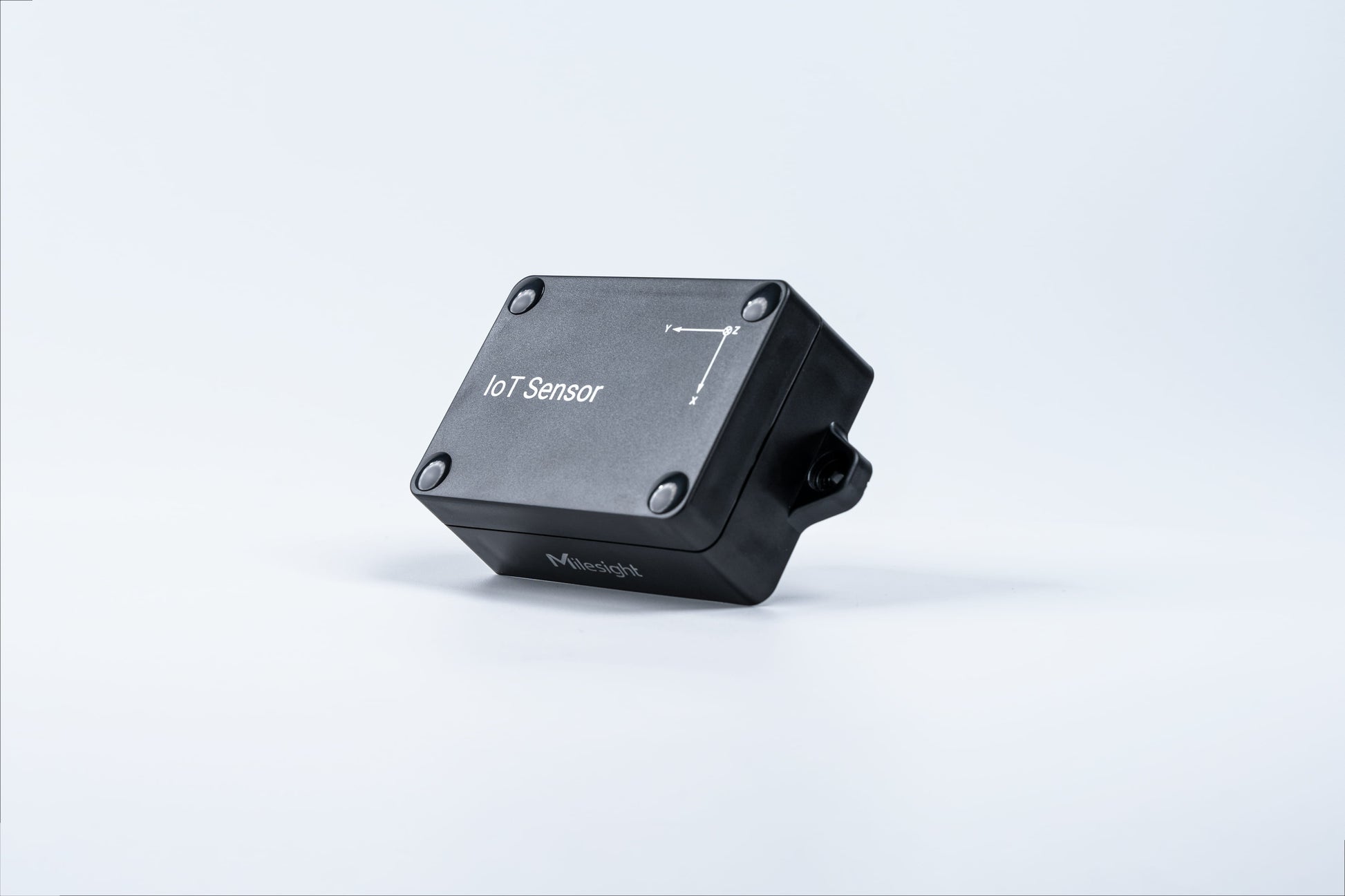

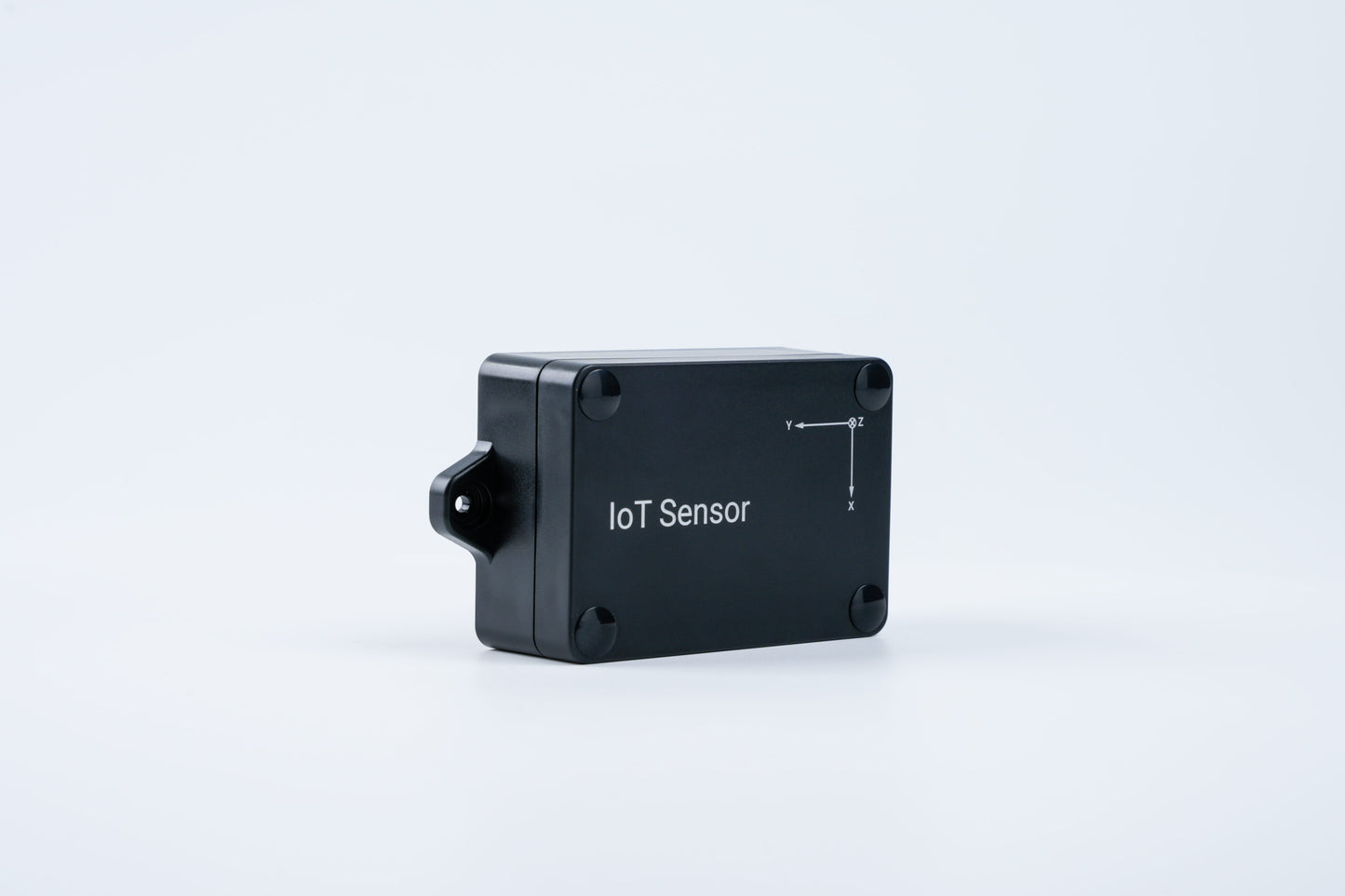

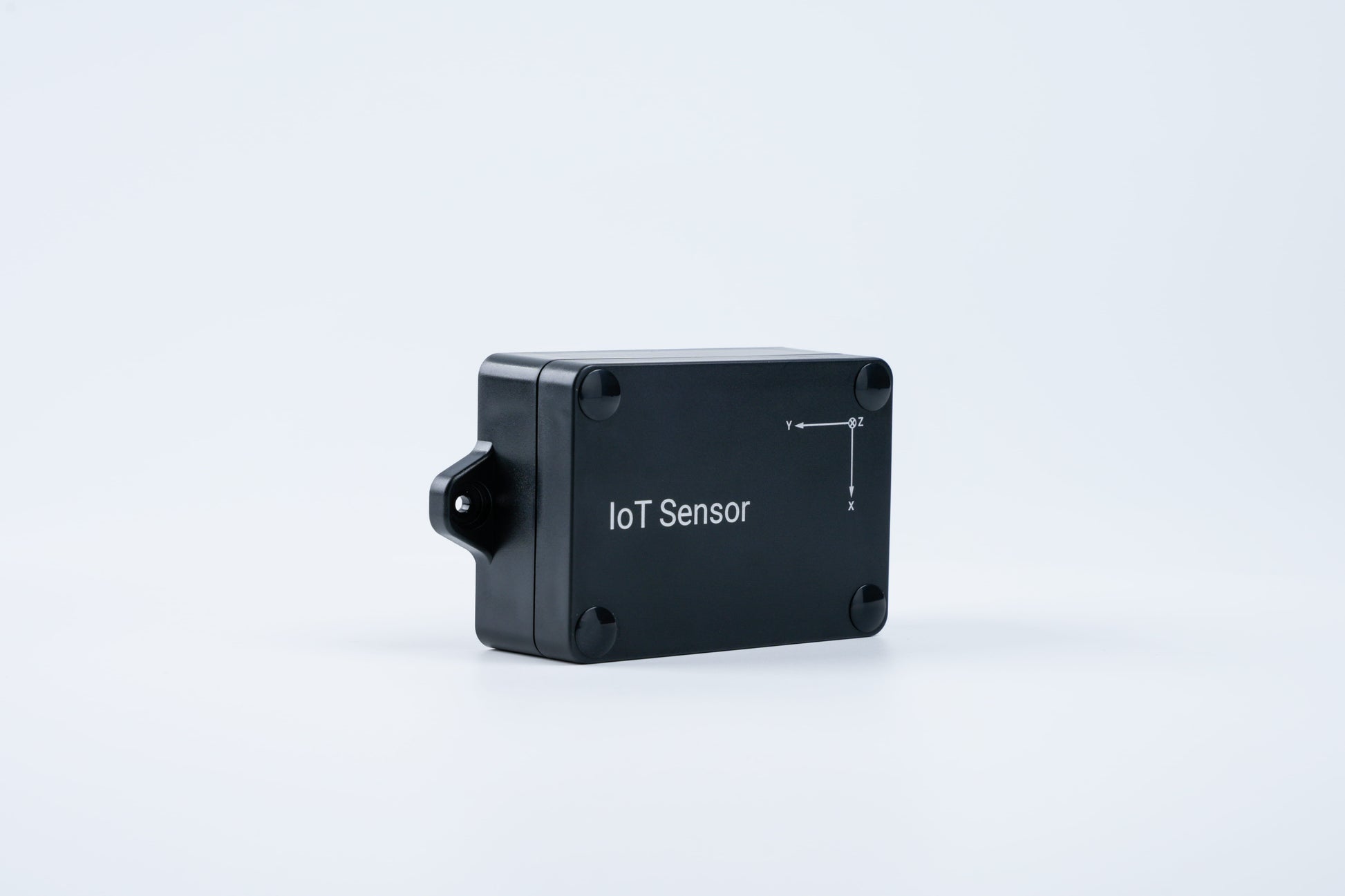

Milesight Tilt Sensor EM310-TILT
EM310-TILT is a LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM310-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. It can also detect the movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely.EM310-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.
Features
- Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
- Flexible threshold condition settings, suitable for different kinds of applications
- Easy to install, suitable for various types of objects as trees, poles, grounds,
- IP67 waterproof enclosure for outdoor applications and easy to clean
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one touch configuration, supports card emulation mode
- Function well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
Specifications
|
Wireless Transmission |
|
|
Technology |
LoRaWAN® |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
|
Sensitivity |
-137 dBm @300bps |
|
Mode |
OTAA/ABP Class A |
|
Measurement |
|
|
Axis |
X, Y, Z |
|
Range |
- 90° ~ +90° |
|
Accuracy |
± 1° |
|
Resolution |
0.01° |
|
Others |
|
|
Configuration |
NFC Configuration via Mobile App |
|
Button |
1 × Reset Button (Internal) |
|
Physical Characteristics |
|
|
Power Supply |
2 × 3500 mAh ER17505 Li-SOCl2 Batteries |
|
Battery Life* |
Over 5 years (6 triggers per hour) |
|
Operating Temperature |
-20°C to +60°C |
|
Relative Humidity |
≤95% (non-condensing) |
|
Ingress Protection |
IP67 |
|
Dimension |
111 × 62 × 33 mm (4.37 × 2.44 × 1.30 in) |
|
Material & Color |
ABS, Black |
|
Installation |
On the flat surfaces with screws |
