EDATEC 10MP C-Mount Lens for Raspberry Pi HQ Camera
This page sells the EDATEC ED-LENS-C-300800-10 (10MP C-Mount, 8mm focal length, 58.5° HFOV on 2/3" sensor) and ED-LENS-C-303500-10 (10MP C-Mount, 35mm focal length, 14.8° HFOV on 2/3" sensor). Other EDATEC lenses we carry: 4MP M12 fisheye, 12MP M12 fisheye, 5MP M12 fixed.

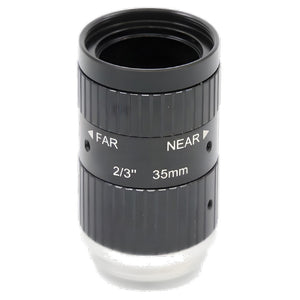

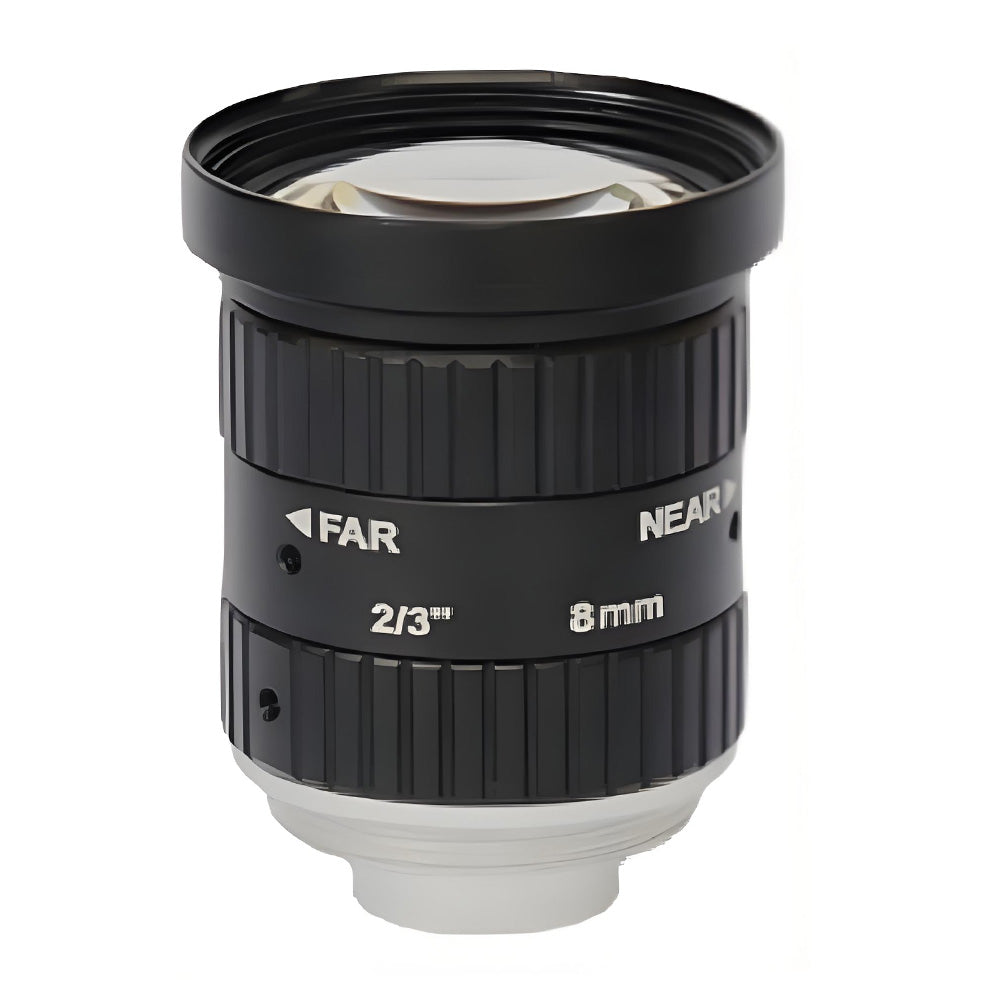

This listing is for the ED-LENS-C-300800-10 and ED-LENS-C-303500-10: 10MP C-Mount lenses, 8mm or 35mm EFL, compatible with the Raspberry Pi HQ Camera module. Select the focal length above. Contact us if you need a different focal length from the selection guide below.
EDATEC's C-Mount Lens series provides precision optics for machine vision, industrial inspection, and embedded systems. With a standard C-mount interface, focal lengths from 8mm to 50mm, and support for 2/3" optical format sensors, these lenses give clear images and low distortion across a wide range of applications, including the Raspberry Pi HQ Camera.
ED-LENS-C-300800-10 / ED-LENS-C-303500-10 Specifications
| Parameter | 8mm (ED-LENS-C-300800-10) | 35mm (ED-LENS-C-303500-10) |
|---|---|---|
| Resolution | 10 Megapixel | |
| Optical Format | 2/3" | |
| Mount | C-Mount | |
| EFL (Effective Focal Length) | 8mm | 35mm |
| BFL (Back Focal Length) | 10.7mm | 13.63mm |
| Filter Thread | M32.7×P0.5 | M27×P0.5 |
| Aperture | F/2.8 to F/16, manually adjustable | |
| FOV D×H×V (2/3" sensor) | 69.7° × 58.5° × 45.5° | 18.39° × 14.8° × 11.1° |
| FOV D×H×V (1/2" sensor) | 50.7° × 42.5° × 33.1° | 13.4° × 10.8° × 8.1° |
| FOV D×H×V (1/3" sensor) | 38.0° × 31.9° × 24.8° | 10.1° × 8.1° × 6.1° |
| TV Distortion (2/3") | -0.810% | -0.172% |
| TV Distortion (1/2") | -1.130% | -0.077% |
| TV Distortion (1/3") | -0.930% | -0.045% |
| MOD (Min. Object Distance) | 0.15m to ∞ | 0.2m to ∞ |
| Focus | Manual | |
| Iris | Manual | |
| Dimensions | Φ35 × 49.2mm | Φ29 × 46.4mm |
| Weight | 84g | 65g |
| Working Temperature | -20°C to +60°C | |
Key Features (C-Mount Lens Series)
- Mount: C-Mount
- Optical Format: 2/3" (also covers 1/2" and 1/3" sensors)
- Focal Length Range: 8mm to 50mm
- Resolution: Up to 10MP
- Field of View: ~10° to 58.5° (horizontal, on 2/3" sensor)
- Aperture: F/2.8 to F/16, manually adjustable
- Focus: Manual
- Raspberry Pi HQ Camera compatible
- Applications: Machine vision, industrial inspection, robotics, surveillance, scientific imaging
Model Selection Guide
| Model | EFL | Res | HFOV (2/3") | Notes |
|---|---|---|---|---|
| ED-LENS-C-300800-10 (this page) | 8mm | 10MP | 58.5° | Wide angle |
| ED-LENS-C-301200-10 | 12mm | 10MP | ~40.3° | Balanced FOV |
| ED-LENS-C-302500-10 | 25mm | 10MP | ~20° | Medium telephoto |
| ED-LENS-C-303500-10 (this page) | 35mm | 10MP | 14.8° | Narrow FOV |
| ED-LENS-C-305000-10 | 50mm | 10MP | ~10° | Long telephoto |
Note: FOV values for the 12mm, 25mm, and 50mm models are approximate. Refer to individual datasheets for exact values.
