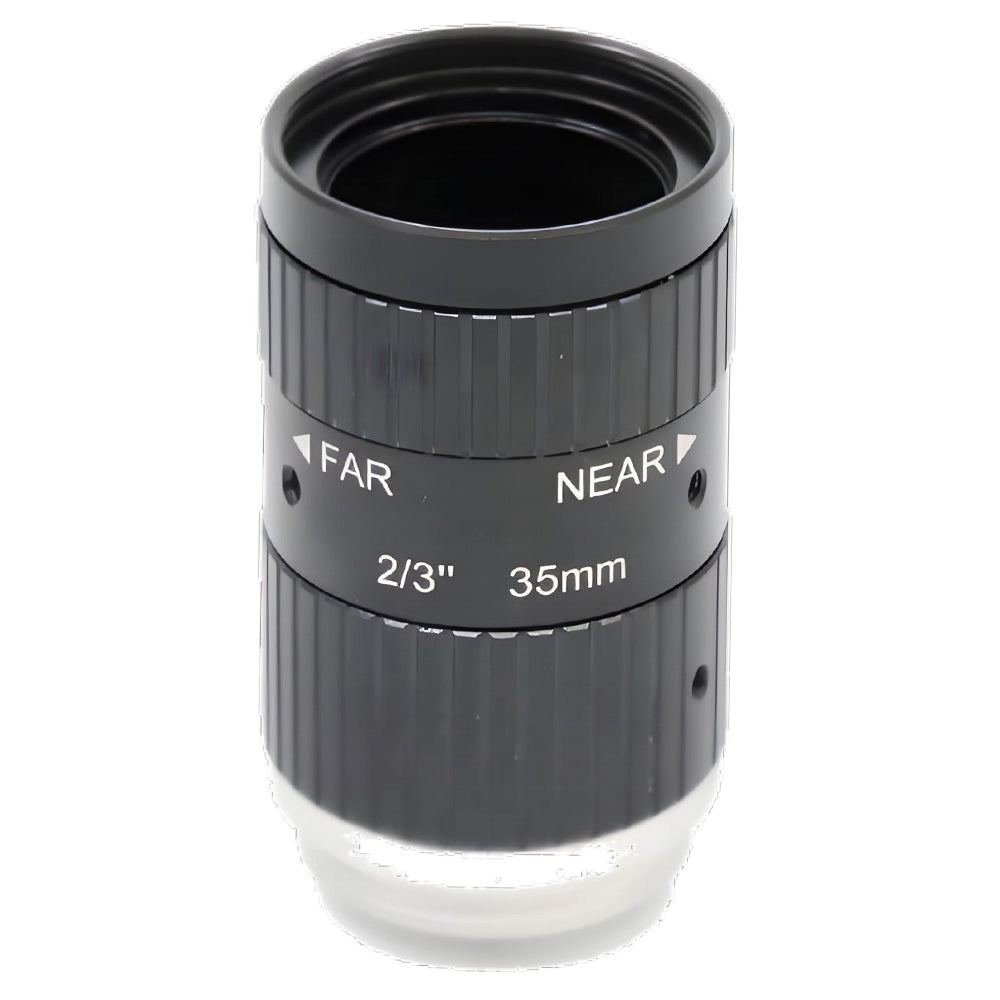

EDATEC C-Mount 35mm Focal Length Lens for Raspberry Pi HQ Camera
EDATEC C-Mount 35mm Focal Length Lens for Raspberry Pi HQ Camera
SKU:123004110
Out of stock — Available on backorder
Couldn't load pickup availability
This page sells the EDATEC ED-LENS-C-303500-10 (10MP C-Mount, 35mm focal length, 14.8° HFOV on 2/3" sensor). Other EDATEC lenses we carry: 4MP M12 fisheye, 12MP M12 fisheye, 5MP M12 fixed, C-Mount 8mm.
This listing is for the ED-LENS-C-303500-10: 10MP C-Mount lens, 35mm EFL, 14.8° HFOV on 2/3" sensor, compatible with the Raspberry Pi HQ Camera module. Contact us if you need a different focal length from the selection guide below.
EDATEC's C-Mount Lens series provides precision optics for machine vision, industrial inspection, and embedded systems. With a standard C-mount interface, focal lengths from 8mm to 50mm, and support for 2/3" optical format sensors, these lenses deliver excellent image clarity and low distortion across a wide range of applications including the Raspberry Pi HQ Camera.
ED-LENS-C-303500-10 Specifications
| Parameter | Value |
|---|---|
| Resolution | 10 Megapixel |
| Optical Format | 2/3" |
| Mount | C-Mount |
| EFL (Effective Focal Length) | 35mm |
| BFL (Back Focal Length) | 13.63mm |
| Filter Thread | M27×P0.5 |
| Aperture | F/2.8 -- F/16, manually adjustable |
| FOV D×H×V (2/3" sensor) | 18.39° × 14.8° × 11.1° |
| FOV D×H×V (1/2" sensor) | 13.4° × 10.8° × 8.1° |
| FOV D×H×V (1/3" sensor) | 10.1° × 8.1° × 6.1° |
| TV Distortion (2/3") | -0.172% |
| TV Distortion (1/2") | -0.077% |
| TV Distortion (1/3") | -0.045% |
| MOD (Min. Object Distance) | 0.2m -- ∞ |
| Focus | Manual |
| Iris | Manual |
| Dimensions | Φ29 × 46.4mm |
| Weight | 65g |
| Working Temperature | -20°C to +60°C |
Key Features (C-Mount Lens Series)
- Mount: C-Mount
- Optical Format: 2/3" (also covers 1/2" and 1/3" sensors)
- Focal Length Range: 8mm -- 50mm
- Resolution: Up to 10MP
- Field of View: ~10° -- 58.5° (horizontal, on 2/3" sensor)
- Aperture: F/2.8 -- F/16, manually adjustable
- Focus: Manual
- Raspberry Pi HQ Camera compatible
- Applications: Machine vision, industrial inspection, robotics, surveillance, scientific imaging
Model Selection Guide
| Model | EFL | Res | HFOV (2/3") | Notes |
|---|---|---|---|---|
| ED-LENS-C-300800-10 | 8mm | 10MP | 58.5° | Wide angle |
| ED-LENS-C-301200-10 | 12mm | 10MP | ~40.3° | Balanced FOV |
| ED-LENS-C-302500-10 | 25mm | 10MP | ~20° | Medium telephoto |
| ED-LENS-C-303500-10 (this page) | 35mm | 10MP | 14.8° | Narrow FOV |
| ED-LENS-C-305000-10 | 50mm | 10MP | ~10° | Long telephoto |
Note: FOV values for non-35mm models are approximate. Refer to individual datasheets for exact values.
