EDATEC Raspberry Pi 5 HAT Mounting Kit for ED-Pi5Case Enclosures

$ 1.70 USD

Sale Sold out

EDATEC P/N ED-Pi5Case-HA-B ED-Pi5Case-HA-S

Quantity

SKU:123004104

Out of stock — Available on backorder

Compatible cases: Open Aluminium Case and Aluminium CNC Box.

This listing is for the ED-Pi5Case-HA: HAT mounting accessory kit for EDATEC Pi 5 cases, available in Black (ED-Pi5Case-HA-B) and Silver (ED-Pi5Case-HA-S). Contact us if you need help choosing.

The ED-Pi5Case-HA is a dedicated accessory kit that enables the installation of HAT (Hardware Attached on Top) expansion modules onto EDATEC's ED-Pi5Case-O (open frame) and ED-Pi5Case-B (box) Raspberry Pi 5 enclosures. The kit includes a Raspberry Pi 40-Pin GPIO long-pin expansion header for reliable connection to the Raspberry Pi 5's GPIO pins, plus the mounting hardware needed to securely attach the HAT to the case. Available with silver or black hardware to match the colour of your case.

Key Features

Compatible Cases: ED-Pi5Case-O (Silver and Black) and ED-Pi5Case-B (Silver and Black)
Purpose: Enables HAT expansion module installation on EDATEC Pi 5 enclosures
40-Pin Connector: Raspberry Pi 40-Pin GPIO long-pin expansion header for secure GPIO connection between the Raspberry Pi 5 and HAT module
Mounting Hardware: 4x M2.5×8+11 studs and 4x M2.5×5 screws for stable HAT attachment

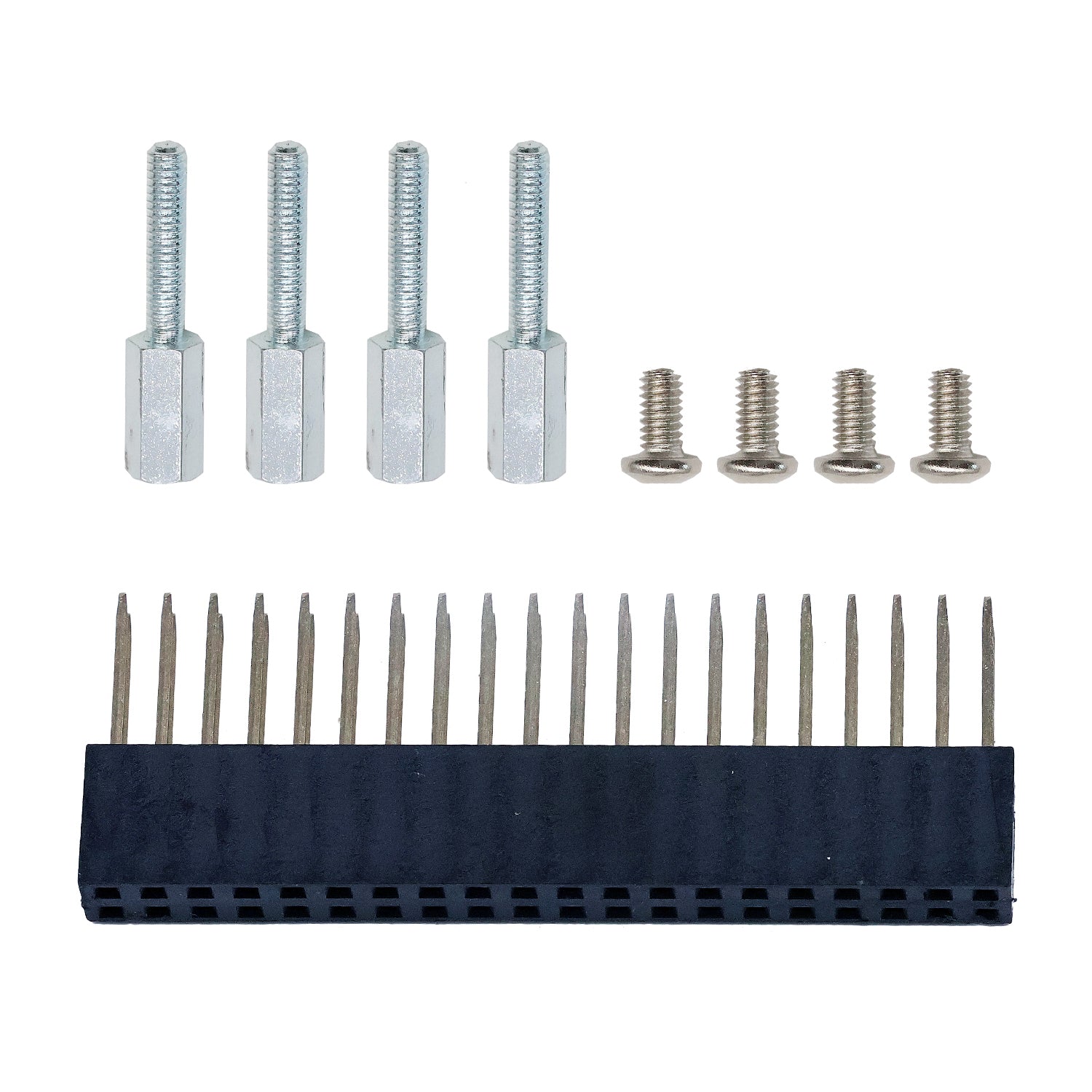

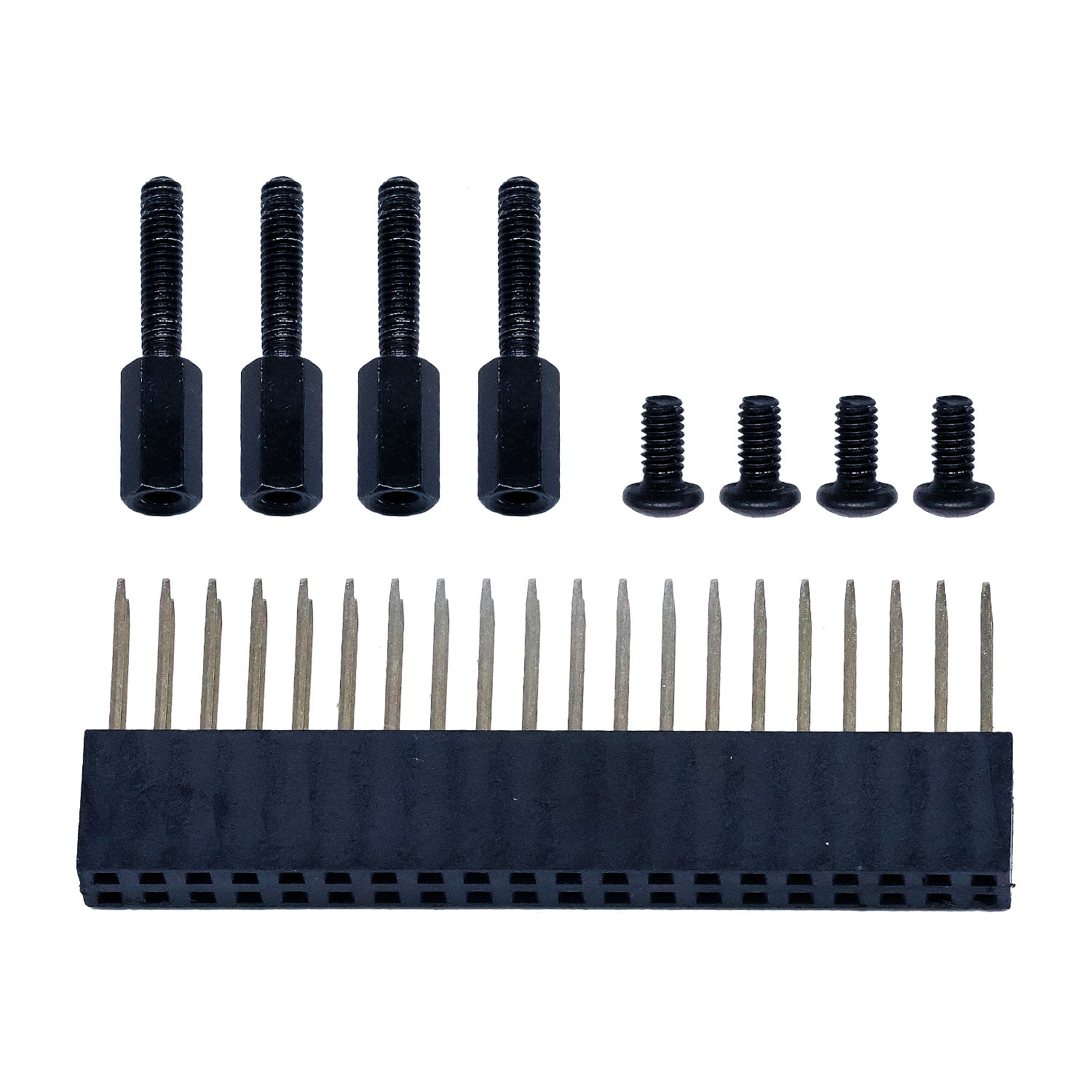

Colour Options: Silver (ED-Pi5Case-HA-S) or Black (ED-Pi5Case-HA-B) hardware to match your case
Complete Kit: Everything needed for HAT installation included in one package

SKU Configuration Guide

The ED-Pi5Case-HA ordering code breaks down as follows.

Field	Options
Model	Pi5Case-HA (HAT accessory)
Colour	B = Black (ED-Pi5Case-HA-B) \| S = Silver (ED-Pi5Case-HA-S)

Specifications

Category	Details
Compatible Cases	ED-Pi5Case-OB, ED-Pi5Case-OS, ED-Pi5Case-BB, ED-Pi5Case-BS
40-Pin Connector	Raspberry Pi 40-Pin GPIO long-pin expansion header; 2.54mm pitch
Studs	M2.5×8+11 (M2.5 external thread, 8mm length + M2.5 internal thread, 11.5mm total)
Screws	M2.5×5 (effective tooth depth 5mm)
Colour Options	Black (ED-Pi5Case-HA-B) \| Silver (ED-Pi5Case-HA-S)

Installation Notes

The following notes apply to both ED-Pi5Case-O and ED-Pi5Case-B installations. A 1.5mm allen key is required but not included — it is supplied with your EDATEC case.

If the case is already assembled with the Raspberry Pi 5, remove the existing case mounting screws before starting.
Place the Raspberry Pi 5 on the bottom cover, aligning the mounting holes with the screw holes on the bottom cover.
Pass the PCIe cable from the HAT module through the pre-drilled hole in the top cover before placing the top cover down over the Raspberry Pi 5.
Place the top cover down over the Raspberry Pi 5 and align the screw holes.
Insert four M2.5×8+11 studs into the screw holes on the top cover and tighten clockwise by hand.
Connect the 40-Pin connector to the Raspberry Pi 5 GPIO header.
Connect the HAT module to the Raspberry Pi 5 via the 40-Pin connector and align the HAT screw holes with the four studs.
Insert four M2.5×5 screws into the HAT screw holes and tighten clockwise using the allen key to secure the HAT to the case.

Compatible Cases

Case Model	Description
ED-Pi5Case-OB	Open Frame Aluminium CNC Case for Raspberry Pi 5 — Black
ED-Pi5Case-OS	Open Frame Aluminium CNC Case for Raspberry Pi 5 — Silver
ED-Pi5Case-BB	Passive Cooling Aluminium CNC Box for Raspberry Pi 5 — Black
ED-Pi5Case-BS	Passive Cooling Aluminium CNC Box for Raspberry Pi 5 — Silver
