EDATEC VESA Adjustable Wall Mount Bracket

$ 11.90 USD

Sale Sold out

EDATEC P/N ED-VESA-B

Quantity

SKU:123004112

Out of stock — Available on backorder

Other VESA brackets: Fixed wall mount or Desk mount.

This listing is for the ED-VESA-B: adjustable VESA wall-mount bracket for EDATEC ED-MONITOR displays. Contact us if you have questions about compatibility with your display.

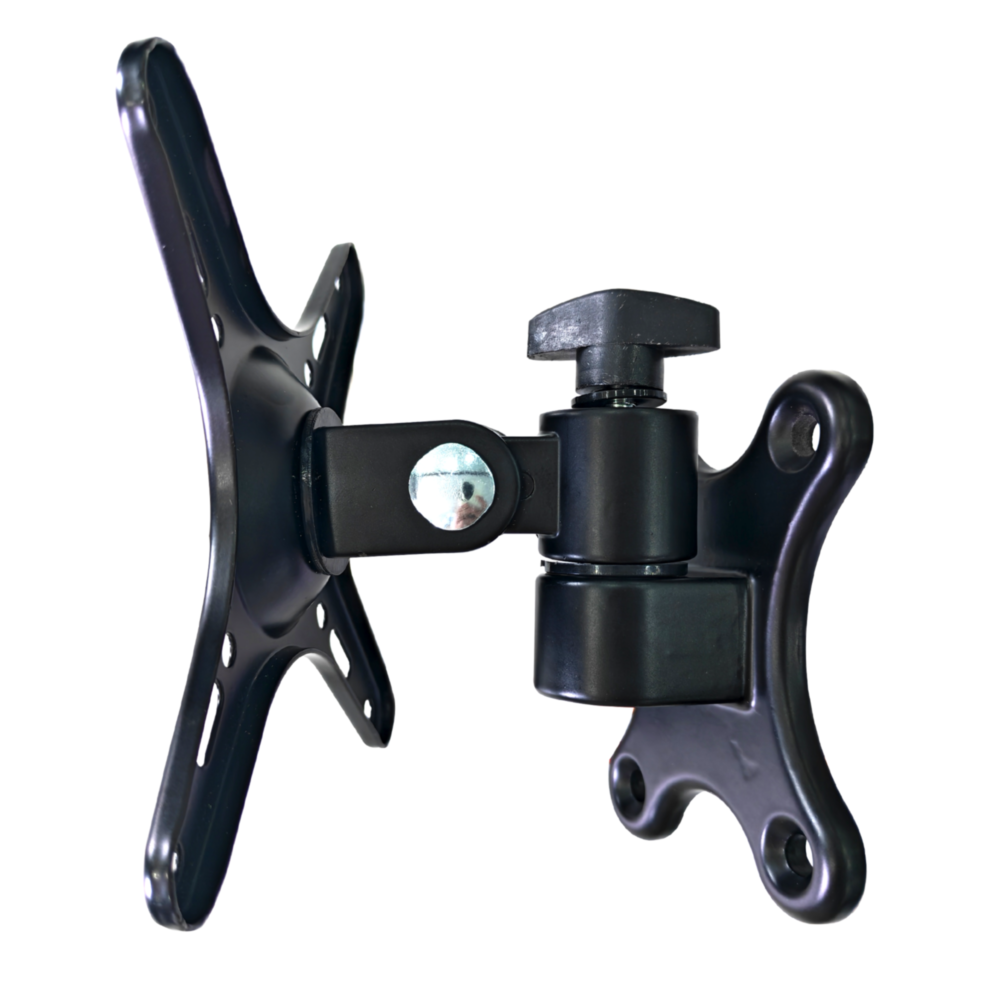

The ED-VESA-B is a versatile adjustable VESA wall-mount bracket designed for secure and flexible installation of monitors in industrial and commercial environments. Built from aluminium alloy and cold-rolled steel, it enables adjustable left/right viewing angles via a pivot mechanism. Supporting 50mm, 75mm, and 100mm VESA hole patterns with 85mm wall clearance and a maximum load capacity of 10kg, it is designed for use with EDATEC ED-MONITOR displays.

Key Features

Designed for: EDATEC ED-MONITOR displays
VESA Hole Patterns: 50×50, 75×75, 100×100mm
Installation: Wall-mounted with adjustable left/right pivot for viewing angle
Wall Clearance: 85mm
Max Load Capacity: 10kg
Construction: Aluminium alloy and cold-rolled steel, black finish
Applications: Industrial displays, control panels, kiosks, digital signage, office monitor mounting

Specifications

Category	Details
Material	Aluminium alloy and cold-rolled steel
Colour	Black
Weight	~326g
Max Load Capacity	10kg
VESA Hole Pattern	50×50mm / 75×75mm / 100×100mm
Wall Clearance	85mm
Angle Adjustment	Left/right pivot via rivet, washers, and handle screw
Installation	Wall-mounted

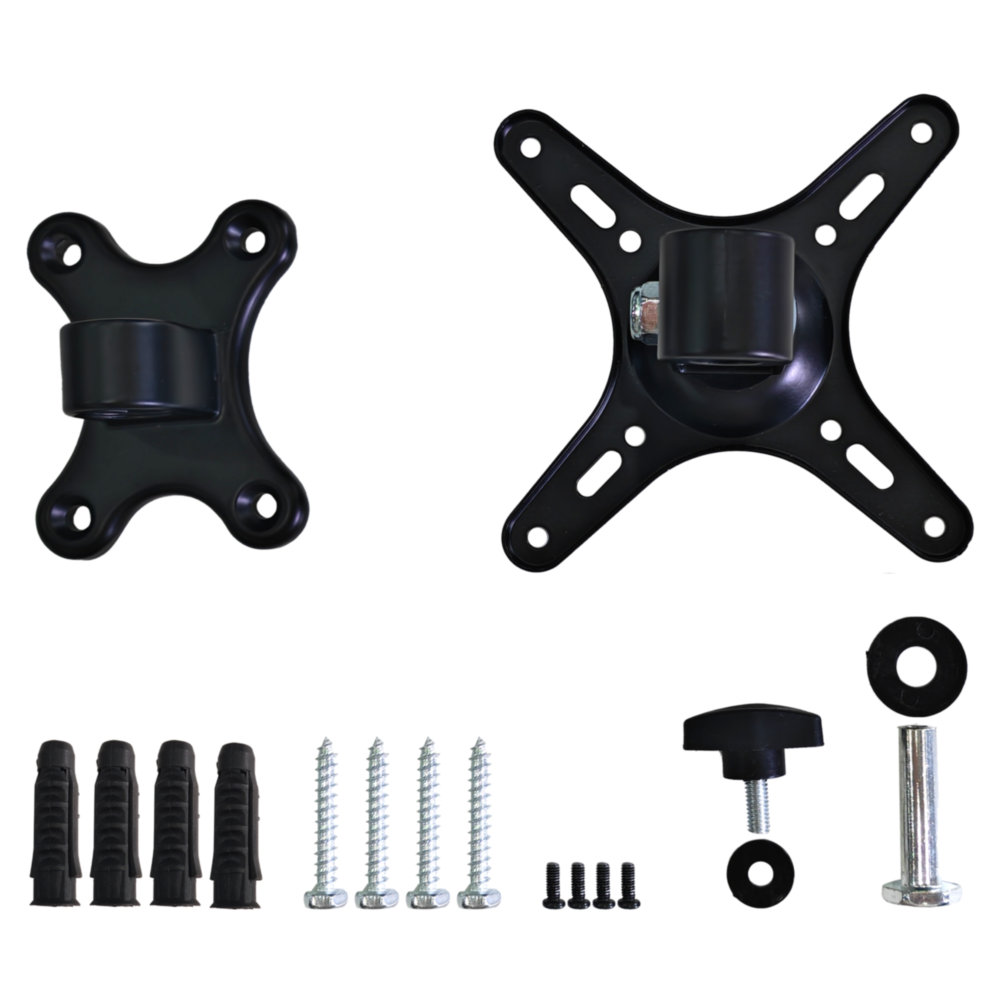

Wall Screws	4x M6×40 screws + 4x M6×40 plastic expansion tubes (included)
Monitor Screws	4x M4×5 screws (included)
Pivot Hardware	1x rivet + 2x washers + 1x handle screw (included)

Installation Notes

Tools required: electric drill, pencil, hammer, screwdriver.

Use a pencil to mark the 4 mounting hole positions on the wall based on the Base Plate screw hole spacing.
Drill 4 holes at the marked positions, then use a hammer to insert the 4 M6×40 plastic expansion tubes.
Align the Base Plate screw holes with the expansion tubes, insert 4 M6×40 screws, and tighten clockwise to fix the Base Plate to the wall.
Align the 4 screw holes on the bracket Panel with the VESA mounting holes on the back of the ED-MONITOR, insert 4 M4×5 screws, and tighten clockwise.
Attach the Panel (with ED-MONITOR) to the Base Plate using 1x rivet, 2x washers, and 1x handle screw. Refer to the diagram in the datasheet for correct orientation.
Rotate the bracket Panel left or right to set the desired viewing angle.

Tip: The VESA hole spacing for the ED-MONITOR is 75mm. ED-MONITOR is not included.
