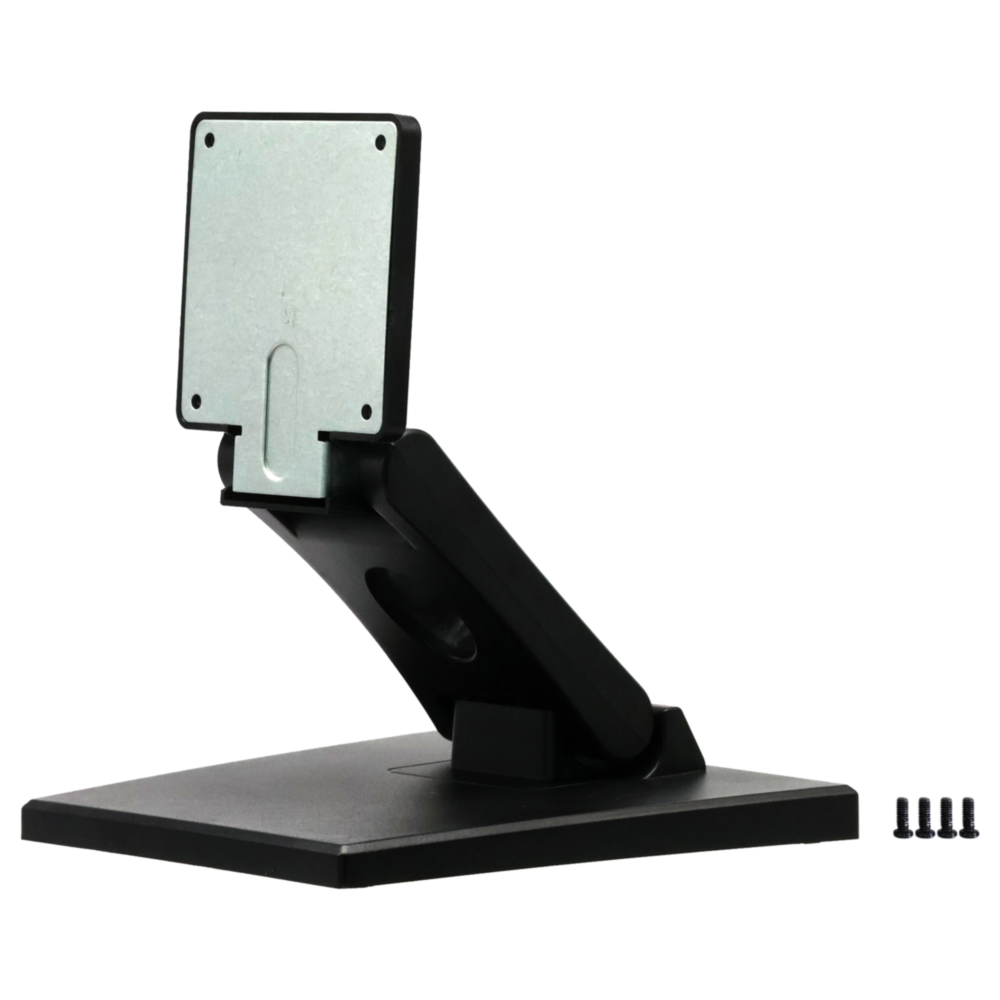

EDATEC VESA Desk Mount Bracket

Other VESA brackets: Fixed wall mount or Adjustable wall mount.

This listing is for the ED-VESA-C: VESA 75mm desk mount bracket for EDATEC ED-MONITOR displays. Contact us if you have questions about compatibility with your display.

The ED-VESA-C is a compact desk mount bracket designed for stable placement of EDATEC ED-MONITOR displays in industrial, commercial, and workspace environments. With a 75mm VESA hole pattern, plastic construction, and a maximum load capacity of 10kg, it provides a simple desk-based alternative to wall mounting. The bracket ships folded for easier transportation and unfolds for installation with just a Phillips screwdriver.

Key Features

• Designed for: EDATEC ED-MONITOR displays
• VESA Hole Pattern: 75mm
• Installation: Desk mount; ships folded, unfolds for use
• Max Load Capacity: 10kg
• Construction: Plastic, black finish
• Simple installation: Only a Phillips screwdriver required -- no drill needed
• Applications: Industrial monitor desk setups, operator stations, workstations, kiosks

Specifications

Installation Notes

Tools required: Phillips screwdriver only. No drill required.

• The bracket ships folded. Unfold it and adjust to the desired height before attaching the monitor.
• Locate the 75mm VESA mounting holes on the back of the ED-MONITOR.
• Align the 4 screw holes on the bracket panel with the VESA mounting holes on the ED-MONITOR, insert 4 M4×7 screws, and tighten clockwise with a screwdriver until the bracket is securely fixed.

Note: ED-MONITOR is not included.

What's in the Box

• 1x ED-VESA-C unit (desk mount bracket)
• 4x M4×7 screws (for attaching bracket to monitor)

Technical Documents

• DataSheet
