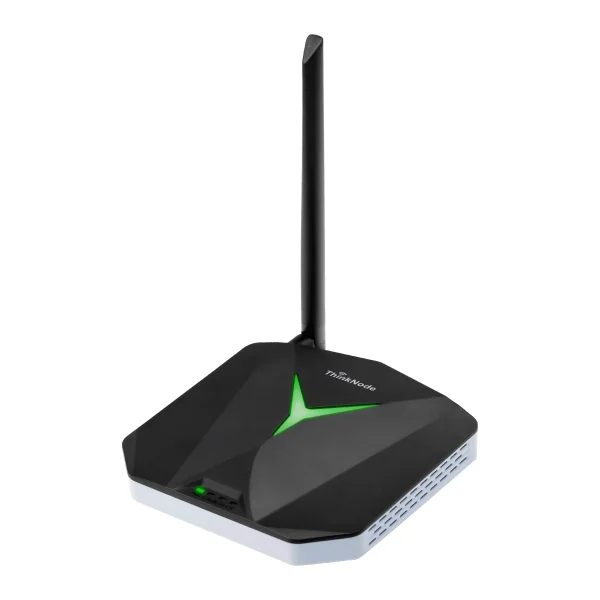

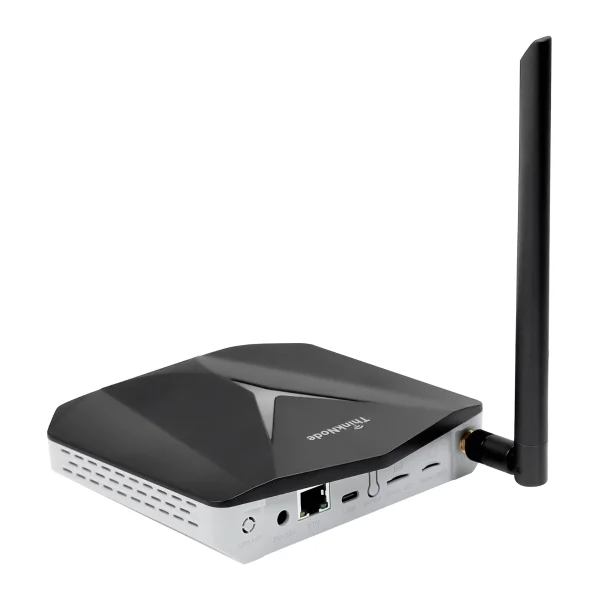

Elecrow ThinkNode G1 Indoor 8-Channel LoRaWAN Gateway

$ 89.00 USD

Sale Sold out

Frequency Band US915 EU868

Cellular Support & Region None Global - 4G Cellular Network

Quantity

SKU:123004060

Out of stock — Available on backorder

Need a single-channel gateway for development? See the ThinkNode G3. Want to add LoRa to a Raspberry Pi? See the LR1302 HAT, or the LR1302 LoRaWAN Gateway Module on its own.

The ThinkNode G1 Indoor LoRaWAN Gateway is a powerful, high-performance 8-channel gateway designed for reliable and scalable IoT network deployments. Built with the Semtech SX1302 LoRa concentrator and dual SX1250 RF chips, it delivers exceptional data processing capability with multiple parallel demodulation paths, ensuring efficient and stable communication.

Engineered for indoor environments, the G1 supports multiple connectivity options, including Wi-Fi, Ethernet, Bluetooth, and 4G, providing flexible network backhaul for various deployment scenarios. It utilizes advanced LoRaWAN packet forwarder technology, ensuring full compatibility with leading network servers like The Things Network (TTN) and ChirpStack.

The G1 ships in two hardware variants. The 902–928 MHz hardware is pre-configured for US915 and can be reconfigured by the customer for AU915, AS923, or KR920. The 863–870 MHz hardware is pre-configured for EU868 and can be reconfigured by the customer for IN865 or RU864. CN470 is not supported. Wide-area coverage of 5-10 km makes the G1 a good fit for smart infrastructure, industrial monitoring, and environmental sensing.

Designed for ease of use, the ThinkNode G1 features a user-friendly web interface, built-in network server capability, and plug-and-play functionality-allowing rapid deployment and simplified management.

Key Features

High-Performance Hardware
- Powered by MediaTek MT7628 processor
- Equipped with Semtech SX1302 LoRa concentrator
- Dual SX1250 RF chips
- Supports 10 parallel demodulation paths for efficient data handling
8-Channel LoRaWAN Gateway
- Enables simultaneous communication with multiple nodes
- Improves network capacity and scalability
Wide Signal Coverage
- Up to 5-10 km LoRaWAN range
- Reliable long-distance communication
- Suitable for dense IoT deployments
Flexible Connectivity Options
- Wi-Fi
- Ethernet
- Bluetooth
- 4G support
  Ensures continuous and reliable backhaul connectivity
Network Server Compatibility
- Fully compatible with:
  - The Things Network (TTN)
  - ChirpStack
- Supports standard LoRaWAN protocol
Built-in Gateway Server
- Plug-and-play deployment
- Reduces setup complexity
- Accelerates IoT project implementation
User-Friendly Management
- Intuitive web-based configuration interface
- Remote management and monitoring
- Easy parameter setup and maintenance
Global Frequency Support
- Covers 815MHz–960MHz ISM band
- Pre-configured for EU868 / US915

Applications

Smart Cities: Smart lighting, traffic systems, public safety, and environmental monitoring
Smart Agriculture: Soil monitoring, weather stations, livestock tracking
Industrial IoT (IIoT): Remote equipment monitoring and predictive maintenance
Smart Buildings & Home Automation: Energy management, lighting control, and security systems
Logistics & Supply Chain: Asset tracking and fleet management
Smart Metering: Remote monitoring of electricity, water, and gas usage
Environmental Monitoring: Air quality, water quality, and climate data collection
Emergency & Disaster Response: Reliable communication in critical situations
Consumer Applications: Home security and personal IoT systems

Technical Specifications

Category	Specification
Processor
CPU/SoC	MT7628N (MIPS24KEc @ 580MHz CPU)
System Memory	128 MB DDR2
Storage	32MB Nor Flash
Configuration Software	WEB
Communication
Wi-Fi	IEEE 802.11 b/g/n, built-in antenna
Wired	IEEE 802.3 / 802.3u, RJ45 (10M / 100M)
Bluetooth	Bluetooth dual-mode (BR/EDR + BLE 5.0), built-in ceramic antenna
LoRaWAN
Baseband Chip	SX1302 (LR1302 baseband module)
Channel	8 Channels (ch0–ch7)
Node Protocol	Class A / Class B / Class C
Pre-configured Plans	EU868 (863–870 MHz hardware) or US915 (902–928 MHz hardware)
Additional Plans (customer-configured firmware)	AU915, AS923, KR920 on 902–928 MHz hardware; IN865, RU864 on 863–870 MHz hardware
Not Supported	CN470
LoRaWAN Spec Version	1.0.2
Regional Parameters	RP001 v1.0.2
Sensitivity	-125dBm @125KHz/SF7 -139dBm @125KHz/SF12
Transmit Power	Max 26 dBm
Antenna	1. Rubber antenna, 3dBi gain, 50Ω 2. External base antenna (optional), 3dBi gain, 50Ω

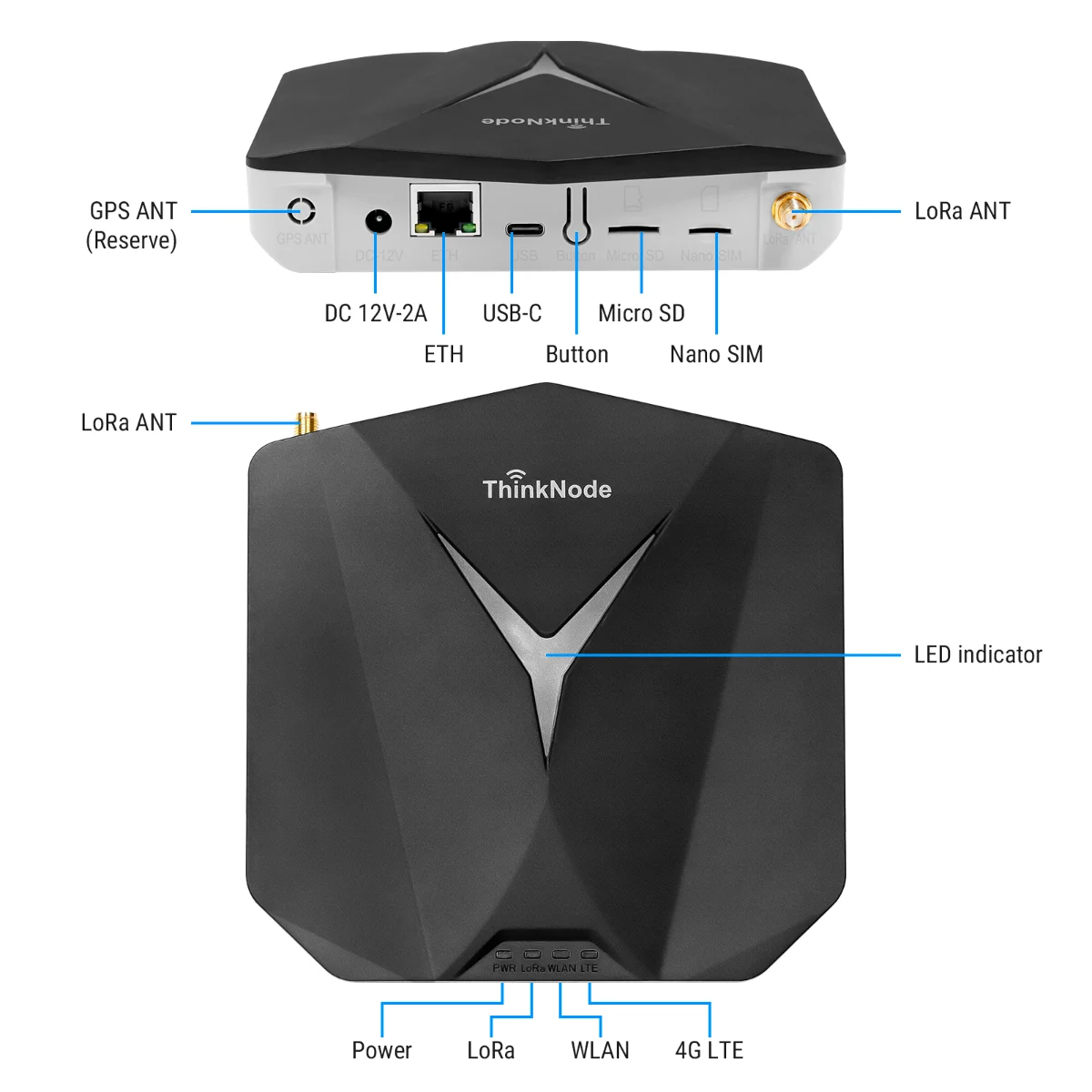

Interface
DC Socket	Power input, DC 12V / 2A
Ethernet	RJ45 (10M / 100M)
LoRa Antenna Socket	RP-SMA female
GPS Antenna Socket	RP-SMA female
Type-C Interface	Used for configuration, firmware burning, debugging
Micro SD Card Slot	Yes
Nano SIM Card Slot	Yes

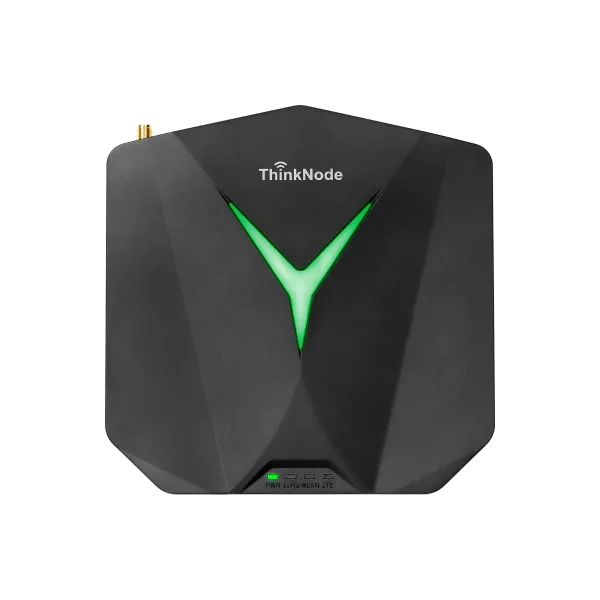

Indicator
Device Status Light	Yes
4G	Yes (Optional)
WLAN	Yes
LoRa	Yes
PWR	Yes
Button
Reset Button	Yes
Mechanical

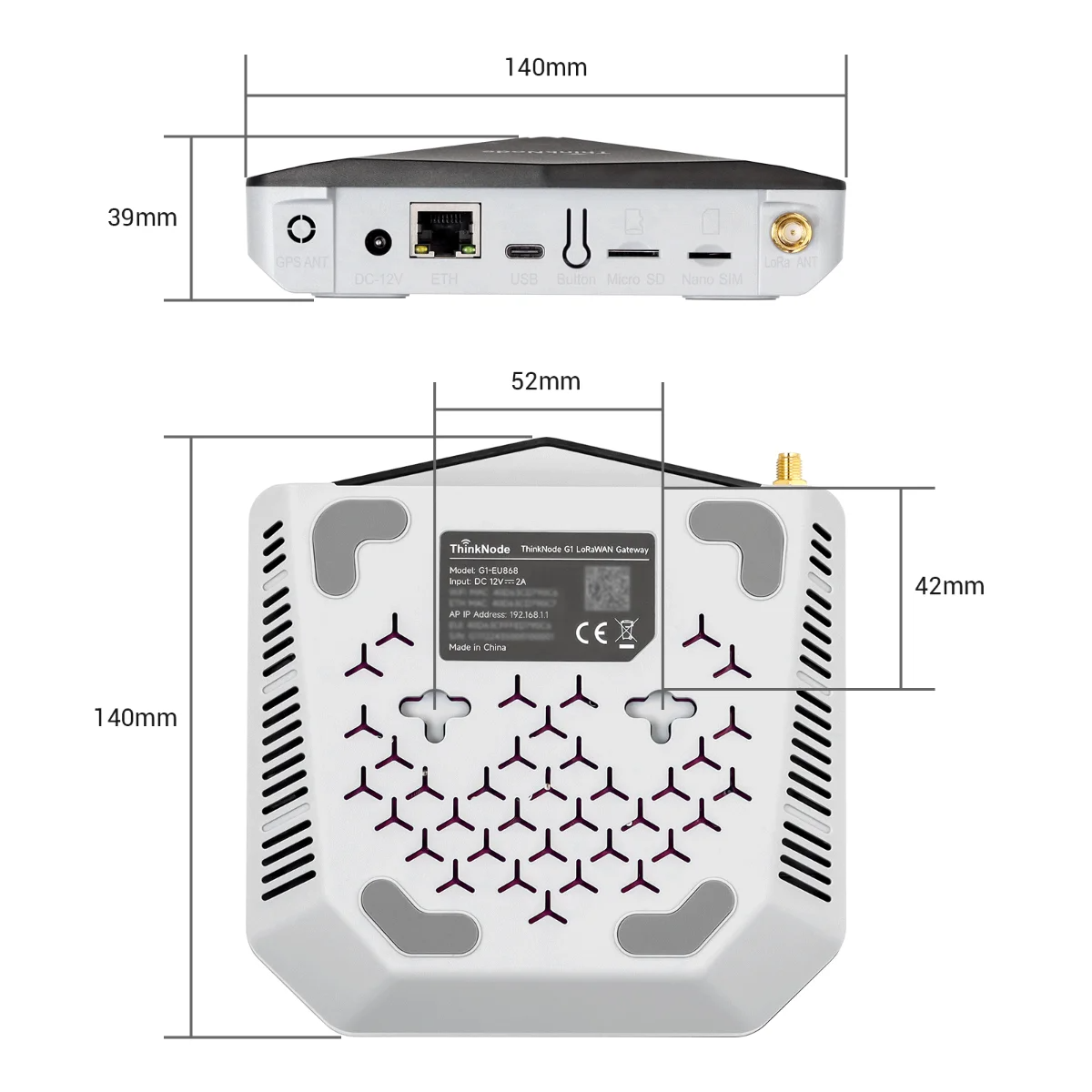

Size	140 × 140 × 38 mm
Case Material	ABS + PC (case), PC frosted (light guide)
Power
Power Input	12V / 2A
Environment
Operating Temperature	-20℃ ~ 55℃
Storage Temperature	-30℃ ~ 70℃

Why Choose ThinkNode G1?

The ThinkNode G1 stands out with its high channel capacity, strong signal coverage, and flexible connectivity options, making it a reliable backbone for IoT networks. Whether you're building a smart city infrastructure or an industrial IoT system, this gateway delivers the performance and scalability needed for modern deployments.
