Elecrow LR1302 LoRaWAN Gateway Module SPI
Elecrow LR1302 LoRaWAN Gateway Module SPI
SKU:123004064
Out of stock — Available on backorder
Couldn't load pickup availability

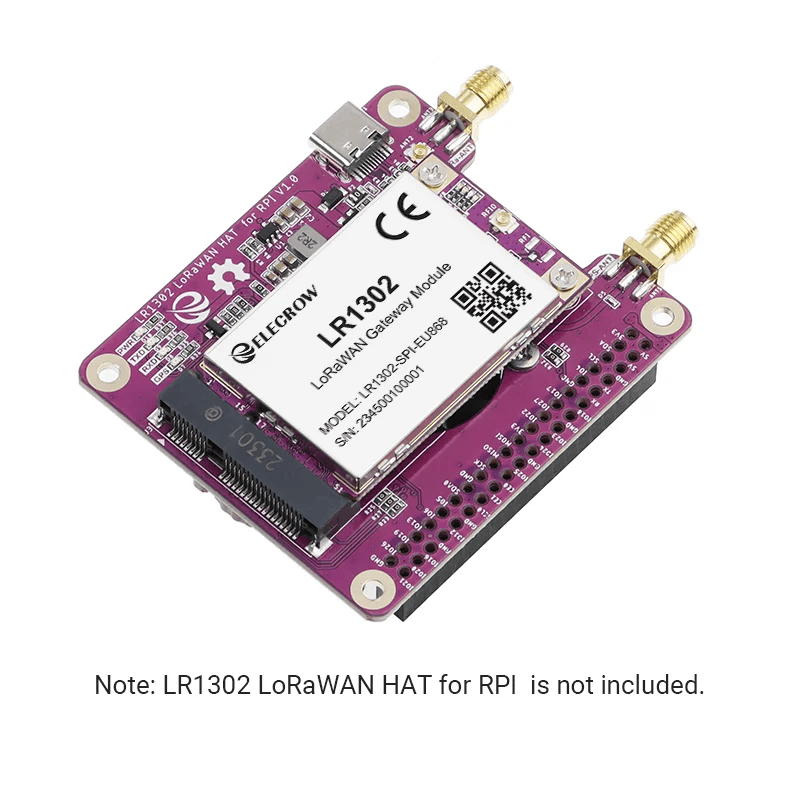

Also available: the LR1302 HAT for Raspberry Pi. Looking for a complete gateway? See the ThinkNode G1.
The LR1302 LoRaWAN® Gateway Module is a next-generation, high-performance solution designed for IoT gateway applications. Built on the advanced Semtech SX1302 LoRaWAN baseband chip, it delivers improved sensitivity, lower power consumption, and reduced operating temperature compared to previous generations such as SX1301 and SX1308.
Featuring a mini-PCIe form factor, the LR1302 is compact and easy to integrate into space-constrained gateway devices. It supports 8-channel data transmission, enabling higher communication capacity and efficient data handling for large-scale IoT deployments.

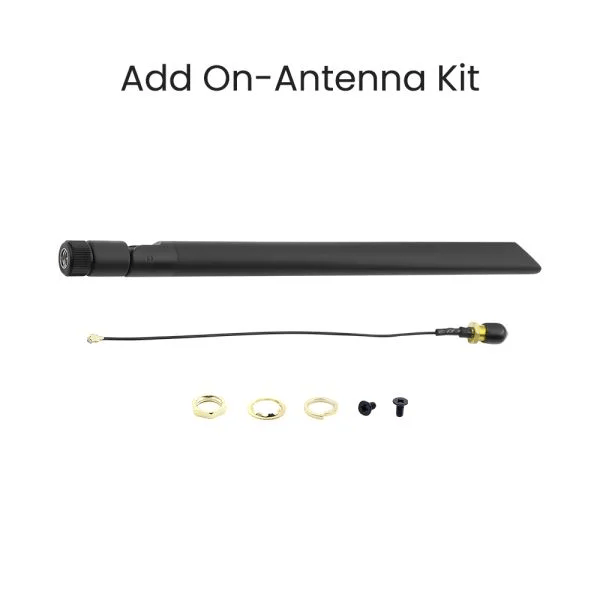

The module includes dual antenna interfaces-one for LoRa signal transmission/reception and one U.FL (IPEX) interface for independent transmission. A built-in metal shield enhances signal stability by protecting against external interference.
Available in SPI and USB versions, and supporting both EU868 and US915 frequency bands, the LR1302 provides flexible deployment options for global LoRaWAN networks.
Designed for a wide range of IoT applications, the LR1302 ensures reliable connectivity and efficient long-distance data transmission in environments such as smart cities, agriculture, and industrial automation.
Key Features
-
High-Performance SX1302 Chipset
Uses Semtech SX1302 baseband LoRa chip with ultra-low power consumption and excellent performance. -
Compact Mini-PCIe Design
Small form factor enables easy integration into space-limited gateway systems. -
8-Channel Communication
Supports 8-channel data transmission for improved efficiency and network capacity. -
Low Operating Temperature
Eliminates the need for additional cooling, reducing overall gateway size and complexity. -
High Sensitivity & Power Output
Equipped with SX1250 TX/RX front end:- Sensitivity up to -139 dBm @ SF12
- TX power up to 26 dBm @ 3.3V
-

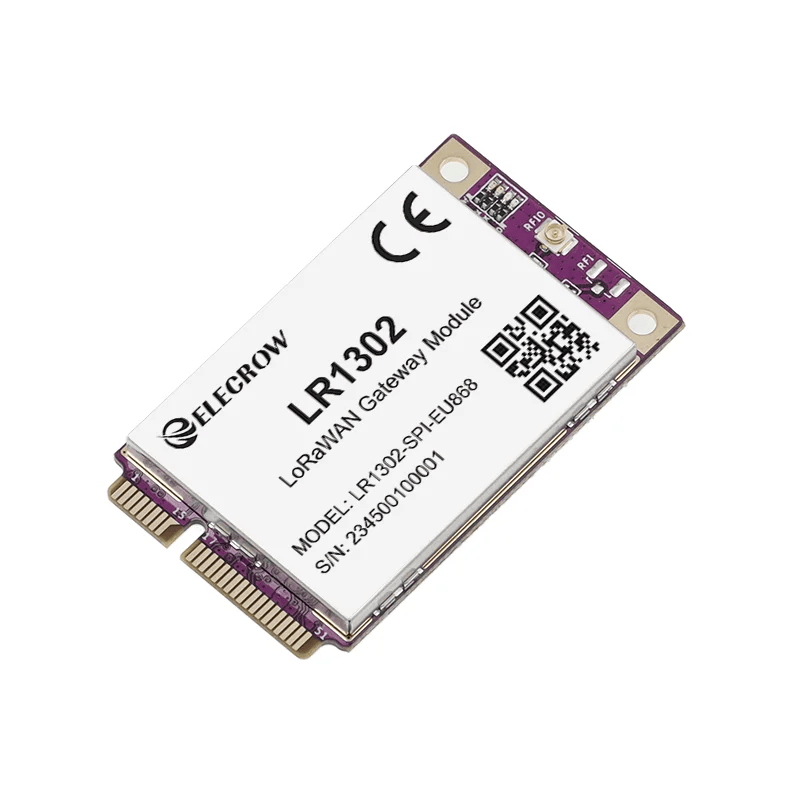

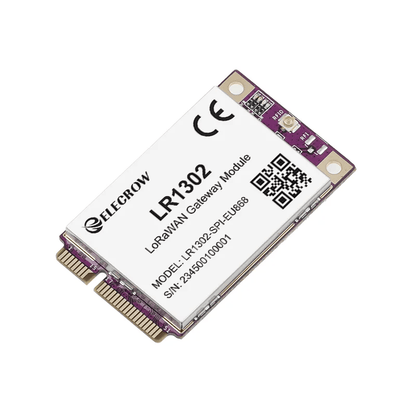

CE Certified (EU868)
Simplifies certification of end products for European markets. -

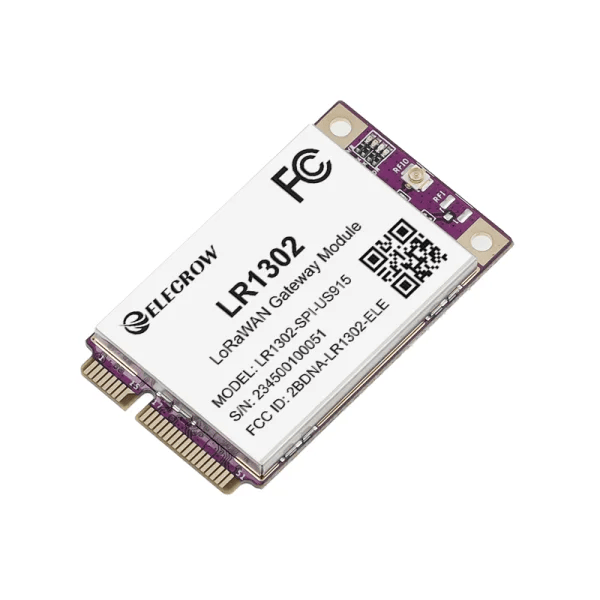

FCC Certified (US915)
Facilitates easier certification for North American deployments.
Specifications
| Category | EU868 | US915 |
|---|---|---|
| Frequency | 863-870MHz | 902-928MHz |
| Chip set | Semtech SX1302 Chip | |
| Sensitivity | -125dBm @125K/SF7 -139dBm @125K/SF12 |
-125dBm @125K/SF7 -139dBm @125K/SF12 |
| TX Power | 26 dBm (with 3.3V power supply) | 25 dBm (with 3.3V power supply) |
| Bandwidth | 125/250/500 kHz | |
| Channel | 8 channel | |
| Form Factor | Mini PCIe, 52pin Golden Finger | |
| Power Consumption (SPI version) | Standby: 7.5 mA TX maximum power: 415 mA RX: 40 mA |
|
| Power Consumption (USB version) | Standby: 20 mA TX maximum power: 425 mA RX: 53 mA |
|
| Antenna Connector | U.FL | |
| Operating Temperature | -40°C to 85°C | |

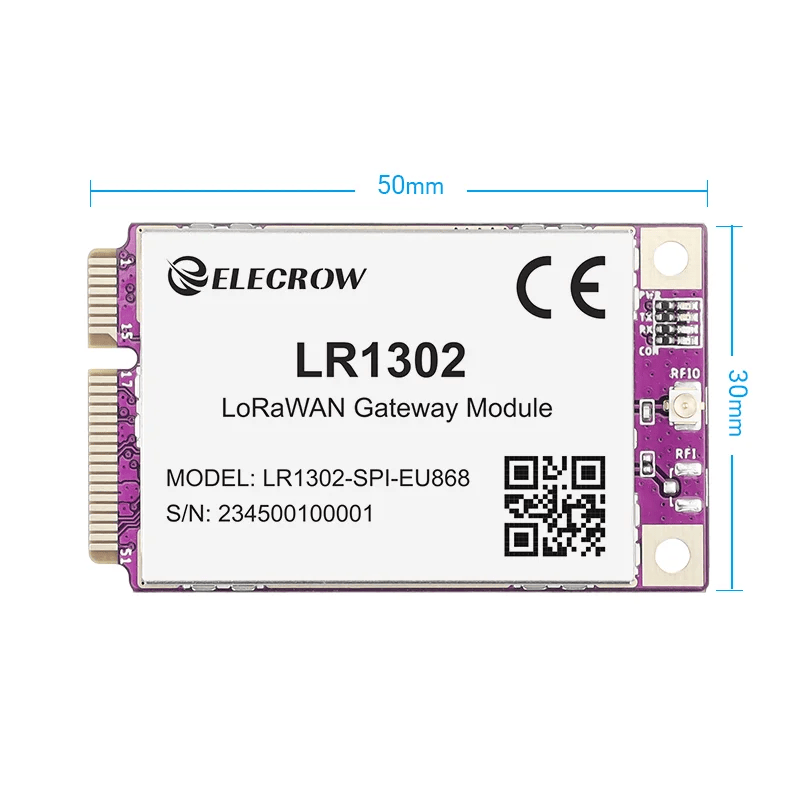

| Dimensions | 30 mm (width) × 50.95 mm (length) | |
Technical Documents
