MCCI Model 2411 Traduci I/O Translator (BTP)
MCCI Model 2411 Traduci I/O Translator (BTP)
SKU:123001913
Low stock: 6 left
Couldn't load pickup availability

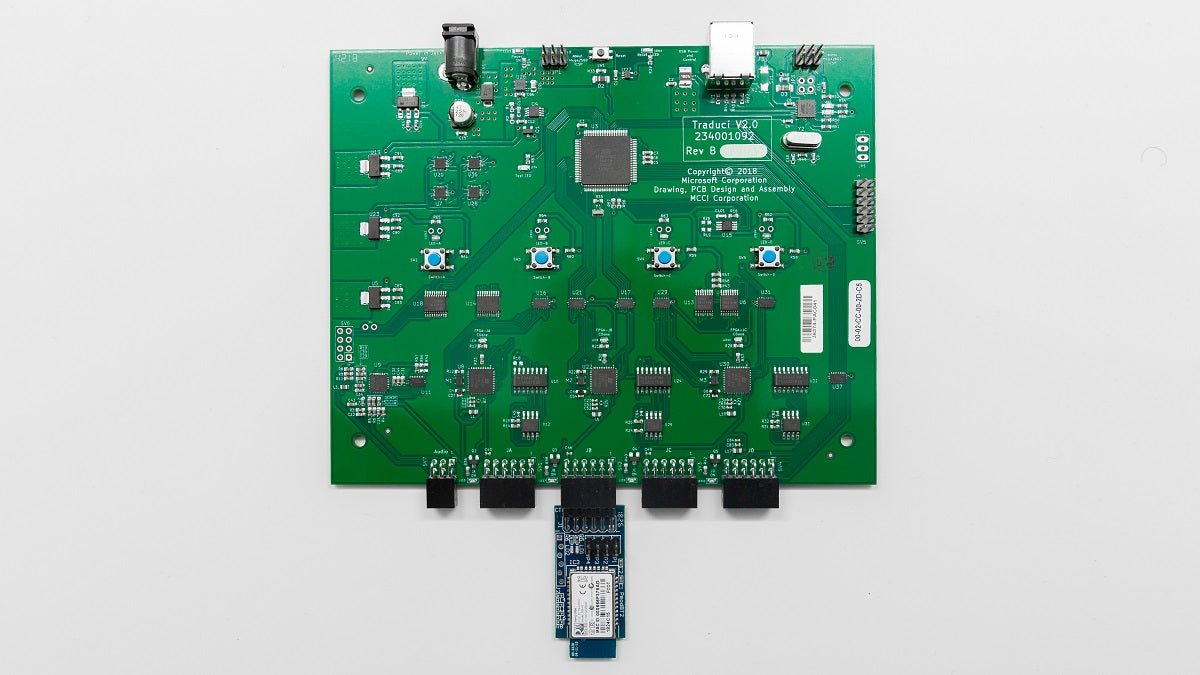

The MCCI Model 2411 Traduci is a programmable I/O translator with USB control (laboratory PCB version) and is the hardware platform at the core of the Bluetooth Test Platform (BTP) - designed for automating the testing of Bluetooth hardware, drivers, and software. The BTP can be used to exercise Bluetooth radios both in the host (PC) and peripherals and is intended to be an extensible framework. The board provides several 12-pin connectors to communicate with any radio module; audio radios and breakouts contain radio modules with the necessary pins broken out to the required 12-pin layout. See the product home page for more details.
Supported radio hardware boards for BTP testing are listed below. Get them from the MCCI store page by clicking the links.
The BTP consists of the Traduci hardware platform combined with supporting software from Microsoft. The BTP hardware platform supports power management and sideband control of peripheral radios connected to it, while the software package includes tests, a firmware package, and a provisioning tool.
Documentation is available on MSDN on how to build adapters to use BTP to test Bluetooth modules, audio modules, and I2C interfaces for compatibility with Windows 10. See the following links:
Mechanical Specification

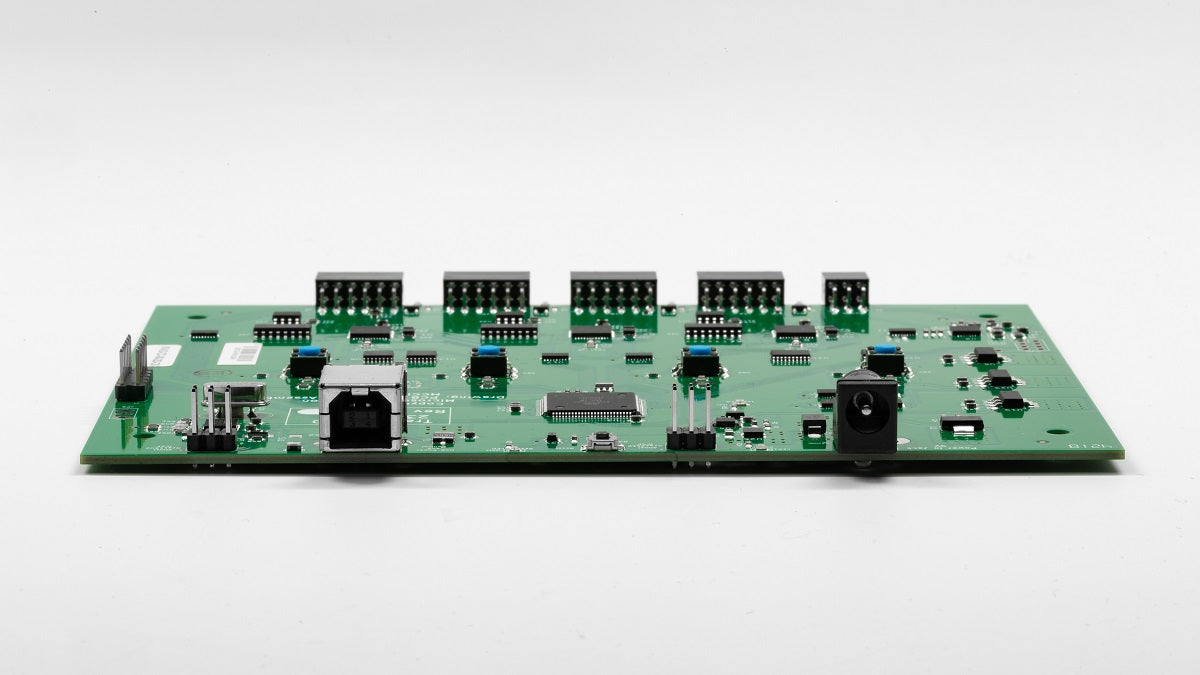

This version is the PCB without enclosure. Mount it on standoffs or in your own enclosure.
Technical Documents
More Information
Due to supply chain issues, stock is intermittent. Contact MCCI via email (sales@mcci.com) for further assistance and the availability of BTP products (ESP32, RN42, RN52, BM62, Bluefruit).
